Wallys/Dual-Band, 2.4~2.5GHz/5.15~5.85GHz, Covering Wi-Fi 6 Frequencies

Dual-Band, 2.4~2.5GHz/5.15~5.85GHz, Covering Wi-Fi 6 Frequencies

Covers Wi-Fi 6 Frequencies: 5.9-71GHz



GW.05.0153

PRODUCTS_Wallys Communications (Suzhou ) Co., LTD (wallystech.com)

Wallys Communications (Suzhou ) Co., LTD（http://www.wallystech.com） is a professional supplier of wireless communication products and has a complete industrial chain in China. Our biggest advantage is our independent research and development ability, which can support you in the later period.



IPQ6000/IPQ6018/IPQ6010/IPQ4019/IPQ4029/ipq4018/IPQ8072/IPQ8074/QCN9074/QCN9072/QCN9024/IPQ5018/AR9223/QCA9880/QCA9882 /AR9582/AR9531/AR9344/AR9531

BY:Wallys Communications (Suzhou ) Co., LTD
EMAIL:​sales3@wallystech.com

wifi6 router/network card
wifi 6E
WiFi 6
802.11ax/802.11ac
wireless solutions
Dipole/ panel //Dual Polarization Enclosure /Smart /omni /Antenna
Wireless Access Point/Point to Point /



Description:

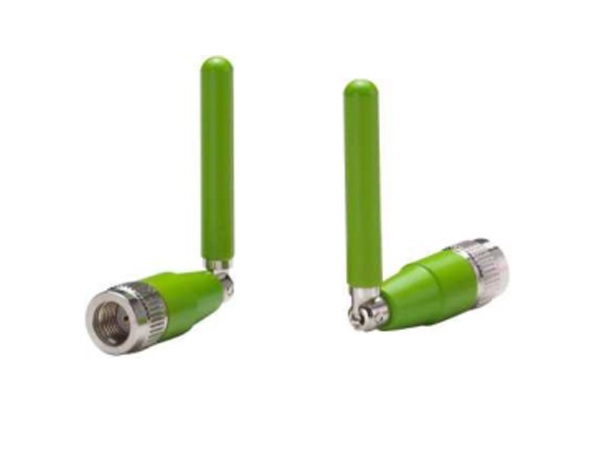

Dual-Band Wi-Fi 2.4~2.5GHz/5.15~5.85GHz Terminal Mount Monopole Antenna

Also Covering Wi-Fi 6 Frequencies

Features:

High Efficiency 一 with and without ground plane

Wi-Fi 2.4/5.8/7.1GHZ

Covers Wi-Fi 6 Frequencies: 5.9-71GHz

Extremely Compact - 62.3mm ± 1.5mm

Aesthetic look and feel

Unique can rotate 360 degrees and articulate through 180 degrees

Max Peak Gain compliant with most Wi-Fi modules

Connector: RP-SMA(M)

Dimensions: 62.3*Ø10mm

RoHS & Reach Compliant



General Data



Product Name	Terminal Mount Monopole Antenna
Part No.	GW.05.0153
Frequency	Wi-Fi 2.4/5.8/7.1G HZ
Antenna length	62.3mm
Antenna Diameter	10mm
Casing	POM
Connector	RP-SMA(M)
Weight	6g
Recommended Torque for Mounting	0.9N-m
Operation Temperature	-40°C~ + 85°C
Storage Temperature	-40°C~ + 85°C
Humidity	Non-condensing 65°C 95% RH
