shaderlab波浪扩散效果

记录一下波浪扩散效果

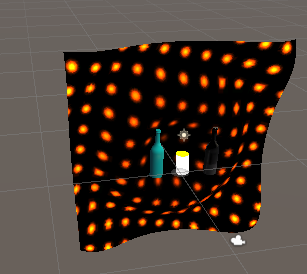

//波浪扩散
Shader "Custom/PointShader"
{
    Properties{
    	_Color("MainColor", Color) = (1,1,1,1)
	_MainTex("MainTexture", 2D) = "white" {}
        _RotateSpeed("RotateSpeed", Range(-20, 20)) = 20
        _WaveSpeed("WaveSpeed",Range(-20, 20)) = 20
        }
    SubShader{
        Pass{
            CGPROGRAM
	    #pragma vertex vert
	    #pragma fragment frag
	    #include "UnityCG.cginc"
            fixed4 _Color;
            sampler2D _MainTex;
            float _RotateSpeed;
            float _WaveSpeed;

            struct appdate{
            float4 vertex : POSITION;
            float2 uv : TEXCOORD0;
            };

            struct v2f{
                float4 pos : SV_POSITION;
		float2 uv : TEXCOORD0;
                float dis : TEXCOORD1;
            };

            v2f vert(appdate v){
                v2f o;
                o.dis = length(v.vertex.xz);
                //顶点旋转
                // v.vertex.xz = float2(v.vertex.x * cos(_RotateSpeed * _Time.x) - v.vertex.z * sin(_RotateSpeed * _Time.x),
		//v.vertex.x * sin(_RotateSpeed * _Time.x) + v.vertex.z * cos(_RotateSpeed * _Time.x));

                //顶点中心扩散波浪
                v.vertex.y = sin(_Time.y*_WaveSpeed + v.vertex.y + o.dis);
                o.pos = UnityObjectToClipPos(v.vertex);
                o.uv = v.uv;
                return o;
            }

            fixed4 frag(v2f i) : SV_Target{


				float2 uv = i.uv.xy - float2(0.5, 0.5);

				//旋转矩阵公式
				uv = float2(uv.x * cos(_RotateSpeed * _Time.x) - uv.y * sin(_RotateSpeed * _Time.x),
							uv.x * sin(_RotateSpeed * _Time.x) + uv.y * cos(_RotateSpeed * _Time.x));

				//恢复纹理位置
				uv += float2(0.5, 0.5);
                //uv += float2(0.5, 0.5)*sin(_Time.x*i.dis);
                //像素查询旋转
                //fixed4 c = tex2D(_MainTex , uv)*_Color*(0.5,0,0.5,1);
                fixed4 c = tex2D(_MainTex , uv)*_Color*i.dis*(_Time.x+0.5);
                //fixed4 c = tex2D(_MainTex , uv)*_Color*0.5;
                return c;
            }
            ENDCG
        }
    }
}

//圆环扩散
Shader "Custom/planeShader"
{
    Properties
    {
        // _Color ("Color", Color) = (1,1,1,1)
        //_MainTex ("Albedo (RGB)", 2D) = "white" {}
        // _Glossiness ("Smoothness", Range(0,1)) = 0.5
        // _Metallic ("Metallic", Range(0,1)) = 0.0
        _MainColor ("MainColor", Color) = (1,1,1,1)
        _Speed("Speed",Range(0,1)) = 0.5
        _Concentration("Concentration",Range(0,5)) = 3
    }
    SubShader
    {
	Tags { "RenderType"="Transparent" "Queue"="Transparent" }
        // No culling or depth
        Cull Off ZWrite On ZTest Always
	Blend SrcAlpha OneMinusSrcAlpha

        Pass
        {
            CGPROGRAM
            #pragma vertex vert
            #pragma fragment frag

            #include "UnityCG.cginc"

            struct appdata
            {
                float4 vertex : POSITION;
                float2 uv : TEXCOORD0;
                float3 normal : Normal;
            };

            struct v2f
            {
                float2 uv : TEXCOORD0;
                float4 vertex : SV_POSITION;
            };

            v2f vert (appdata v)
            {
                v2f o;
                o.vertex = UnityObjectToClipPos(v.vertex);
                o.uv = v.uv;
                return o;
            }

            float4 _MainColor;
            float _Speed;
            float _Concentration;

            fixed4 frag (v2f i) : SV_Target
            {
                //dis的值应该在0-0.5
                float dis = length(i.uv - fixed2(0.5,0.5));
                //sin(_Time.y * _Speed)
                //加0.001防止fade为0 frac函数返回小数部分 fade的值为0-1
                fixed fade = frac(_Time.y * _Speed) * 10 + 0.001;
                //划分颜色层ladder的值为0-0.5
                //float ladder = dis * 10 / fade;
                float ladder = ceil(dis * 10) / fade;

                //半径为0.5，去除不必要的计算
                //fixed3 col = _MainColor.rgb * (1 - dis);
                fixed3 col = _MainColor.rgb * (1 - ladder) * sin(_Time.y * _Speed);
                //裁剪圆，alpha浓度
                fixed a = step(ladder,0.5) * pow(log(2),_Concentration);
                //fixed a = step(dis,0.5) * pow(log(2),_Concentration);
                return fixed4(col.r,col.g,col.b,a);
            }
            ENDCG
        }
    }
}
