thingsboard 网关 tb-gateway

1、背景

thingsboard由于要接入的设备以及设备种类比较多，不同的设备对应不同的产商以及不同的协议，如果全部都由thingsboard来对接的，就回显得tb非常的混乱以及冗肿，所以我们可以使用网关作为tb与设备之间的桥梁，网关对设备，tb对网关，这样，适配设备就在网关了，tb只是接受统一的遥测数据即可。

2、tb-gateway的安装

1、使用docker的方式

docker run -it -v ~/.tb-gateway/logs:/thingsboard_gateway/logs -v ~/.tb-gateway/extensions:/thingsboard_gateway/extensions -v ~/.tb-gateway/config:/thingsboard_gateway/config --name tb-gateway --restart always thingsboard/tb-gateway:3.2

把网关的log文件以及配置文件都映射到本机的 ~/.tb-gateway 目录里面

2、使用源码打包镜像的方式（针对二次开发）

https://github.com/thingsboard/thingsboard-gateway 去这里下载源码，因为是python写的所以需要安装python，本机安装了python3.10，使用idea打开源码

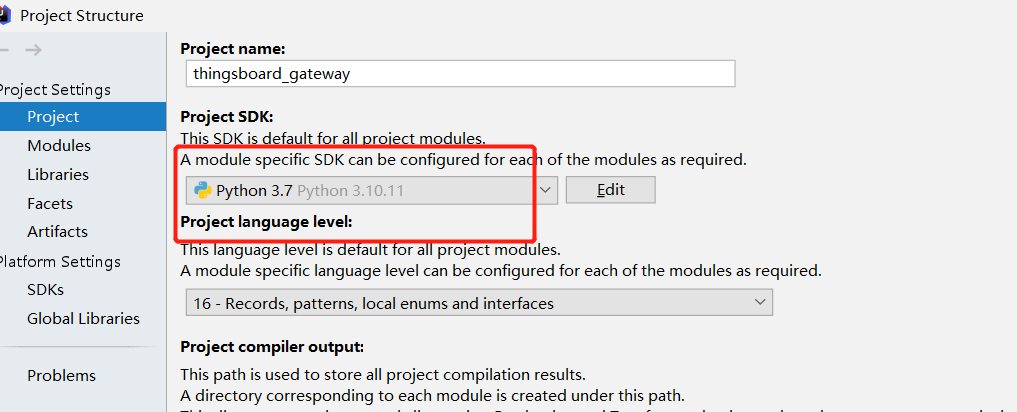

配置使用python来编译以及解析源码

这样配置之后再安装python插件就可以使用idea来编辑python了，也可以使用python的专业编辑器，这里就懒得破解了

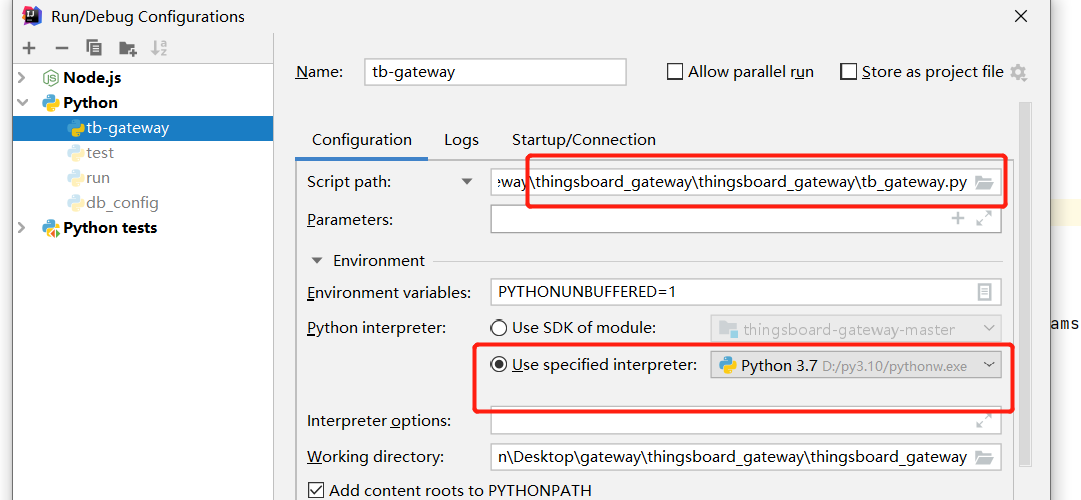

这里配置启动配置

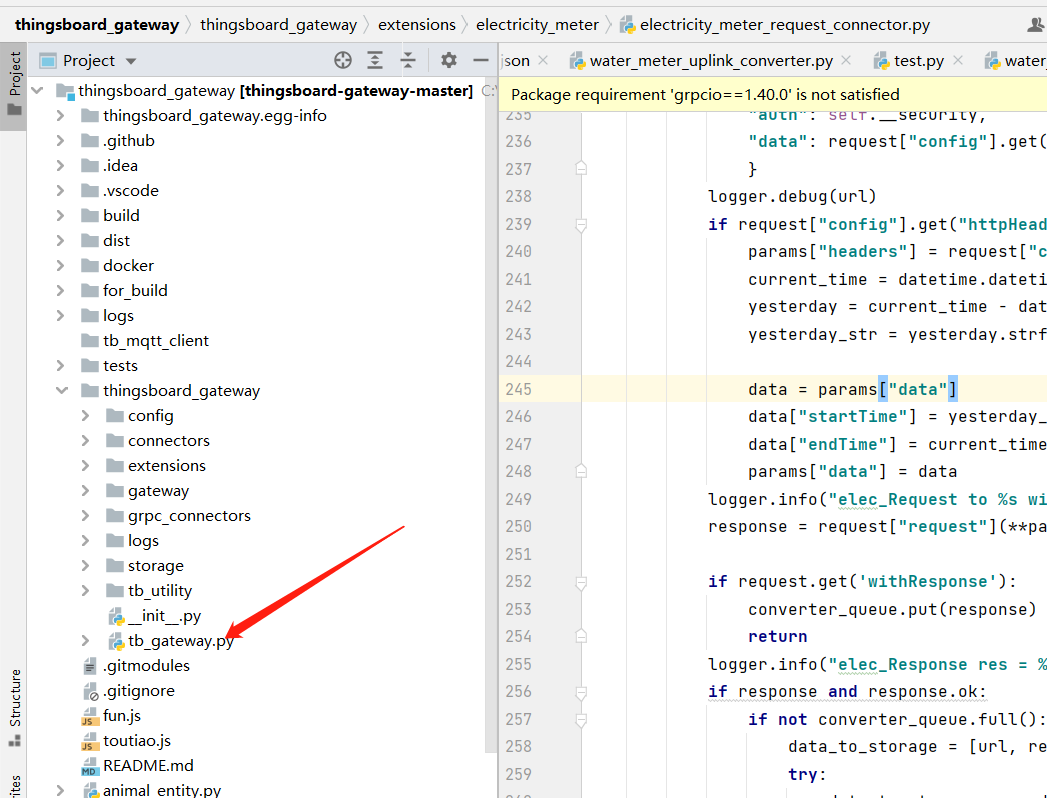

上面指定的启动类是这个

然后就是跟编辑Java一样的编辑python即可，可以看到上面有一个docker文件夹，里面有个Dockerfile文件，二次开发完，使用 docker build 命令直接打包成镜像即可

3、网关的简单二次开发对接设备

上面的docker 部署我们说过把log以及配置文件映射了出来，配置文件有两个文件夹config以及extensions，config里面放置的配置通讯协议、通讯地址、要获取遥测数据字段以及设备属性字段，extensions 里面配置的对应的config里面文件的转换器Converter（把从设备获取到的遥测数据，按照config文件里面的格式来转换）以及连接器Connector（连接器决定选择哪一个转换器）

进入 config目录，可以看到tb-gateway.yaml文件

thingsboard:
host: localhost
port: 1883

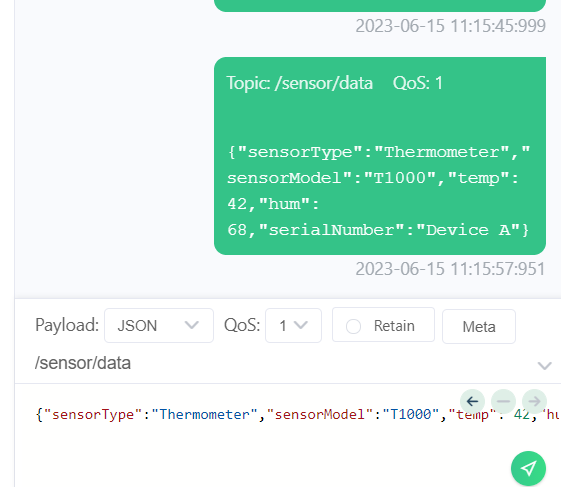

修改这两个地方，为thingsboard的地址以及mqtt通讯端口，接下通过mqtt客户端模拟设备通过网关跟thingsboard通讯，先在tb创建一个网关设备，是否网关选择是，然后复制token

security:
accessToken: 56lUaVDiiUUqpI4XTymF (上面创建网关设备的token)

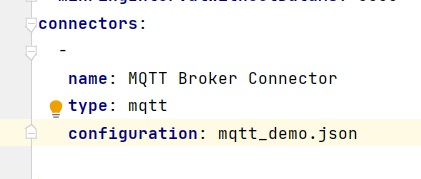

在config里面新增一个mqtt的通讯配置，可以看到里面已经有一个mqtt.json的模板，我们复制一个改为自己的名字 mqtt_demo.json

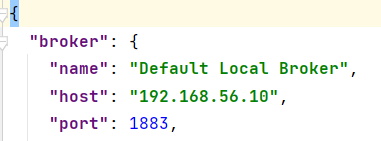

修改这里为相关的mqtt地址以及端口，要注意跟前面tb-gateway.yaml文件的mqtt配置区分开，这里是网关跟设备的连接，上面是网关跟tb的链接

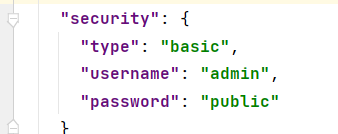

这里填入MQTT相关的用户密码

这mapping里面填入的映射的信息，

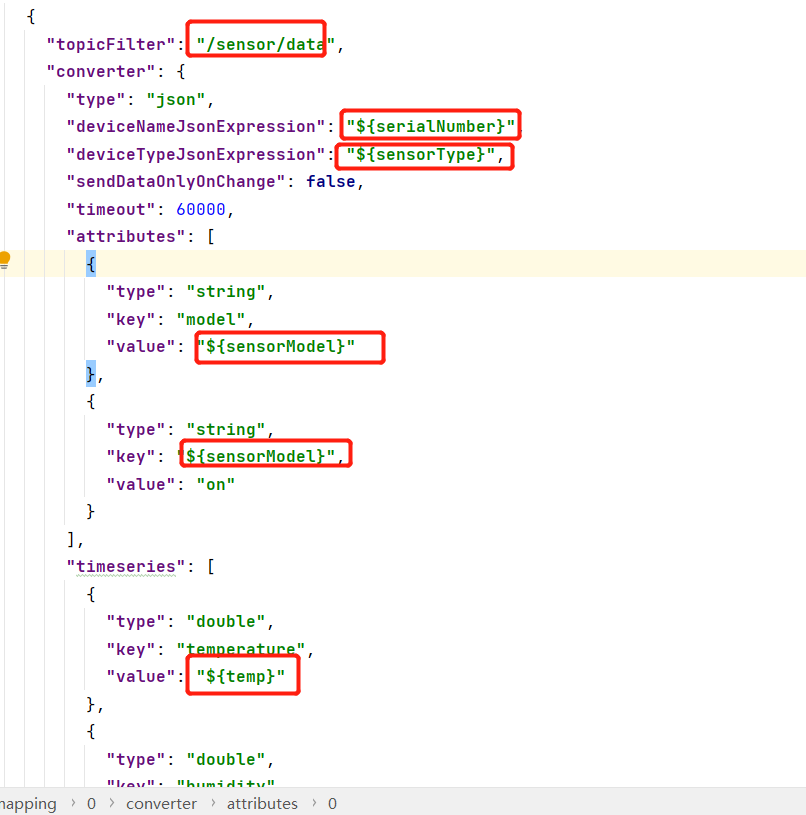

topicFilter mqtt往这个主题里面发送遥测数据

${x} 这个表示使用x作为key，去mqtt过来的数据里面取value

"deviceNameJsonExpression": "${serialNumber}", serialNumber 这个字段作为设备名称

"deviceTypeJsonExpression": "${sensorType}", sensorType 这个字段作为设备类型，下面的字段也是同理

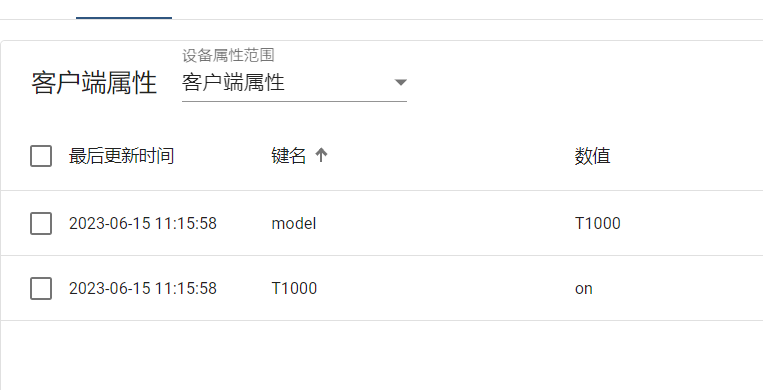

attributes:[] 这个属性里面的元素，作为设备的客户端属性

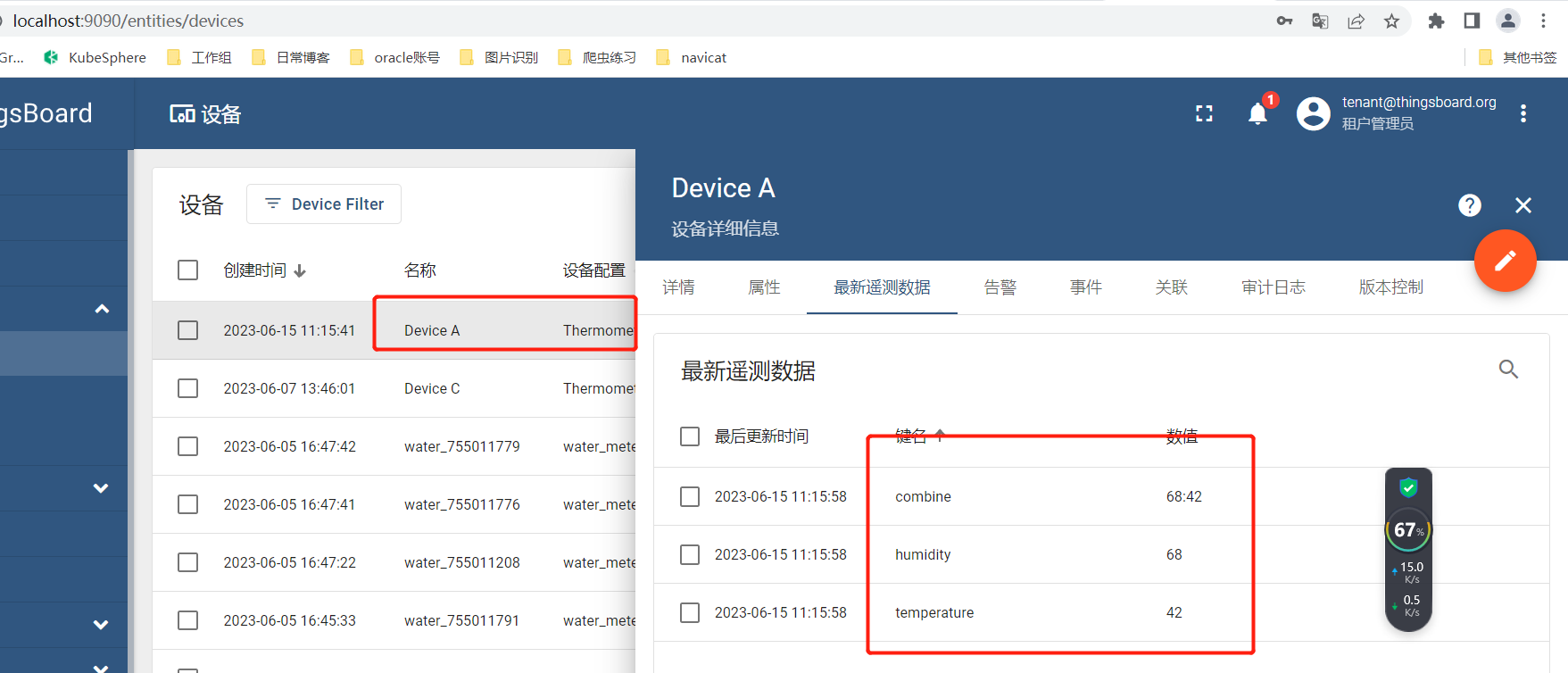

timeseries:[] 这个属性里面的元素，作为设备的遥测数据

mqtt_demo.json完整的文件

{
  "broker": {
    "name": "Default Local Broker",
    "host": "192.168.56.10",
    "port": 1883,
    "clientId": "ThingsBoard_gatewayxxxxxx",
    "version": 5,
    "maxMessageNumberPerWorker": 10,
    "maxNumberOfWorkers": 100,
    "sendDataOnlyOnChange": false,
    "security": {
      "type": "basic",
      "username": "admin",
      "password": "public"
    }
  },
  "mapping": [
    {
      "topicFilter": "/sensor/data",
      "converter": {
        "type": "json",
        "deviceNameJsonExpression": "${serialNumber}",
        "deviceTypeJsonExpression": "${sensorType}",
        "sendDataOnlyOnChange": false,
        "timeout": 60000,
        "attributes": [
          {
            "type": "string",
            "key": "model",
            "value": "${sensorModel}"
          },
          {
            "type": "string",
            "key": "${sensorModel}",
            "value": "on"
          }
        ],
        "timeseries": [
          {
            "type": "double",
            "key": "temperature",
            "value": "${temp}"
          },
          {
            "type": "double",
            "key": "humidity",
            "value": "${hum}"
          },
          {
            "type": "string",
            "key": "combine",
            "value": "${hum}:${temp}"
          }
        ]
      }
    },
    {
      "topicFilter": "/sensor/+/data",
      "converter": {
        "type": "json",
        "deviceNameTopicExpression": "(?<=sensor\/)(.*?)(?=\/data)",
        "deviceTypeTopicExpression": "Thermometer",
        "sendDataOnlyOnChange": false,
        "timeout": 60000,
        "attributes": [
          {
            "type": "string",
            "key": "model",
            "value": "${sensorModel}"
          }
        ],
        "timeseries": [
          {
            "type": "double",
            "key": "temperature",
            "value": "${temp}"
          },
          {
            "type": "double",
            "key": "humidity",
            "value": "${hum}"
          }
        ]
      }
    },
    {
      "topicFilter": "/sensor/raw_data",
      "converter": {
        "type": "bytes",
        "deviceNameExpression": "[0:4]",
        "deviceTypeExpression": "default",
        "sendDataOnlyOnChange": false,
        "timeout": 60000,
        "attributes": [
          {
            "type": "raw",
            "key": "rawData",
            "value": "[:]"
          }
        ],
        "timeseries": [
          {
            "type": "raw",
            "key": "temp",
            "value": "[4:]"
          }
        ]
      }
    },
    {
      "topicFilter": "/custom/sensors/+",
      "converter": {
        "type": "custom",
        "extension": "CustomMqttUplinkConverter",
        "cached": true,
        "extension-config": {
          "temperatureBytes": 2,
          "humidityBytes": 2,
          "batteryLevelBytes": 1
        }
      }
    }
  ],
  "connectRequests": [
    {
      "topicFilter": "sensor/connect",
      "deviceNameJsonExpression": "${SerialNumber}"
    },
    {
      "topicFilter": "sensor/+/connect",
      "deviceNameTopicExpression": "(?<=sensor\/)(.*?)(?=\/connect)"
    }
  ],
  "disconnectRequests": [
    {
      "topicFilter": "sensor/disconnect",
      "deviceNameJsonExpression": "${SerialNumber}"
    },
    {
      "topicFilter": "sensor/+/disconnect",
      "deviceNameTopicExpression": "(?<=sensor\/)(.*?)(?=\/disconnect)"
    }
  ],
  "attributeRequests": [
    {
      "retain": false,
      "topicFilter": "v1/devices/me/attributes/request",
      "deviceNameJsonExpression": "${serialNumber}",
      "attributeNameJsonExpression": "${versionAttribute}, ${pduAttribute}",
      "topicExpression": "devices/${deviceName}/attrs",
      "valueExpression": "${attributeKey}: ${attributeValue}"
    }
  ],
  "attributeUpdates": [
    {
      "retain": true,
      "deviceNameFilter": "SmartMeter.*",
      "attributeFilter": "uploadFrequency",
      "topicExpression": "sensor/${deviceName}/${attributeKey}",
      "valueExpression": "{\"${attributeKey}\":\"${attributeValue}\"}"
    }
  ],
  "serverSideRpc": [
    {
      "deviceNameFilter": ".*",
      "methodFilter": ".*",
      "requestTopicExpression": "sensor/${deviceName}/request/${methodName}/${requestId}",
      "responseTopicExpression": "sensor/${deviceName}/response/${methodName}/${requestId}",
      "responseTimeout": 10000,
      "valueExpression": "${params}"
    },
    {
      "deviceNameFilter": ".*",
      "methodFilter": "no-reply",
      "requestTopicExpression": "sensor/${deviceName}/request/${methodName}/${requestId}",
      "valueExpression": "${params}"
    }
  ]
}
