MFC集成OpenCascade

1、OpenCasCad环境变量设置

在我的电脑的环境变量中增加OpenCasCade的相关配置信息

头文件：CSF_OCCTIncludePath：D:\Program Files\OpenCASCADE-7.3.0-vc14-64\opencascade-7.3.0\inc

Lib文件：CSF_OCCTLibPath：D:\Program Files\OpenCASCADE-7.3.0-vc14-64\opencascade-7.3.0\win64\vc14\lib

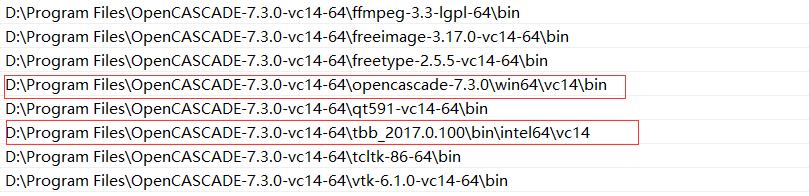

bin文件： PATH路径中增加occt的相关路径，特别注意标红的路径





2、新建MFC应用

打开VS2019->新建项目->MFC应用（没有的话使用左下VS安装程序下载MFC板块）->确定

创建完成之后，一定要先将上面的x86改成x64 ，再进行配置



3、配置VS项目

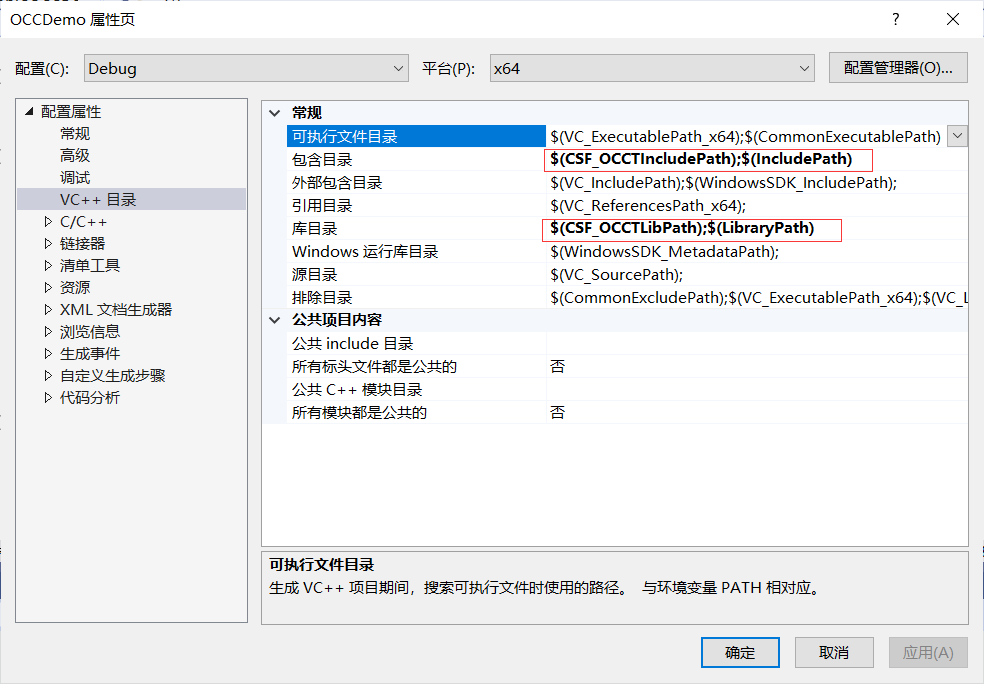

右键项目->属性->VC++目录中设置包含目录，及库目录

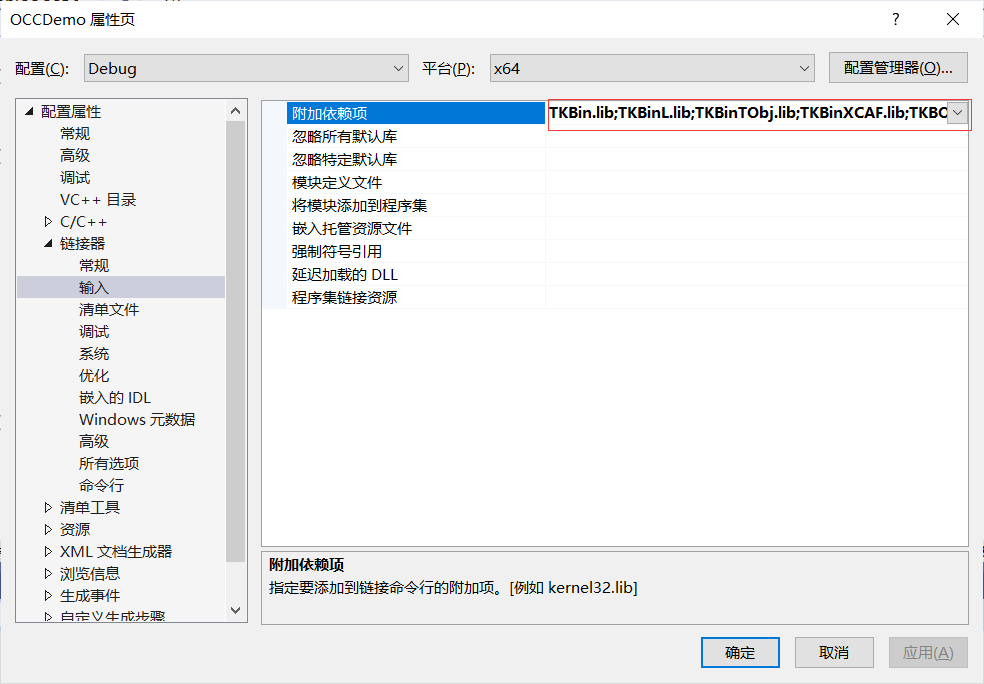

 在连接器中增加所依赖的lib文件



 技巧：

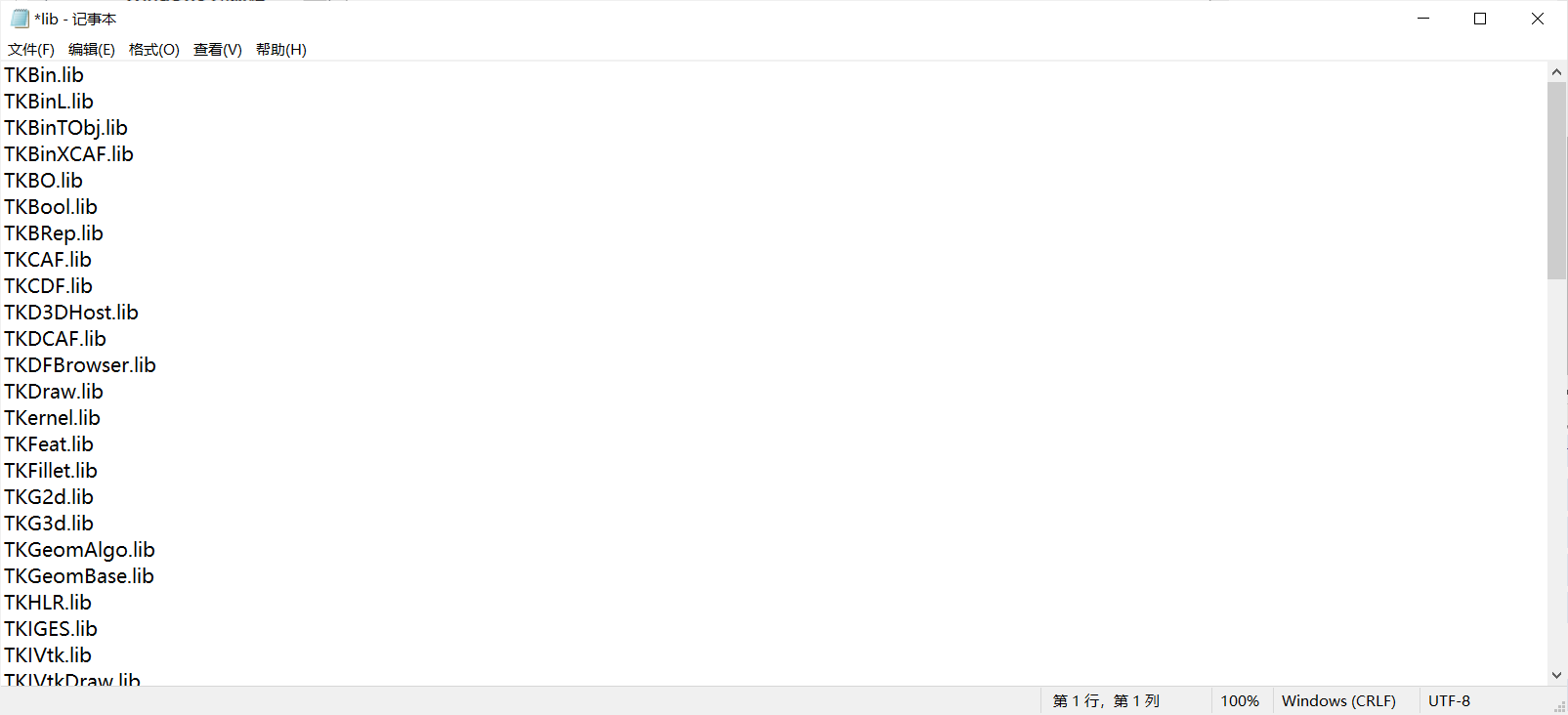

在openCasCade的lib路径中，输入cmd，在命令行中输入dir /b >lib.txt，将会把该目录中的所有lib文件名重定向到lib.txt中，然后讲所有的lib列表添加到依赖项中

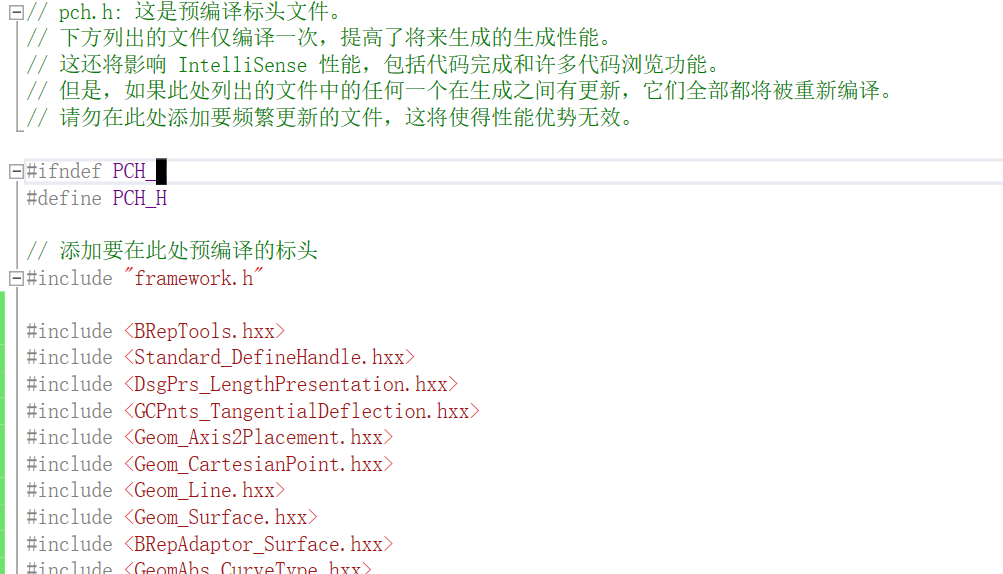

4、修改pch.h中，在pch.h中将常用的opencascad里的头文件

#include <BRepTools.hxx>
#include <Standard_DefineHandle.hxx>
#include <DsgPrs_LengthPresentation.hxx>
#include <GCPnts_TangentialDeflection.hxx>
#include <Geom_Axis2Placement.hxx>
#include <Geom_CartesianPoint.hxx>
#include <Geom_Line.hxx>
#include <Geom_Surface.hxx>
#include <BRepAdaptor_Surface.hxx>
#include <GeomAbs_CurveType.hxx>
#include <GeomAdaptor_Curve.hxx>
#include <GeomTools_Curve2dSet.hxx>
#include <gp_Vec.hxx>
#include <Graphic3d_NameOfMaterial.hxx>
#include <MMgt_TShared.hxx>
#include <OSD_Environment.hxx>
#include <Precision.hxx>
#include <Prs3d_IsoAspect.hxx>
#include <Prs3d_LineAspect.hxx>
#include <Prs3d_Projector.hxx>
#include <Prs3d_Text.hxx>
#include <Quantity_Factor.hxx>
#include <Quantity_Length.hxx>
#include <Quantity_NameOfColor.hxx>
#include <Quantity_PhysicalQuantity.hxx>
#include <Quantity_PlaneAngle.hxx>
#include <Quantity_TypeOfColor.hxx>
#include <SelectMgr_EntityOwner.hxx>
#include <SelectMgr_SelectableObject.hxx>
#include <SelectMgr_Selection.hxx>
#include <SelectMgr_SelectionManager.hxx>
#include <SelectMgr_ListOfFilter.hxx>
#include <SelectMgr_Filter.hxx>
#include <StdSelect_EdgeFilter.hxx>
#include <StdSelect_ShapeTypeFilter.hxx>
#include <Standard_Boolean.hxx>
#include <Standard_CString.hxx>
#include <Standard_ErrorHandler.hxx>
#include <Standard_Integer.hxx>
#include <Standard_IStream.hxx>
#include <Standard_Macro.hxx>
#include <Standard_NotImplemented.hxx>
#include <Standard_OStream.hxx>
#include <Standard_Real.hxx>
#include <StdPrs_Curve.hxx>
#include <StdPrs_Point.hxx>
#include <StdPrs_PoleCurve.hxx>
#include <TCollection_AsciiString.hxx>
#include <TColgp_Array1OfPnt2d.hxx>
#include <TColgp_HArray1OfPnt2d.hxx>
#include <TCollection_AsciiString.hxx>
#include <TColStd_HSequenceOfTransient.hxx>
#include <TColStd_MapIteratorOfMapOfTransient.hxx>
#include <TColStd_MapOfTransient.hxx>
#include <TopExp_Explorer.hxx>
#include <TopoDS.hxx>
#include <TopoDS_Compound.hxx>
#include <TopoDS_Shape.hxx>
#include <TopoDS_Solid.hxx>
#include <TopoDS_Vertex.hxx>
#include <TopExp.hxx>
#include <TopTools_HSequenceOfShape.hxx>
#include <UnitsAPI.hxx>
#include <V3d_View.hxx>
#include <V3d_Viewer.hxx>
#include <WNT_Window.hxx>
#include <Prs3d_PointAspect.hxx>
#include <AIS_Point.hxx>
#include <AIS_InteractiveContext.hxx>
#include <AIS_Shape.hxx>
#include <BRep_Tool.hxx>
#include <BRepAlgoAPI_Fuse.hxx>
#include <BRepBuilderAPI_MakeEdge.hxx>
#include <BRepBuilderAPI_MakeFace.hxx>
#include <BRepBuilderAPI_MakeWire.hxx>
#include <BRepBuilderAPI_MakeVertex.hxx>
#include <BRepBuilderAPI_Transform.hxx>
#include <BRepPrimAPI_MakeCone.hxx>
#include <BRepPrimAPI_MakeRevol.hxx>
#include <BRepFilletAPI_MakeFillet.hxx>
#include <BRepBuilderAPI_Copy.hxx>
#include <BRepBuilderAPI_MakePolygon.hxx>
#include <BRepLib.hxx>
#include <BRepOffsetAPI_MakeThickSolid.hxx>
#include <BRepOffsetAPI_ThruSections.hxx>
#include <BRepPrimAPI_MakeCylinder.hxx>
#include <BRepPrimAPI_MakePrism.hxx>
#include <BRepPrimAPI_MakeTorus.hxx>
#include <BRepAlgoAPI_Section.hxx>
#include <BRepPrimAPI_MakeSphere.hxx>
#include <BRepFeat_SplitShape.hxx>
#include <TColgp_HArray1OfPnt.hxx>
#include <GeomAPI_Interpolate.hxx>
#include <GC_MakeArcOfCircle.hxx>
#include <GC_MakeSegment.hxx>
#include <GC_MakeCircle.hxx>
#include <GCE2d_MakeSegment.hxx>
#include <gp.hxx>
#include <gp_Ax1.hxx>
#include <gp_Ax2.hxx>
#include <gp_Ax2d.hxx>
#include <gp_Dir.hxx>
#include <gp_Dir2d.hxx>
#include <gp_Pnt.hxx>
#include <gp_Pnt2d.hxx>
#include <gp_Trsf.hxx>
#include <gp_Vec.hxx>
#include <Geom_CylindricalSurface.hxx>
#include <Geom_Plane.hxx>
#include <Geom_Surface.hxx>
#include <Geom_TrimmedCurve.hxx>
#include <Geom2d_Ellipse.hxx>
#include <Geom2d_TrimmedCurve.hxx>
#include <TopExp_Explorer.hxx>
#include <TopoDS.hxx>
#include <TopoDS_Edge.hxx>
#include <TopoDS_Face.hxx>
#include <TopoDS_Wire.hxx>
#include <TopoDS_Shape.hxx>
#include <TopoDS_Compound.hxx>
#include <GCPnts_AbscissaPoint.hxx>
#include <BRepAdaptor_Curve.hxx>
#include <GeomLib.hxx>
#include <GeomConvert_CompCurveToBSplineCurve.hxx>
#include <TopTools_ListOfShape.hxx>
#include <TopTools_ListIteratorOfListOfShape.hxx>
#include <TopTools_DataMapOfShapeInteger.hxx>
#include <TopTools_DataMapOfShapeReal.hxx>
#include <TopTools_IndexedDataMapOfShapeAddress.hxx>
#include <V3d_PositionalLight.hxx>
#include <V3d_DirectionalLight.hxx>
#include <V3d_AmbientLight.hxx>
#include <IGESControl_Controller.hxx>
#include <IGESControl_Writer.hxx>
#include <Interface_Static.hxx>
#include <OpenGl_GraphicDriver.hxx>
#include <Graphic3d_GraphicDriver.hxx>



5、修改项目中的各个类

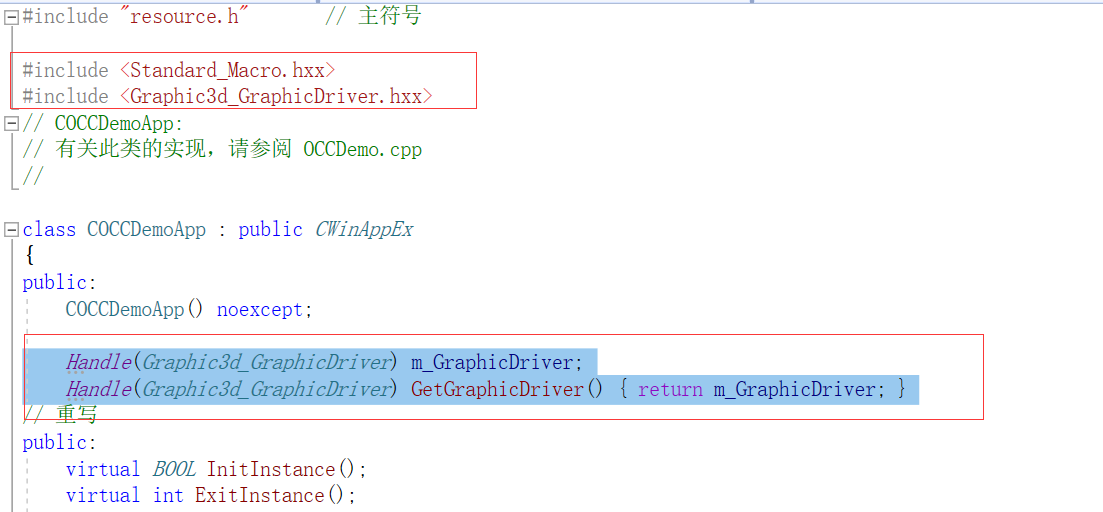

xxxApp.h

    Handle(Graphic3d_GraphicDriver) m_GraphicDriver;
    Handle(Graphic3d_GraphicDriver) GetGraphicDriver() { return m_GraphicDriver; }

添加包含的头文件

#include <Standard_Macro.hxx>
#include <Graphic3d_GraphicDriver.hxx>

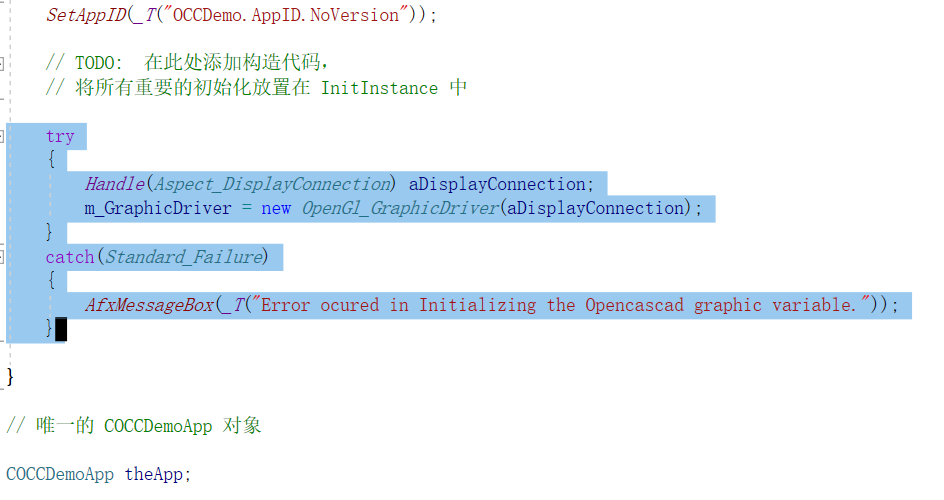

在相应类的构造函数中添加

    try
    {
        Handle(Aspect_DisplayConnection) aDisplayConnection;
        m_GraphicDriver = new OpenGl_GraphicDriver(aDisplayConnection);
    }
    catch(Standard_Failure)
    {
        AfxMessageBox(_T("Error ocured in Initializing the Opencascad graphic variable."));
    }

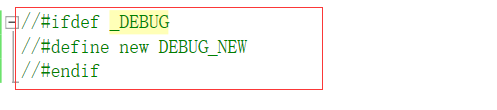

注意如果new报错（因为该文件开头对new做了重定义），有下面两种方法，一是把整个#define Debug注释掉

另一种是仅把define new DEBUG_NEW注释掉









xxxdoc类的修改

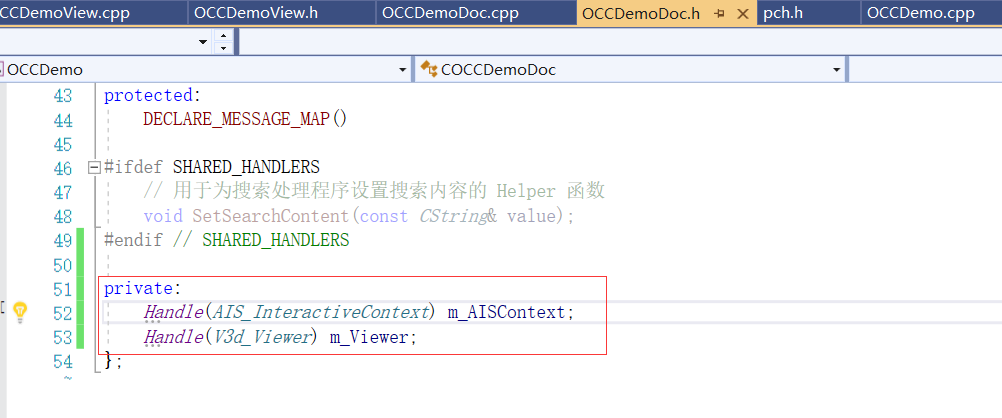

xxxdoc.h

    Handle(AIS_InteractiveContext) m_AISContext;
    Handle(V3d_Viewer) m_Viewer;

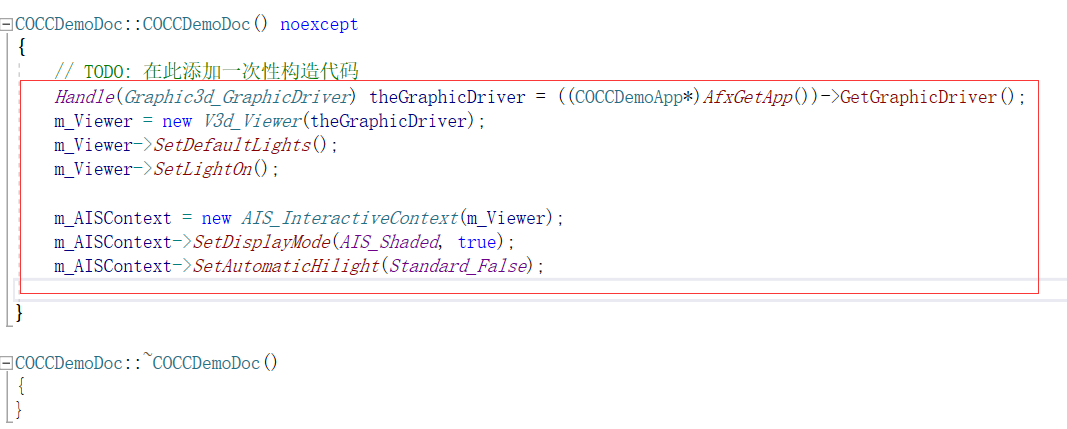

 xxxdoc.cpp 在构造函数中添加

    Handle(Graphic3d_GraphicDriver) theGraphicDriver = ((COCCDemoApp*)AfxGetApp())->GetGraphicDriver();
    m_Viewer = new V3d_Viewer(theGraphicDriver);
    m_Viewer->SetDefaultLights();
    m_Viewer->SetLightOn();

    m_AISContext = new AIS_InteractiveContext(m_Viewer);
    m_AISContext->SetDisplayMode(AIS_Shaded, true);
    m_AISContext->SetAutomaticHilight(Standard_False);







xxxview类的修改

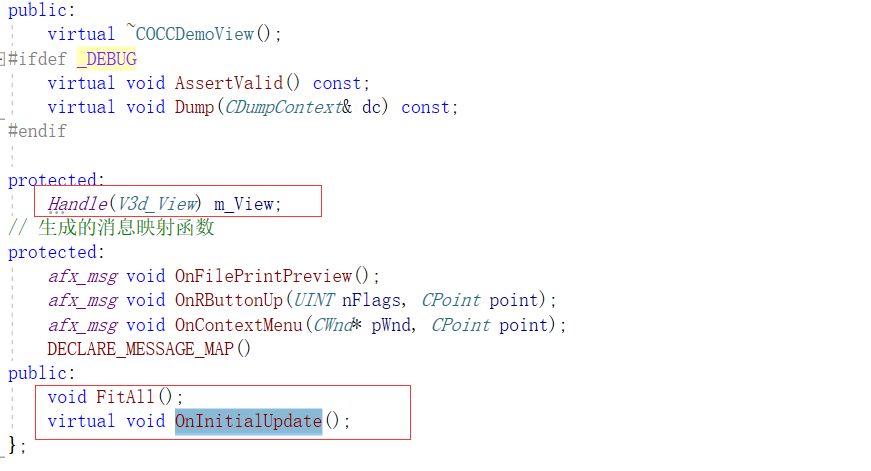

xxxview.h

Handle(V3d_View) m_View;
void FitAll();

virtual void OnInitialUpdate();

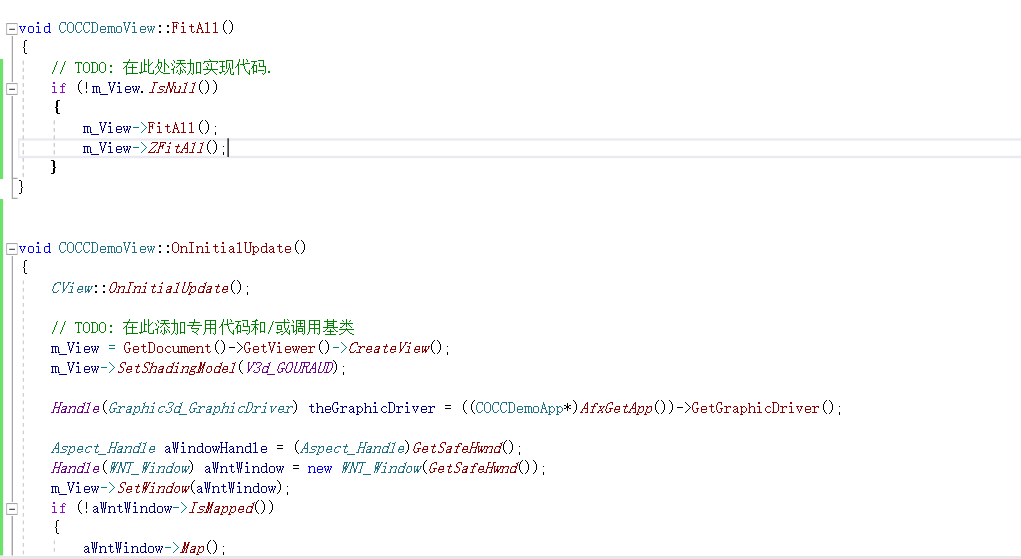

xxxview.cpp中的添加

void COCCDemoView::FitAll()
{
    // TODO: 在此处添加实现代码.
    if (!m_View.IsNull())
    {
        m_View->FitAll();
        m_View->ZFitAll();
    }
}

void COCCDemoView::OnInitialUpdate()
{
    CView::OnInitialUpdate();

    // TODO: 在此添加专用代码和/或调用基类
    m_View = GetDocument()->GetViewer()->CreateView();
    m_View->SetShadingModel(V3d_GOURAUD);

    Handle(Graphic3d_GraphicDriver) theGraphicDriver = ((COCCDemoApp*)AfxGetApp())->GetGraphicDriver();

    Aspect_Handle aWindowHandle = (Aspect_Handle)GetSafeHwnd();
    Handle(WNT_Window) aWntWindow = new WNT_Window(GetSafeHwnd());
    m_View->SetWindow(aWntWindow);
    if (!aWntWindow->IsMapped())
    {
        aWntWindow->Map();
    }

    Standard_Integer w = 100;
    Standard_Integer h = 100;
    aWntWindow->Size(w, h);
    ::PostMessage(GetSafeHwnd(), WM_SIZE, SIZE_RESTORED, w + h * 65536);
    m_View->FitAll();

    m_View->ZBufferTriedronSetup(Quantity_NOC_RED, Quantity_NOC_GREEN, Quantity_NOC_BLUE1, 0.8, 0.05, 12);
    m_View->TriedronDisplay(Aspect_TOTP_LEFT_LOWER, Quantity_NOC_WHITE, 0.2, V3d_ZBUFFER);
}

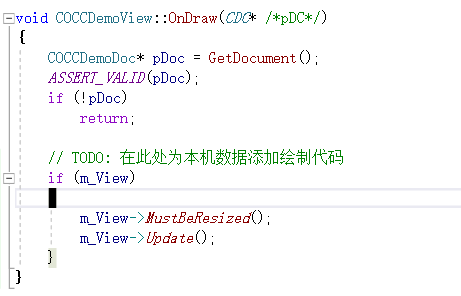

 在绘制函数中OnDraw中添加

    if (m_View)
    {
        m_View->MustBeResized();
        m_View->Update();
    }

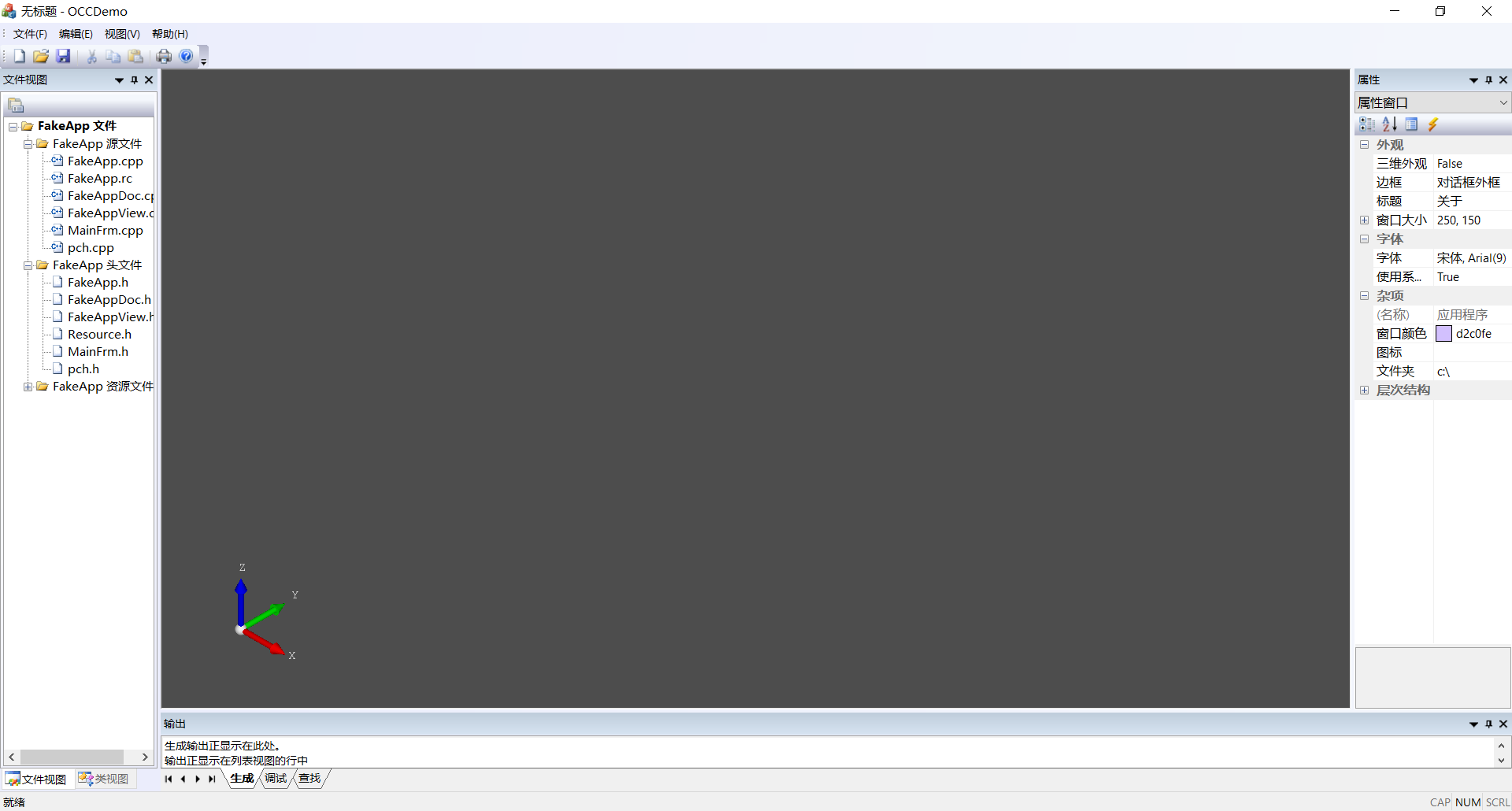

6、运行效果
