Qt 树形插件navlistview使用中的坑
前言
最近在写自己的软件界面时，想让界面更好看点，于是找到大佬(feiyangqingyun)开源的代码。其中在使用树形插件(navlistview)的时候遇到一坑。

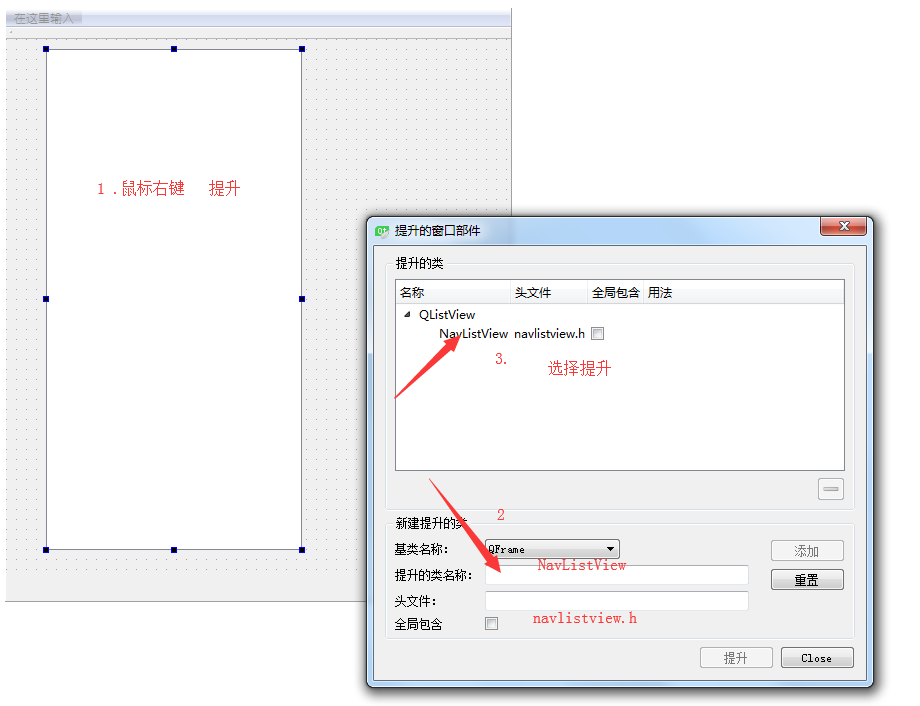

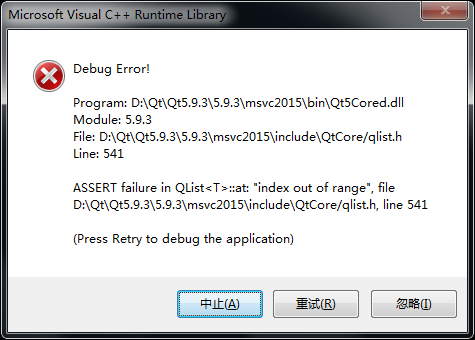

坑描述： 我是采用源代码引入，然后提升控件的方式，但是运行的时候一直报错，报的是数组越界的错误，我又找不到哪里越界了。
树形插件使用
1. 引入源代码
// navlistview.h 文件
#ifndef NAVLISTVIEW_H
#define NAVLISTVIEW_H
/**
* 树状导航栏控件 作者:feiyangqingyun(QQ:517216493) 2016-10-28
* 本控件来源于网络(原作者:sssooonnnggg(http://www.qtcn.org/bbs/read-htm-tid-58274-ds-1-page-1.html#163557))
* 1:合并成一个文件
* 2:隐藏多余接口,只保留 readData 函数接口
* 3:修正重复加载数据 BUG 及关闭时有时候崩溃的 BUG
* 4:修正当范围值中最小值为负数时的 bug
* 5:增加默认支持鼠标悬停
* 6:增加一些完整性校验
* 7:增加设置各种颜色
* 8:+-伸缩图形改成绘制,同时支持+-图形及三角形图形
* 9:增加 setData 数据接口,使之同时支持字符串链表作为数据源
* 10:增加设置分割线条是否可见
* 11:增加设置伸缩图片采用何种颜色
* 12:改进分割线条高度
* 13:将显示未读条数部分改成提示信息,可以是字符串
*/
#include <QStyledItemDelegate>
#include <QAbstractListModel>
#include <QListView>
#include <vector>
class NavListView;
class NavDelegate : public QStyledItemDelegate
{
Q_OBJECT
public:
NavDelegate(QObject *parent);
~NavDelegate();
protected:
QSize sizeHint(const QStyleOptionViewItem &option, const QModelIndex &index) const ;
void paint(QPainter *painter, const QStyleOptionViewItem &option, const QModelIndex &index) const;
private:
NavListView *nav;
QFont iconFont;
};
class NavModel : public QAbstractListModel
{
Q_OBJECT
public:
NavModel(QObject *parent);
~NavModel();
public:
struct TreeNode {
QString label;
int level;
bool collapse;
bool theLast;
QString info;
std::list<TreeNode *> children;
};
struct ListNode {
QString label;
TreeNode *treeNode;
};
protected:
int rowCount(const QModelIndex &parent) const;
QVariant data(const QModelIndex &index, int role) const;
private:
std::vector<TreeNode *> treeNode;
std::vector<ListNode> listNode;
public slots:
void setData(const QStringList &listItem);
void collapse(const QModelIndex &index);
private:
void refreshList();
};
#ifdef quc
#if (QT_VERSION < QT_VERSION_CHECK(5,7,0))
#include <QtDesigner/QDesignerExportWidget>
#else
#include <QtUiPlugin/QDesignerExportWidget>
#endif
class QDESIGNER_WIDGET_EXPORT NavListView : public QListView
#else
class NavListView : public QListView
#endif
{
Q_OBJECT
Q_ENUMS(IcoStyle)
Q_PROPERTY(bool infoVisible READ getInfoVisible WRITE setInfoVisible)
Q_PROPERTY(bool lineVisible READ getLineVisible WRITE setLineVisible)
Q_PROPERTY(bool icoColorBg READ getIcoColorBg WRITE setIcoColorBg)
Q_PROPERTY(IcoStyle icoStyle READ getIcoStyle WRITE setIcoStyle)
Q_PROPERTY(QColor colorLine READ getColorLine WRITE setColorLine)
Q_PROPERTY(QColor colorBgNormal READ getColorBgNormal WRITE setColorBgNormal)
Q_PROPERTY(QColor colorBgSelected READ getColorBgSelected WRITE setColorBgSelected)
Q_PROPERTY(QColor colorBgHover READ getColorBgHover WRITE setColorBgHover)
Q_PROPERTY(QColor colorTextNormal READ getColorTextNormal WRITE setColorTextNormal)
Q_PROPERTY(QColor colorTextSelected READ getColorTextSelected WRITE setColorTextSelected)
Q_PROPERTY(QColor colorTextHover READ getColorTextHover WRITE setColorTextHover)
public:
enum IcoStyle {
IcoStyle_Cross = 0, //十字形状
IcoStyle_Triangle = 1 //三角形状
};
NavListView(QWidget *parent = 0);
~NavListView();
private:
NavModel *model;
NavDelegate *delegate;
bool infoVisible; //是否显示提示信息
bool lineVisible; //是否显示分割线条
bool icoColorBg; //伸缩图片是否使用颜色
IcoStyle icoStyle; //图标样式
QColor colorLine; //线条颜色
QColor colorBgNormal; //正常背景色
QColor colorBgSelected; //选中背景色
QColor colorBgHover; //悬停背景色
QColor colorTextNormal; //正常文字颜色
QColor colorTextSelected; //选中文字颜色
QColor colorTextHover; //悬停文字颜色
public:
bool getInfoVisible() const;
bool getLineVisible() const;
bool getIcoColorBg() const;
IcoStyle getIcoStyle() const;
QColor getColorLine() const;
QColor getColorBgNormal() const;
QColor getColorBgSelected() const;
QColor getColorBgHover() const;
QColor getColorTextNormal() const;
QColor getColorTextSelected() const;
QColor getColorTextHover() const;
QSize sizeHint() const;
QSize minimumSizeHint() const;
public Q_SLOTS:
//设置数据集合
void setData(const QStringList &listItem);
//设置是否显示提示信息
void setInfoVisible(bool infoVisible);
//设置是否显示间隔线条
void setLineVisible(bool lineVisible);
//设置伸缩图片是否采用背景色
void setIcoColorBg(bool icoColorBg);
//设置伸缩图片样式
void setIcoStyle(IcoStyle icoStyle);
//设置各种前景色背景色选中色
void setColorLine(const QColor &colorLine);
void setColorBgNormal(const QColor &colorBgNormal);
void setColorBgSelected(const QColor &colorBgSelected);
void setColorBgHover(const QColor &colorBgHover);
void setColorTextNormal(const QColor &colorTextNormal);
void setColorTextSelected(const QColor &colorTextSelected);
void setColorTextHover(const QColor &colorTextHover);
};
#endif // NAVLISTVIEW_H
// navlistview.cpp
#include "navlistview.h"
#include "qfontdatabase.h"
#include "qpainter.h"
#include "qfile.h"
#include "qdebug.h"
NavDelegate::NavDelegate(QObject *parent) : QStyledItemDelegate(parent)
{
nav = (NavListView *)parent;
//引入图形字体

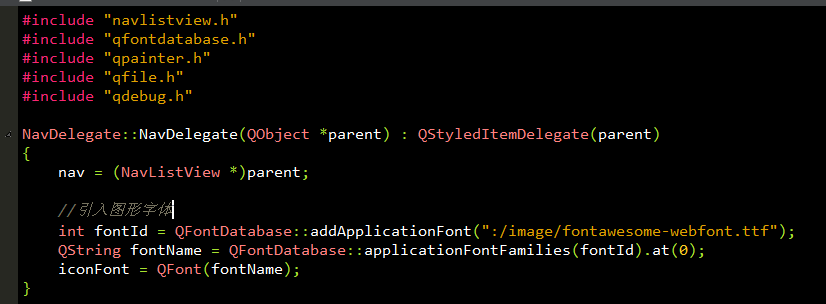

int fontId = QFontDatabase::addApplicationFont(":/image/fontawesome-webfont.ttf");
QString fontName = QFontDatabase::applicationFontFamilies(fontId).at(0);
iconFont = QFont(fontName);
}
NavDelegate::~NavDelegate()
{
}
QSize NavDelegate::sizeHint(const QStyleOptionViewItem &option, const QModelIndex &index) const
{
QSize size(50, 28);
NavModel::TreeNode *node = (NavModel::TreeNode *)index.data(Qt::UserRole).toUInt();
if (node->level == 1) {
size = QSize(50, 35);
} else {
size = QSize(50, 28);
}
return size;
}
void NavDelegate::paint(QPainter *painter, const QStyleOptionViewItem &option, const QModelIndex &index) const
{
painter->setRenderHint(QPainter::Antialiasing);
NavModel::TreeNode *node = (NavModel::TreeNode *)index.data(Qt::UserRole).toUInt();
//绘制背景
QColor colorBg;
if (option.state & QStyle::State_Selected) {
colorBg = nav->getColorBgSelected();
} else if (option.state & QStyle::State_MouseOver) {
colorBg = nav->getColorBgHover();
} else {
colorBg = nav->getColorBgNormal();
}
painter->fillRect(option.rect, colorBg);
//绘制指示器
if (node->children.size() != 0) {
QPixmap pix(16, 16);
pix.fill(Qt::transparent);
QPainter p(&pix);
p.setRenderHint(QPainter::Antialiasing);
p.setFont(iconFont);
//根据采用的背景色判断
QColor icoColorSelected;
QColor icoColorNormal;
QColor icoColorHover;
if (nav->getIcoColorBg()) {
icoColorSelected = nav->getColorBgNormal();
icoColorNormal = nav->getColorBgSelected();
icoColorHover = nav->getColorBgNormal();
} else {
icoColorSelected = nav->getColorTextSelected();
icoColorNormal = nav->getColorTextNormal();
icoColorHover = nav->getColorTextHover();
}
if (option.state & QStyle::State_Selected) {
p.setPen(icoColorSelected);
} else if (option.state & QStyle::State_MouseOver) {
p.setPen(icoColorHover);
} else {
p.setPen(icoColorNormal);
}
QFont font = p.font();
if (nav->getIcoStyle() == NavListView::IcoStyle_Cross) {
font.setPixelSize(13);
p.setFont(font);
//绘制 + - 指示器
if (node->collapse) {
p.drawText(pix.rect(), Qt::AlignCenter, QChar(0xf067));
} else {
p.drawText(pix.rect(), Qt::AlignCenter, QChar(0xf068));
}
} else if (nav->getIcoStyle() == NavListView::IcoStyle_Triangle) {
font.setPixelSize(18);
p.setFont(font);
//绘制三角形指示器
if (node->collapse) {
p.drawText(pix.rect(), Qt::AlignCenter, QChar(0xf0da));
} else {
p.drawText(pix.rect(), Qt::AlignCenter, QChar(0xf0d7));
}
}
QPixmap img(pix);
QRect targetRect = option.rect;
targetRect.setWidth(16);
targetRect.setHeight(16);
QPoint c = option.rect.center();
c.setX(12);
targetRect.moveCenter(c);
painter->drawPixmap(targetRect, img, img.rect());
}
//绘制条目文字
QColor colorText;
if (option.state & QStyle::State_Selected) {
colorText = nav->getColorTextSelected();
} else if (option.state & QStyle::State_MouseOver) {
colorText = nav->getColorTextHover();
} else {
colorText = nav->getColorTextNormal();
}
painter->setPen(QPen(colorText));
//绘制文字离左边的距离
int margin = 25;
if (node->level == 2) {
margin = 45;
}
QRect rect = option.rect;
rect.setWidth(rect.width() - margin);
rect.setX(rect.x() + margin);
QFont normalFont("Microsoft Yahei", 9);
painter->setFont(normalFont);
painter->drawText(rect, Qt::AlignLeft | Qt::AlignVCenter, index.data(Qt::DisplayRole).toString());
//绘制分隔符线条
if (nav->getLineVisible()) {
painter->setPen(QPen(nav->getColorLine(), 1));
if (node->level == 1 || (node->level == 2 && node->theLast)) {
painter->drawLine(QPointF(option.rect.x(), option.rect.y() + option.rect.height()),
QPointF(option.rect.x() + option.rect.width(), option.rect.y() + option.rect.height()));
}
}
//绘制提示信息
QString recordInfo = node->info;
//如果不需要显示提示信息或者提示信息为空则返回
if (!nav->getInfoVisible() || recordInfo.isEmpty()) {
return;
}
QPen decorationPen(option.state & QStyle::State_Selected ? nav->getColorBgSelected() : nav->getColorTextSelected());
QBrush decorationBrush(option.state & QStyle::State_Selected ? nav->getColorTextSelected() : nav->getColorBgSelected());
QFont decorationFont("Microsoft Yahei", 8);
painter->setFont(decorationFont);
//绘制提示信息背景
QRect decoration = option.rect;
decoration.setHeight(15);
decoration.moveCenter(option.rect.center());
decoration.setLeft(option.rect.right() - 45);
decoration.setRight(option.rect.right() - 5);
painter->setPen(decorationPen);
QPainterPath path;
path.addRoundedRect(decoration, 7, 7);
painter->fillPath(path, decorationBrush);
//如果是数字则将超过 999 的数字显示成 999+
if (recordInfo.toInt() > 999) {
recordInfo = "999+";
}
//如果显示的提示信息长度超过 4 则将多余显示成省略号..
if (recordInfo.length() > 4) {
recordInfo = recordInfo.mid(0, 4) + "..";
}
painter->drawText(decoration, Qt::AlignCenter, recordInfo);
}
NavModel::NavModel(QObject *parent) : QAbstractListModel(parent)
{
}
NavModel::~NavModel()
{
for (std::vector<TreeNode *>::iterator it = treeNode.begin(); it != treeNode.end();) {
for (std::list<TreeNode *>::iterator child = (*it)->children.begin(); child != (*it)->children.end();) {
delete(*child);
child = (*it)->children.erase(child);
}
delete(*it);
it = treeNode.erase(it);
}
}
void NavModel::setData(const QStringList &listItem)
{
int count = listItem.count();
if (count == 0) {
return;
}
treeNode.clear();
listNode.clear();
//listItem 格式: 标题|父节点标题(父节点为空)|是否展开|提示信息
for (int i = 0; i < count; i++) {
QString item = listItem.at(i);
QStringList list = item.split("|");
if (list.count() < 4) {
continue;
}
//首先先将父节点即父节点标题为空的元素加载完毕
QString title = list.at(0);
QString fatherTitle = list.at(1);
QString collapse = list.at(2);
QString info = list.at(3);
if (fatherTitle.isEmpty()) {
TreeNode *node = new TreeNode;
node->label = title;
node->collapse = collapse.toInt();
node->info = info;
node->level = 1;
//查找该父节点是否有对应子节点,有则加载
for (int j = 0; j < count; j++) {
QString secItem = listItem.at(j);
QStringList secList = secItem.split("|");
if (secList.count() < 4) {
continue;
}
QString secTitle = secList.at(0);
QString secFatherTitle = secList.at(1);
QString secInfo = secList.at(3);
if (secFatherTitle == title) {
TreeNode *secNode = new TreeNode;
secNode->label = secTitle;
secNode->info = secInfo;
secNode->collapse = false;
secNode->level = 2;
secNode->theLast = (j == count - 1);
node->children.push_back(secNode);
}
}
treeNode.push_back(node);
}
}
refreshList();
beginResetModel();
endResetModel();
}
int NavModel::rowCount(const QModelIndex &parent) const
{
return listNode.size();
}
QVariant NavModel::data(const QModelIndex &index, int role) const
{
if (!index.isValid()) {
return QVariant();
}
if (index.row() >= listNode.size() || index.row() < 0) {
return QVariant();
}
if (role == Qt::DisplayRole) {
return listNode[index.row()].label;
} else if (role == Qt::UserRole) {
return (quint64)(listNode[index.row()].treeNode);
}
return QVariant();
}
void NavModel::refreshList()
{
listNode.clear();
for (std::vector<TreeNode *>::iterator it = treeNode.begin(); it != treeNode.end(); ++it) {
ListNode node;
node.label = (*it)->label;
node.treeNode = *it;
listNode.push_back(node);
if ((*it)->collapse) {
continue;
}
for (std::list<TreeNode *>::iterator child = (*it)->children.begin(); child != (*it)->children.end(); ++child) {
ListNode node;
node.label = (*child)->label;
node.treeNode = *child;
node.treeNode->theLast = false;
listNode.push_back(node);
}
if (!listNode.empty()) {
listNode.back().treeNode->theLast = true;
}
}
}
void NavModel::collapse(const QModelIndex &index)
{
TreeNode *node = listNode[index.row()].treeNode;
if (node->children.size() == 0) {
return;
}
node->collapse = !node->collapse;
refreshList();
if (!node->collapse) {
beginInsertRows(QModelIndex(), index.row() + 1, index.row() + node->children.size());
endInsertRows();
} else {
beginRemoveRows(QModelIndex(), index.row() + 1, index.row() + node->children.size());
endRemoveRows();
}
}
NavListView::NavListView(QWidget *parent) : QListView(parent)
{
infoVisible = true;
lineVisible = true;
icoColorBg = false;
icoStyle = NavListView::IcoStyle_Cross;
colorLine = QColor(214, 216, 224);
colorBgNormal = QColor(239, 241, 250);
colorBgSelected = QColor(133, 153, 216);
colorBgHover = QColor(209, 216, 240);
colorTextNormal = QColor(58, 58, 58);
colorTextSelected = QColor(255, 255, 255);
colorTextHover = QColor(59, 59, 59);
this->setMouseTracking(true);
model = new NavModel(this);
delegate = new NavDelegate(this);
connect(this, SIGNAL(doubleClicked(QModelIndex)), model, SLOT(collapse(QModelIndex)));
}
NavListView::~NavListView()
{
delete model;
delete delegate;
}
bool NavListView::getInfoVisible() const
{
return this->infoVisible;
}
bool NavListView::getLineVisible() const
{
return this->lineVisible;
}
bool NavListView::getIcoColorBg() const
{
return this->icoColorBg;
}
NavListView::IcoStyle NavListView::getIcoStyle() const
{
return this->icoStyle;
}
QColor NavListView::getColorLine() const
{
return this->colorLine;
}
QColor NavListView::getColorBgNormal() const
{
return this->colorBgNormal;
}
QColor NavListView::getColorBgSelected() const
{
return this->colorBgSelected;
}
QColor NavListView::getColorBgHover() const
{
return this->colorBgHover;
}
QColor NavListView::getColorTextNormal() const
{
return this->colorTextNormal;
}
QColor NavListView::getColorTextSelected() const
{
return this->colorTextSelected;
}
QColor NavListView::getColorTextHover() const
{
return this->colorTextHover;
}
QSize NavListView::sizeHint() const
{
return QSize(200, 300);
}
QSize NavListView::minimumSizeHint() const
{
return QSize(20, 20);
}
void NavListView::setData(const QStringList &listItem)
{
model->setData(listItem);
this->setModel(model);
this->setItemDelegate(delegate);
}
void NavListView::setInfoVisible(bool infoVisible)
{
if (this->infoVisible != infoVisible) {
this->infoVisible = infoVisible;
}
}
void NavListView::setLineVisible(bool lineVisible)
{
if (this->lineVisible != lineVisible) {
this->lineVisible = lineVisible;
}
}
void NavListView::setIcoColorBg(bool icoColorBg)
{
if (this->icoColorBg != icoColorBg) {
this->icoColorBg = icoColorBg;
}
}
void NavListView::setIcoStyle(NavListView::IcoStyle icoStyle)
{
if (this->icoStyle != icoStyle) {
this->icoStyle = icoStyle;
}
}
void NavListView::setColorLine(const QColor &colorLine)
{
if (this->colorLine != colorLine) {
this->colorLine = colorLine;
}
}
void NavListView::setColorBgNormal(const QColor &colorBgNormal)
{
if (this->colorBgNormal != colorBgNormal) {
this->colorBgNormal = colorBgNormal;
}
}
void NavListView::setColorBgSelected(const QColor &colorBgSelected)
{
if (this->colorBgSelected != colorBgSelected) {
this->colorBgSelected = colorBgSelected;
}
}
void NavListView::setColorBgHover(const QColor &colorBgHover)
{
if (this->colorBgHover != colorBgHover) {
this->colorBgHover = colorBgHover;
}
}
void NavListView::setColorTextNormal(const QColor &colorTextNormal)
{
if (this->colorTextNormal != colorTextNormal) {
this->colorTextNormal = colorTextNormal;
}
}
void NavListView::setColorTextSelected(const QColor &colorTextSelected)
{
if (this->colorTextSelected != colorTextSelected) {
this->colorTextSelected = colorTextSelected;
}
}
void NavListView::setColorTextHover(const QColor &colorTextHover)
{
if (this->colorTextHover != colorTextHover) {
this->colorTextHover = colorTextHover;
}
}
2. 拖入一个 ListView 控件，右键提升成 NavListView
错误解决方案
错误原因是 cpp 文件引入字体了，但是我没有导入字体文件。解决办法： 要么注释掉这句话，要么引入字体文件。
