HDP 08.Hue4.5 LDAP 配置

1、修改 core-site.xml  配置文件，添加如下参数：

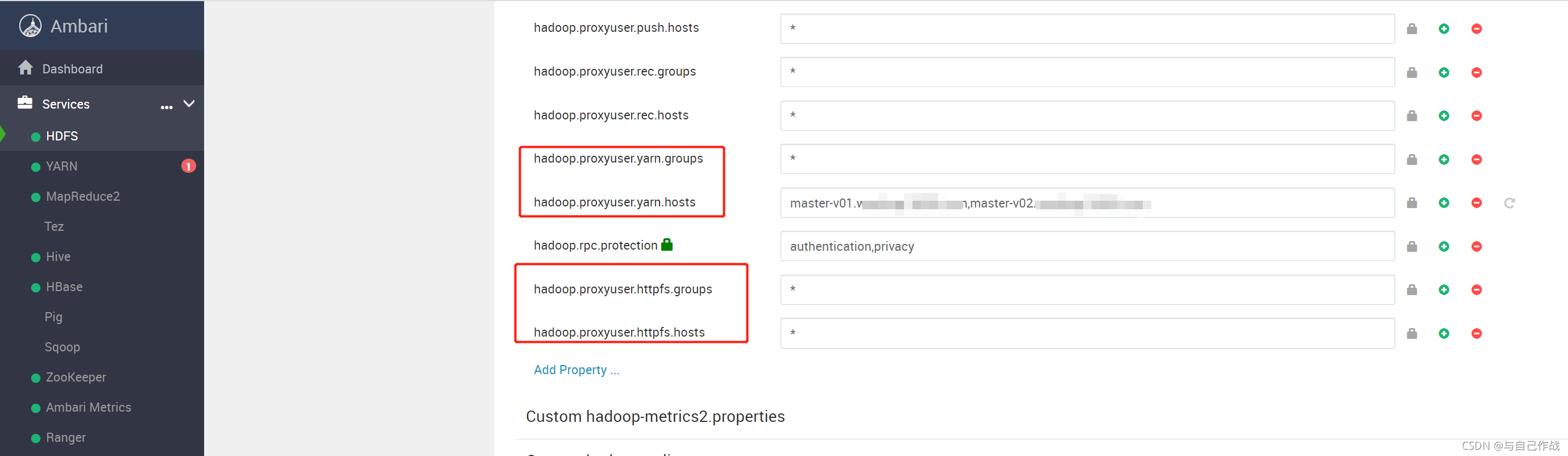

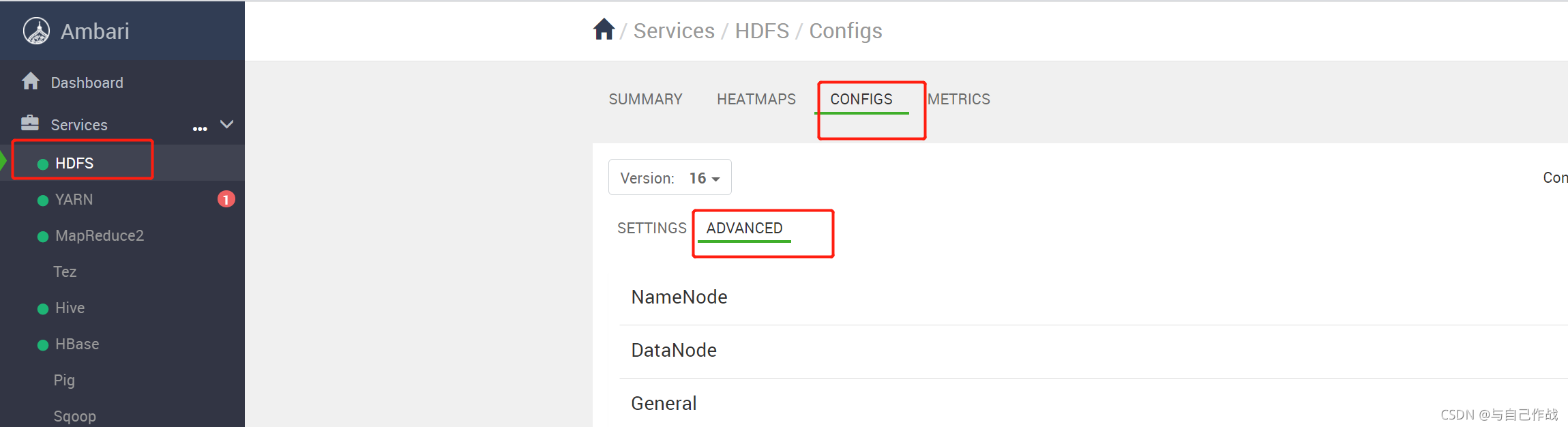

在 Ambari  控制台依次点击 HDFS->CONFIGS->ADVANCED->"Custom core-site"->"Add Property ..." ，

然后在弹出的 "Add Property" 窗口添加如下 4 个参数 ( 后面两个参数 hadoop.proxyuser.hue.groups,hadoop.proxyuser.hue.hosts  可能之前创建 hue 帐号的时候配置了 )

hadoop.proxyuser.httpfs.groups=*

hadoop.proxyuser.httpfs.hosts=*

hadoop.proxyuser.hue.groups=*

hadoop.proxyuser.hue.hosts=*



2、在 client-v01 服务器安装 hadoop-httpfs包

yum -y install hadoop-httpfs

3、创建并编辑 /etc/hadoop-httpfs/conf/httpfs-site.xml 文件

<configuration>

    <property>

        <name>httpfs.proxyuser.httpfs.hosts</name>

        <value>*</value>

    </property>

    <property>

        <name>httpfs.proxyuser.httpfs.groups</name>

        <value>*</value>

    </property>

    <property>

        <name>httpfs.hadoop.config.dir</name>

        <value>/etc/hadoop/conf</value>

    </property>

    <property>

        <name>httpfs.http.port</name>

        <value>14000</value>

    </property>

    <property>

        <name>httpfs.http.host</name>

        <value>client-v01.tianlingqun.com</value>

    </property>

    <property>

        <name>httpfs.authentication.type</name>

        <value>kerberos</value>

    </property>

    <property>

        <name>httpfs.hadoop.authentication.type</name>

        <value>kerberos</value>

    </property>

    <property>

        <name>httpfs.authentication.kerberos.principal</name>

        <value>HTTP/client-v01.tianlingqun.com@tianlingqun.COM</value>

    </property>

    <property>

        <name>httpfs.authentication.kerberos.keytab</name>

        <value>/etc/security/keytabs/spnego.service.keytab</value>

    </property>

    <property>

        <name>httpfs.hadoop.authentication.kerberos.principal</name>

        <value>httpfs/client-v01.tianlingqun.com@tianlingqun.COM</value>

    </property>

    <property>

        <name>httpfs.hadoop.authentication.kerberos.keytab</name>

        <value>/etc/security/keytabs/httpfs.service.keytab</value>

    </property>

    <property>

        <name>httpfs.authentication.kerberos.name.rules</name>

        <value>

            RULE:[1:$1@$0](ambari-qa-wfcluster@tianlingqun.COM)s/.*/ambari-qa/

            RULE:[1:$1@$0](hbase-wfcluster@tianlingqun.COM)s/.*/hbase/

            RULE:[1:$1@$0](hdfs-wfcluster@tianlingqun.COM)s/.*/hdfs/

            RULE:[1:$1@$0](spark-wfcluster@tianlingqun.COM)s/.*/spark/

            RULE:[1:$1@$0](superset-wfcluster@tianlingqun.COM)s/.*/superset/

            RULE:[1:$1@$0](yarn-ats-wfcluster@tianlingqun.COM)s/.*/yarn-ats/

            RULE:[1:$1@$0](.*@tianlingqun.COM)s/@.*//

            RULE:[2:$1@$0](amshbase@tianlingqun.COM)s/.*/ams/

            RULE:[2:$1@$0](amsmon@tianlingqun.COM)s/.*/ams/

            RULE:[2:$1@$0](amszk@tianlingqun.COM)s/.*/ams/

            RULE:[2:$1@$0](dn@tianlingqun.COM)s/.*/hdfs/

            RULE:[2:$1@$0](hbase@tianlingqun.COM)s/.*/hbase/

            RULE:[2:$1@$0](hive@tianlingqun.COM)s/.*/hive/

            RULE:[2:$1@$0](jhs@tianlingqun.COM)s/.*/mapred/

            RULE:[2:$1@$0](jn@tianlingqun.COM)s/.*/hdfs/

            RULE:[2:$1@$0](nm@tianlingqun.COM)s/.*/yarn/

            RULE:[2:$1@$0](nn@tianlingqun.COM)s/.*/hdfs/

            RULE:[2:$1@$0](rangeradmin@tianlingqun.COM)s/.*/ranger/

            RULE:[2:$1@$0](rangerkms@tianlingqun.COM)s/.*/keyadmin/

            RULE:[2:$1@$0](rangertagsync@tianlingqun.COM)s/.*/rangertagsync/

            RULE:[2:$1@$0](rangerusersync@tianlingqun.COM)s/.*/rangerusersync/

            RULE:[2:$1@$0](rm@tianlingqun.COM)s/.*/yarn/

            RULE:[2:$1@$0](spark@tianlingqun.COM)s/.*/spark/

            RULE:[2:$1@$0](yarn@tianlingqun.COM)s/.*/yarn/

            RULE:[2:$1@$0](yarn-ats-hbase@tianlingqun.COM)s/.*/yarn-ats/

            DEFAULT

        </value>

    </property>

</configuration>

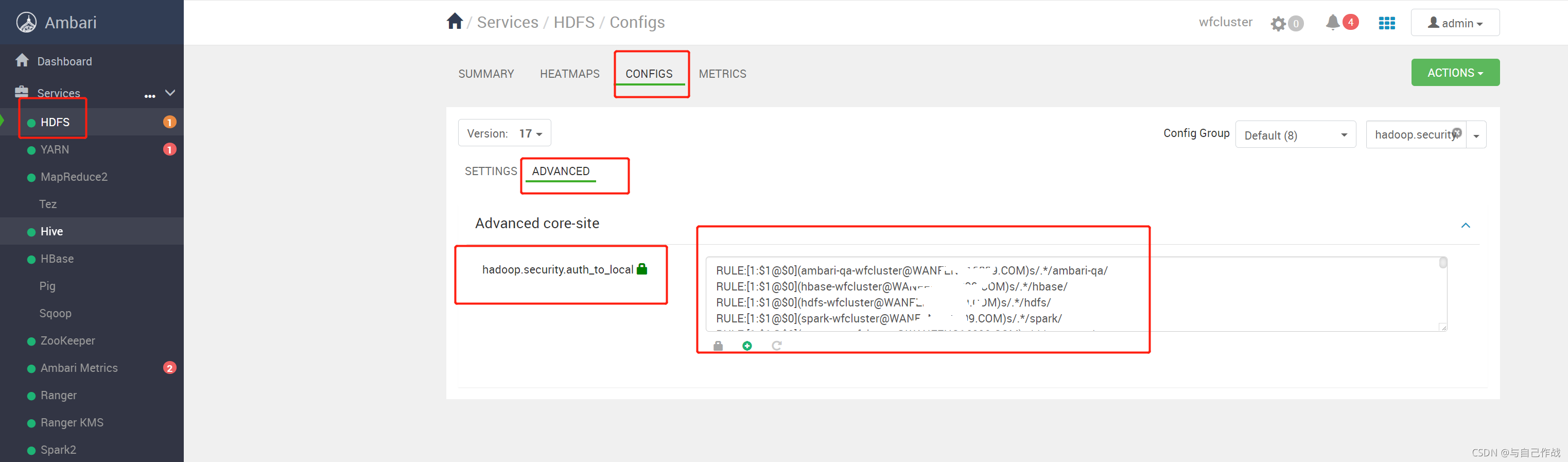

注意：上面文件中的 httpfs.authentication.kerberos.name.rules 参数值就是 HDFS 的 core-site.xml 配置文件中hadoop.security.auth_to_local 参数值。



4、添加 httpfs相关服务(可以直接在client-v01服务器执行)

kinit admin

Wfipaadmin123456

ipa service-add httpfs/client-v01.tianlingqun.com

ipa-getkeytab -s ipa-v01.tianlingqun.com -p HTTP/client-v01.tianlingqun.com \

-k /etc/security/keytabs/spnego.service.keytab

ipa-getkeytab -s ipa-v01.tianlingqun.com -p httpfs/client-v01.tianlingqun.com \

-k /etc/security/keytabs/httpfs.service.keytab

5、创建相关目录：

mkdir -p /var/log/hadoop/httpfs

mkdir -p /var/run/hadoop/httpfs

chown -R httpfs:httpfs /var/log/hadoop/httpfs

chown -R httpfs:httpfs /var/run/hadoop/httpfs

touch /usr/hdp/3.1.4.0-315/hadoop/conf/httpfs-signature.secret

6、启动方法：

ln -s /usr/hdp/3.1.4.0-315/hadoop-httpfs/etc/rc.d/init.d/hadoop-httpfs /etc/rc.d/init.d/hadoop-httpfs

必须重启服务器后执行下面命令：

systemctl start hadoop-httpfs.service

netstat -anlp |grep 14000

注意：如果需要重启的话，先 kill 原来的进程

也可以通过执行如下命令启的(如果上面命令启的失败的话)

touch /etc/hadoop-httpfs/conf/httpfs-signature.secret

cd /usr/hdp/3.1.4.0-315/hadoop-httpfs/sbin

nohup ./httpfs.sh run &

netstat -anlp |grep 14000

7、执行如下命令，添加 hue 相关服务(可以直接在client-v01服务器执行)

kinit admin

ipa service-add hue/client-v01.tianlingqun.com

ipa-getkeytab -s ipa-v01.tianlingqun.com -p hue/client-v01.tianlingqun.com \

-k /etc/security/keytabs/hue.service.keytab

chown hue:hue /etc/security/keytabs/hue.service.keytab

chmod 400 /etc/security/keytabs/hue.service.keytab

8、修改 /usr/local/hue/desktop/conf/hue.ini 文件，配置 Hue LDAP, Hive 等相关参数

9、以 hue 用户尝试启动 Hue服务创建 /var/run/hue 目录，用于缓存 kerberos 票据

mkdir -p /var/run/hue/;

chown hue:hue /var/run/hue/;

10、以 hue 用户尝试启动 Hue服务

killall -u hue; # 该命令是删除 hue 用户的所有进程，如果你的 hue 用户还有其他服务请小心操作；先 kill hue 相关进程，方便“重启”

su - hue

cd /usr/local/hue/desktop/;

rm -rf /usr/local/hue/logs/*;

rm -rf ./nohup.out;

nohup /usr/local/hue/build/env/bin/supervisor &

启动成功后，检查 /usr/local/hue/logs 里的日志是否有报错

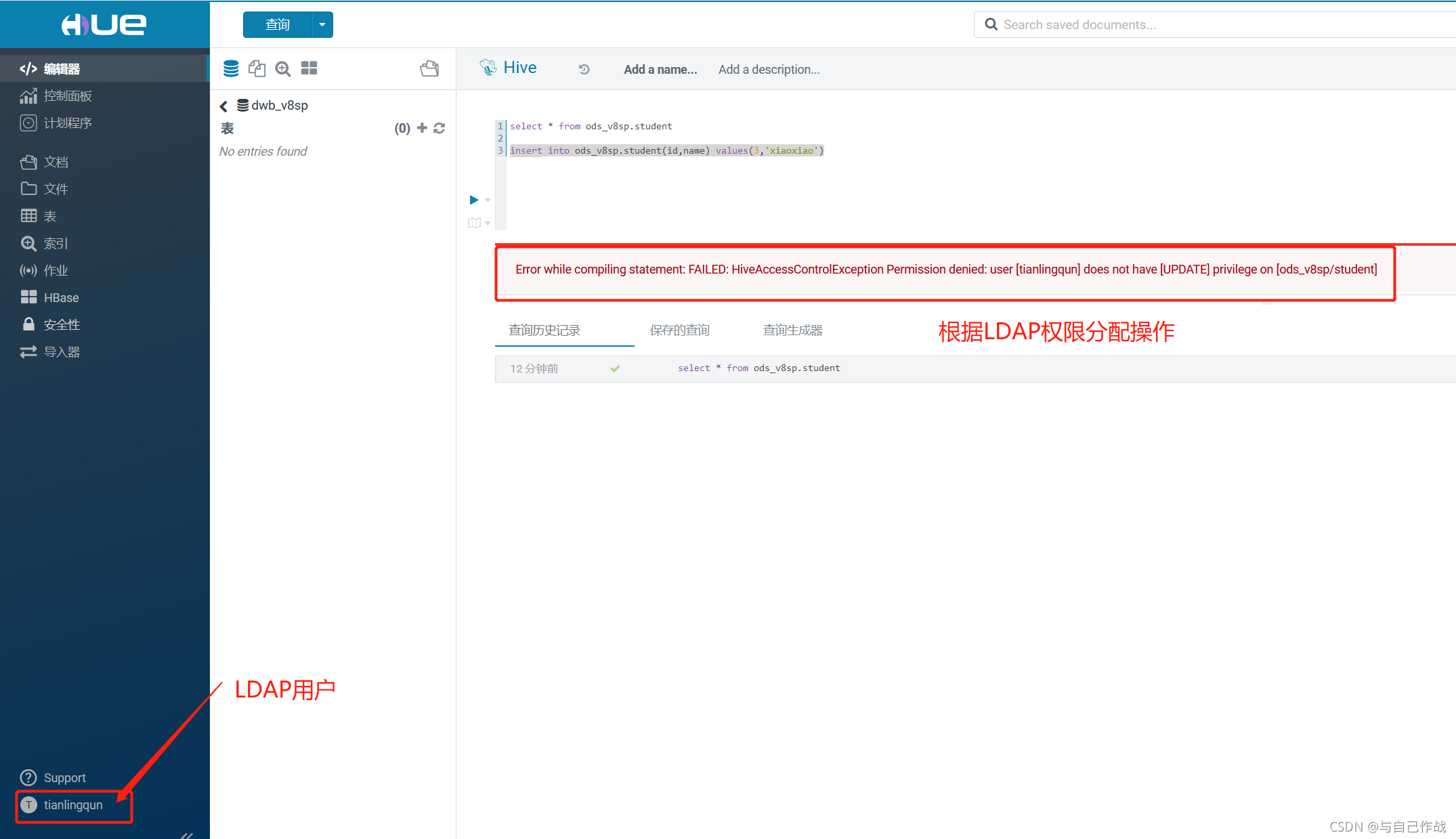

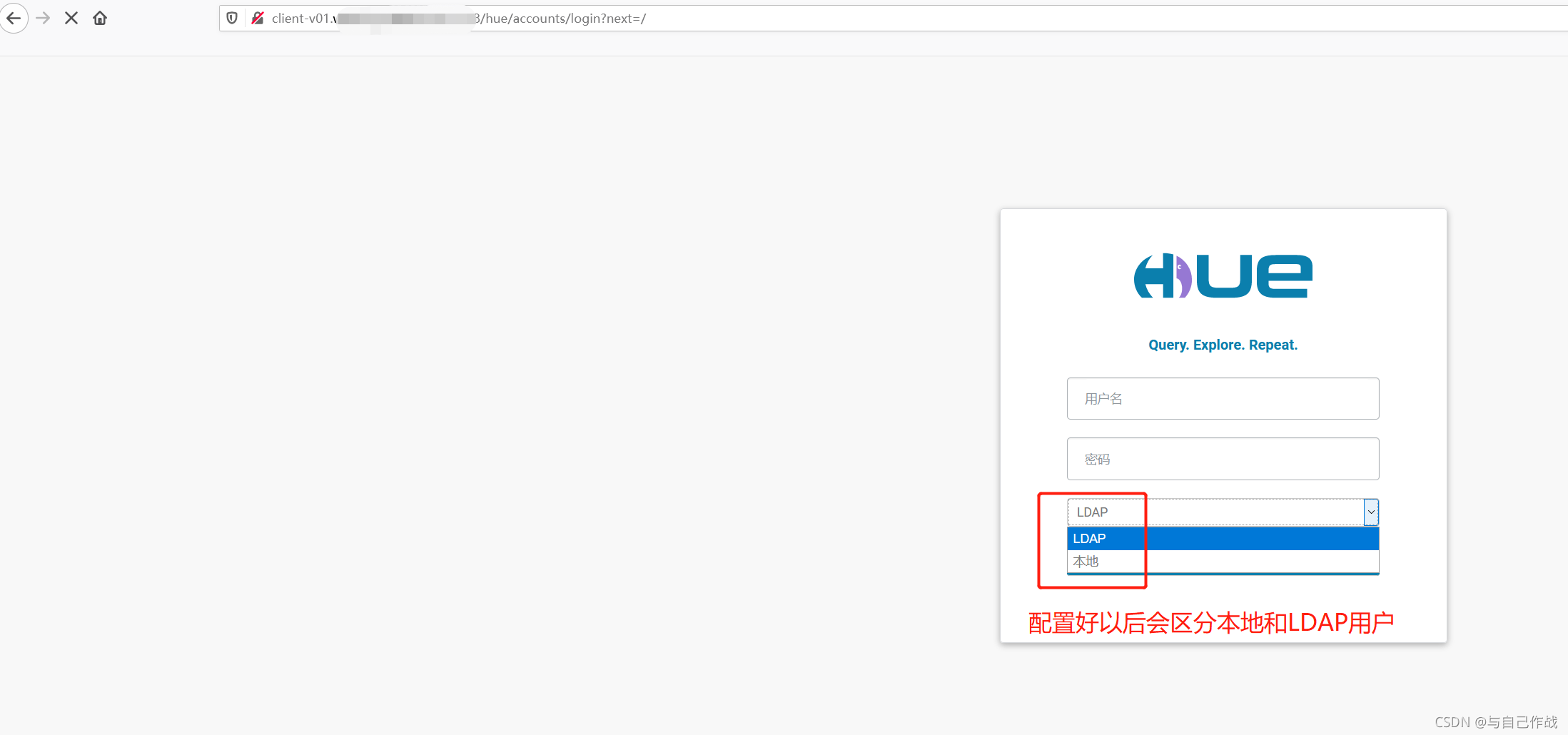

11、我们尝试登陆 Hue Web UI，链接是：http://client-v01.tianlingqun.com:8888/ 输入 g_hue 组的 LDAP 帐号即可登陆查询
