package tree;
/**
 * @author: tianhaichao
 * @date: 2022/9/22 15:38
 * @description:平衡二叉树AVL
 * 1、每个节点的左右子树的高度差不大于1 ---> |left.height-right.height|<=1
 * 2、每个节点的左右子树也是平衡二叉树
 */
public class AVLTree {
    static TreeNode root;

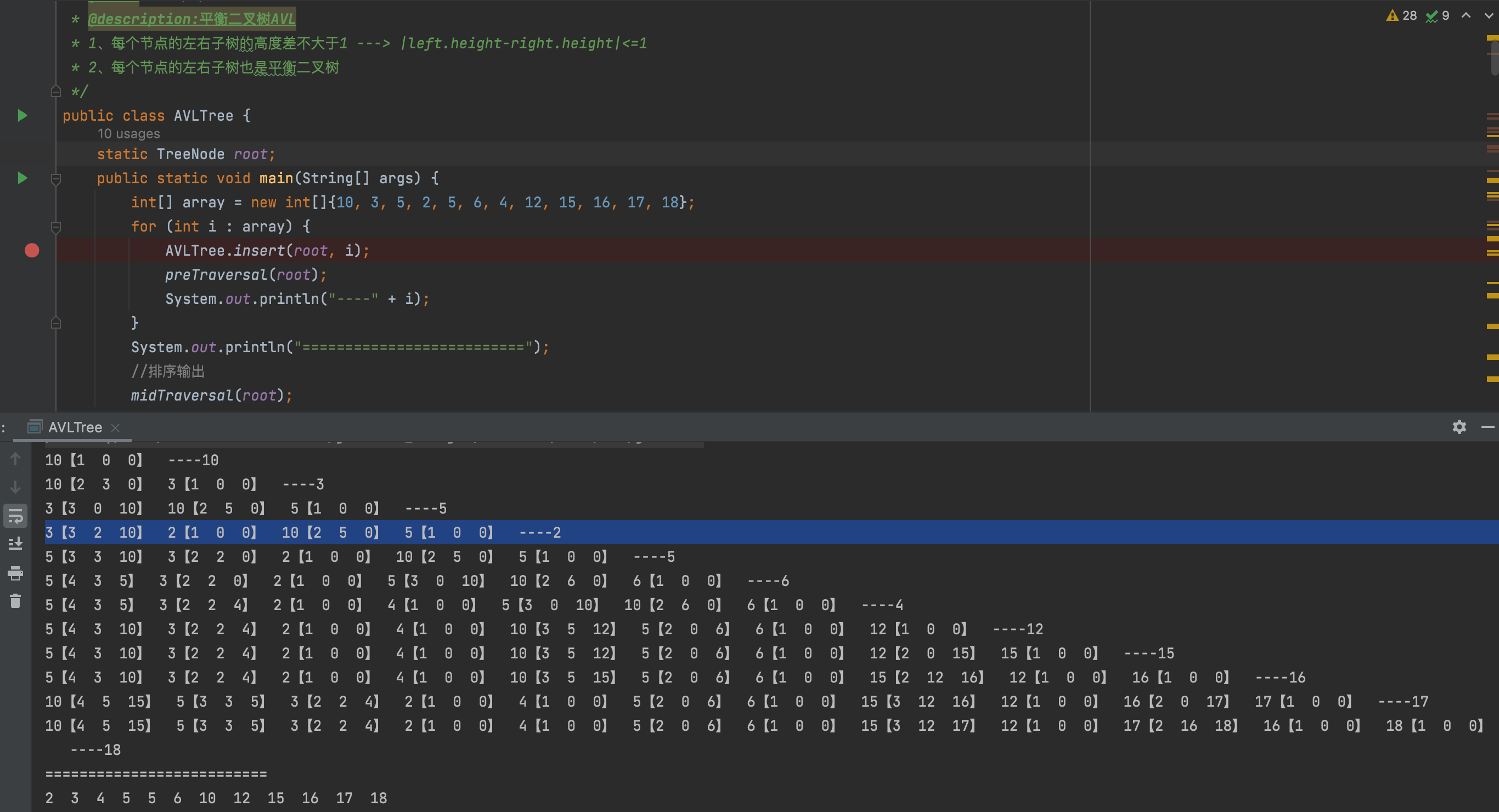

    public static void main(String[] args) {
        int[] array = new int[]{10, 3, 5, 2, 5, 6, 4, 12, 15, 16, 17, 18};
        for (int i : array) {
            AVLTree.insert(root, i);
            preTraversal(root);
            System.out.println("----" + i);
        }
        System.out.println("==========================");
        //排序输出
        midTraversal(root);
    }

    public static class TreeNode {
        // 该节点为顶点的子树深度
        int height;
        int data;
        TreeNode leftChild;
        TreeNode rightChild;
        TreeNode parent;

        public TreeNode(int data) {
            this.data = data;
        }
    }

    /**
     * @author: tianhaichao
     * @date: 2022/9/23 09:55
     * @description:实现算法使用到了递归
     * 用来实现每次变化后，校验、调整树使其达到平衡
     */
    public static void insert(TreeNode node, int data) {
        if (root == null) {
            root = new TreeNode(data);
            root.height = 1;
            return;
        }
        if (data >= node.data) {
            if (node.rightChild == null) {
                //新增叶子结点，没有子树，所以树深为1
                TreeNode newNode = new TreeNode(data);
                newNode.height = 1;
                newNode.parent = node;
                node.rightChild = newNode;
            } else {
                // 递归执行每一层
                insert(node.rightChild, data);
            }
        } else {
            if (node.leftChild == null) {
                TreeNode newNode = new TreeNode(data);
                newNode.height = 1;
                newNode.parent = node;
                node.leftChild = newNode;
            } else {
                insert(node.leftChild, data);
            }
        }
        /**
         递归  --插入返回后，每一层都执行下面代码校验当前节点是否满足平衡标准，并调整
         */
        // 更新子树深度
        node.height = calculateSonTreeDeep(node);
        // 计算平衡因子，执行调整 左子树大
        if (calculateBF(node) >= 2) {
            // 判断是否为LR
            if (calculateBF(node.leftChild) == 1) {
                // LR 先执行左旋转成LL
                leftRotate(node.leftChild);
            }
            // LL 执行右旋
            rightRotate(node);
        }
        // 计算平衡因子，执行调整 右子树大
        if (calculateBF(node) <= -2) {
            // 判断类型，执行调整
            if (calculateBF(node.rightChild) == 1) {
                // LR 先执行左旋转成LL
                rightRotate(node.rightChild);
            }
            // LL 执行右旋
            leftRotate(node);
        }
    }

    /**
     * @author: tianhaichao
     * @date: 2022/8/30 14:44
     * @description: node 旋转节点 RR 、LR执行左旋
     * 1、将右节点上提成为父节点
     * 2、父节点转为右节点的左孩子
     * 3、父节点的右孩子【替换成】右节点的左孩子，父节点的左孩子不变
     * return 旋转完后的父节点，也就是右孩子【将右节点上提成为父节点】
     */
    public static TreeNode leftRotate(TreeNode node) {
        TreeNode right = node.rightChild;
        TreeNode father = node;
        // 如果右节点存在左孩子,父节点的右孩子【替换成】右节点的左孩子
        father.rightChild = right.leftChild;
        // 将右节点上提成为父节点 变成祖父的孩子
        if (father.parent == null || father == root) {
            root = right;
        } else if (father.parent.leftChild == father) {
            father.parent.leftChild = right;
        } else {
            // 如果旋转节点是父节点的右节点
            father.parent.rightChild = right;
        }
        right.parent = father.parent;
//        父节点转为右节点的左孩子
        right.leftChild = father;
        father.parent = right;
        // 调整节点子树高度
        father.height = calculateSonTreeDeep(father);
        right.height = calculateSonTreeDeep(right);
        if (father.parent != null) {
            father.parent.height = calculateSonTreeDeep(father.parent);
        }
        return right;
    }

    /**
     * @return 旋转之后的父节点，也就是左孩子【将左节点上提成为父节点】
     * @author: tianhaichao
     * @date: 2022/9/20 18:31
     * @description: LL或RL执行右旋
     * 执行右旋，
     * 1、将左节点上提成为父节点
     * 2、父节点转为左节点的右孩子
     * 3、父节点的左孩子【替换成】左节点的右孩子，父节点的右孩子不变
     */
    public static TreeNode rightRotate(TreeNode node) {
        TreeNode left = node.leftChild;
        TreeNode father = node;
        // 父节点的左孩子【替换成】左节点的右孩子，父节点的右孩子不变
        father.leftChild = left.rightChild;
        //将左节点上提成为父节点
        if (father.parent == null || father == root) {
            root = left;
        } else if (father.parent.rightChild == father) {

            father.parent.rightChild = left;
        } else {
            father.parent.leftChild = left;
        }
        left.parent = father.parent;
        // 父节点转为左节点的右孩子
        father.parent = left;
        left.rightChild = father;
        // 调整节点子树高度
        father.height = calculateSonTreeDeep(father);
        left.height = calculateSonTreeDeep(left);
        if (father.parent != null) {
            father.parent.height = calculateSonTreeDeep(father.parent);
        }
        return left;
    }

    /**
     * @author: tianhaichao
     * @date: 2022/9/22 16:34
     * @description: 计算平衡因子
     */
    public static int calculateBF(TreeNode node) {
        if (node == null) {
            return 0;
        } else if (node.rightChild == null && node.leftChild == null) {
            return 0;
        } else if (node.leftChild == null) {
            return -node.rightChild.height;
        } else if (node.rightChild == null) {
            return node.leftChild.height;
        } else {
            return node.leftChild.height - node.rightChild.height;
        }
    }

    /**
     * @author: tianhaichao
     * @date: 2022/9/22 16:34
     * @description: 计算子树深度，TreeNode的height值
     */
    public static int calculateSonTreeDeep(TreeNode node) {
        if (node == null) {
            return 0;
        } else if (node.rightChild == null && node.leftChild == null) {
            return 1;
        } else if (node.leftChild == null) {
            return node.rightChild.height + 1;
        } else if (node.rightChild == null) {
            return node.leftChild.height + 1;
        } else {
            return Math.max(node.leftChild.height, node.rightChild.height) + 1;
        }
    }

    /**
     * @author: tianhaichao
     * @date: 2022/9/20 15:10
     * @description:中序遍历
     */
    public static void midTraversal(TreeNode node) {
        if (node == null) {
            return;
        }
        midTraversal(node.leftChild);
        System.out.print(node.data + "  ");
        midTraversal(node.rightChild);
    }

    /**
     * @author: tianhaichao
     * @date: 2022/9/20 15:10
     * @description:中序遍历
     */
    public static void preTraversal(TreeNode node) {
        if (node == null) {
            return;
        }
        int left = node.leftChild != null ? node.leftChild.data : 0;
        int right = node.rightChild != null ? node.rightChild.data : 0;
        System.out.print(node.data + "【" + node.height + "  " + left + "  " + right + "】" + "  ");
        preTraversal(node.leftChild);
        preTraversal(node.rightChild);
    }

}
