基于kubeadm10分钟搭建k8s集群指南 转载：https://mp.weixin.qq.com/s/CU14gGj7jMeBkpiIbrEwvA

一

搭建集群背景

环境要求：

• A compatible Linux host. The Kubernetes project provides generic instructions for Linux distributions based on Debian and Red Hat, and those distributions without a package manager.

• 2 GB or more of RAM per machine (any less will leave little room for your apps).

• 2 CPUs or more.

• Full network connectivity between all machines in the cluster (public or private network is fine).

• Unique hostname, MAC address, and product_uuid for every node. See here for more details.

• Certain ports are open on your machines. See here for more details.

• Swap disabled. You MUST disable swap in order for the kubelet to work properly.

1、系统环境（2核4GB）：CentOS 7
master节点ip：10.229.1.168
node1工作节点ip：10.229.3.251
root权限账号执行操作
2、变更主机名称：

#(注意是主机名hostname不可有-或者. 否则kubeadm init 时会报[nodeRegistration.name](<http://noderegistration.name/>): Invalid value: "k8s_master")
#master节点设置更改hostname
$ hostnamectl set-hostname k8s-master
#node1节点设置hostname
$ hostnamectl set-hostname k8s-node1

#master及node1节点都添加hosts
$ cat >>/etc/hosts << EOF
10.229.1.168 k8s-master
10.229.3.251 k8s-node1
EOF

3. 所有节点执行一下安装内容
（1）关闭防火墙、selinux、swap

#关闭防火墙
$ systemctl status firewalld && systemctl stop firewalld && systemctl disable firewalld
#关闭selinux
$cat /etc/selinux/config
$ sed -i 's/enforcing/disabled/'/etc/selinux/config    #永久关闭
$ setenforce 0 # 临时关闭
#关闭swap
#swapoff -a  # 临时
$ vim /etc/fstab  # 永久
删除 /mnt/swap swap swap defaults 0 0 这一行或者注释掉这一行

（2）将桥接的IPv4流量传递到iptables的链

#将桥接的IPv4流量传递到iptables的链：
$ cat >/etc/sysctl.d/k8s.conf << EOF
net.bridge.bridge-nf-call-ip6tables =1
net.bridge.bridge-nf-call-iptables =1
EOF

#使生效
$ sysctl --system

（3）使用阿里yum源

#更换yum源
cat > /etc/yum.repos.d/kubernetes.repo <<EOF
[kubernetes]
name=Kubernetes
baseurl=https://mirrors.aliyun.com/kubernetes/yum/repos/kubernetes-el7-x86_64
enabled=1
gpgcheck=1
repo_gpgcheck=1
gpgkey=https://mirrors.aliyun.com/kubernetes/yum/doc/yum-key.gpg https://mirrors.aliyun.com/kubernetes/yum/doc/rpm-package-key.gpg
EOF

（4）安装docker及 kubelet kubeadm kubectl

#Kubernetes默认CRI（容器运行时）为Docker，因此先安装Docker
yum -y install docker
#启动docker
systemctl enable docker && systemctl start docker
#检查docker安装情况
docker -v

#配置镜像加速器
cat > /etc/docker/daemon.json << EOF
{
  "registry-mirrors": ["<https://qnaf9aj5.mirror.aliyuncs.com>"]
}
EOF
#重启docker
systemctl restart docker

#安装kubeadm，kubelet和kubectl
yum install -y kubelet kubeadm kubectl
#启动kubelet
systemctl enable kubelet && systemctl start kubelet



二

master节点安装内容

1、使用kubeadm init安装

#此命令可能存在无法拉取镜像的情况（eg:网络被墙）
$ kubeadm init --pod-network-cidr 10.244.0.0/16 --kubernetes-version latest

#如果执行以上拉取失败，执行以下命令，查看需要的镜像
$ kubeadm config images list
  k8s.gcr.io/kube-apiserver:v1.22.1
  k8s.gcr.io/kube-controller-manager:v1.22.1
  k8s.gcr.io/kube-scheduler:v1.22.1
  k8s.gcr.io/kube-proxy:v1.22.1
  k8s.gcr.io/pause:3.5
  k8s.gcr.io/etcd:3.5.0-0
  k8s.gcr.io/coredns/coredns:v1.8.4

#以上命令拉取不下来的话，需要手动拉取镜像
$ docker pull registry.aliyuncs.com/google_containers/kube-apiserver:v1.22.1 && \\
docker pull registry.aliyuncs.com/google_containers/kube-controller-manager:v1.22.1 && \\
docker pull registry.aliyuncs.com/google_containers/kube-scheduler:v1.22.1 && \\
docker pull registry.aliyuncs.com/google_containers/kube-proxy:v1.22.1 && \\
docker pull registry.aliyuncs.com/google_containers/pause:3.5 && \\
docker pull registry.aliyuncs.com/google_containers/etcd:3.5.0-0 && \\
docker pull registry.cn-hangzhou.aliyuncs.com/google_containers/coredns:1.8.4

#修改镜像名称及标签
$ docker tag registry.aliyuncs.com/google_containers/kube-apiserver:v1.22.1  k8s.gcr.io/kube-apiserver:v1.22.1 && \\
docker tag registry.aliyuncs.com/google_containers/kube-controller-manager:v1.22.1  k8s.gcr.io/kube-controller-manager:v1.22.1 && \\
docker tag registry.aliyuncs.com/google_containers/kube-scheduler:v1.22.1  k8s.gcr.io/kube-scheduler:v1.22.1 && \\
docker tag registry.aliyuncs.com/google_containers/kube-proxy:v1.22.1  k8s.gcr.io/kube-proxy:v1.22.1 && \\
docker tag registry.aliyuncs.com/google_containers/etcd:3.5.0-0  k8s.gcr.io/etcd:3.5.0-0 && \\
docker tag registry.aliyuncs.com/google_containers/pause:3.5  k8s.gcr.io/pause:3.5 && \\
docker tag registry.cn-hangzhou.aliyuncs.com/google_containers/coredns:1.8.4 k8s.gcr.io/coredns/coredns:v1.8.4

#删除多余镜像
$ docker rmi registry.aliyuncs.com/google_containers/kube-apiserver:v1.22.1 \\
registry.aliyuncs.com/google_containers/kube-controller-manager:v1.22.1 \\
registry.aliyuncs.com/google_containers/kube-scheduler:v1.22.1 \\
registry.aliyuncs.com/google_containers/kube-proxy:v1.22.1 \\
registry.aliyuncs.com/google_containers/etcd:3.5.0-0 \\
registry.aliyuncs.com/google_containers/pause:3.5 \\
registry.cn-hangzhou.aliyuncs.com/google_containers/coredns:1.8.4

#查看镜像获取情况
$ docker images

#拉取镜像完毕重新初始化
$ kubeadm init --pod-network-cidr 10.244.0.0/16 --kubernetes-version latest

• 见到以下输出表明已经安装成功

Your Kubernetes control-plane has initialized successfully!

To start using your cluster, you need to run the following as a regular user:

  mkdir -p $HOME/.kube
  sudo cp -i /etc/kubernetes/admin.conf $HOME/.kube/config
  sudo chown $(id -u):$(id -g) $HOME/.kube/config

Alternatively, if you are the root user, you can run:

  export KUBECONFIG=/etc/kubernetes/admin.conf

You should now deploy a pod network to the cluster.
Run "kubectl apply -f [podnetwork].yaml" with one of the options listed at:
  <https://kubernetes.io/docs/concepts/cluster-administration/addons/>

Then you can join any number of worker nodes by running the following on each as root:

kubeadm join 172.16.1.197:6443 --token ebi9py.oz4hmt72yk1wlvoe \\
  --discovery-token-ca-cert-hash sha256:9990f921f6c66423fc097f81f2c4d5f2b851dc906cbce966db99de73dbce793b

2、执行以下命令，拷贝kubectl使用的连接k8s认证文件到默认路径

$ mkdir -p $HOME/.kube
$ cp -i /etc/kubernetes/admin.conf $HOME/.kube/config
$ chown $(id -u):$(id -g) $HOME/.kube/config
$ export KUBECONFIG=/etc/kubernetes/admin.conf

3、查看pods，此时pod为NotReady的状况，需要暗转网络插件，第四步会讲到

$ kubectl get nodes
k8s-master   NotReady   control-plane,master   2m54s   v1.22.1



三

node1节点安装内容

• 安装完docker、kubeadm、kubectl、kubelet之后,加入Kubernetes Node

#node节点执行以下命令，拉取镜像

[root@k8s-node1 ~]# docker pull registry.aliyuncs.com/google_containers/kube-proxy:v1.22.1 && \\
docker tag registry.aliyuncs.com/google_containers/kube-proxy:v1.22.1  k8s.gcr.io/kube-proxy:v1.22.1 && \\
docker rmi registry.aliyuncs.com/google_containers/kube-proxy:v1.22.1

[root@k8s-node1 ~]#  docker pull registry.aliyuncs.com/google_containers/pause:3.5 && \\
docker tag registry.aliyuncs.com/google_containers/pause:3.5  k8s.gcr.io/pause:3.5 && \\
docker rmi registry.aliyuncs.com/google_containers/pause:3.5

#****** 查看 node1 节点需要安装的镜像列表，此三个必须安装 ***********#
[root@k8s-node1 ~]# docker images
REPOSITORY               TAG                 IMAGE ID            CREATED             SIZE
k8s.gcr.io/kube-proxy    v1.22.1             36c4ebbc9d97        2 weeks ago         104 MB
quay.io/coreos/flannel   v0.14.0             8522d622299c        3 months ago        67.9 MB
k8s.gcr.io/pause         3.5                 ed210e3e4a5b        5 months ago        683 kB

[root@k8s-node1 ~]# kubeadm join 172.16.1.197:6443 --token ebi9py.oz4hmt72yk1wlvoe \\
  --discovery-token-ca-cert-hash sha256:9990f921f6c66423fc097f81f2c4d5f2b851dc906cbce966db99de73dbce793b

#执行以下命令出现问题，解决方案是拷贝master节点/etc/kubernetes/admin.conf配置
[root@k8s-node1 ~]# kubectl get nodes
The connection to the server localhost:8080 was refused - did you specify the right host or port?

[root@k8s-node1 ~]# scp root@k8s-master:/etc/kubernetes/admin.conf /etc/kubernetes/admin.conf

[root@k8s-node1 ~]# export KUBECONFIG=/etc/kubernetes/admin.conf

#重新执行，会显示正常
[root@k8s-node1 ~]# kubectl get nodes
NAME         STATUS   ROLES                  AGE     VERSION
k8s-master   NotReady    control-plane,master   2d17h   v1.22.1
k8s-node1    NotReady    <none>                 2d17h   v1.22.1

# 也可以考虑以下命令
[root@k8s-node1 ~]# echo "export KUBECONFIG=/etc/kubernetes/admin.conf" >> /etc/profile
[root@k8s-node1 ~]# source /etc/profile



四

flannel 网络插件安装

• 节点的状态是 not ready，这个是因为我们并没有安装网络插件 (master及node1 节点上都需要安装)

#下载kube-flannel.yml
$ wget https://raw.githubusercontent.com/coreos/flannel/master/Documentation/kube-flannel.yml

# 查看network的子网配置
[root@k8s-node1 ~]# cat kube-flannel.yml |grep -A6 "net-conf"
  net-conf.json: |
    {
      "Network": "10.244.0.0/16",
      "Backend": {
        "Type": "vxlan"
      }
    }

#此命令可能存在无法拉取镜像的情况
[root@k8s-node1 ~]#  kubectl apply -f kube-flannel.yml

#查看各服务状态及节点状况
[root@k8s-node1 ~]#  kubectl get pods -n kube-system -o wide
#或者使用
[root@k8s-node1 ~]#  kubectl get pods --all-namespaces

#进一步查看日志情况，通过log工具查看pod的日志内容是排查问题最常用，也是最方便的方法，可以很快定位到问题的根源。
[root@k8s-node1 ~]# kubectl logs kube-flannel-ds-wk9tj -n kube-system
I0905 12:53:00.709734       1 main.go:520] Determining IP address of default interface
I0905 12:53:00.710553       1 main.go:533] Using interface with name eth0 and address 172.16.0.188
I0905 12:53:00.710607       1 main.go:550] Defaulting external address to interface address (172.16.0.188)
W0905 12:53:00.710694       1 client_config.go:608] Neither --kubeconfig nor --master was specified.  Using the inClusterConfig.  This might not work.
I0905 12:53:01.214239       1 kube.go:116] Waiting 10m0s for node controller to sync
I0905 12:53:01.214324       1 kube.go:299] Starting kube subnet manager
..........

#或者使用此命令查看pod状态
$ kubectl describe pod kube-flannel-ds-wk9tj -n kube-system
#如果出现以下状况是因为镜像没有拉取,可以在node节点执行
#Warning  FailedCreatePodSandBox  2m22s               kubelet            Failed to create pod sandbox: rpc error: code = Unknown desc = failed pulling image "k8s.gcr.io/pause:3.5": Get <https://k8s.gcr.io/v1/_ping:> dial tcp 142.250.157.82:443: i/o timeout

#可以看到由于国内网络原因无法拉取镜像，手动拉取flannel镜像
#使用以下方法获取flannel镜像
$ wget https://github.com/flannel-io/flannel/releases/download/v0.14.0/flanneld-v0.14.0-amd64.docker

#加载到docker
$ docker load < flanneld-v0.14.0-amd64.docker && \\
docker tag quay.io/coreos/flannel:v0.14.0-amd64 quay.io/coreos/flannel:v0.14.0 && \\
docker rmi quay.io/coreos/flannel:v0.14.0-amd64

#重新安装
[root@k8s-node1 ~]# kubectl delete -f kube-flannel.yml
[root@k8s-node1 ~]# kubectl apply -f kube-flannel.yml

#查看进程是否启来
$ ps -ef|grep flannel

#安装完flannel等待几分钟，再查看服务状态
$ kubectl get pods -n kube-system -o wide
#查看节点状况
$ kubectl get nodes



五

查看集群健康状况

1、集群健康检查

#查看controller manager和scheller状态
[root@k8s-master ~]# kubectl get cs
Warning: v1 ComponentStatus is deprecated in v1.19+
NAME                 STATUS    MESSAGE                         ERROR
scheduler            Healthy   ok
controller-manager   Healthy   ok
etcd-0               Healthy   {"health":"true","reason":""}

如果集群不健康

#如果集群不健康，更改以下两个文件，搜索 --port=0，把这一行注释掉
[root@k8s-master ~]# vim /etc/kubernetes/manifests/kube-scheduler.yaml
[root@k8s-master ~]# vim /etc/kubernetes/manifests/kube-controller-manager.yaml
# 搜索port=0，把这一行注释掉
    #    - --port=0
[root@k8s-master ~]# systemctl restart kubelet
[root@k8s-master ~]# kubectl get cs

2、查看集群配置

#查看集群配置
[root@k8s-master ~]# kubectl get configmap -n kube-system
NAME                                 DATA   AGE
coredns                              1      2d18h
extension-apiserver-authentication   6      2d18h
kube-flannel-cfg                     2      2d16h
kube-proxy                           2      2d18h
kube-root-ca.crt                     1      2d18h
kubeadm-config                       1      2d18h
kubelet-config-1.22                  1      2d18h

[root@k8s-master ~]# kubectl get configmap kube-flannel-cfg -n kube-system -o yaml

#检查证书是否过期
[root@k8s-master ~]# kubeadm certs check-expiration
[check-expiration] Reading configuration from the cluster...
[check-expiration] FYI: You can look at this config file with 'kubectl -n kube-system get cm kubeadm-config -o yaml'

CERTIFICATE                EXPIRES                  RESIDUAL TIME   CERTIFICATE AUTHORITY   EXTERNALLY MANAGED
admin.conf                 Sep 05, 2022 10:32 UTC   362d                                    no
apiserver                  Sep 05, 2022 10:32 UTC   362d            ca                      no
apiserver-etcd-client      Sep 05, 2022 10:32 UTC   362d            etcd-ca                 no
apiserver-kubelet-client   Sep 05, 2022 10:32 UTC   362d            ca                      no
controller-manager.conf    Sep 05, 2022 10:32 UTC   362d                                    no
etcd-healthcheck-client    Sep 05, 2022 10:32 UTC   362d            etcd-ca                 no
etcd-peer                  Sep 05, 2022 10:32 UTC   362d            etcd-ca                 no
etcd-server                Sep 05, 2022 10:32 UTC   362d            etcd-ca                 no
front-proxy-client         Sep 05, 2022 10:32 UTC   362d            front-proxy-ca          no
scheduler.conf             Sep 05, 2022 10:32 UTC   362d                                    no

CERTIFICATE AUTHORITY   EXPIRES                  RESIDUAL TIME   EXTERNALLY MANAGED
ca                      Sep 03, 2031 10:32 UTC   9y              no
etcd-ca                 Sep 03, 2031 10:32 UTC   9y              no
front-proxy-ca          Sep 03, 2031 10:32 UTC   9y              no

[root@k8s-master ~]# kubeadm token create --print-join-command
kubeadm join 172.16.1.197:6443 --token pr0pdb.fayae0jrwfr6wmkb --discovery-token-ca-cert-hash sha256:9990f921f6c66423fc097f81f2c4d5f2b851dc906cbce966db99de73dbce793b

#或者
[root@k8s-master ~]#  kubeadm token generate
#根据token输出添加工作节点命令
[root@k8s-master ~]#  kubeadm token create <token> --print-join-command --ttl=0



六

集群测试

1、master节点nginx测试

#安装
[root@k8s-master ~]# kubectl create deployment nginx-deploy --image=nginx
[root@k8s-master ~]# kubectl expose deployment nginx-deploy --port=80 --type=NodePort

#查看IP和端口号并测试
[root@k8s_master ~]# kubectl get pod,svc
NAME                               READY   STATUS    RESTARTS   AGE
pod/nginx-deploy-8588f9dfb-hqv4h   1/1     Running   0          5m

NAME                   TYPE        CLUSTER-IP      EXTERNAL-IP   PORT(S)        AGE
service/kubernetes     ClusterIP   10.96.0.1       <none>        443/TCP        159m
service/nginx-deploy   NodePort    10.104.174.27   <none>        80:32353/TCP   4m49s

#查看pod的ip地址
[root@k8s-master ~]# kubectl get pods -n kube-system -o wide
NAME                                 READY   STATUS    RESTARTS        AGE     IP             NODE         NOMINATED NODE   READINESS GATES
coredns-78fcd69978-cjclt             1/1     Running   0               2d18h   10.244.0.3     k8s-master   <none>           <none>
coredns-78fcd69978-vkwpn             1/1     Running   0               2d18h   10.244.0.2     k8s-master   <none>           <none>
etcd-k8s-master                      1/1     Running   0               2d18h   172.16.1.197   k8s-master   <none>           <none>
kube-apiserver-k8s-master            1/1     Running   0               2d18h   172.16.1.197   k8s-master   <none>           <none>
kube-controller-manager-k8s-master   1/1     Running   0               2d15h   172.16.1.197   k8s-master   <none>           <none>
kube-flannel-ds-d5h7g                1/1     Running   0               2d16h   172.16.1.197   k8s-master   <none>           <none>
kube-flannel-ds-wk9tj                1/1     Running   8 (2d15h ago)   2d16h   172.16.0.188   k8s-node1    <none>           <none>
kube-proxy-jrjjs                     1/1     Running   0               2d18h   172.16.1.197   k8s-master   <none>           <none>
kube-proxy-pnnlq                     1/1     Running   0               2d18h   172.16.0.188   k8s-node1    <none>           <none>
kube-scheduler-k8s-master            1/1     Running   0               2d15h   172.16.1.197   k8s-master   <none>           <none>

#curl进行请求，注意使用master或者work node的地址,查看返回
[root@k8s_master ~]# curl 172.16.0.188:32353
<!DOCTYPE html>
<html>
<head>
<title>Welcome to nginx!</title>
<style>
    body {
        width: 35em;
        margin: 0 auto;
        font-family: Tahoma, Verdana, Arial, sans-serif;
    }
</style>
</head>
<body>
<h1>Welcome to nginx!</h1>
<p>If you see this page, the nginx web server is successfully installed and
working. Further configuration is required.</p>

<p>For online documentation and support please refer to
<a href="<http://nginx.org/>">nginx.org</a>.<br/>
Commercial support is available at
<a href="<http://nginx.com/>">nginx.com</a>.</p>

<p><em>Thank you for using nginx.</em></p>
</body>
</html>

[root@k8s-master ~]# curl 172.16.1.197:32353
<!DOCTYPE html>
<html>
<head>
<title>Welcome to nginx!</title>
<style>
    body {
        width: 35em;
        margin: 0 auto;
        font-family: Tahoma, Verdana, Arial, sans-serif;
    }
</style>
</head>
<body>
<h1>Welcome to nginx!</h1>
<p>If you see this page, the nginx web server is successfully installed and
working. Further configuration is required.</p>

<p>For online documentation and support please refer to
<a href="<http://nginx.org/>">nginx.org</a>.<br/>
Commercial support is available at
<a href="<http://nginx.com/>">nginx.com</a>.</p>

<p><em>Thank you for using nginx.</em></p>
</body>
</html>



七

安装dashboard

1、注意兼容性

#kubectl 的版本信息是1.22.1
[root@k8s-master ~]# kubectl version
Client Version: [version.Info](<http://version.info/>){Major:"1", Minor:"22", GitVersion:"v1.22.1", GitCommit:"632ed300f2c34f6d6d15ca4cef3d3c7073412212", GitTreeState:"clean", BuildDate:"2021-08-19T15:45:37Z", GoVersion:"go1.16.7", Compiler:"gc", Platform:"linux/amd64"}
Server Version: [version.Info](<http://version.info/>){Major:"1", Minor:"22", GitVersion:"v1.22.1", GitCommit:"632ed300f2c34f6d6d15ca4cef3d3c7073412212", GitTreeState:"clean", BuildDate:"2021-08-19T15:39:34Z", GoVersion:"go1.16.7", Compiler:"gc", Platform:"linux/amd64"}

2、dashboard兼容性查询地址 https://github.com/kubernetes/dashboard/releases

3、安装dashboard

#安装
[root@k8s-master ~]# kubectl apply -f [<https://raw.githubusercontent.com/kubernetes/dashboard/v2.3.1/aio/deploy/recommended.yaml>](<https://raw.githubusercontent.com/kubernetes/dashboard/v2.3.1/aio/deploy/recommended.yaml>)

#查看dashboard运行状态
[root@k8s-master ~]# kubectl get pod -n kubernetes-dashboard

#修改Dashboard,通过NodePort方式暴露端口，这里指定30001
[root@k8s-master ~]# kubectl patch svc kubernetes-dashboard \\
  -n kubernetes-dashboard \\
  -p '{"spec":{"type":"NodePort","ports":[{"port":443,"targetPort":8443,"nodePort":30001}]}}'

4、登录dashboard的地址为 https://10.229.1.168:30001 注意：chrome提示不是私密连接，解决办法是盲输入以下内容回车即可 thisisunsafe

5、创建账户

#创建dashboard-adminuser.yaml
[root@k8s-master ~]# cat > dashboard-adminuser.yaml << EOF
apiVersion: v1
kind: ServiceAccount
metadata:
  name: admin-user
  namespace: kubernetes-dashboard

---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
  name: admin-user
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: ClusterRole
  name: cluster-admin
subjects:
- kind: ServiceAccount
  name: admin-user
  namespace: kubernetes-dashboard
EOF

#创建登录用户
[root@k8s-master ~]# kubectl apply -f dashboard-adminuser.yaml

#查看admin-user账户的token
[root@k8s-master ~]# kubectl -n kubernetes-dashboard describe secret $(kubectl -n kubernetes-dashboard get secret | grep admin-user | awk '{print $1}')
Name:         admin-user-token-4vbjr
Namespace:    kubernetes-dashboard
Labels:       <none>
Annotations:  kubernetes.io/service-account.name: admin-user
              kubernetes.io/service-account.uid: 108fbc06-8eda-4e11-9b81-a598555465ce

Type:  kubernetes.io/service-account-token

Data
====
namespace:  20 bytes
token:      eyJhbGciOiJSUzI1NiIsImtpZCI6ImRGT2NkYUhpX2pOMHZOT2ZOeXlUTUhXNmstZkZIdmdFMzFvTzRKV2JSeGsifQ.eyJpc3MiOiJrdWJlcm5ldGVzL3NlcnZpY2VhY2NvdW50Iiwia3ViZXJuZXRlcy5pby9zZXJ2aWNlYWNjb3VudC9uYW1lc3BhY2UiOiJrdWJlcm5ldGVzLWRhc2hib2FyZCIsImt1YmVybmV0ZXMuaW8vc2VydmljZWFjY291bnQvc2VjcmV0Lm5hbWUiOiJhZG1pbi11c2VyLXRva2VuLTR2YmpyIiwia3ViZXJuZXRlcy5pby9zZXJ2aWNlYWNjb3VudC9zZXJ2aWNlLWFjY291bnQubmFtZSI6ImFkbWluLXVzZXIiLCJrdWJlcm5ldGVzLmlvL3NlcnZpY2VhY2NvdW50L3NlcnZpY2UtYWNjb3VudC51aWQiOiIxMDhmYmMwNi04ZWRhLTRlMTEtOWI4MS1hNTk4NTU1NDY1Y2UiLCJzdWIiOiJzeXN0ZW06c2VydmljZWFjY291bnQ6a3ViZXJuZXRlcy1kYXNoYm9hcmQ6YWRtaW4tdXNlciJ9.idJV83hWmQTCJU9ikSjATiHXYosHHZlJYeeUZ31WHA_SyxHQGpVKGimRtPrTCSHdZ-RINNrGD0lRMJOQin7pazGLwip3haP8l5CyP7zK0YEj6mETboA0rrbEkD7BRwVB7Hip27XSvwP_nPgrghei2htiKKcS5N15ExuoOc1zgHi2QzvH5Qc76oINTdKje3PI-tQ7PyHtrgGOpZudVxEgykXxIGGhD7uE_UBPEGeSb26l_Nm9cfZMt_ebe9h87kqdQn4QeIG-bRK6klR-uWU7dzRngCit18OjUYzfG-_lZCdNAW6XfeIQWceV7EAGOarg_iKOT4RuQSHcbnZRQ1FPQg
ca.crt:     1099 bytes

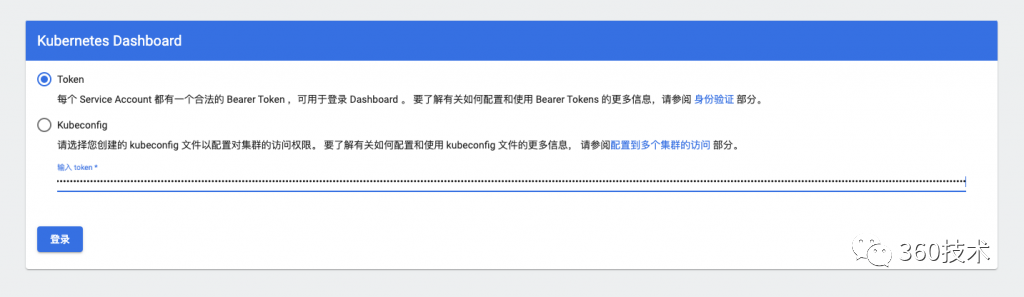

6、使用以上token登录dashboard

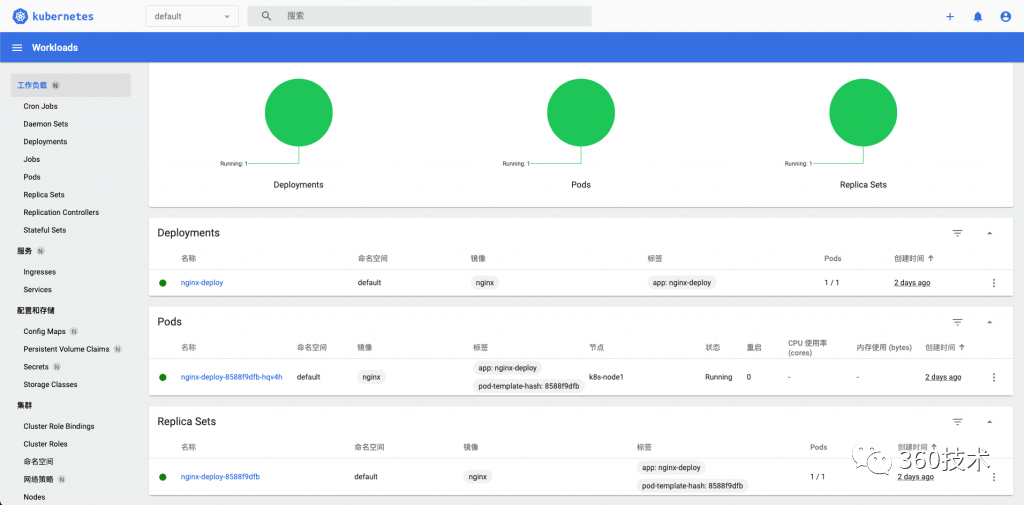

7、登录后首页





八

参考链接

https://kubernetes.io/docs/setup/production-environment/tools/kubeadm/install-kubeadm/ https://blog.csdn.net/flying_monkey_1/article/details/118701275 https://blog.csdn.net/weixin_40039683/article/details/112886735 https://github.com/kubernetes/dashboard/releases
