Rotate Image(二位数组顺时针旋转)

问题描述:
You are given an n x n 2D matrix representing an image.
Rotate the image by 90 degrees (clockwise).
Follow up:
Could you do this in-place?
中文题目:
有一个NxN整数矩阵,请编写一个算法,将矩阵顺时针旋转90度。
给定一个NxN的矩阵,和矩阵的阶数N,请返回旋转后的NxN矩阵,保证N小于等于300。
分析:
过程如下图所示:

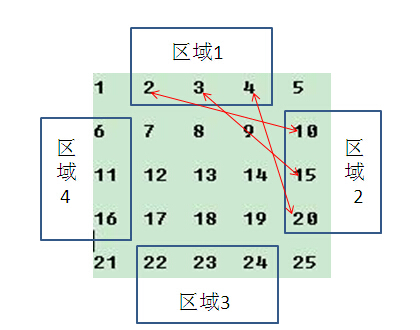

step1:

区域1和2内元素互换
step1的结果为:
step1的结果

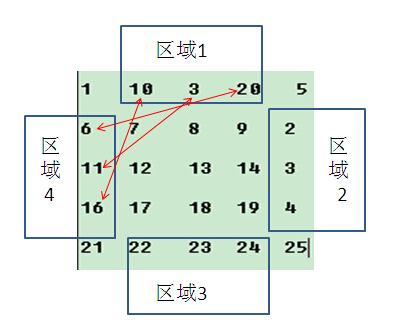

step2:

区域1和4内元素互换
step2的结果为:
step2的结果

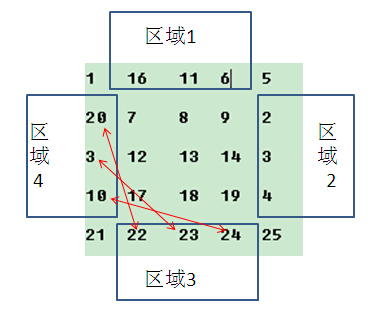

step3:

区域3和4内元素互换
step3的结果

step4:

上图的圆圈中的元素按照上述顺序互换

这样,一层结束了;

step5:

在二维数组的内层继续执行step1–step4,直到最内层结束;

代码如下:

class Rotate {
public:
    void swap(int &a,int &b)
{
    int temp = a;
    a = b;
    b = temp;
}
    vector<vector<int> > rotateMatrix(vector<vector<int> > mat, int n) {
    if(n == 1 || n == 0)
    return mat;

    int up  = 0;
    int right = n-1;
    int down = n-1;
    int left = 0;

    while(up < down && left < right)
    {
        //1,2 swap
        int begin1 = up + 1;
        for(int i = left + 1;i < right;i++)
        {
            swap(mat[up][i],mat[begin1++][right]);
        }
        //1 4 swap
        begin1 = down - 1;
        for(int i = left + 1;i < right;i++)
        {
            swap(mat[up][i],mat[begin1--][left]);
        }
        //3 4 swap
        begin1 = up + 1;
        for(int i = left + 1;i < right;i++)
        {
            swap(mat[down][i],mat[begin1++][left]);
        }
        //圆圈内的四个角上的元素互换
        swap(mat[up][left],mat[up][right]);

        swap(mat[up][left],mat[down][left]);

        swap(mat[down][left],mat[down][right]);

        up++;
        down--;
        left++;
        right--;
    }
    return mat;
    }
};

算法实现在数组本地实现,空间复杂度为O(1).
