HCIP---VLAN实验

一、实验要求

1.PC1和PC3所在接口为ACCESS，pvlan,vlan2;
PC2,PC4,PC5,PC6处于同一网段，其中PC2可以访问PC4/5/6;但是PC4可以访问PC5，不能访问PC6
2.PC5不能访PC6
3.PC1/3与PC2/4/5/6不在同一个网段
4.所有PC通过DHCP自动获取IP，且PC1/3可以正常访问PC2/4/5/6

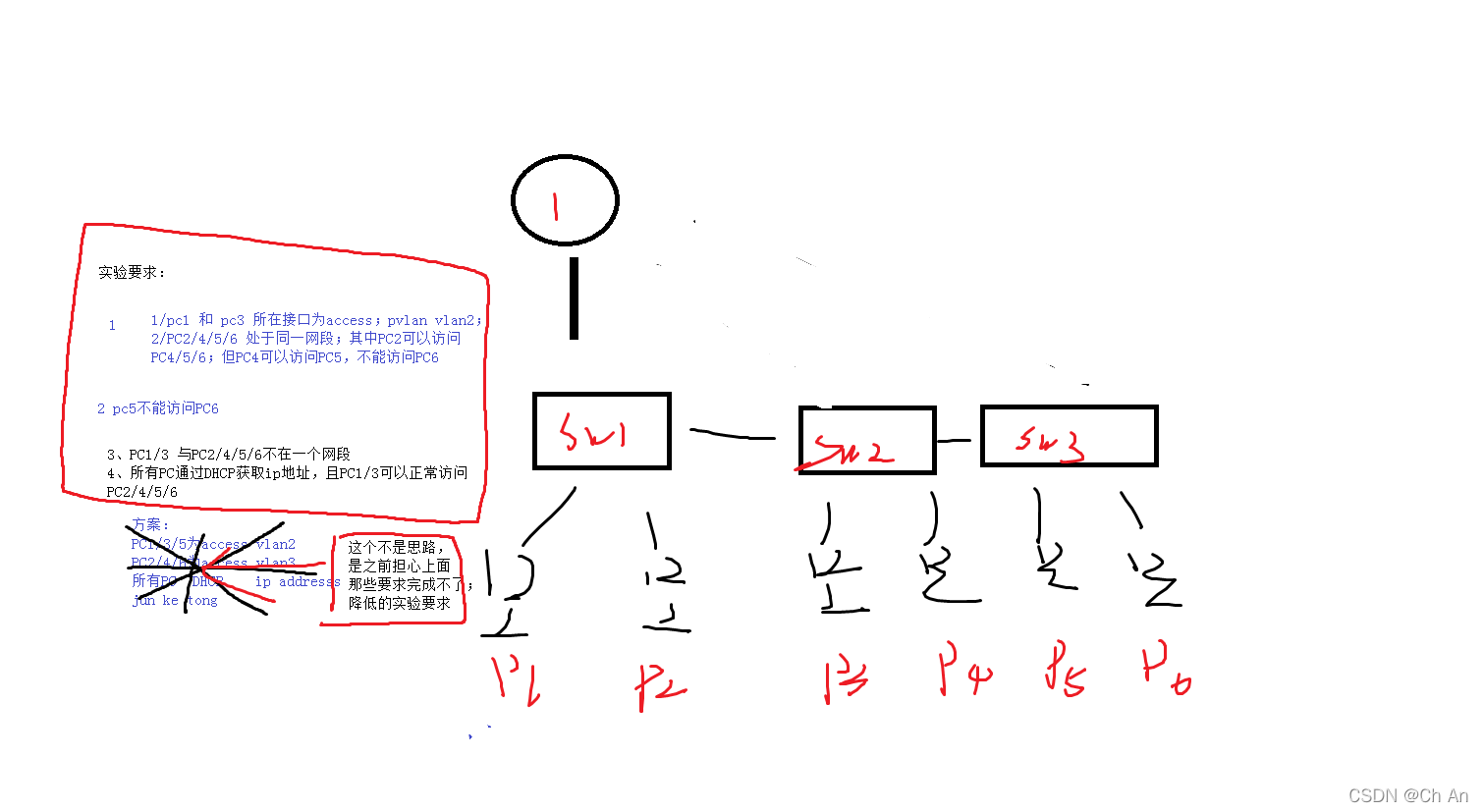

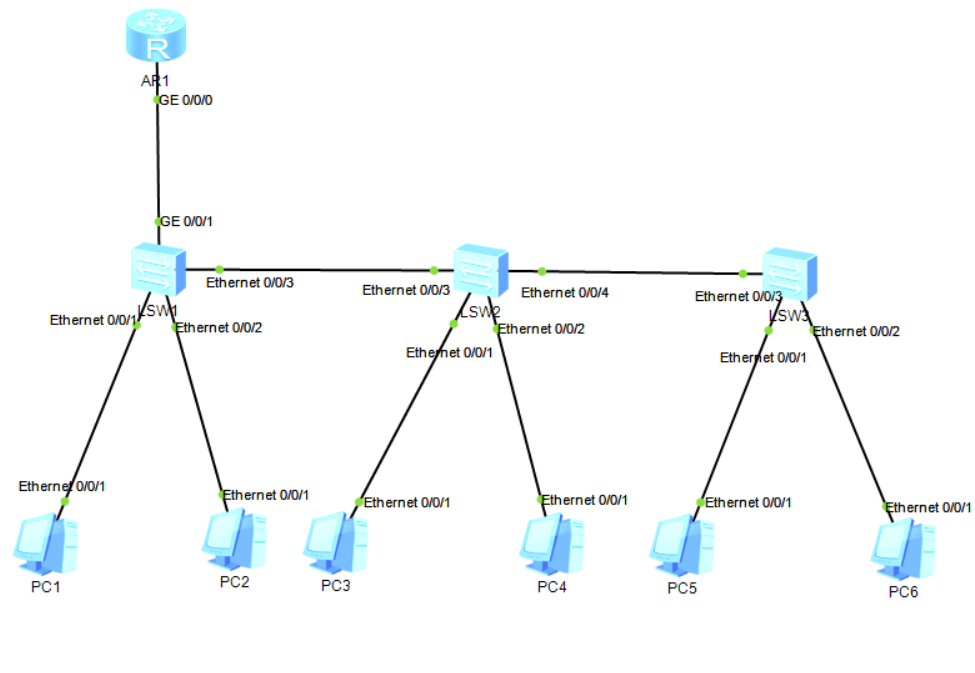

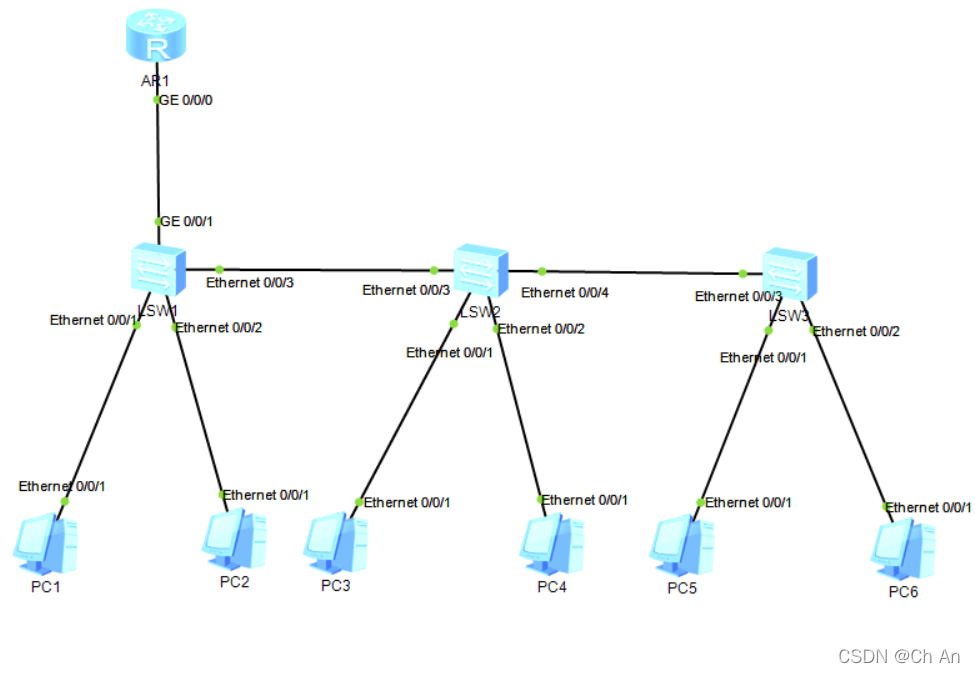

二、实验拓扑

三、实验配置

关闭交换机日志：

undo terminal monitor

[sw1]vlan batch 2 to 5
Info: This operation may take a few seconds. Please wait for a moment...done.
[sw1]interface Ethernet0/0/1
[sw1-Ethernet0/0/1]port link-type access
[sw1-Ethernet0/0/1]port default vlan 2
[sw1]interface Ethernet0/0/2
[sw1-Ethernet0/0/2]port link-type hybrid
[sw1-Ethernet0/0/2]port hybrid pvid vlan 3
[sw1-Ethernet0/0/2]port hybrid untagged vlan 3  4 5

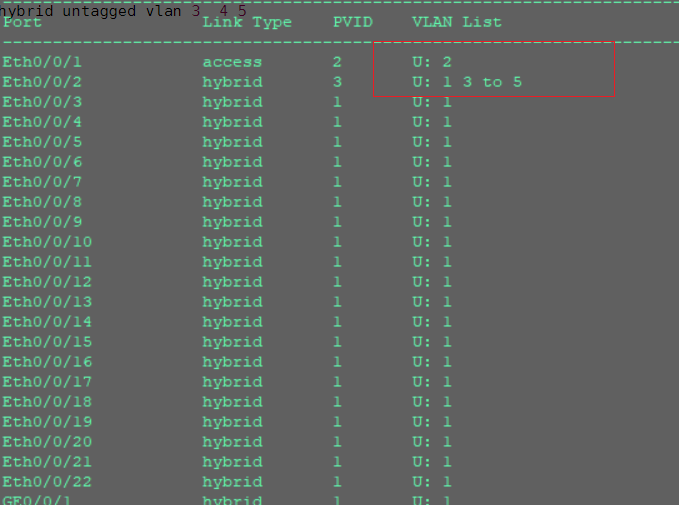

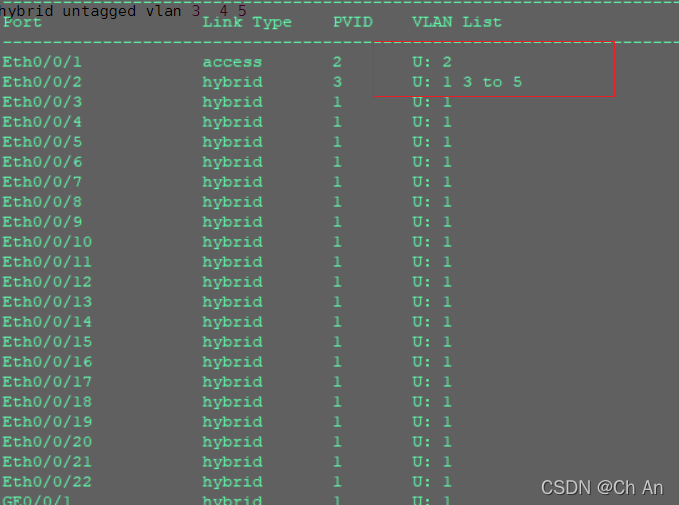

[sw1]interface  Eth0/0/3
[sw1-Ethernet0/0/3]port link-type trunk
[sw1-Ethernet0/0/3]port trunk allow-pass vlan 2 to 5
[sw1]interface  GigabitEthernet 0/0/1
[sw1-GigabitEthernet0/0/1]port hybrid tagged vlan 2
[sw1-GigabitEthernet0/0/1]port hybrid untagged vlan 3 to 5

[sw2]interface  Eth0/0/3
[sw2-Ethernet0/0/3]port link-type trunk
[sw2-Ethernet0/0/3]port trunk allow-pass vlan 2 to 5
[sw2]vlan batch  2 to 5
[sw2-Ethernet0/0/1]port link-type access
[sw2-Ethernet0/0/1]port default vlan  2
[sw2]interface  Eth0/0/2
[sw2-Ethernet0/0/2]port hybrid pvid vlan 4
[sw2-Ethernet0/0/2]port hybrid untagged vlan 3 to 4
[sw2]interface Eth0/0/4
[sw2-Ethernet0/0/4]port hybrid tagged vlan 2 to 5

[sw3]interface Eth0/0/3
[sw3-Ethernet0/0/3]port hybrid  tagged vlan 2 to 5
[sw3]vlan batch 2 to 5
[sw3]interface e0/0/1
[sw3-Ethernet0/0/1]port hybrid pvid vlan 4
[sw3-Ethernet0/0/1]port hybrid untagged vlan 3 to 4
[sw3-Ethernet0/0/1]int e0/0/2
[sw3-Ethernet0/0/2]port hybrid  pvid vlan 5
[sw3-Ethernet0/0/2]port hybrid untagged vlan 3 5

[r1]interface  g0/0/0
[r1-GigabitEthernet0/0/0]ip add 192.168.1.1 24
[r1-GigabitEthernet0/0/0]q
[r1]interface  GigabitEthernet 0/0/0.1
[r1-GigabitEthernet0/0/0.1]dot1q termination vid 2
[r1-GigabitEthernet0/0/0.1]ip add 192.168.2.1 24
[r1-GigabitEthernet0/0/0.1]arp broadcast enable
[r1]dhcp enable
Info: The operation may take a few seconds. Please wait for a moment.done.
[r1]ip pool a
Info: It's successful to create an IP address pool.
[r1-ip-pool-a]network 192.168.1.0 mask 24
[r1]ip pool b
Info: It's successful to create an IP address pool.
[r1-ip-pool-b]network 192.168.2.0 mask 24
[r1-ip-pool-b]gateway-list 192.168.2.1
[r1]interface  g0/0/0
[r1-GigabitEthernet0/0/0]dhcp select global
[r1-GigabitEthernet0/0/0]int g0/0/0.1
[r1-GigabitEthernet0/0/0.1]dhcp select global

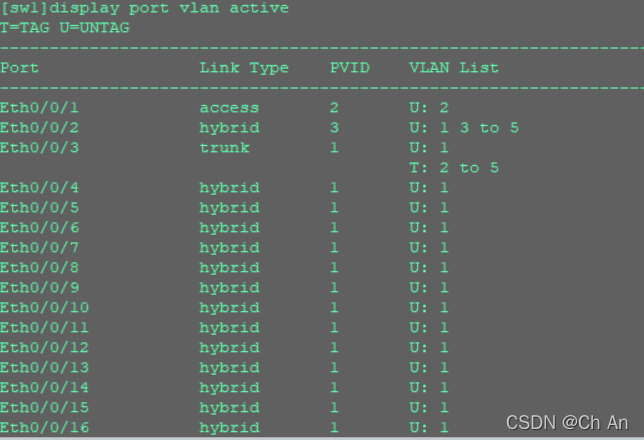

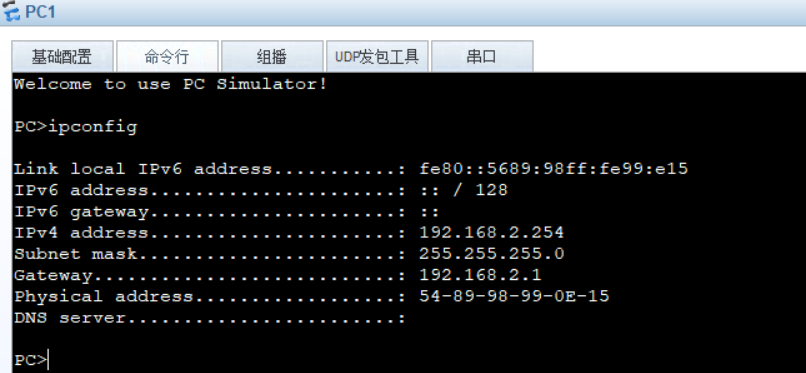

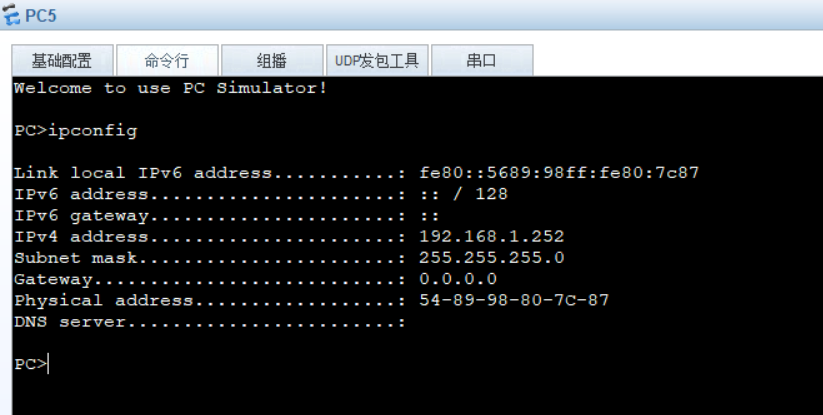

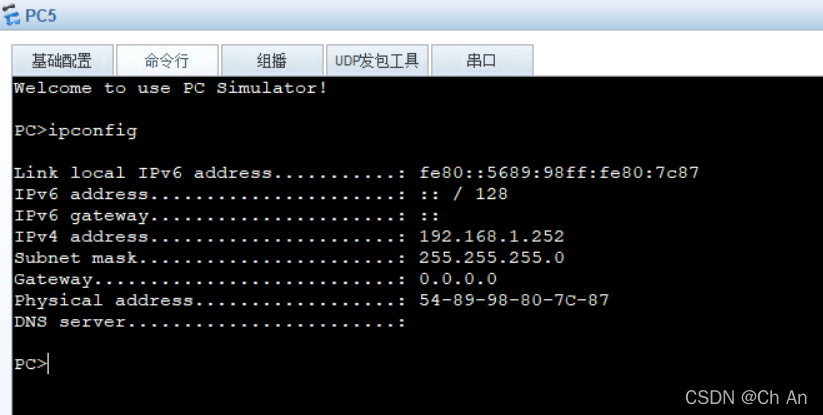

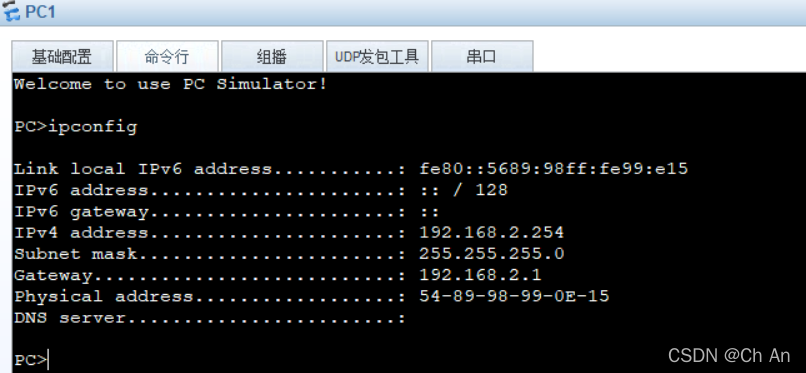

电脑已经自动获取到IP地址。

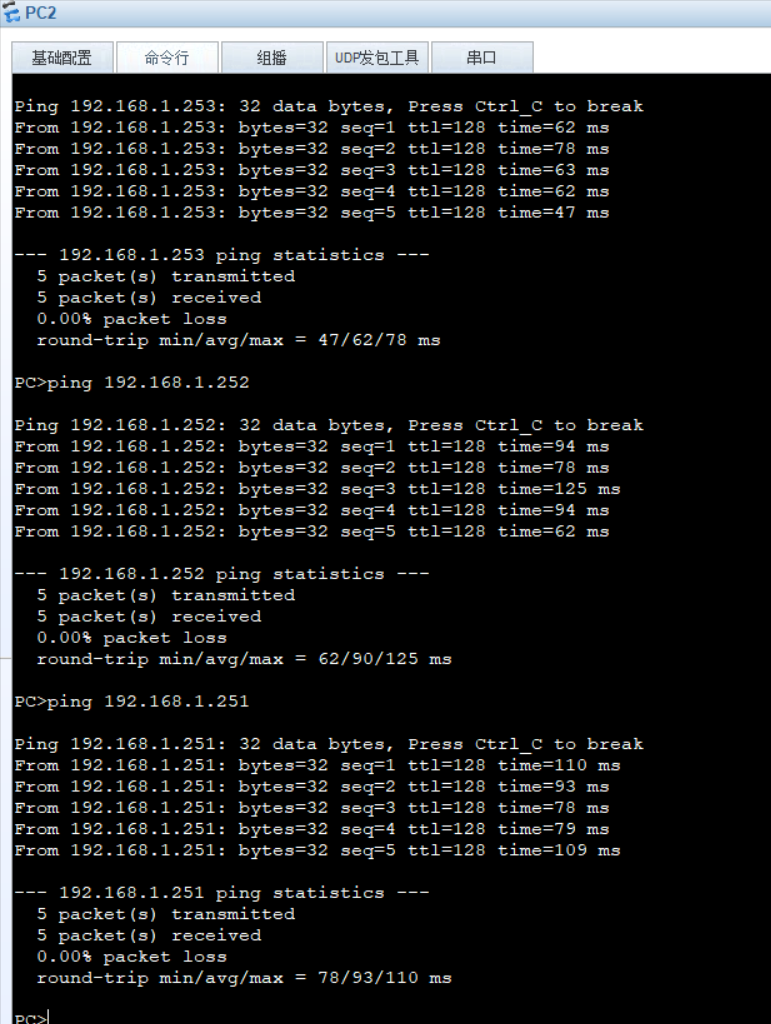

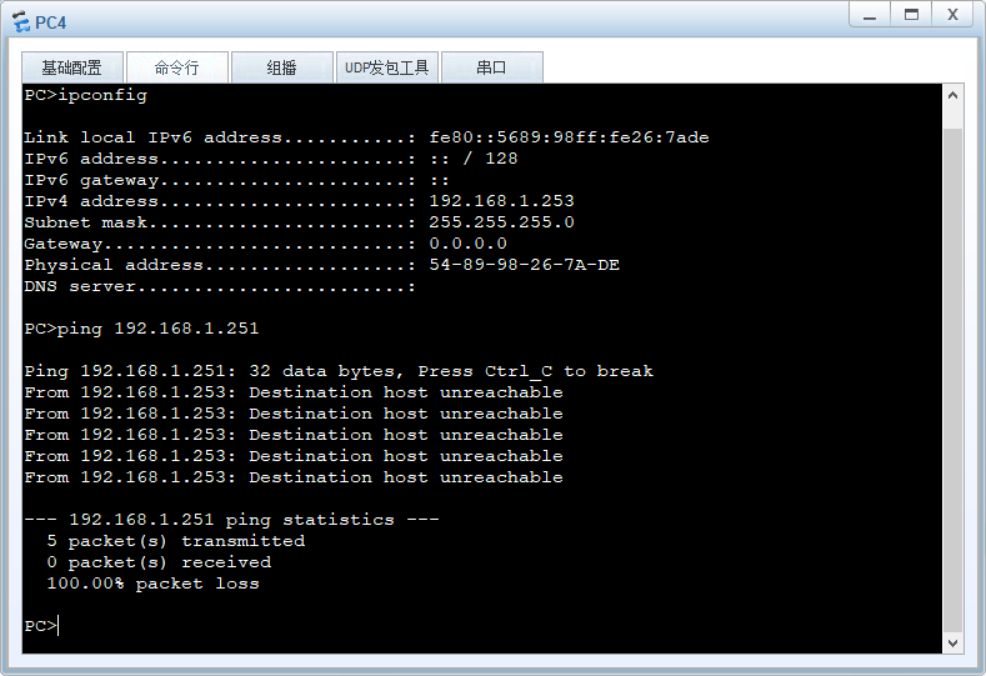

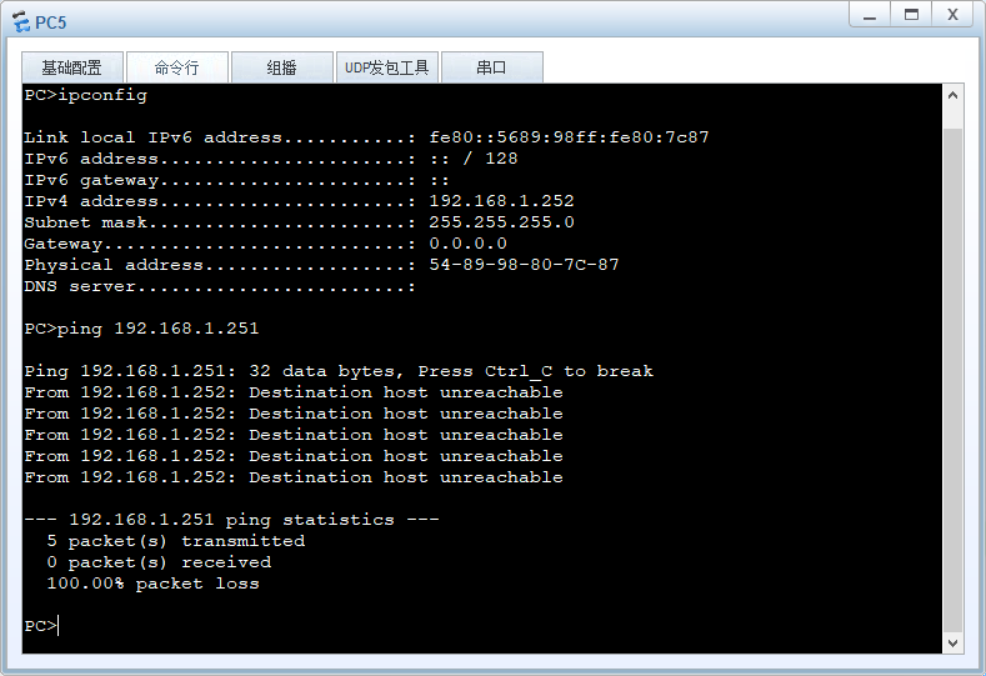

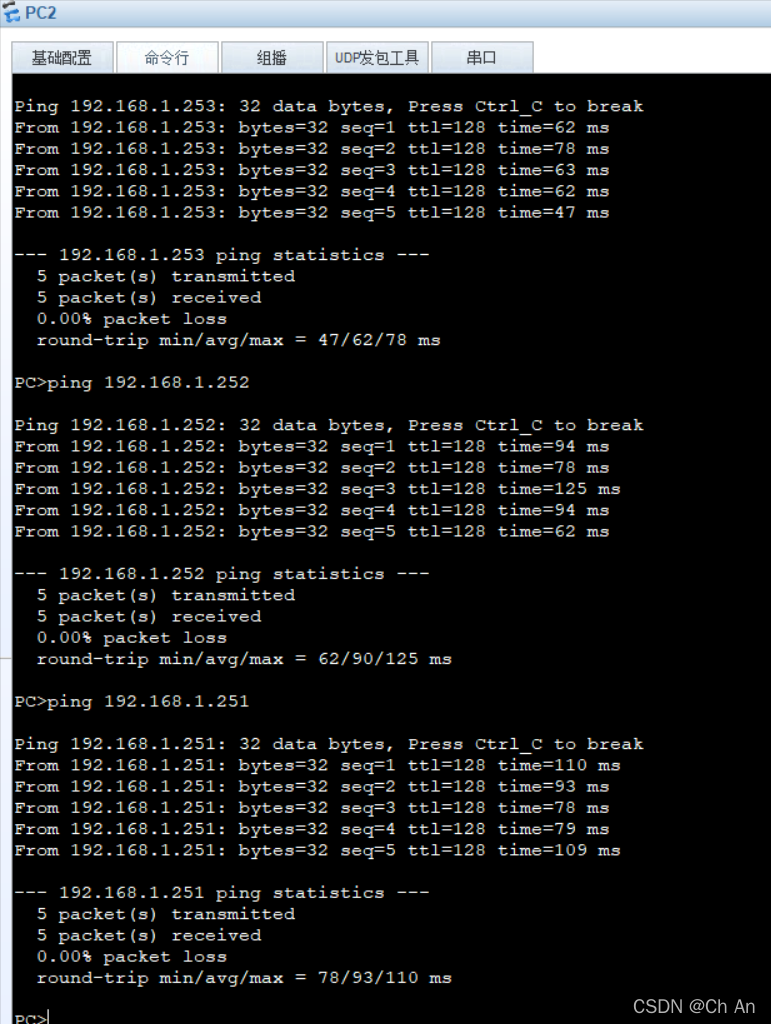

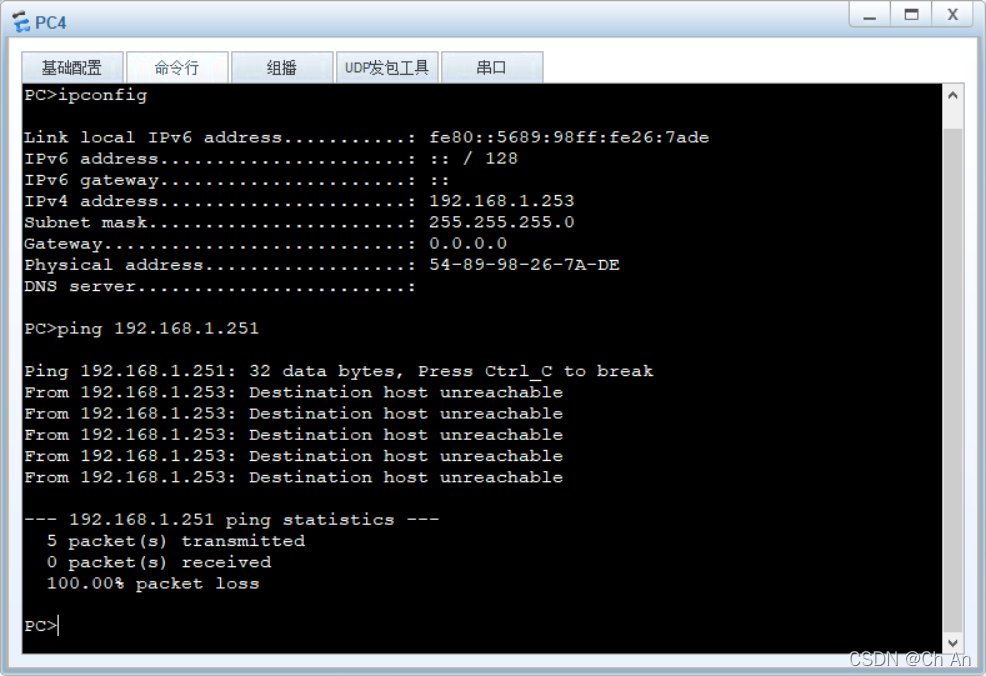

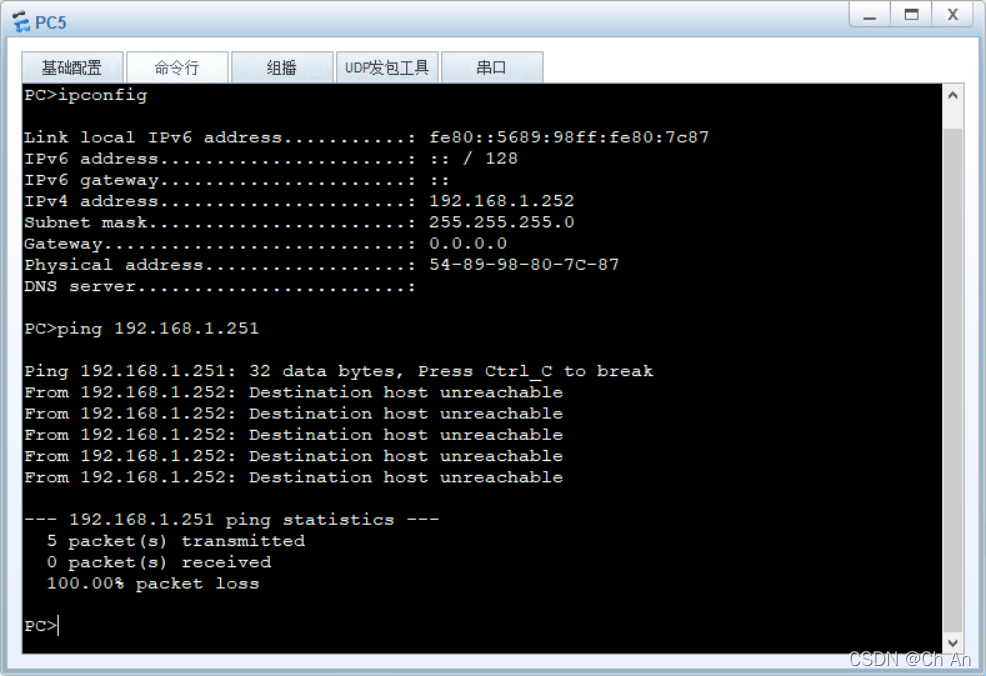

四、测试
