基于离散差分法的复杂微分方程组求解matlab数值仿真

1.程序功能描述

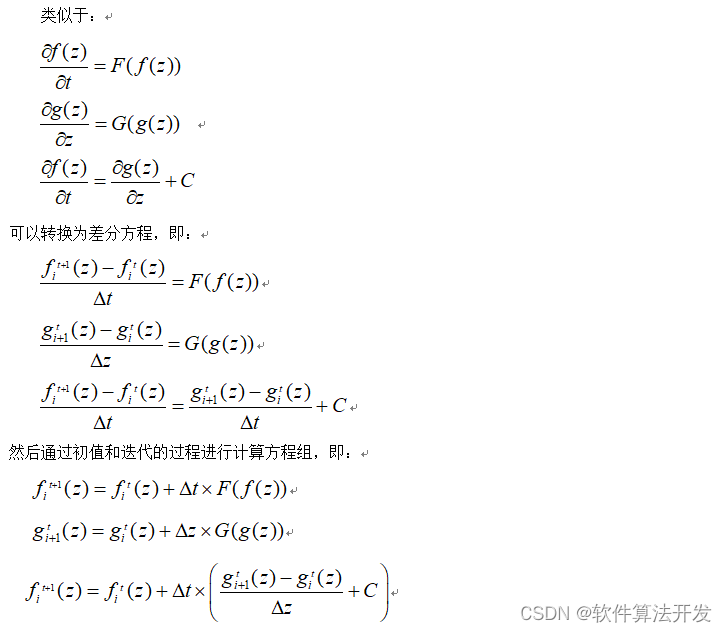

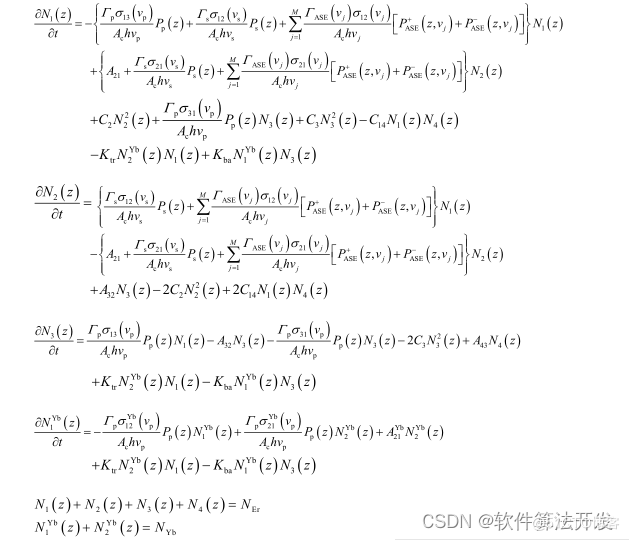

基于离散差分法的复杂微分方程组求解.“连续微分方程”到“离散微分方程”到“差分方程”，离散微分方程，变成差分方程。建立差分方程时，时间采用一阶显格式，空间采用一阶偏心差分格式。

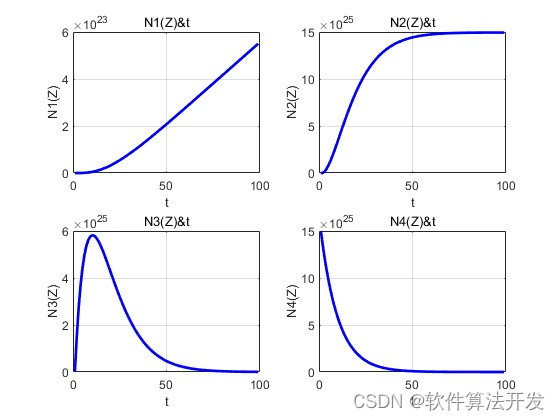

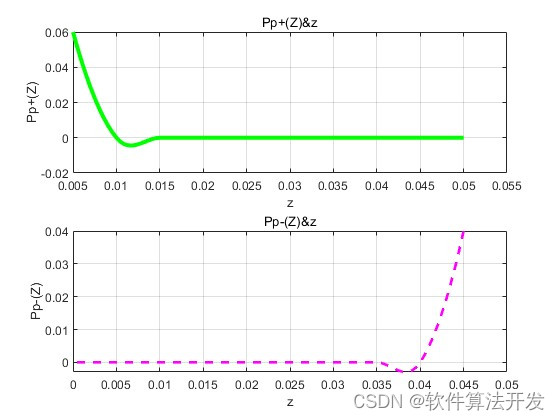

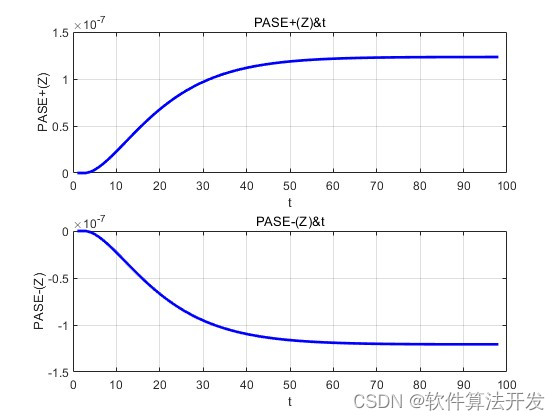

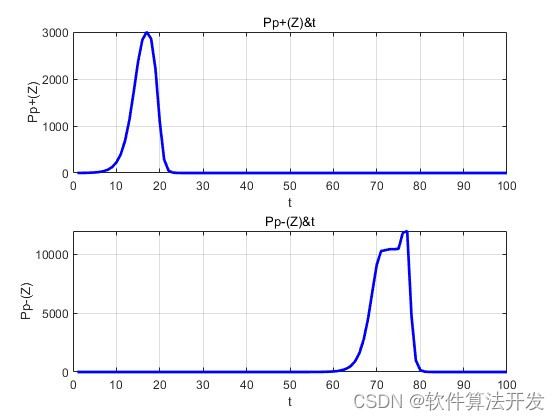

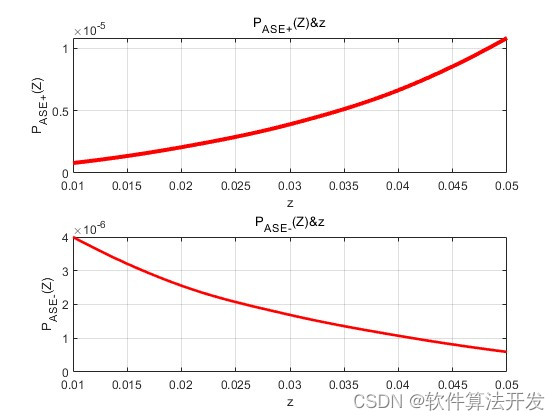

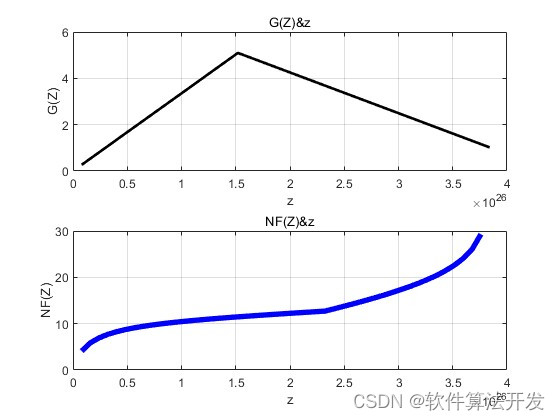

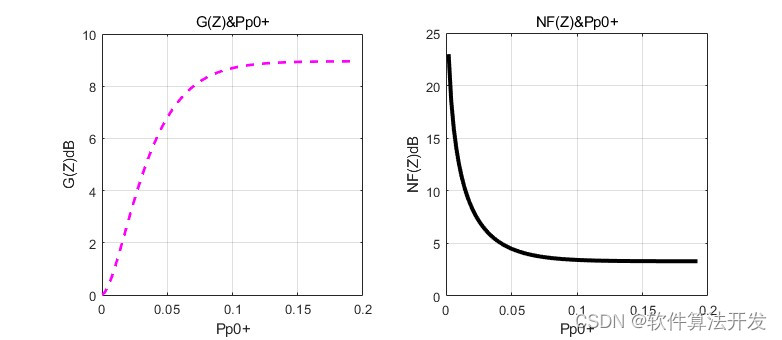

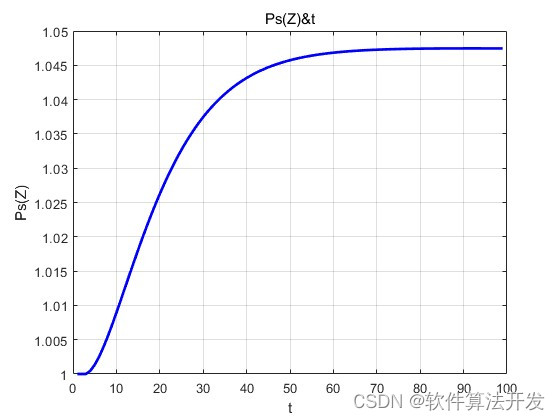

2.测试软件版本以及运行结果展示
MATLAB2022a版本运行

3.核心程序

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

121

122

123

124

125

126

127

128

129

130

131

132

133

134

135

136

137

138

139

140

141

142

143

144

145

146

147

148

149

150

151

152

153

154

155

156

157

158

159

160

161

162

163

164

165

166

167

168

169

%         ʼ
L       = 0.05;   % ռ䳤
time    = 1e-8;   %ʱ 䳤
Nz      = 10;    % ռ
Nt      = 10;    %ʱ
dt      = time/Nt;%t΢ ֵ    ۼ
dz      = L/Nz;%z΢ ֵ    ۼ

N1         = zeros(Nz,Nt);
N2         = zeros(Nz,Nt);
N3         = zeros(Nz,Nt);
N4         = zeros(Nz,Nt);
N1_Yb      = zeros(Nz,Nt);
N2_Yb      = zeros(Nz,Nt);
Ps         = zeros(Nz,Nt);

PASE_plus  = zeros(M,Nz,Nt);
PASE_minus = zeros(M,Nz,Nt);
Pp_plus    = zeros(Nz,Nt);
Pp_minus   = zeros(Nz,Nt);

G          = zeros(Nz,Nt);
NF         = zeros(Nz,Nt);

%      1  ʽ  1    ϵ   Ĳ     ʾ
W11 = Fp*O13_vp/(Ac*h*Vp);
W12 = Fs*O12_vs/(Ac*h*Vs);
for i = 1:M
    W13(i) = F_ASE_vj(i) * O12_vj(i) / (Ac*h*Vj(i));
end

W14 = Fs*O21_vs/(Ac*h*Vs);
for i = 1:M
    W15(i) = F_ASE_vj(i) * O21_vj(i) / (Ac*h*Vj(i));
end

W16 = Fp*O31_vp/(Ac*h*Vp);

%      1  ʽ  2    ϵ   Ĳ     ʾ
W21 = Fs*O12_vs/(Ac*h*Vs);

for i = 1:M
    W22(i) = F_ASE_vj(i) * O12_vj(i) / (Ac*h*Vj(i));
end
W23 = Fs*O21_vs/(Ac*h*Vs);

for i = 1:M
    W24(i) = F_ASE_vj(i) * O21_vj(i) / (Ac*h*Vj(i));
end

%      1  ʽ  3    ϵ   Ĳ     ʾ
W31 = Fp*O13_vp/(Ac*h*Vp);
W32 = Fp*O31_vp/(Ac*h*Vp);

%      1  ʽ  4    ϵ   Ĳ     ʾ
W41           = Fp*O12Yb_vp/(Ac*h*Vp);
W42           = Fp*O21Yb_vp/(Ac*h*Vp);
Ps(1,:)       = 0.001*ones(1,Nt);
Pp_plus(1,:)  = 0.06*ones(1,Nt);
Pp_minus(1,:) = 0.04*ones(1,Nt);

for j = 1:Nt-1
    for i = 1:Nz-1
        %      1ʽ  1
        N1(i,j+1) = N1(i,j) + ...
                    dt*( -1*(W11*(Pp_plus(i,j) + Pp_minus(i,j)) + W12*Ps(i,j) + sum(W13.*(PASE_plus(:,i,j)+PASE_minus(:,i,j))'))*N1(i,j) +...
                            (A21 + W14*Ps(i,j) + sum(W15.*(PASE_plus(:,i,j)+PASE_minus(:,i,j))'))*N2(i,j) + ...
                             C2*N2(i,j)^2 + W16*(Pp_plus(i,j) + Pp_minus(i,j))*N3(i,j) + C3*N3(i,j)^2 - C14*N1(i,j)*N4(i,j)+...
                            -1*Ktr*N2_Yb(i,j)*N1(i,j)+Kba*N1_Yb(i,j)*N3(i,j) );

        %      1ʽ  2
        N2(i,j+1) = N2(i,j) + ...
                    dt*( (W21*Ps(i,j)+sum(W22.*(PASE_plus(:,i,j)+PASE_minus(:,i,j))'))*N1(i,j) +...
                      -1*(A21 + W23*Ps(i,j) + sum( W24.*(PASE_plus(:,i,j)+PASE_minus(:,i,j))' ))*N2(i,j) +...
                          A32*N3(i,j) - 2*C2*N2(i,j)^2 + 2*C14*N1(i,j)*N4(i,j) );

        %      1ʽ  3
        N3(i,j+1) = N3(i,j) + ...
                    dt*( W31*(Pp_plus(i,j) + Pp_minus(i,j))*N1(i,j) - A32*N3(i,j) - W32*(Pp_plus(i,j) + Pp_minus(i,j))*N3(i,j) -...
                         2*C3*N3(i,j)^2 + A43*N4(i,j) + Ktr*N2_Yb(i,j)*N1(i,j) - Kba*N1_Yb(i,j)*N3(i,j) );

        %      1ʽ  4
        N1_Yb(i,j+1) = N1_Yb(i,j) + ...
                       dt*(-1*W41*(Pp_plus(i,j) + Pp_minus(i,j))*N1_Yb(i,j) + W42*(Pp_plus(i,j) + Pp_minus(i,j))*N2_Yb(i,j) +...
                              A21Yb*N2_Yb(i,j) + Ktr*N2_Yb(i,j)*N1(i,j) - Kba*N1_Yb(i,j)*N3(i,j));

        %      1ʽ  5
        N4(i,j+1) = NEr - (N1(i,j+1) + N2(i,j+1) + N3(i,j+1));

        %      1ʽ  6
        N2_Yb(i,j+1) = NYb - N1_Yb(i,j+1);

        if N1(i,j+1) > NEr,N1(i,j+1) = NEr;end
        if N2(i,j+1) > NEr,N2(i,j+1) = NEr;end
        if N3(i,j+1) > NEr,N3(i,j+1) = NEr;end
        if N4(i,j+1) > NEr,N4(i,j+1) = NEr;end
        if N1_Yb(i,j+1) > NYb,N1_Yb(i,j+1) = NYb;end
        if N2_Yb(i,j+1) > NYb,N2_Yb(i,j+1) = NYb;end

        if N1(i,j+1) < 0,N1(i,j+1) = 0;end
        if N2(i,j+1) < 0,N2(i,j+1) = 0;end
        if N3(i,j+1) < 0,N3(i,j+1) = 0;end
        if N4(i,j+1) < 0,N4(i,j+1) = 0;end
        if N1_Yb(i,j+1) < 0,N1_Yb(i,j+1) = 0;end
        if N2_Yb(i,j+1) < 0,N2_Yb(i,j+1) = 0;end


        %     Ϸ  ̼   õ   N1  N2  N3  N4  N1Yb  N2Yb
        %      2
        Pp_plus(i+1,j)   =  Pp_plus(i,j)  + dz*(-Fp*(O13_vp*N1(i,j) - O31_vp*N3(i,j) + O12Yb_vp*N1_Yb(i,j) - O21Yb_vp*N2_Yb(i,j))*Pp_plus(i,j)  - ap*Pp_plus(i,j));

        Pp_minus(i+1,j)  =  Pp_minus(i,j) + dz*(Fp*(O13_vp*N1(i,j) - O31_vp*N3(i,j) + O12Yb_vp*N1_Yb(i,j) - O21Yb_vp*N2_Yb(i,j))*Pp_minus(i,j) + ap*Pp_plus(i,j));

        Ps(i+1,j)        =  Ps(i,j)     + dz*(Fs*( O21_vs*N2(i,j) - O12_vs*N1(i,j) )*Ps(i,j) - as*Ps(i,j));

        for ii = 1:M
            PASE_plus(ii,i+1,j)  =    PASE_plus(ii,i,j)+dz*(F_ASE_vj(ii)*( O21_vj(ii)*N2(i,j) - O12_vj(ii)*N1(i,j) ) * PASE_plus(ii,i,j) +...
                                      2*h*Vj(ii)*DVj(ii)*F_ASE_vj(ii)*O21_vj(ii)*N2(i,j)-as*PASE_plus(ii,i,j));

            PASE_minus(ii,i+1,j) =   PASE_minus(ii,i,j)+dz*(-1*F_ASE_vj(ii)*( O21_vj(ii)*N2(i,j) - O12_vj(ii)*N1(i,j) ) * PASE_minus(ii,i,j) -...
                                     2*h*Vj(ii)*DVj(ii)*F_ASE_vj(ii)*O21_vj(ii)*N2(i,j)+as*PASE_minus(ii,i,j));
        end

        if Pp_plus(i+1,j)    < 0,Pp_plus(i+1,j)     = 0;end
        if Pp_minus(i+1,j)   < 0,Pp_minus(i+1,j)    = 0;end
        if Ps(i+1,j)         < 0,Ps(i+1,j)          = 0;end

        %ͨ    ̬    õ Pp+  Pp-  Pase+  Pase-  Ps

    end
end

for z = 1:Nz
    for t = 1:Nt
        PASE_plus2(z,t)  = sum(PASE_plus(:,z,t));
        PASE_minus2(z,t) = sum(PASE_minus(:,z,t));
    end
end

for z = 1:Nz
    for t = 1:Nt
        G(z,t)  =  10*log10(Ps(z,t)/Ps(1,1));
    end
end

for z = 1:Nz
    for t = 1:Nt
        NF(z,t)  =  10*log10(1/G(z,t) +  PASE_plus2(z,t)/(G(z,t)*Vs*DVs) );
    end
end

%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
Pp_plus2  = interp1(dz:dz:L,Pp_plus(1:end,Nz),0:dz/10:L,'cubic');
Pp_minus2 = interp1(dz:dz:L,Pp_minus(1:end,Nz),0:dz/10:L,'cubic');

figure;
subplot(211);
plot(0:dz/10:L,Pp_plus2,'g-','LineWidth',3);
xlabel('z');
ylabel('Pp+(Z)');
title('Pp+(Z)&z');
grid on;
subplot(212);
plot(L:-dz/10:0,Pp_minus2,'m--','LineWidth',2);
xlabel('z');
ylabel('Pp-(Z)');
title('Pp-(Z)&z');
grid on;
16_015m
