Spring源码-DefaultListableBeanFactory的preInstantiateSingletons方法，FactoryBean，SmartInitializingSingleton扩展点

一、DefaultListableBeanFactory的preInstantiateSingletons方法

@Override
public void preInstantiateSingletons() throws BeansException {
   if (logger.isTraceEnabled()) {
      logger.trace("Pre-instantiating singletons in " + this);
   }

   // Iterate over a copy to allow for init methods which in turn register new bean definitions.
   // While this may not be part of the regular factory bootstrap, it does otherwise work fine.
   List<String> beanNames = new ArrayList<>(this.beanDefinitionNames);

   // Trigger initialization of all non-lazy singleton beans...
   for (String beanName : beanNames) {
      RootBeanDefinition bd = getMergedLocalBeanDefinition(beanName);
      if (!bd.isAbstract() && bd.isSingleton() && !bd.isLazyInit()) {
         if (isFactoryBean(beanName)) {
            Object bean = getBean(FACTORY_BEAN_PREFIX + beanName);
            if (bean instanceof FactoryBean) {
               FactoryBean<?> factory = (FactoryBean<?>) bean;
               boolean isEagerInit;
               if (System.getSecurityManager() != null && factory instanceof SmartFactoryBean) {
                  isEagerInit = AccessController.doPrivileged(
                        (PrivilegedAction<Boolean>) ((SmartFactoryBean<?>) factory)::isEagerInit,
                        getAccessControlContext());
               }
               else {
                  isEagerInit = (factory instanceof SmartFactoryBean &&
                        ((SmartFactoryBean<?>) factory).isEagerInit());
               }
               if (isEagerInit) {
                  getBean(beanName);
               }
            }
         }
         else {
            getBean(beanName);
         }
      }
   }

   // Trigger post-initialization callback for all applicable beans...
   for (String beanName : beanNames) {
      Object singletonInstance = getSingleton(beanName);
      if (singletonInstance instanceof SmartInitializingSingleton) {
         StartupStep smartInitialize = this.getApplicationStartup().start("spring.beans.smart-initialize")
               .tag("beanName", beanName);
         SmartInitializingSingleton smartSingleton = (SmartInitializingSingleton) singletonInstance;
         if (System.getSecurityManager() != null) {
            AccessController.doPrivileged((PrivilegedAction<Object>) () -> {
               smartSingleton.afterSingletonsInstantiated();
               return null;
            }, getAccessControlContext());
         }
         else {
            smartSingleton.afterSingletonsInstantiated();
         }
         smartInitialize.end();
      }
   }
}

将每个beanName对应的bean进行实例化和初始化，首先将每个bean和parentBeanFactory中的beanDifinition进行合并，之后判断是否是FactoryBean，若是则调用getBean(FACTORY_BEAN_PREFIX + beanName)方法实例化FactoryBean，FactoryBean的beanName在Spring容器是以&加beanName的形式存储的，在判断是否是SmartFactoryBean，若是则生成FactoryBean对应的对象，否则此时只有FactoryBean对应的bean。若不是FactoryBean则直接实例化。

实例化完所有的bean之后，执行SmartInitializingSingleton扩展点的afterSingletonsInstantiated，此时所有的bean已经实例化和初始化完成。SmartInitializingSingleton的应用场景参考https://blog.csdn.net/god_86/article/details/105804051

public interface FactoryBean<T> {

     String OBJECT_TYPE_ATTRIBUTE = "factoryBeanObjectType";

     // 生产bean
      @Nullable
   T getObject() throws Exception;

// bean对应的Class
   @Nullable
   Class<?> getObjectType();

// bean的作用域是否是单例，默认是单例
  default boolean isSingleton() {
      return true;
   }

}

FactoryBean可以生产供Spring管理的bean。FactoryBean模拟Spring的BeanFactory的IOC功能，我们可以自己生产bean。

public interface SmartFactoryBean<T> extends FactoryBean<T> {

   // bean的作用域是否是原型，默认不是
   default boolean isPrototype() {
      return false;
   }

   // FactoryBean生产的bean是否需要急切实例化
   default boolean isEagerInit() {
      return false;
   }

}

SmartFactoryBean是对FactoryBean的扩展。可以急切实例化FactoryBean生产的bean。

例子：

User.java

public class User {
private Integer id;

public Integer getId() {
	return id;
}

public void setId(Integer id) {
	this.id = id;
}

}

app.xml

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
	   xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	   xmlns:aaa="http://www.myself.com/schema/user"
	   xsi:schemaLocation="http://www.springframework.org/schema/beans
       http://www.springframework.org/schema/beans/spring-beans.xsd
	   http://www.myself.com/schema/user http://www.myself.com/schema/user.xsd">


	 <bean id="user" class="factoryBeanTest.UserFactoryBean"/>
</beans>

UserFactoryBean.java

import org.springframework.beans.factory.FactoryBean;

public class UserFactoryBean implements FactoryBean<User> {
	@Override
	public User getObject() throws Exception {
		User user = new User();
		user.setId(1);
		return user;
	}

	@Override
	public Class<?> getObjectType() {
		return User.class;
	}

	@Override
	public boolean isSingleton() {
		return false;
	}
}

启动类:

public class Main {
public static void main(String[] args) throws Exception {
	ClassPathXmlApplicationContext context = new ClassPathXmlApplicationContext("classpath:app.xml");
	User user = (User) context.getBean("user");
	System.out.println(user);
	System.out.println(user.getId());

	User user1 = (User) context.getBean("user");
	System.out.println(user1);


	UserFactoryBean obj = (UserFactoryBean) context.getBean("&user");
	System.out.println(obj);
}
}

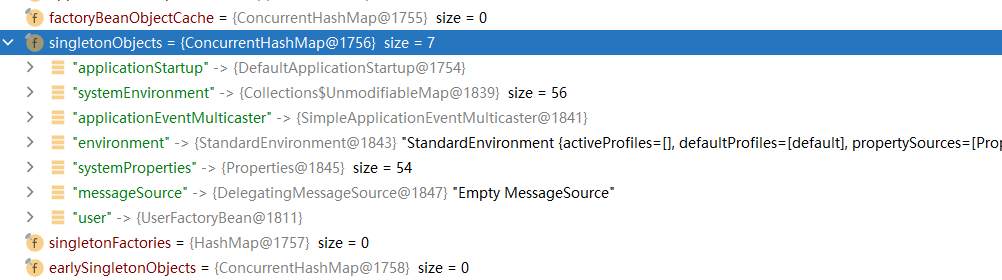

在DefaultListableBeanFactory的preInstantiateSingletons方法里面打断点，看实例化所有的bean后：

此时user对应的类型为UserFactoryBean。

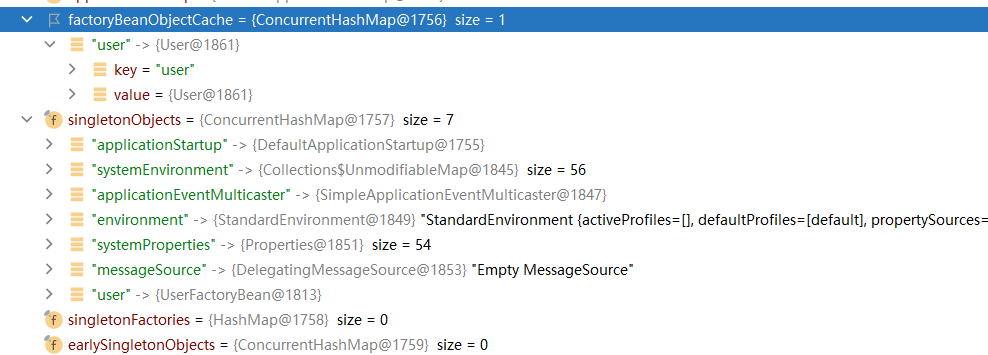

将UserFactoryBean改为实现SmartFactoryBean接口后：

import org.springframework.beans.factory.SmartFactoryBean;

public class UserFactoryBean implements SmartFactoryBean<User> {
	@Override
	public User getObject() throws Exception {
		User user = new User();
		user.setId(1);
		return user;
	}

	@Override
	public Class<?> getObjectType() {
		return User.class;
	}

	@Override
	public boolean isSingleton() {
		return true;
	}

	@Override
	public boolean isEagerInit() {
		return true;
	}
}

protected RootBeanDefinition getMergedLocalBeanDefinition(String beanName) throws BeansException {
	// Quick check on the concurrent map first, with minimal locking.
	RootBeanDefinition mbd = this.mergedBeanDefinitions.get(beanName);
	// stale表示是否需要合并BeanDefinition
	if (mbd != null && !mbd.stale) {
		return mbd;
	}
	return getMergedBeanDefinition(beanName, getBeanDefinition(beanName));
}

protected RootBeanDefinition getMergedBeanDefinition(String beanName, BeanDefinition bd)
		throws BeanDefinitionStoreException {

	return getMergedBeanDefinition(beanName, bd, null);
}

protected RootBeanDefinition getMergedBeanDefinition(
		String beanName, BeanDefinition bd, @Nullable BeanDefinition containingBd)
		throws BeanDefinitionStoreException {

	// mergedBeanDefinitions 是合并BeanDefinition的缓存
	synchronized (this.mergedBeanDefinitions) {
		RootBeanDefinition mbd = null;
		RootBeanDefinition previous = null;

		// Check with full lock now in order to enforce the same merged instance.
		if (containingBd == null) {
			mbd = this.mergedBeanDefinitions.get(beanName);
		}

		if (mbd == null || mbd.stale) {
			previous = mbd;
			if (bd.getParentName() == null) {
				// Use copy of given root bean definition.
				if (bd instanceof RootBeanDefinition) {
					mbd = ((RootBeanDefinition) bd).cloneBeanDefinition();
				}
				else {
					mbd = new RootBeanDefinition(bd);
				}
			}
			else {
				// Child bean definition: needs to be merged with parent.
				BeanDefinition pbd;
				try {
					String parentBeanName = transformedBeanName(bd.getParentName());
					if (!beanName.equals(parentBeanName)) {
						pbd = getMergedBeanDefinition(parentBeanName);
					}
					else {
						BeanFactory parent = getParentBeanFactory();
						if (parent instanceof ConfigurableBeanFactory) {
							pbd = ((ConfigurableBeanFactory) parent).getMergedBeanDefinition(parentBeanName);
						}
						else {
							throw new NoSuchBeanDefinitionException(parentBeanName,
									"Parent name '" + parentBeanName + "' is equal to bean name '" + beanName +
											"': cannot be resolved without a ConfigurableBeanFactory parent");
						}
					}
				}
				catch (NoSuchBeanDefinitionException ex) {
					throw new BeanDefinitionStoreException(bd.getResourceDescription(), beanName,
							"Could not resolve parent bean definition '" + bd.getParentName() + "'", ex);
				}
				// Deep copy with overridden values.
				mbd = new RootBeanDefinition(pbd);
				mbd.overrideFrom(bd);
			}

			// Set default singleton scope, if not configured before.
			if (!StringUtils.hasLength(mbd.getScope())) {
				mbd.setScope(SCOPE_SINGLETON);
			}

			// A bean contained in a non-singleton bean cannot be a singleton itself.
			// Let's correct this on the fly here, since this might be the result of
			// parent-child merging for the outer bean, in which case the original inner bean
			// definition will not have inherited the merged outer bean's singleton status.
			if (containingBd != null && !containingBd.isSingleton() && mbd.isSingleton()) {
				mbd.setScope(containingBd.getScope());
			}

			// Cache the merged bean definition for the time being
			// (it might still get re-merged later on in order to pick up metadata changes)
			if (containingBd == null && isCacheBeanMetadata()) {
				this.mergedBeanDefinitions.put(beanName, mbd);
			}
		}
		if (previous != null) {
			copyRelevantMergedBeanDefinitionCaches(previous, mbd);
		}
		return mbd;
	}
}

从mergedBeanDefinitions缓存中获取RootBeanDefinition，若获取不到将parentBeanName的BeanDefinition和此BeanDefinition进行合并，如果父BeanDefinition存在，则将父BeanDefinition的相应属性设置为子BeanDefinition（参数中的bd），将合并后的BeanDefinition返回。合并操作在mbd.overrideFrom(bd)中。

二、FactoryBean生产的bean

AbstractBeanFactory的doGetBean方法调用getObjectForBeanInstance从FactoryBean中生产bean。

protected Object getObjectForBeanInstance(
		Object beanInstance, String name, String beanName, @Nullable RootBeanDefinition mbd) {

	// Don't let calling code try to dereference the factory if the bean isn't a factory.
            // 获取FactoryBean自身
	if (BeanFactoryUtils.isFactoryDereference(name)) {
		if (beanInstance instanceof NullBean) {
			return beanInstance;
		}
		if (!(beanInstance instanceof FactoryBean)) {
			throw new BeanIsNotAFactoryException(beanName, beanInstance.getClass());
		}
		if (mbd != null) {
			mbd.isFactoryBean = true;
		}
		return beanInstance;
	}

	// Now we have the bean instance, which may be a normal bean or a FactoryBean.
	// If it's a FactoryBean, we use it to create a bean instance, unless the
	// caller actually wants a reference to the factory.
	if (!(beanInstance instanceof FactoryBean)) {
		return beanInstance;
	}

	Object object = null;
	if (mbd != null) {
		mbd.isFactoryBean = true;
	}
	else {
		object = getCachedObjectForFactoryBean(beanName);
	}
	if (object == null) {
		// Return bean instance from factory.
		FactoryBean<?> factory = (FactoryBean<?>) beanInstance;
		// Caches object obtained from FactoryBean if it is a singleton.
		if (mbd == null && containsBeanDefinition(beanName)) {
			mbd = getMergedLocalBeanDefinition(beanName);
		}
		boolean synthetic = (mbd != null && mbd.isSynthetic());
		object = getObjectFromFactoryBean(factory, beanName, !synthetic);
	}
	return object;
}

如果是获取FactoryBean对象或普通bean则直接返回，从缓存中factoryBeanObjectCache获取，若为null则调用getObjectFromFactoryBean生产bean。

protected Object getObjectFromFactoryBean(FactoryBean<?> factory, String beanName, boolean shouldPostProcess) {
	if (factory.isSingleton() && containsSingleton(beanName)) {
		synchronized (getSingletonMutex()) {
			Object object = this.factoryBeanObjectCache.get(beanName);
			if (object == null) {
				object = doGetObjectFromFactoryBean(factory, beanName);
				// 因为下面有对bean进行后置处理，所有要获取最新的对象。
				Object alreadyThere = this.factoryBeanObjectCache.get(beanName);
				if (alreadyThere != null) {
					object = alreadyThere;
				}
				else {
					if (shouldPostProcess) {
						if (isSingletonCurrentlyInCreation(beanName)) {
							// Temporarily return non-post-processed object, not storing it yet..
							return object;
						}
						beforeSingletonCreation(beanName);
						try {
							object = postProcessObjectFromFactoryBean(object, beanName);
						}
						catch (Throwable ex) {
							throw new BeanCreationException(beanName,
									"Post-processing of FactoryBean's singleton object failed", ex);
						}
						finally {
							afterSingletonCreation(beanName);
						}
					}
					if (containsSingleton(beanName)) {
						this.factoryBeanObjectCache.put(beanName, object);
					}
				}
			}
			return object;
		}
	}
	else {
		Object object = doGetObjectFromFactoryBean(factory, beanName);
		if (shouldPostProcess) {
			try {
				object = postProcessObjectFromFactoryBean(object, beanName);
			}
			catch (Throwable ex) {
				throw new BeanCreationException(beanName, "Post-processing of FactoryBean's object failed", ex);
			}
		}
		return object;
	}
}

调用doGetObjectFromFactoryBean进行生产bean，postProcessObjectFromFactoryBean进行bean的后置处理，在后置处理的之前调用beforeSingletonCreation将beanName加入正在处理的bean集合，在后置处理的之后调用afterSingletonCreation将beanName移出正在处理的bean集合。若bean是单例的则将bean加入factoryBeanObjectCache交由Spring管理，若是原型则不交由Spring管理。

private Object doGetObjectFromFactoryBean(FactoryBean<?> factory, String beanName) throws BeanCreationException {
	Object object;
	try {
		if (System.getSecurityManager() != null) {
			AccessControlContext acc = getAccessControlContext();
			try {
				object = AccessController.doPrivileged((PrivilegedExceptionAction<Object>) factory::getObject, acc);
			}
			catch (PrivilegedActionException pae) {
				throw pae.getException();
			}
		}
		else {
			object = factory.getObject();
		}
	}
	catch (FactoryBeanNotInitializedException ex) {
		throw new BeanCurrentlyInCreationException(beanName, ex.toString());
	}
	catch (Throwable ex) {
		throw new BeanCreationException(beanName, "FactoryBean threw exception on object creation", ex);
	}

	// Do not accept a null value for a FactoryBean that's not fully
	// initialized yet: Many FactoryBeans just return null then.
	if (object == null) {
		if (isSingletonCurrentlyInCreation(beanName)) {
			throw new BeanCurrentlyInCreationException(
					beanName, "FactoryBean which is currently in creation returned null from getObject");
		}
		object = new NullBean();
	}
	return object;
}

调用factory.getObject()生产bean。
