你有一个type code ,它会影响class 的行为,但你无法使用subclassing。
以state object (专门用来描述状态的对象)取代type code 。
动机(Motivation)
本项重构和Replace Type Code with Subclasses 很相似,但如果「type code 的值在对象生命期中发生变化」或「其他原因使得宿主类不能被subclassing 」,你也可以使用本重构。本重构使用State 模式或Stategy 模式[Gang of Four]。
State 模式和Stategy 模式非常相似,因此无论你选择其中哪一个,重构过程都是相同的。「选择哪一个模式」并非问题关键所在,你只需要选择更适合特定情境的模式就行了。如果你打算在完成本项重构之后再以 Replace Conditional with Polymorphism 简化一个算法,那么选择Stategy 模式比较合适;如果你打算搬移与状态相关(state-specific)的数据,而且你把新建对象视为一种变迁状态 (changing state),就应该选择使用State 模式。
作法(Mechanics)
· | 使用Self-encapsulate Field 将type code 自我封装起来。 |
· | 新建一个class ,根据type code 的用途为它命名。这就是一个state object。 |
· | 为这个新建的class 添加subclass ,每个subclass 对应一种type code 。 |
Ø | 比起逐一添加,一次性加入所有必要的subclass 可能更简单些。 |
· | 在superclass 中建立一个抽象的查询函数(abstract query ),用以返回type code 。 在每个subclass 中覆写该函数,返回确切的type code 。 |
· | 编译。 |
· | 在source class 中建立一个值域,用以保存新建的state object。 |
· | 调整source class 中负责查询type code 的函数,将查询动作转发给state object 。 |
· | 调整source class 中「为type code 设值」的函数,将一个恰当的state object subclass 赋值给「保存state object」的那个值域。 |
· | 编译,测试。 |
范例(Example)
和上一项重构一样,我仍然使用这个既无聊又弱智的「雇员丨薪资」例子。同样地, 我以Employee 表示「雇员」:
class Employee {
private int _type;
static final int ENGINEER = 0;
static final int SALESMAN = 1;
static final int MANAGER = 2;
Employee (int type) {
_type = type;
}
下面的代码展示使用这些type code 的条件式:
int payAmount() {
switch (_type) {
case ENGINEER:
return _monthlySalary;
case SALESMAN:
return _monthlySalary + _commission;
case MANAGER:
return _monthlySalary + _bonus;
default:
throw new RuntimeException("Incorrect Employee");
}
}
假设这是一家激情四溢、积极进取的公司,他们可以将表现出色的工程师擢升为经理。因此,对象的type code 是可变的,所以我不能使用subclassing 方式来处理type code 。和以前一样,我的第一步还是使用Self Encapsulate Field 将表示type code 的值域自我封装起来:
Employee (int type) {
setType (type);
}
int getType() {
return _type;
}
void setType(int arg) {
_type = arg;
}
int payAmount() {
switch (getType()) {
case ENGINEER:
return _monthlySalary;
case SALESMAN:
return _monthlySalary + _commission;
case MANAGER:
return _monthlySalary + _bonus;
default:
throw new RuntimeException("Incorrect Employee");
}
}

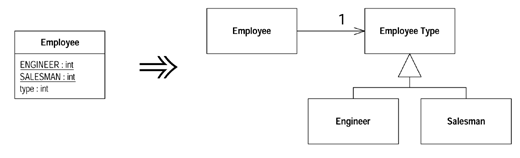

现在,我需要声明一个state class 。我把它声明为一个抽象类(abstract class),并提供一个抽象函数(abstract method)。用以返回type code :
abstract class EmployeeType {
abstract int getTypeCode();
}
现在,我可以开始创造subclass 了:
class Engineer extends EmployeeType {
int getTypeCode () {
return Employee.ENGINEER;
}
}
class Manager extends EmployeeType {
int getTypeCode () {
return Employee.MANAGER;
}
}
class Salesman extends EmployeeType {
int getTypeCode () {
return Employee.SALESMAN;
}
}
现在进行一次编译。前面所做的修改实在太平淡了,即使对我来说也太简单。现在,我要修改type code 访问函数(accessors),实实在在地把这些subclasses 和Employee class 联系起来:
Employee (int type) {
setType (type);
}
int getType() {
return _type;
}
void setType(int arg) {
_type = arg;
}
int payAmount() {
switch (getType()) {
case ENGINEER:
return _monthlySalary;
case SALESMAN:
return _monthlySalary + _commission;
case MANAGER:
return _monthlySalary + _bonus;
default:
throw new RuntimeException("Incorrect Employee");
}
}
这意味我将在这里拥有一个switch 语句。完成重构之后,这将是代码中惟一的switch 语句,并且只在对象型别发生改变时才会被执行。我也可以运用Replace Constructor with Factory Method 针对不同的case 子句建立相应的factory method 。我还可以立刻再使用Replace Conditional with Polymorphism,从而将其他的case 子句完全消除。
最后,我喜欢将所有关于type code 和subclass 的知识都移到新的class ,并以此结束Replace Type Code with State/Strategy 首先我把type code 的定义拷贝到EmployeeType class 去,在其中建立一个factory method 以生成适当的 EmployeeType 对象,并调整Employee class 中为type code 赋值的函数:
class Employee...
void setType(int arg) {
_type = EmployeeType.newType(arg);
}
class EmployeeType...
static EmployeeType newType(int code) {
switch (code) {
case ENGINEER:
return new Engineer();
case SALESMAN:
return new Salesman();
case MANAGER:
return new Manager();
default:
throw new IllegalArgumentException("Incorrect Employee Code");
}
}
static final int ENGINEER = 0;
static final int SALESMAN = 1;
static final int MANAGER = 2;
然后,我删掉Employee 中的type code 定义,代之以一个「指向(代表、指涉)Employee 对象」的reference:
class Employee...
int payAmount() {
switch (getType()) {
case EmployeeType.ENGINEER:
return _monthlySalary;
case EmployeeType.SALESMAN:
return _monthlySalary + _commission;
case EmployeeType.MANAGER:
return _monthlySalary + _bonus;
default:
throw new RuntimeException("Incorrect Employee");
}
}
现在,万事俱备,我可以运用Replace Conditional with Polymorphism 来处理payAmount 函数了。
