gd32F470串口重定义
c代码：
/*
* @Author: Bleaach008
* @Date: 2024-07-10 17:31:01
* @LastEditTime: 2024-07-11 09:42:06
* @FilePath: \MDK-ARMd:\Code\GD32\GD01_UART\MyApplication\Public.c
* @Description:
*
* Copyright (c) 2024 by 008, All Rights Reserved.
*/
/* Includes ------------------------------------------------------------------*/
#include "MyApplication.h"
/* Private define-------------------------------------------------------------*/
/* Private variables----------------------------------------------------------*/
/* Public variables-----------------------------------------------------------*/
/* Private function prototypes------------------------------------------------*/
/**
* @name: usart_debug_init
* @brief: 串口调试口初始化
* @param: {None}
* @retval:
*/
void usart_debug_init()
{
/* 初始化GPIO外设 */
rcu_periph_clock_enable(EVAL_COM0_GPIO_CLK);
/* 初始化USART外设 */
rcu_periph_clock_enable(EVAL_COM0_CLK); // 使能串口0时钟
/*GPIO复用功能*/
gpio_af_set(EVAL_COM0_GPIO_PORT, EVAL_COM0_AF, EVAL_COM0_TX_PIN);
gpio_af_set(EVAL_COM0_GPIO_PORT, EVAL_COM0_AF, EVAL_COM0_RX_PIN);
/* TX管脚，PA9，复用推挽输出，速度50MHz */
gpio_mode_set(EVAL_COM0_GPIO_PORT, GPIO_MODE_AF, GPIO_PUPD_NONE, EVAL_COM0_TX_PIN);
/* RX管脚，PA10，下拉输入，速度50MHz */
gpio_mode_set(EVAL_COM0_GPIO_PORT, GPIO_MODE_AF, GPIO_PUPD_NONE, EVAL_COM0_RX_PIN);
/*配置TX为推挽输出 50MHZ*/
gpio_output_options_set(EVAL_COM0_GPIO_PORT, GPIO_OTYPE_PP, GPIO_OSPEED_50MHZ, EVAL_COM0_TX_PIN);
/*配置RX为推挽输出 50MHZ*/
gpio_output_options_set(EVAL_COM0_GPIO_PORT, GPIO_OTYPE_PP, GPIO_OSPEED_50MHZ, EVAL_COM0_RX_PIN);
usart_deinit(EVAL_COM0);
usart_baudrate_set(EVAL_COM0, 115200); // 波特率115200
usart_parity_config(EVAL_COM0, USART_PM_NONE); // 无校检
usart_word_length_set(EVAL_COM0, USART_WL_8BIT); // 8位数据位
usart_stop_bit_set(EVAL_COM0, USART_STB_1BIT); // 1位停止位
usart_transmit_config(EVAL_COM0, USART_TRANSMIT_ENABLE); // 使能串口发送
usart_receive_config(EVAL_COM0, USART_RECEIVE_ENABLE); // 使能串口接收
usart_enable(EVAL_COM0); // 使能串口
}
int fputc(int ch, FILE *f)
{
// 通过查询的方式循环发送
/* 发送一个字节数据到串口 */
usart_data_transmit(EVAL_COM0, (uint8_t)ch);
/* 等待发送完毕 */
while (usart_flag_get(EVAL_COM0, USART_FLAG_TBE) == RESET)
;
return (ch);
}
/// 重定向c库函数scanf到串口，重写向后可使用scanf、getchar等函数
int fgetc(FILE *f)
{
/* 等待串口输入数据 */
while (usart_flag_get(EVAL_COM0, USART_FLAG_RBNE) == RESET)
;
return (int)usart_data_receive(EVAL_COM0);
}
/********************************************************
End Of File
********************************************************/
头文件定义：
/*!
\file gd32f470i_eval.h
\brief definitions for GD32F470_EVAL's leds, keys and COM ports hardware resources
\version 2022-04-18, V2.0.0, demo for GD32F4xx
*/
/*
Copyright (c) 2022, GigaDevice Semiconductor Inc.
Redistribution and use in source and binary forms, with or without modification,
are permitted provided that the following conditions are met:
1. Redistributions of source code must retain the above copyright notice, this
list of conditions and the following disclaimer.
2. Redistributions in binary form must reproduce the above copyright notice,
this list of conditions and the following disclaimer in the documentation
and/or other materials provided with the distribution.
3. Neither the name of the copyright holder nor the names of its contributors
may be used to endorse or promote products derived from this software without
specific prior written permission.
THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS"
AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED.
IN NO EVENT SHALL THE COPYRIGHT HOLDER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT,
INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT
NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR
PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY,
WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE)
ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY
OF SUCH DAMAGE.
*/
#ifndef GD32F470I_EVAL_H
#define GD32F470I_EVAL_H
#ifdef __cplusplus
extern "C" {
#endif
#include "gd32f4xx.h"
/* exported types */
typedef enum
{
LED1 = 0,
LED2 = 1,
LED3 = 2
} led_typedef_enum;
typedef enum
{
KEY_WAKEUP = 0,
KEY_TAMPER = 1,
KEY_USER = 2
} key_typedef_enum;
typedef enum
{
KEY_MODE_GPIO = 0,
KEY_MODE_EXTI = 1
} keymode_typedef_enum;
/* eval board low layer led */
#define LEDn 3U
#define LED1_PIN GPIO_PIN_2
#define LED1_GPIO_PORT GPIOE
#define LED1_GPIO_CLK RCU_GPIOE
#define LED2_PIN GPIO_PIN_3
#define LED2_GPIO_PORT GPIOE
#define LED2_GPIO_CLK RCU_GPIOE
#define LED3_PIN GPIO_PIN_10
#define LED3_GPIO_PORT GPIOF
#define LED3_GPIO_CLK RCU_GPIOF
#define COMn 1U
#define EVAL_COM0 USART0
#define EVAL_COM0_CLK RCU_USART0
#define EVAL_COM0_TX_PIN GPIO_PIN_9
#define EVAL_COM0_RX_PIN GPIO_PIN_10
#define EVAL_COM0_GPIO_PORT GPIOA
#define EVAL_COM0_GPIO_CLK RCU_GPIOA
#define EVAL_COM0_AF GPIO_AF_7
#define KEYn 3U
/* tamper push-button */
#define TAMPER_KEY_PIN GPIO_PIN_13
#define TAMPER_KEY_GPIO_PORT GPIOC
#define TAMPER_KEY_GPIO_CLK RCU_GPIOC
#define TAMPER_KEY_EXTI_LINE EXTI_13
#define TAMPER_KEY_EXTI_PORT_SOURCE EXTI_SOURCE_GPIOC
#define TAMPER_KEY_EXTI_PIN_SOURCE EXTI_SOURCE_PIN13
#define TAMPER_KEY_EXTI_IRQn EXTI10_15_IRQn
/* wakeup push-button */
#define WAKEUP_KEY_PIN GPIO_PIN_0
#define WAKEUP_KEY_GPIO_PORT GPIOA
#define WAKEUP_KEY_GPIO_CLK RCU_GPIOA
#define WAKEUP_KEY_EXTI_LINE EXTI_0
#define WAKEUP_KEY_EXTI_PORT_SOURCE EXTI_SOURCE_GPIOA
#define WAKEUP_KEY_EXTI_PIN_SOURCE EXTI_SOURCE_PIN0
#define WAKEUP_KEY_EXTI_IRQn EXTI0_IRQn
/* user push-button */
#define USER_KEY_PIN GPIO_PIN_14
#define USER_KEY_GPIO_PORT GPIOB
#define USER_KEY_GPIO_CLK RCU_GPIOB
#define USER_KEY_EXTI_LINE EXTI_14
#define USER_KEY_EXTI_PORT_SOURCE EXTI_SOURCE_GPIOB
#define USER_KEY_EXTI_PIN_SOURCE EXTI_SOURCE_PIN14
#define USER_KEY_EXTI_IRQn EXTI10_15_IRQn
/* function declarations */
/* configures led GPIO */
void gd_eval_led_init(led_typedef_enum lednum);
/* turn on selected led */
void gd_eval_led_on(led_typedef_enum lednum);
/* turn off selected led */
void gd_eval_led_off(led_typedef_enum lednum);
/* toggle the selected led */
void gd_eval_led_toggle(led_typedef_enum lednum);
/* configure key */
void gd_eval_key_init(key_typedef_enum key_num, keymode_typedef_enum key_mode);
/* return the selected button state */
uint8_t gd_eval_key_state_get(key_typedef_enum button);
/* configure COM port */
void gd_eval_com_init(uint32_t com);
#ifdef __cplusplus
}
#endif
#endif /* GD32F470I_EVAL_H */

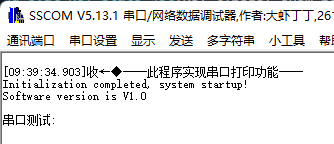

测试结果：
