软件设计5

实验5：建造者模式



[实验任务一]：计算机组装



使用建造者模式，完成下述任务：计算机组装工厂可以将CPU、内存、硬盘、主机等硬件设备组装在一起构成计算机，计算机的类型可以是笔记本，也可以是台式机。



实验要求：

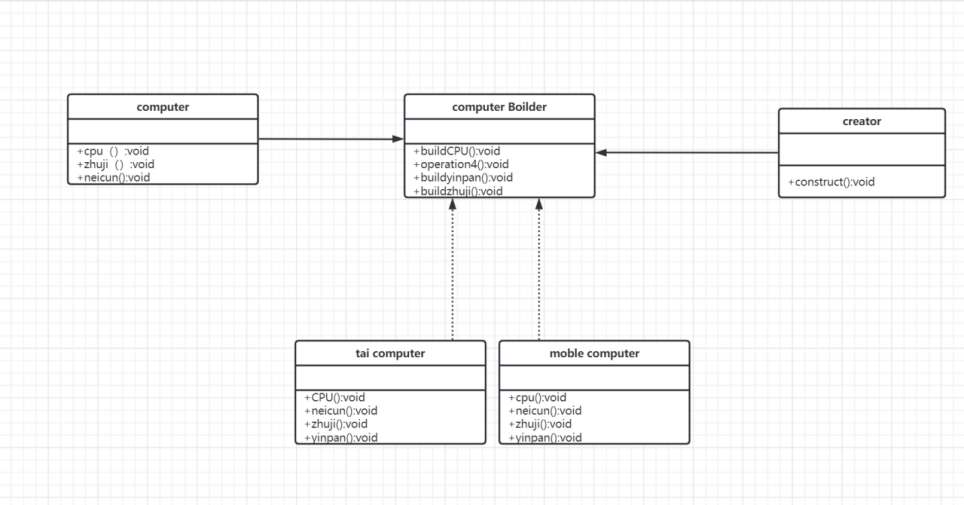

1. 画出对应的类图；











2. 提交源代码；



1.Builder



public abstract class Builder {



    Computer computer = new Computer();



    abstract public void buildZhuJi();



    abstract public void buildYinPan();



    abstract public void buildCpu();



    abstract public void buildNeiCun();



    public Compture getCompture(){



        return compture;



    }



}



① Compture



public class Compture {



    private String cpu;



    private String neiCun;



    private String yinPan;



    private String zhuJi;



    public String getZhuJi() {



        return zhuJi;



    }



    public void setZhuJi(String zhuJi) {



        this.zhuJi = zhuJi;



    }



    public String getYinPan() {



        return yinPan;



    }



    public void setYinPan(String yinPan) {



        this.yinPan = yinPan;



    }



    public String getNeiCun() {



        return neiCun;



    }



    public void setNeiCun(String neiCun) {



        this.neiCun = neiCun;



    }



    public String getCpu() {



        return cpu;



    }



    public void setCpu(String cpu) {



        this.cpu = cpu;



    }



}



② Factory



public class Factory {



    private Builder comptureKind;



    public void setCompture(Builder kind) {



        this.comptureKind = kind;



    }



    public Compture construct(){



        comptureKind.buildCpu();



        comptureKind.buildYinPan();



        comptureKind.buildZhuJi();



        comptureKind.buildNeiCun();



        return comptureKind.getCompture();



    }



}



③ LapBuilder



public class LapBuilder extends Builder{



    @Override



    public void buildZhuJi() {



        compture.setZhuJi("LZJ");



    }



    @Override



    public void buildYinPan() {



        compture.setYinPan("LYP");



    }



    @Override



    public void buildCpu() {



        compture.setCpu("LC");



    }



    @Override



    public void buildNeiCun() {



        compture.setNeiCun("LNC");



    }



}



④ Store



public class Store {



    public static void main(String[] args) {



        Builder lap;



        Factory factory=new Factory();



        for (int i = 0; i < 2; i++) {



            if(i==1)



                lap = new LapBuilder();



            else



                lap=new TaiShiBuilder();



            factory.setCompture(lap);



            factory.construct();



            System.out.println(lap.getCompture().getCpu());



            System.out.println(lap.getCompture().getNeiCun());



            System.out.println(lap.getCompture().getYinPan());



            System.out.println(lap.getCompture().getZhuJi());



        }







    }



}



⑤ TaiShiBuilder



public class TaiShiBuilder extends Builder{



    @Override



    public void buildZhuJi() {



        compture.setZhuJi("TZJ");



    }



    @Override



    public void buildYinPan() {



        compture.setYinPan("TYP");



    }



    @Override



    public void buildCpu() {



        compture.setCpu("TC");



    }



    @Override



    public void buildNeiCun() {



        compture.setNeiCun("TNC");



    }



}



3.注意编程规范。
