软件设计4

[实验任务一]：人与肤色

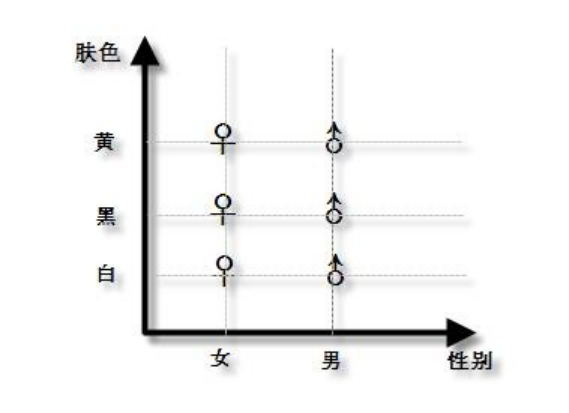

使用抽象工厂模式，完成下述产品等级结构：







实验要求：

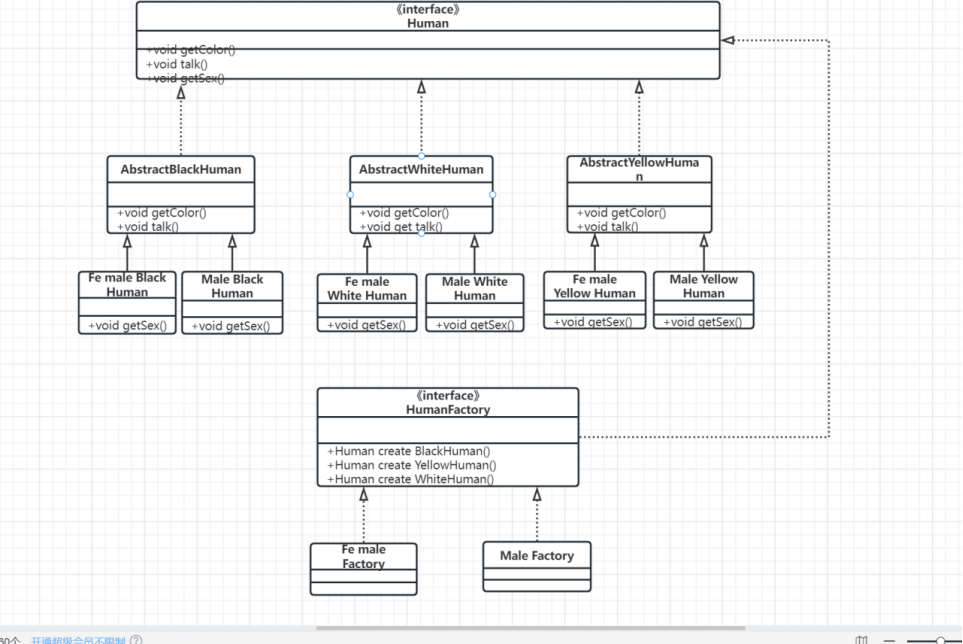

1. 画出对应的类图；





2.提交源代码；

package designpattern;

/*

 *

 * 人类抽象类

 */

abstract class Human {

public abstract void color();

public abstract void talk();





}

abstract class BlackHuman extends Human{

@Override

public void color() {

System.out.println("我的皮肤是黑色");



}

abstract public void talk();

}

abstract class YellowHuman extends Human{

@Override

public void color() {

System.out.println("我的皮肤是黄色");



}

abstract public void talk();

}

abstract class WhiteHuman extends Human{

@Override

public void color() {

System.out.println("我的皮肤是白色");



}

abstract public void talk();

}

class FemaleBlackMan extends BlackHuman{







@Override

public void talk() {

System.out.println("我是黑人女性");



}



}

class FemaleWhiteMan extends WhiteHuman{





@Override

public void talk() {

System.out.println("我是白人女性");



}



}

class FemaleYellowMan extends YellowHuman{







@Override

public void talk() {

System.out.println("我是黄人女性");



}



}

class MaleBlackMan extends BlackHuman{





@Override

public void talk() {

System.out.println("我是黑人男性");



}



}

class MaleWhiteMan extends WhiteHuman{







@Override

public void talk() {

System.out.println("我是白人男性");



}



}

class MaleYellowMan extends YellowHuman{





@Override

public void talk() {

System.out.println("我是黄人男性");



}



}

interface HumanFactory{

public Human createBlackHuman();

public Human createWhiteHuman();

public Human createYellowHuman();

}

class FemaleHumanFactory implements HumanFactory{



@Override

public Human createBlackHuman() {

return new FemaleBlackMan();

}



@Override

public Human createWhiteHuman() {

return new FemaleWhiteMan();

}



@Override

public Human createYellowHuman() {

return new FemaleYellowMan();

}



}

class MaleHumanFactory implements HumanFactory{



@Override

public Human createBlackHuman() {

return new MaleBlackMan();

}



@Override

public Human createWhiteHuman() {

return new MaleWhiteMan();

}



@Override

public Human createYellowHuman() {

return new MaleYellowMan();

}



}

public class AbstractFactoryDemo {

public static void main(String[] args) {

//男性生产线

HumanFactory maleHumanFactory=new MaleHumanFactory();

//女性生产线

HumanFactory femaleHumanFactory=new FemaleHumanFactory();



Human maleBlack=maleHumanFactory.createBlackHuman();//创建黑人男性

Human femaleWhite=femaleHumanFactory.createWhiteHuman();//创建白人女性



maleBlack.color();

maleBlack.talk();



femaleWhite.color();

femaleWhite.talk();



}

}





3.注意编程规范。
