tomcat生产环境JDK部署及虚拟主机等常用配置详解
jdk和tomcat环境部署：
1、删除系统自带的openjdk
# java -version java version "1.7.0_45" OpenJDK Runtime Environment (rhel-2.4.3.3.el6-x86_64 u45-b15) OpenJDK 64-Bit Server VM (build 24.45-b08, mixed mode) # rpm -qa | grep java tzdata-java-2013g-1.el6.noarch java-1.7.0-openjdk-1.7.0.45-2.4.3.3.el6.x86_64 java-1.6.0-openjdk-1.6.0.0-1.66.1.13.0.el6.x86_64 # rpm -e --nodeps java-1.7.0-openjdk-1.7.0.45-2.4.3.3.el6.x86_64 # rpm -e --nodeps java-1.6.0-openjdk-1.6.0.0-1.66.1.13.0.el6.x86_64
2、安装jdk-7u79
# rpm -ivh jdk-7u79-linux-x64.rpm# vim /etc/profile.d/java.sh
export JAVA_HOME=/usr/java/latest export PATH=$JAVA_HOME/bin:$PATH
验证是否安装成功
# java -version java version "1.7.0_79" Java(TM) SE Runtime Environment (build 1.7.0_79-b15) Java HotSpot(TM) 64-Bit Server VM (build 24.79-b02, mixed mode)
3、部署tomcat
# unzip apache-tomcat-7.0.69.zip # cp -r apache-tomcat-7.0.69 /usr/local/ # cd /usr/local # ln -sv apache-tomcat-7.0.69 tomcat
# vim /etc/profile.d/tomcat.sh
export CATALINA_HOME=/usr/local/tomcat export PATH=$CATALINA_HOME/bin:$PATH# . /etc/profile.d/tomcat.sh
# chmod +x /usr/local/tomcat/bin/*.sh
验证是否成功
# catalina.sh version Using CATALINA_BASE: /usr/local/tomcat Using CATALINA_HOME: /usr/local/tomcat Using CATALINA_TMPDIR: /usr/local/tomcat/temp Using JRE_HOME: /usr Using CLASSPATH: /usr/local/tomcat/bin/bootstrap.jar:/usr/local/tomcat/bin/tomcat-juli.jar Server version: Apache Tomcat/7.0.69 Server built: Apr 11 2016 07:57:09 UTC Server number: 7.0.69.0 OS Name: Linux OS Version: 2.6.32-431.el6.x86_64 Architecture: amd64 JVM Version: 1.7.0_79-b15 JVM Vendor: Oracle Corporation
将tomcat加入服务脚本
# vim /etc/init.d/tomcat
#!/bin/sh
# Tomcat init script for Linux.
#
# chkconfig: 2345 96 14
# description: The Apache Tomcat servlet/JSP container.
# JAVA_OPTS='-Xms64m -Xmx128m'
JAVA_HOME=/usr/java/latest
CATALINA_HOME=/usr/local/tomcat
export JAVA_HOME CATALINA_HOME
case $1 in
start)
exec $CATALINA_HOME/bin/catalina.sh start ;;
stop)
exec $CATALINA_HOME/bin/catalina.sh stop;;
restart)
$CATALINA_HOME/bin/catalina.sh stop
sleep 2
exec $CATALINA_HOME/bin/catalina.sh start ;;
configtest)
exec $CATALINA_HOME/bin/catalina.sh configtest ;;
*)
echo "Usage: `basename $0` {start|stop|restart}"
exit 1
;;
esac# chmod +x /etc/init.d/tomcat
# chkconfig add tomcat
# service tomcat start
tomcat配置常用案例：
1、定义同时监听两个端口80和8080：
以下为connector常用属性的说明： 1) address：指定连接器监听的地址，默认为所有地址，即0.0.0.0； 2) maxThreads：支持的最大并发连接数，默认为200； 3) port：监听的端口，默认为0； 4) protocol：连接器使用的协议，默认为HTTP/1.1，定义AJP协议时通常为AJP/1.3； 5) redirectPort：如果某连接器支持的协议是HTTP，当接收客户端发来的HTTPS请求时，则转发至此属性定义的端口； 6) connectionTimeout：等待客户端发送请求的超时时间，单位为毫秒，默认为60000，即1分钟； 7) enableLookups：是否通过request.getRemoteHost()进行DNS查询以获取客户端的主机名；默认为true； 8) acceptCount：设置等待队列的最大长度；通常在tomcat所有处理线程均处于繁忙状态时，新发来的请求将被放置于等待队列中；
<Connector port="80" protocol="HTTP/1.1"
connectionTimeout="20000"
redirectPort="443" />
<Connector port="8080" address="127.0.0.1" maxThreads="1024" enableLookups="false" protocol="HTTP/1.1"
connectionTimeout="20000"
redirectPort="443" />
2、定义host主机

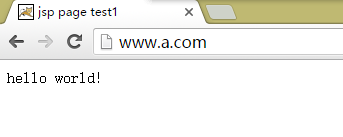

# mkdir /www/webapps/ROOT -pv# vim /www/webapps/ROOT/index.jsp
<%@ page language="java" %>
<%@ page import="java.util.*" %>
<html>
<head>
<title>jsp page test1</title>
</head>
<body>
<% out.println("hello world!"); %>
</body>

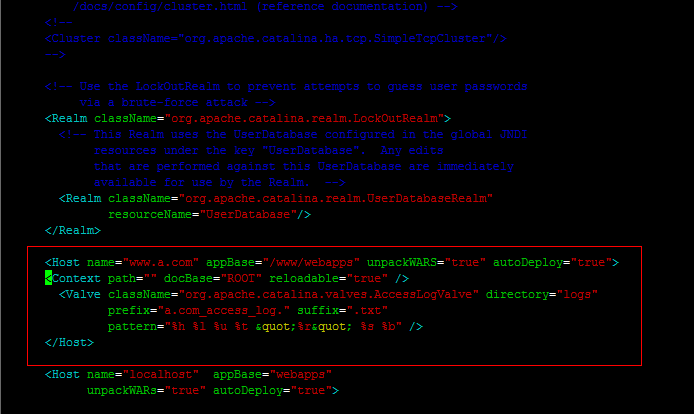

</html># vim /usr/local/tomcat/conf/server.xml
<Host name="www.a.com" appBase="/www/webapps" unpackWARS="true" autoDeploy="true">
<Context path="" docBase="ROOT" reloadable="true" />
<Valve className="org.apache.catalina.valves.AccessLogValve" directory="logs"
prefix="a.com_access_log." suffix=".txt"
pattern="%h %l %u %t "%r" %s %b" />
</Host>

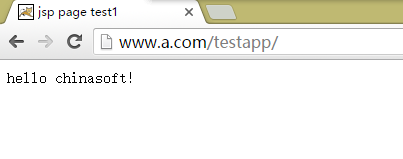

# mkdir /www/webapps/testapp
# cp /www/webapps/ROOT/index.jsp /www/webapps/testapp/
<Host name="www.a.com" appBase="/www/webapps" unpackWARS="true" autoDeploy="true">
<Context path="" docBase="ROOT" reloadable="true" />
<Context path="/test" docBase="testapp" reloadable="true" />
<Valve className="org.apache.catalina.valves.AccessLogValve" directory="logs"
prefix="a.com_access_log." suffix=".txt"
pattern="%h %l %u %t "%r" %s %b" />
</Host>
3、添加tomcat应用的status和应用的管理
# vim /usr/local/tomcat/conf/tomcat-users.xml
<role rolename="manage-gui" /> <user username="tomcat" password="tomcat" roles="tomcat,manager-gui,admin-gui" />

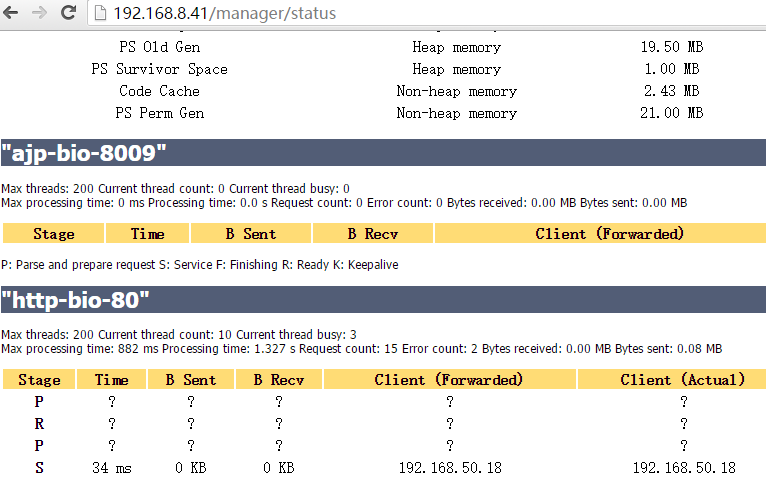

状态查看
http://192.168.8.41/manager/status
