linux下Nginx+Tomcat配置负载均衡

1.安装tomcat可只本地安装一个tomcat  另一个用远程的

    配置 好默认直接访问单节点:8080 是可以的

 2.安装nginx 上篇已讲

     测试nginx 安装成功 http://localhost 出现nginx主页面即可

 3.配置nginx负载均衡



#user  nobody;
worker_processes  1;

#error_log  logs/error.log;
#error_log  logs/error.log  notice;
#error_log  logs/error.log  info;

#pid        logs/nginx.pid;


events {
    worker_connections  1024;
}


http {
    include       mime.types;
    default_type  application/octet-stream;
    #access_log  logs/access.log  main;

    sendfile        on;
    #tcp_nopush     on;

    #keepalive_timeout  0;
    keepalive_timeout  65;

    #gzip  on;


    upstream localhost{
      server 139.198.13.180:8080;
      server 127.0.0.1:8080;
    }
    server {
        listen       80;
        server_name  localhost;

        #charset koi8-r;

        #access_log  logs/host.access.log  main;

        location / {
            root   html;
            index  index.html index.htm;
			proxy_pass http://localhost;
        }

        #error_page  404              /404.html;
        error_page   500 502 503 504  /50x.html;
        location = /50x.html {
            root   html;
        }

    }




}

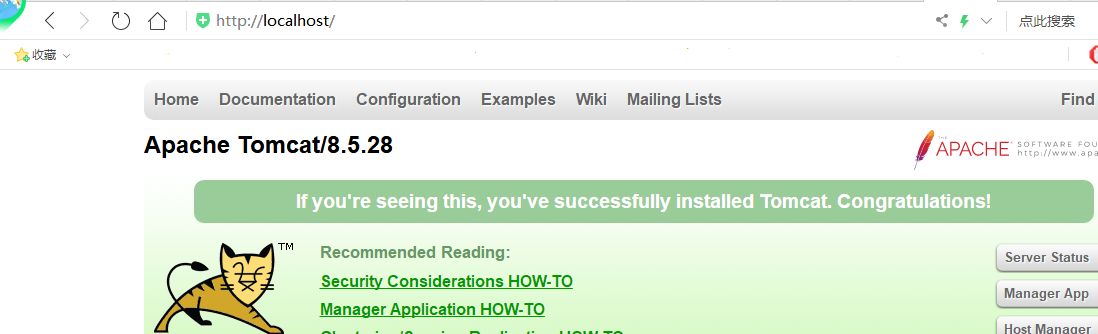

运行结果刷新
