卷积操作详解

今天研究了一下卷积计算。
卷积涉及到的两个输入为： 图像和filter

• 图像: 维度为 C*H*W C是channel, 也叫做 depth, H和W就是图像的宽和高了。

• filter, 维度为 K*K, 假设 filter的个数为 M个
  直接进行卷积的伪代码为



for w in 1..W (img_width)
  for h in 1..H (img_height)
    for x in 1..K (filter_width)
      for y in 1..K (filter_height)
        for m in 1..M (num_filters)
          for c in 1..C (img_channel)
            output(w, h, m) += input(w+x, h+y, c) * filter(m, x, y, c)
          end
        end
      end
    end
  end
end

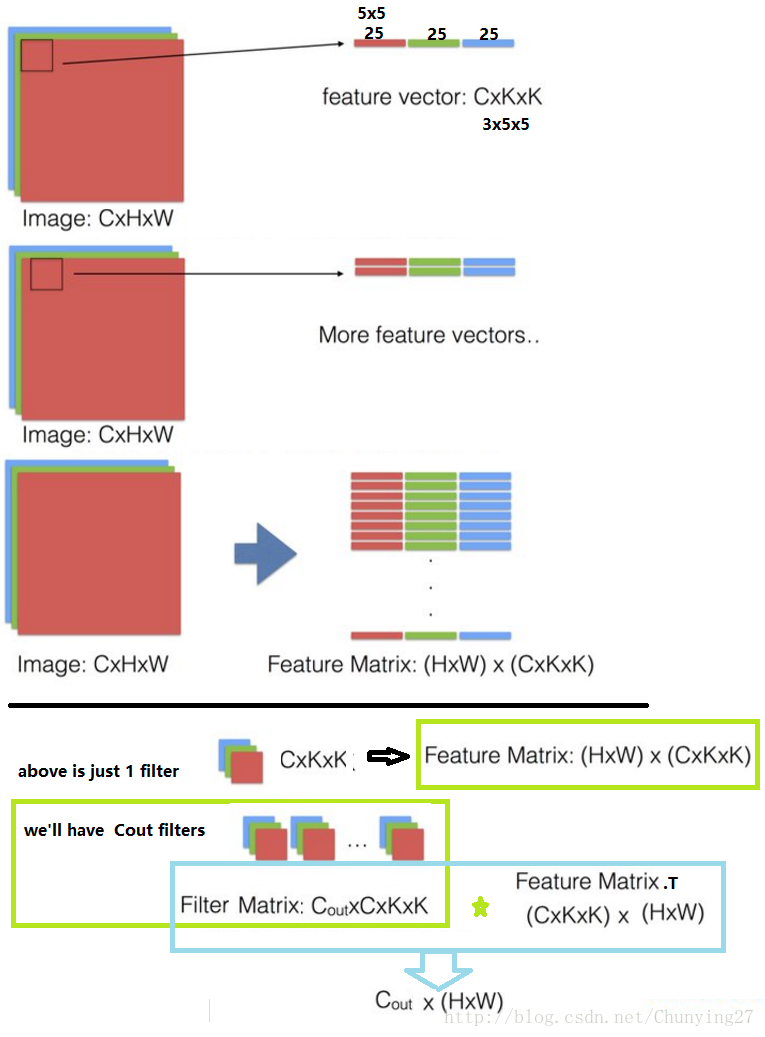

-使用矩阵进行卷积操作，计算量：

卷积运算，输入M层，输出N层，核尺寸k。输入数据大小H*W。
卷积参数数量：weight + bias = M*N*k*k+N
卷积运算量：H*W*N*M^2*K^4 ？？

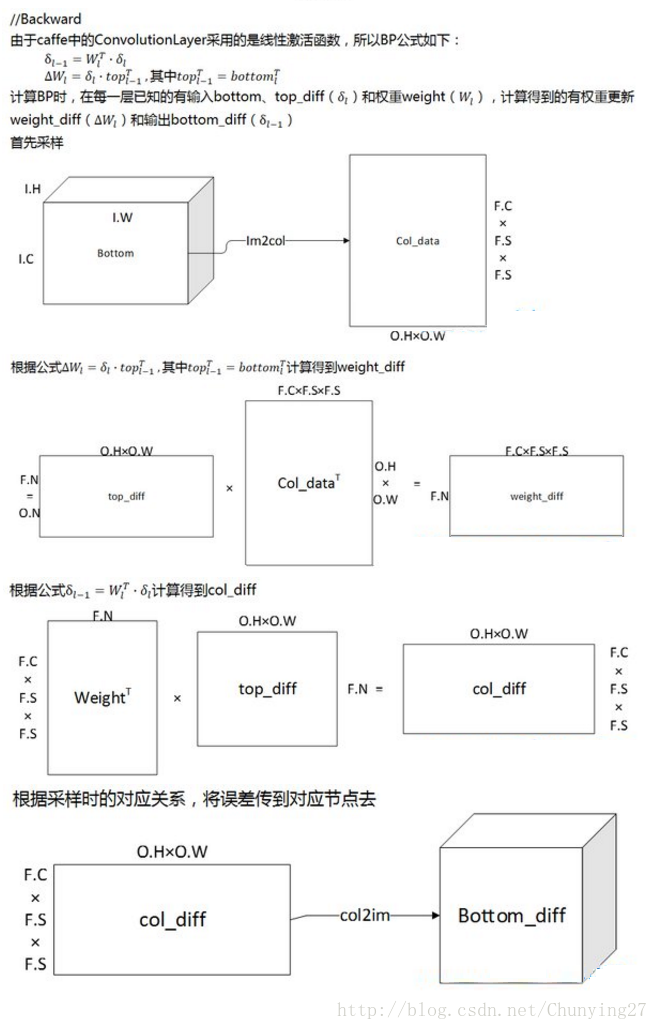

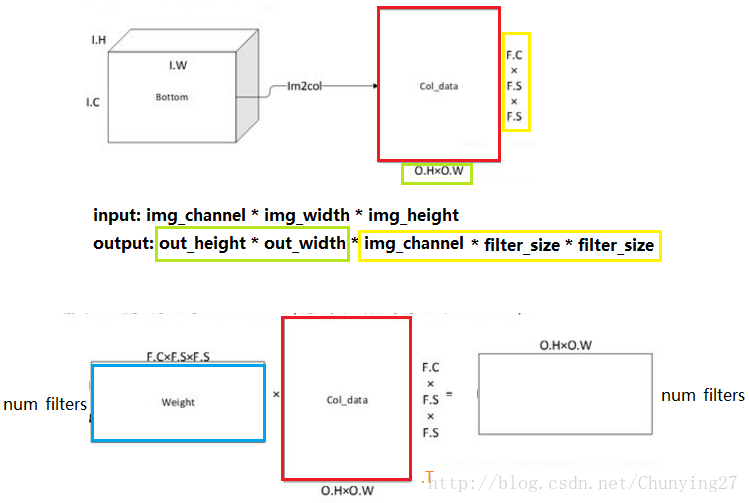

• 卷积就变成了矩阵乘法 (Gemm in BLAS) . BLAS 库有（MKL, Atlas, CuBLAS）。这个算法最近被打败：Alex Krizhevsky’s 在 cuda-convnet [2]的优化 code [3]:

https://github.com/soumith/convnet-benchmarks

• 卷积之后的输出的维度为 num_filter* out_h * out_w；注意out_h 和 out_w 是img_h, img_w经过pading 和stride之后的宽高。

hout=himg+2Pading−KfilterhS+1

wout=wimg+2Pading−KfilterwS+1

这个后续再看

• C++具体实现：C++ Algorithm for Convolution 2D

///////////////////////////////////////////////////////////////////////////////
// Simplest 2D convolution routine. It is easy to understand how convolution
// works, but is very slow, because of no optimization.
///////////////////////////////////////////////////////////////////////////////
bool convolve2DSlow(unsigned char* in, unsigned char* out, int dataSizeX, int dataSizeY,
                    float* kernel, int kernelSizeX, int kernelSizeY)
{
    int i, j, m, n, mm, nn;
    int kCenterX, kCenterY;                         // center index of kernel
    float sum;                                      // temp accumulation buffer
    int rowIndex, colIndex;

    // check validity of params
    if(!in || !out || !kernel) return false;
    if(dataSizeX <= 0 || kernelSizeX <= 0) return false;

    // find center position of kernel (half of kernel size)
    kCenterX = kernelSizeX / 2;
    kCenterY = kernelSizeY / 2;

    for(i=0; i < dataSizeY; ++i)                // rows
    {
        for(j=0; j < dataSizeX; ++j)            // columns
        {
            sum = 0;                            // init to 0 before sum
            for(m=0; m < kernelSizeY; ++m)      // kernel rows
            {
                mm = kernelSizeY - 1 - m;       // row index of flipped kernel

                for(n=0; n < kernelSizeX; ++n)  // kernel columns
                {
                    nn = kernelSizeX - 1 - n;   // column index of flipped kernel

                    // index of input signal, used for checking boundary
                    rowIndex = i + m - kCenterY;
                    colIndex = j + n - kCenterX;

                    // ignore input samples which are out of bound
                    if(rowIndex >= 0 && rowIndex < dataSizeY && colIndex >= 0 && colIndex < dataSizeX)
                        sum += in[dataSizeX * rowIndex + colIndex] * kernel[kernelSizeX * mm + nn];
                }
            }
            out[dataSizeX * i + j] = (unsigned char)((float)fabs(sum) + 0.5f);
        }
    }

    return true;
}
