Spring - Spring中的设计模式例子

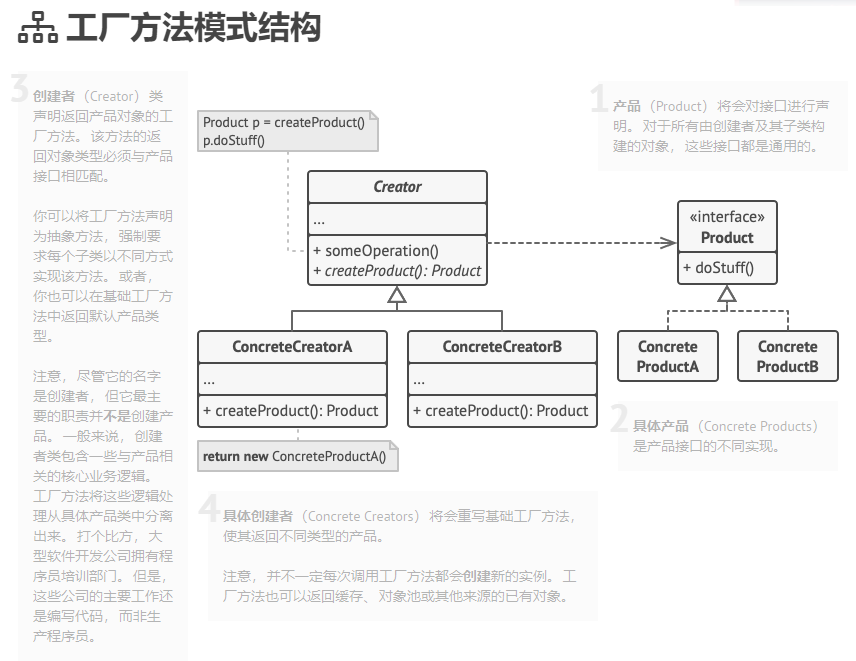

工厂方法模式

模式简述

工厂方法

Spring中的FactoryBean

Product -> BeanObject
Concrete Products -> e.g.如mybatis中的T MapperObject
Creator -> FactoryBean

public interface FactoryBean<T> {
    T getObject() throws Exception;

    Class<?> getObjectType();

    boolean isSingleton();
}

Concrete Creator -> e.g. MapperFactoryBean

public class MapperFactoryBean<T> extends SqlSessionDaoSupport implements FactoryBean<T> {
    //...
    public T getObject() throws Exception {
        return this.getSqlSession().getMapper(this.mapperInterface);
    }

    public Class<T> getObjectType() {
        return this.mapperInterface;
    }

    public boolean isSingleton() {
        return true;
    }
}

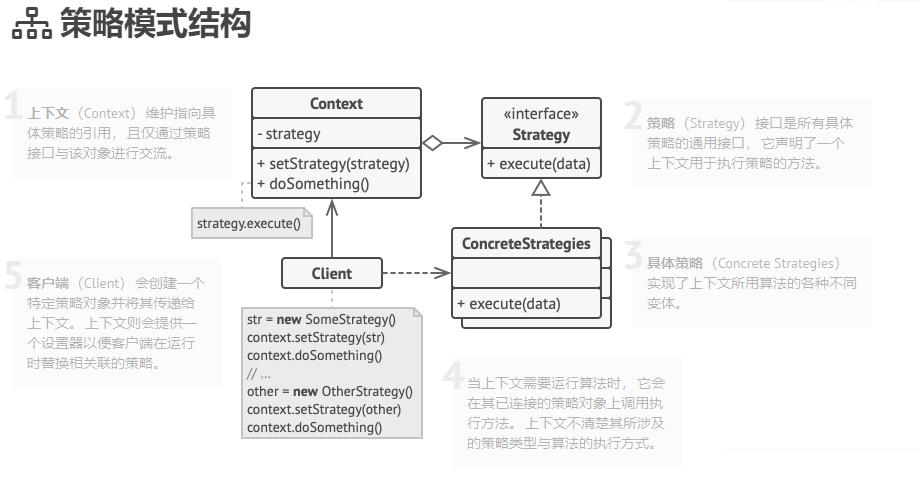

策略模式

模式简述

策略模式

Spring中的InstantiationStrategy

Context -> AbstractAutowireCapableBeanFactory

public abstract class AbstractAutowireCapableBeanFactory extends AbstractBeanFactory implements AutowireCapableBeanFactory {
    private InstantiationStrategy instantiationStrategy = new CglibSubclassingInstantiationStrategy();
	//...

    public void setInstantiationStrategy(InstantiationStrategy instantiationStrategy) {
        this.instantiationStrategy = instantiationStrategy;
    }

    public InstantiationStrategy getInstantiationStrategy() {
        return instantiationStrategy;
    }

    protected Object createBeanInstance(BeanDefinition bd, String beanName, Object[] args) throws BeansException {
        Constructor constructorToUse = null;
        Class<?> beanClass = bd.getBeanClass();
        Constructor<?>[] declaredConstructors = beanClass.getDeclaredConstructors();

        for (Constructor ctor: declaredConstructors) {
            if (null != args && ctor.getParameterTypes().length == args.length) {
                constructorToUse = ctor;
                break;
            }
        }

        return getInstantiationStrategy().instantiate(bd, beanName, constructorToUse, args);
    }
}

Strategy -> InstantiationStrategy

public interface InstantiationStrategy {
    Object instantiate(BeanDefinition bd, String beanName, Constructor ctor, Object[] args) throws BeansException;
}

Concrete Strategy -> CglibSubclassingInstantiationStrategy/SimpleInstantiationStrategy

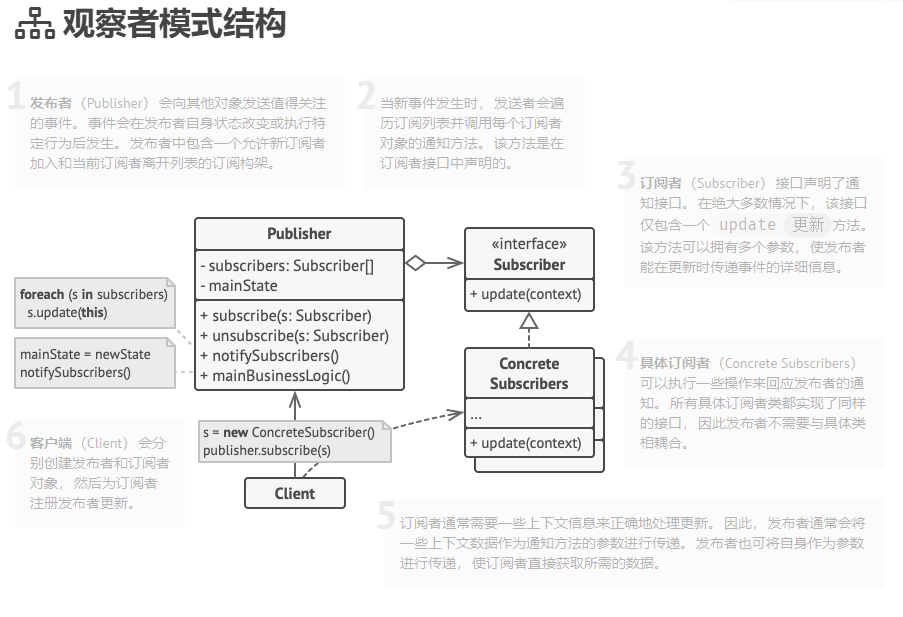

观察者模式

模式简述

观察者模式

Spring中的ApplicationListener

发布者接口

public interface ApplicationEventPublisher {
    void publishEvent(ApplicationEvent event);
}

具体发布者 -> AbstractApplicationContext

public abstract class AbstractApplicationContext extends DefaultResourceLoader implements ConfigurableApplicationContext {
    public static final String APPLICATION_EVENT_MULTICASTER_BEAN_NAME = "applicationEventMulticaster";
    private ApplicationEventMulticaster applicationEventMulticaster;
    //...
    @Override
    public void publishEvent(ApplicationEvent event) {
        applicationEventMulticaster.multicastEvent(event);
    }
}

广播中介 -> SimpleApplicationEventMulticaster

public abstract class AbstractApplicationEventMulticaster implements ApplicationEventMulticaster, BeanFactoryAware {
    public final Set<ApplicationListener<ApplicationEvent>> applicationListeners = new LinkedHashSet<>();

    private BeanFactory beanFactory;

    @Override
    public void addApplicationListener(ApplicationListener<?> listener) {
        applicationListeners.add((ApplicationListener<ApplicationEvent>) listener);
    }

    @Override
    public void removeApplicationListener(ApplicationListener<?> listener) {
        applicationListeners.remove(listener);
    }

    @Override
    public void setBeanFactory(BeanFactory beanFactory) throws BeansException {
        this.beanFactory = beanFactory;
    }

    protected Collection<ApplicationListener> getApplicationListeners(ApplicationEvent event) {
        LinkedList<ApplicationListener> allListeners = new LinkedList<ApplicationListener>();
        for (ApplicationListener<ApplicationEvent> listener: applicationListeners) {
            if (supportsEvent(listener, event)) {
                allListeners.add(listener);
            }
        }
        return allListeners;
    }
    //...
}

public class SimpleApplicationEventMulticaster extends AbstractApplicationEventMulticaster {
    public SimpleApplicationEventMulticaster(BeanFactory beanFactory) {
        setBeanFactory(beanFactory);
    }

    @SuppressWarnings("unchecked")
    @Override
    public void multicastEvent(final ApplicationEvent event) {
        for (final ApplicationListener listener: getApplicationListeners(event)) {
            listener.onApplicationEvent(event);
        }
    }
}

订阅者 -> ApplicationListener

public interface ApplicationListener<E extends ApplicationEvent> extends EventListener {
    void onApplicationEvent(E event);
}

具体订阅者 -> CustomEventListener, ContextRefreshedEventListener, ContextClosedEventListener
客户端

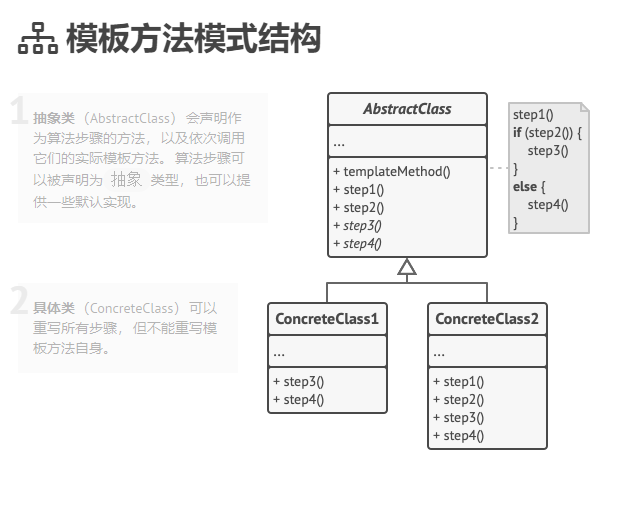

模板方法模式

模式简述

模板方法模式

Spring中的AbstractApplicationContext::refresh()

抽象类 -> AbstractApplicationContext

public abstract class AbstractApplicationContext extends DefaultResourceLoader implements ConfigurableApplicationContext {
    public static final String APPLICATION_EVENT_MULTICASTER_BEAN_NAME = "applicationEventMulticaster";
    private ApplicationEventMulticaster applicationEventMulticaster;
    @Override
    public void refresh() throws BeansException {
        //创建BeanFactory 加载BeanDefinition
        refreshBeanFactory();

        ConfigurableListableBeanFactory beanFactory = getBeanFactory();

        //添加ApplicationContextAwareProcessor,让继承自ApplicationContextAware的bean对象都能感知所属的ApplicationContext
        beanFactory.addBeanPostProcessor(new ApplicationContextAwareProcessor(this));

        invokeBeanFactoryPostProcessors(beanFactory);

        registerBeanPostProcessors(beanFactory);

        initApplicationEventMulticaster();

        registerListeners();

        beanFactory.preInstantiateSingletons();

        finishRefresh();
    }

    protected abstract void refreshBeanFactory() throws BeansException;

    private void initApplicationEventMulticaster() {
        ConfigurableListableBeanFactory beanFactory = getBeanFactory();
        applicationEventMulticaster = new SimpleApplicationEventMulticaster(beanFactory);
        beanFactory.registerSingleton(APPLICATION_EVENT_MULTICASTER_BEAN_NAME, applicationEventMulticaster);
    }

    private void registerListeners(){
        Collection<ApplicationListener> applicationListeners = getBeansOfType(ApplicationListener.class).values();
        for (ApplicationListener listener: applicationListeners) {
            applicationEventMulticaster.addApplicationListener(listener);
        }
    }
}

具体类 -> AbstractRefreshableApplicationContext

public abstract class AbstractRefreshableApplicationContext extends AbstractApplicationContext {
    private DefaultListableBeanFactory beanFactory;

    @Override
    protected void refreshBeanFactory() throws BeansException {
        DefaultListableBeanFactory beanFactory = createBeanFactory();
        loadBeanDefinitions(beanFactory);
        this.beanFactory = beanFactory;
    }

    private DefaultListableBeanFactory createBeanFactory() {
        return new DefaultListableBeanFactory();
    }

    protected abstract void loadBeanDefinitions(DefaultListableBeanFactory beanFactory);

    @Override
    protected ConfigurableListableBeanFactory getBeanFactory() {
        return beanFactory;
    }
}

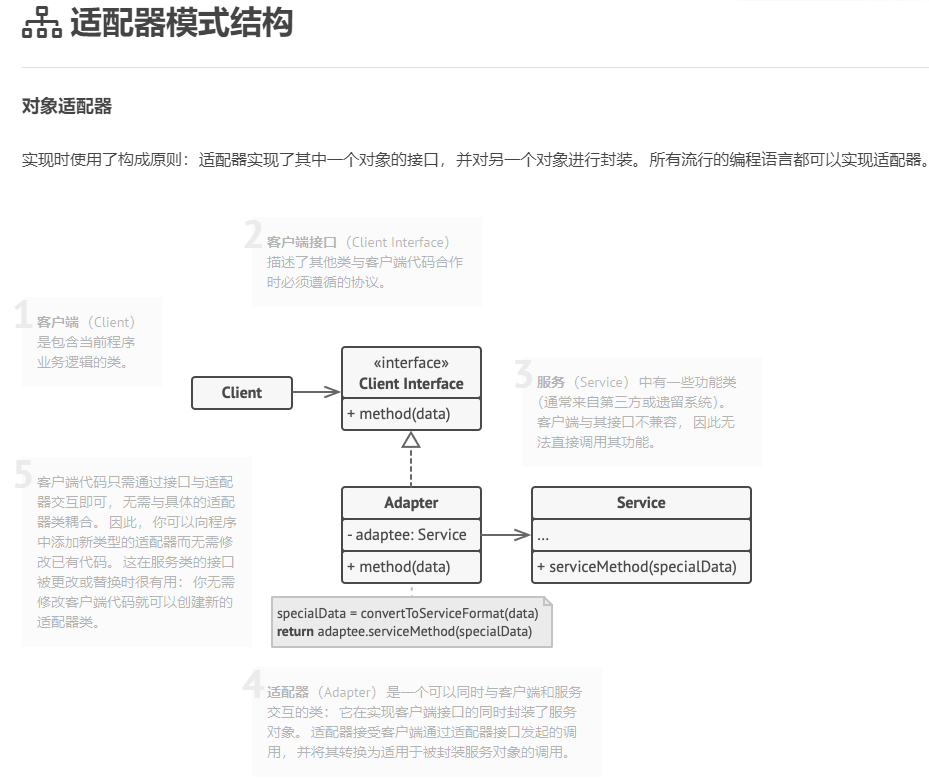

适配器模式

模式简述

适配器模式

Spring中的DisposableBeanAdapter

客户端
客户端接口 -> DisposableBean

public interface DisposableBean{
    void destroy() throws Exception;
}

服务 -> <destroyMethod>.invoke()
适配器 -> DisposableBeanAdapter 反射调用销毁方法和接口调用销毁方法是两种方式，需要使用适配器统一处理

public class DisposableBeanAdapter implements DisposableBean {
    private final Object bean;
    private final String beanName;
    private String destroyMethodName;

    public DisposableBeanAdapter(Object bean, String beanName, BeanDefinition beanDefinition) {
        this.bean = bean;
        this.beanName = beanName;
        this.destroyMethodName = beanDefinition.getDestroyMethodName();
    }

    @Override
    public void destroy() throws Exception {
        if (bean instanceof DisposableBean) {
            ((DisposableBean) bean).destroy();
        }

        if (StrUtil.isNotEmpty(destroyMethodName) && !(bean instanceof DisposableBean && "destroy".equals(this.destroyMethodName))) {
            Method destroyMethod = bean.getClass().getMethod(destroyMethodName);
            if (null == destroyMethod) {
                throw new BeansException("Couldn't find a destroy method named'" + destroyMethodName + "' on bean " +
                        "with name '" + beanName + "'");
            }
            destroyMethod.invoke(bean);
        }
    }
}

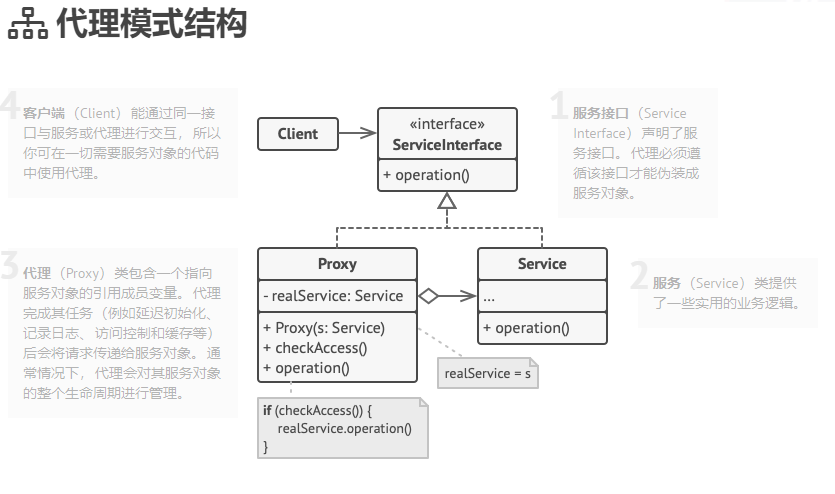

代理模式

模式简述

代理模式

ProxyBeanFactory

服务接口
服务
代理

public class ProxyBeanFactory implements FactoryBean<IUserDao> {
    @Override
    public IUserDao getObject() throws Exception {
        InvocationHandler handler = ((proxy, method, args) -> {
            Map<String, String> hashMap = new HashMap<>();
            hashMap.put("10001", "小梁");
            return "你被代理了" + method.getName() + ": " + hashMap.get(args[0].toString());
        });
        return (IUserDao) Proxy.newProxyInstance(Thread.currentThread().getContextClassLoader(),
                new Class[]{IUserDao.class}, handler);
    }

    @Override
    public Class<?> getObjectType() {
        return IUserDao.class;
    }

    @Override
    public boolean isSingleton() {
        return true;
    }
}
