项目实战：Qt图像拼接渐进色图层生成工具v1.0.0（预设四路拼接，多路可通过多图叠层实现）

需求

  图像拼接需要过渡模板：
  1.预设四路渐进色拼接
  2.可单独一路或者多路，配合多图层算法，实现多路过度
  3.可调整点过渡位置，过渡间隙
  4.可调整点过渡颜色
  5.6路/8路拼接可通过调整点位置和多图层渐进色实现



背景

    公司自研产品过程中产出生产工具，无需求助美工或者懂切图，提升工作效率。

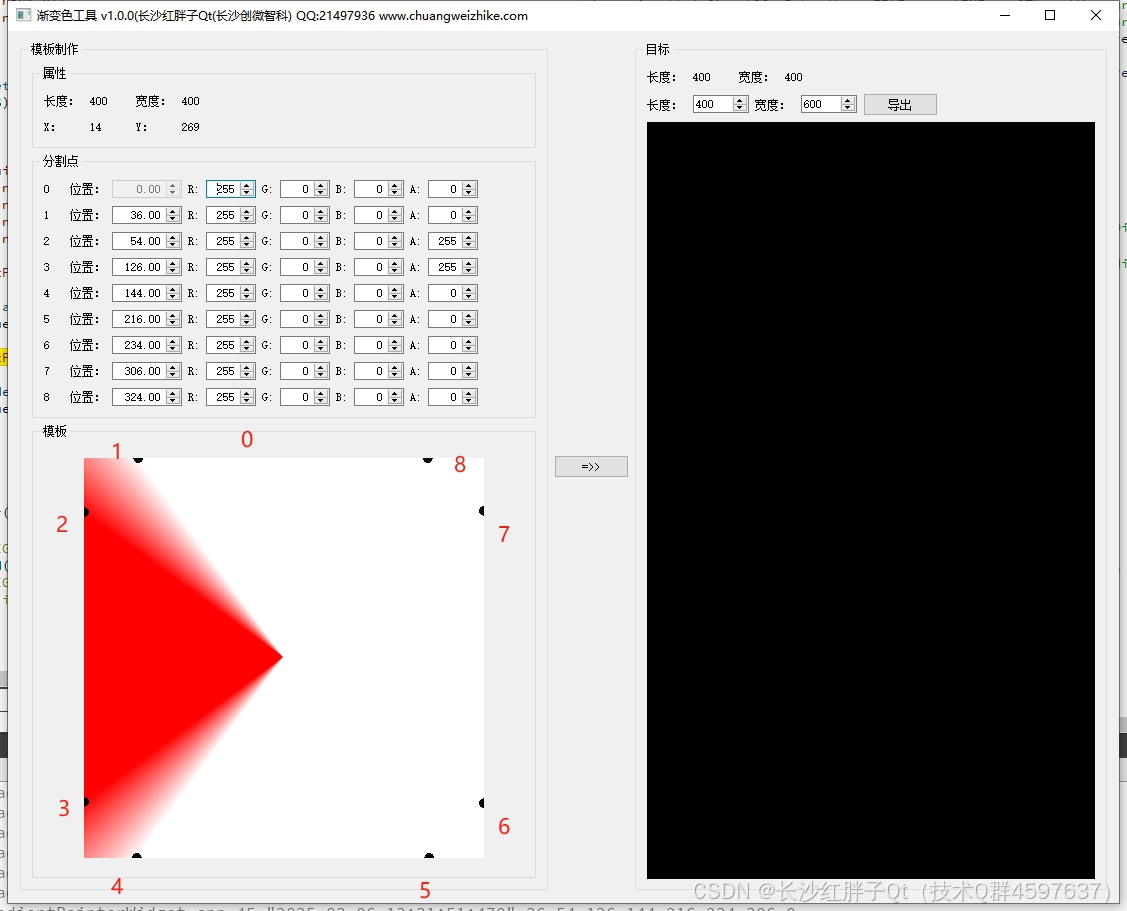

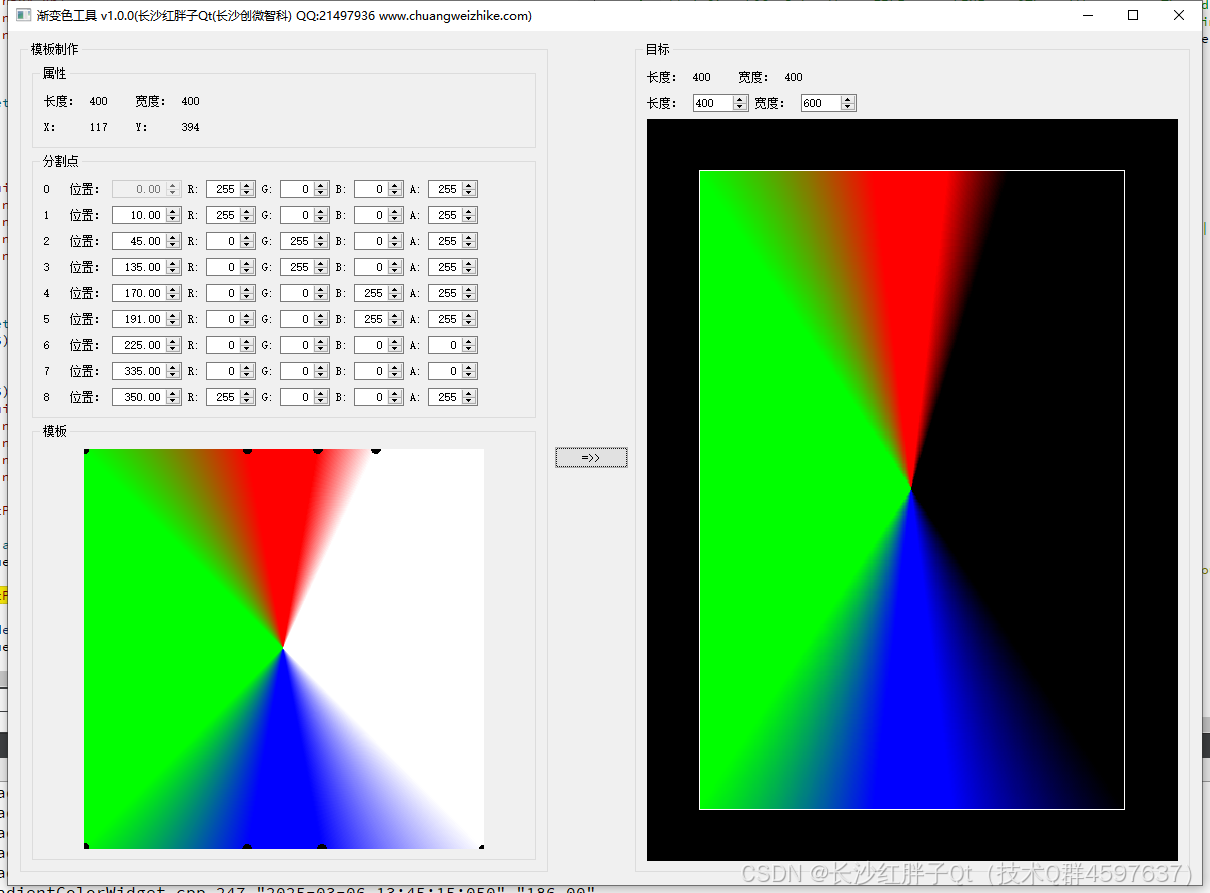

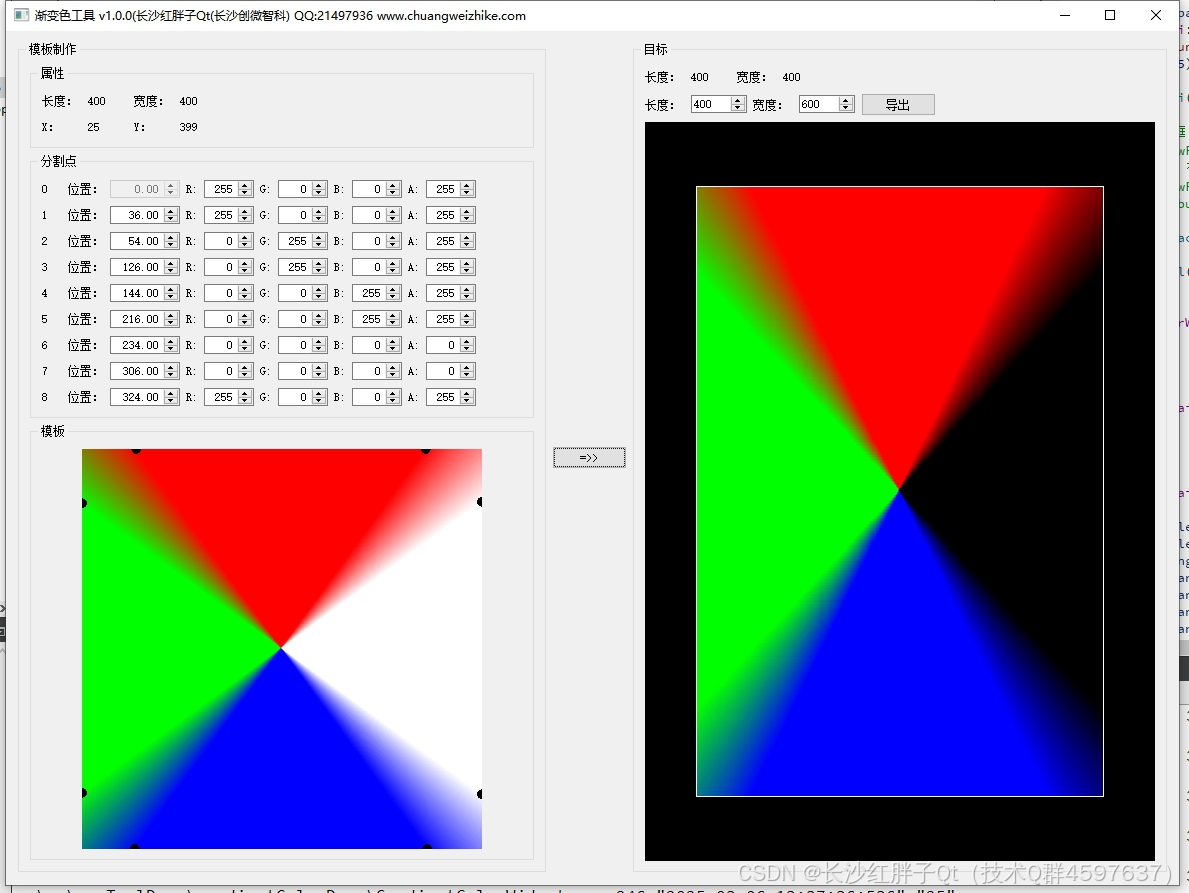

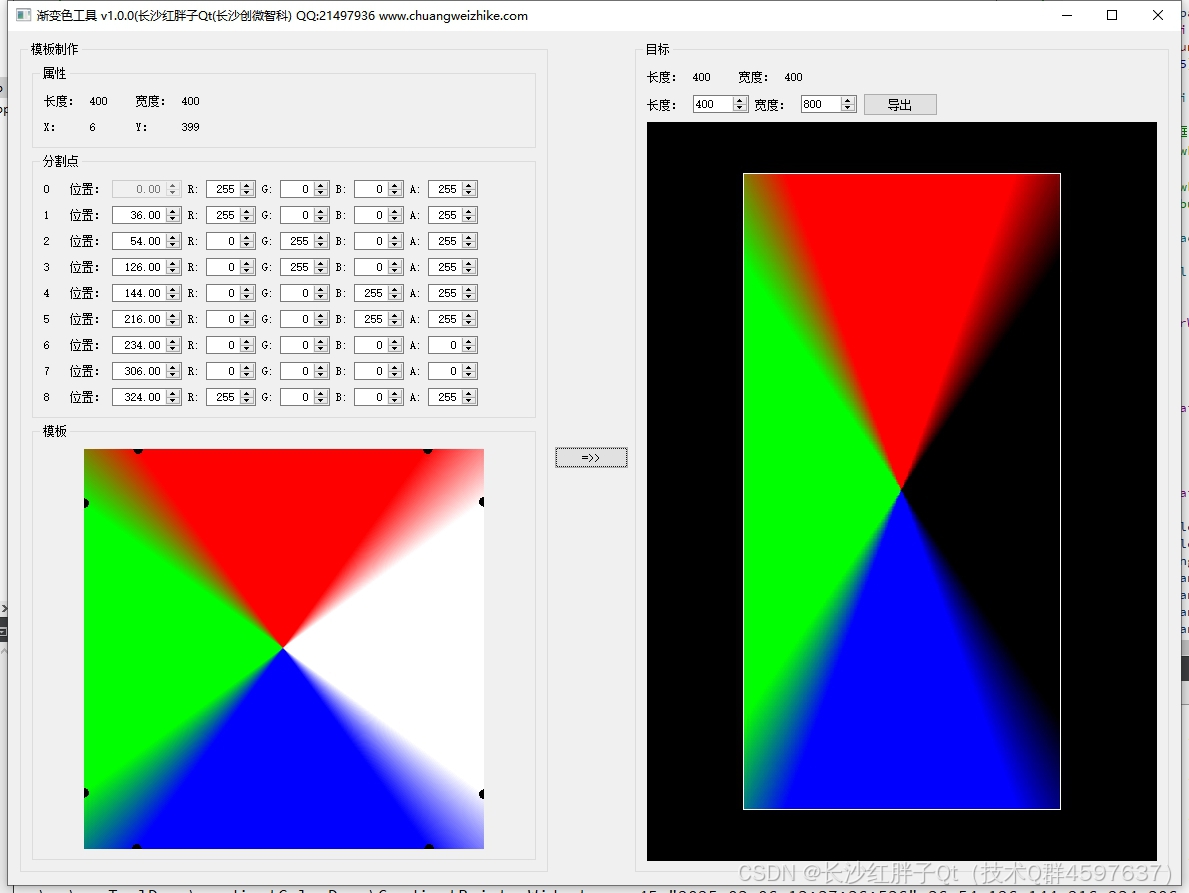

Demo：gardientColorTool_v1.0.0 windows运行包

  

  

  

  



核心源码

void GradientPainterWidget::paintEvent(QPaintEvent *event)
{
    QPainter painter(this);
    // 绘制背景颜色
    drawBackground(&painter);
    drawImage(&painter);
    drawPoint(&painter);

    QWidget::paintEvent(event);
}

void GradientPainterWidget::drawBackground(QPainter *painter)
{
    painter->save();

    painter->setPen(Qt::NoPen);
    painter->setBrush(_backgroundColor);
    painter->drawRect(rect());

    painter->restore();
}

void GradientPainterWidget::drawImage(QPainter *painter)
{
    if(_image.isNull())
    {
        LOG << "if(_image.isNull())";
        return;
    }
    painter->save();

    painter->drawImage(rect(), _image);

    painter->restore();
}

void GradientPainterWidget::drawPoint(QPainter *painter)
{
    painter->save();

    painter->setPen(Qt::NoPen);
    painter->setBrush(QColor(0, 0, 0, 255));
    for(int index = 0; index < _listInterPointF.size(); index++)
    {
        painter->drawEllipse(_listInterPointF.at(index), _offset, _offset);
    }

    painter->restore();
}

void GradientPainterWidget::updatePoint()
{
    // 求交点
    _listInterPointF.clear();
    for(int index = 0; index < _listAngle.size(); index++)
    {
        double degrees = _listAngle.at(index);
        // 中心点延伸线
        double x = rect().center().x() - sin(qDegreesToRadians(degrees)) * rect().width();
        double y = rect().center().y() - cos(qDegreesToRadians(degrees)) * rect().width();
        QLineF line(QPoint(x, y), rect().center());
//        LOG << degrees << QPoint(x, y);
        for(int lineIndex = 0; lineIndex < _listBoundLineF.size(); lineIndex++)
        {
//            LOG << line << _listBoundLineF.at(lineIndex);
            QPointF interPos(0, 0);
            QLineF::IntersectType type = _listBoundLineF.at(lineIndex).intersect(line, &interPos);
            if(type == QLineF::BoundedIntersection)
            {
//                LOG << "inter" << interPos;
                _listInterPointF.append(interPos);
                break;
            }
        }
    }
}

void GradientPainterWidget::updateImage()
{
    if(_image.isNull())
    {
        LOG << "if(_image.isNull())";
        return;
    }
    _image = QImage(rect().width(), rect().height(), QImage::Format_ARGB32);

    QConicalGradient conicalGradient;
    conicalGradient.setCenter(rect().center());
    conicalGradient.setAngle(90);

    conicalGradient.setColorAt(0.0, _color0);
    conicalGradient.setColorAt(1.0, _color0);

    conicalGradient.setColorAt(_angle  / 360, _color);
    conicalGradient.setColorAt(_angle2 / 360, _color2);

    conicalGradient.setColorAt(_angle3 / 360, _color3);
    conicalGradient.setColorAt(_angle4 / 360, _color4);

    conicalGradient.setColorAt(_angle5 / 360, _color5);
    conicalGradient.setColorAt(_angle6 / 360, _color6);

    conicalGradient.setColorAt(_angle7 / 360, _color7);
    conicalGradient.setColorAt(_angle8 / 360, _color8);

    QPainter painter(&_image);
    painter.setPen(Qt::NoPen);
    painter.setBrush(conicalGradient);
    painter.drawRect(rect());

    update();
}
