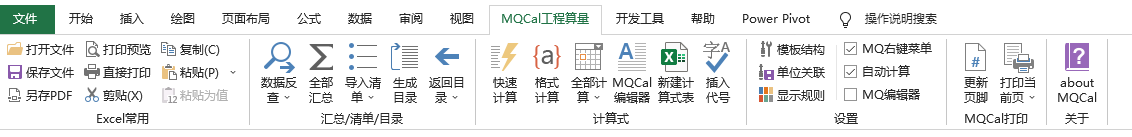

Excel2007选项卡打造（Ribbon菜单）

打造Excel Ribbon 菜单，2007版本适合最新的2021Excel。

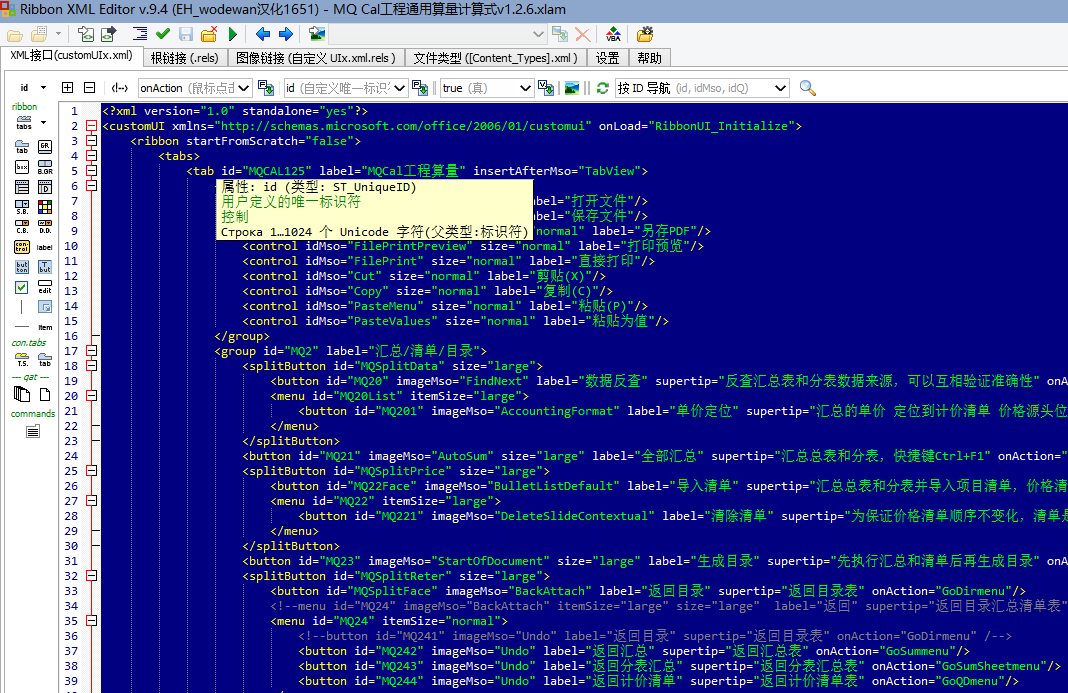

本质是XML文件，注意，写错一个字符，Excel都不会显示您所写的菜单。还是借助工具写比较方便，参见：《RibbonX：自定义Office 2007功能区》学习心得

具体代码如下：

<?xml version="1.0" standalone="yes"?>
<customUI xmlns="http://schemas.microsoft.com/office/2006/01/customui" onLoad="RibbonUI_Initialize">
	<ribbon startFromScratch="false">
		<tabs>
			<tab id="MQCAL125" label="MQCal工程算量" insertAfterMso="TabView">
				<group id="MQ1" label="Excel常用">
					<control idMso="FileOpen" size="normal" label="打开文件"/>
					<control idMso="FileSave" size="normal" label="保存文件"/>
					<control idMso="FileSaveAsPdfOrXps" size="normal" label="另存PDF"/>
					<control idMso="FilePrintPreview" size="normal" label="打印预览"/>
					<control idMso="FilePrint" size="normal" label="直接打印"/>
					<control idMso="Cut" size="normal" label="剪贴(X)"/>
					<control idMso="Copy" size="normal" label="复制(C)"/>
					<control idMso="PasteMenu" size="normal" label="粘贴(P)"/>
					<control idMso="PasteValues" size="normal" label="粘贴为值"/>
				</group>
				<group id="MQ2" label="汇总/清单/目录">
					<splitButton id="MQSplitData" size="large">
						<button id="MQ20" imageMso="FindNext" label="数据反查" supertip="反查汇总表和分表数据来源，可以互相验证准确性" onAction="FindDatamenu"/>
						<menu id="MQ20List" itemSize="large">
							<button id="MQ201" imageMso="AccountingFormat" label="单价定位" supertip="汇总的单价 定位到计价清单 价格源头位置，方便检查价格的组成和修改源头价格" onAction="FindPricemenu"/>
						</menu>
					</splitButton>
					<button id="MQ21" imageMso="AutoSum" size="large" label="全部汇总" supertip="汇总总表和分表，快捷键Ctrl+F1" onAction="SumAllmenu"/>
					<splitButton id="MQSplitPrice" size="large">
						<button id="MQ22Face" imageMso="BulletListDefault" label="导入清单" supertip="汇总总表和分表并导入项目清单，价格清单是增量式更新" onAction="SumAllListmenu"/>
						<menu id="MQ22" itemSize="large">
							<button id="MQ221" imageMso="DeleteSlideContextual" label="清除清单" supertip="为保证价格清单顺序不变化，清单是增量式更新，如果数据变化太大（比如全新计算），可以清除原计价清单" onAction="CleanListmenu"/>
						</menu>
					</splitButton>
					<button id="MQ23" imageMso="StartOfDocument" size="large" label="生成目录" supertip="先执行汇总和清单后再生成目录" onAction="MakeDirmenu"/>
					<splitButton id="MQSplitReter" size="large">
						<button id="MQSplitFace" imageMso="BackAttach" label="返回目录" supertip="返回目录表" onAction="GoDirmenu"/>
						<!--menu id="MQ24" imageMso="BackAttach" itemSize="large" size="large"  label="返回" supertip="返回目录汇总清单表"-->
						<menu id="MQ24" itemSize="normal">
							<!--button id="MQ241" imageMso="Undo" label="返回目录" supertip="返回目录表" onAction="GoDirmenu" /-->
							<button id="MQ242" imageMso="Undo" label="返回汇总" supertip="返回汇总表" onAction="GoSummenu"/>
							<button id="MQ243" imageMso="Undo" label="返回分表汇总" supertip="返回分表汇总表" onAction="GoSumSheetmenu"/>
							<button id="MQ244" imageMso="Undo" label="返回计价清单" supertip="返回计价清单表" onAction="GoQDmenu"/>
						</menu>
					</splitButton>
				</group>
				<group id="MQ3" label="计算式">
					<button id="MQ31" imageMso="AdpDiagramIndexesKeys" size="large" label="快速计算" supertip="对当前活动表（计算式表）进行快速计算，快捷键Ctrl+Q" onAction="QuikCalmenu"/>
					<button id="MQ32" imageMso="FieldCodes" size="large" label="格式计算" supertip="对当前活动表（计算式表）进行格式计算，快捷键Ctrl+E" onAction="FormatCalmenu"/>
					<menu id="MQ33" imageMso="ContentControlDate" itemSize="large" size="large" label="全部计算" supertip="计算所有计算式表">
						<button id="MQ331" imageMso="AdpDiagramIndexesKeys" label="快速计算全部" supertip="对所有计算式表进行快速计算，快捷键Ctrl+Shift+Q" onAction="QuikCalAmenu"/>
						<button id="MQ332" imageMso="FieldCodes" label="格式计算全部" supertip="对所有计算式表进行格式计算，快捷键Ctrl+Shift+E" onAction="FormatCalAmenu"/>
					</menu>
					<button id="MQ34" imageMso="DropCapInsertGallery" size="large" label="MQCal编辑器" supertip="MQCal编辑器可浮动在CAD上，方便取数，快捷键F8" onAction="ShowEditmenu"/>
					<button id="MQ35" imageMso="FileSaveAsExcelXlsx" size="large" label="新建计算式表" supertip="以模板样式导出一个新的计算式表，快捷键Shift+F11" onAction="NewSheetmenu"/>
					<control idMso="NamePasteName" imageMso="GroupBlogProofing" size="large" label="插入代号" supertip="快捷键F3"/>
				</group>
				<group id="MQ4" label="设置">
					<button id="MQ41" imageMso="ControlToolboxOutlook" size="normal" label="模板结构" supertip="设置MQCal模板结构，使计算式表符合您的计算习惯" onAction="SetMBmenu"/>
					<button id="MQ42" imageMso="ControlSetControlDefaults" size="normal" label="单位关联" supertip="设置单位和项目关键词关联，使计算式表可选择和自动匹配单位" onAction="SetDWmenu"/>
					<button id="MQ43" imageMso="AppointmentColorDialog" size="normal" label="显示规则" supertip="设置字体、字号、颜色、自动计算等" onAction="SetViewmenu"/>
					<separator id="MQFG1"/>
					<box id="Mycheck" boxStyle="vertical">
						<!--menuSeparator id="rxmSep17" title="快捷设置"/-->
						<checkBox id="Mycheck3" getPressed="Mycheck3_getPressed" onAction="Mycheck3_click" label="MQ右键菜单" supertip="勾选右键菜单只有MQCal算量功能，否则带Excel右键功能"/>
						<checkBox id="Mycheck1" getPressed="Mycheck1_getPressed" onAction="Mycheck1_click" label="自动计算" supertip="勾选自动计算，否则手动点击右键或者菜单计算"/>
						<checkBox id="Mycheck2" getPressed="Mycheck2_getPressed" onAction="Mycheck2_click" label="MQ编辑器" supertip="勾选光标在计算式列，自动弹出编辑器，否则按F8或者右键弹出"/>
					</box>
				</group>
				<group id="MQ5" label="MQCal打印">
					<button id="MQ51" imageMso="HeaderFooterPageNumberInsert" size="large" label="更新页脚" supertip="自动更新MQCal设置统一的页脚、表头、列宽1页，表头在全部表中采用开始行的上一行作为表头" onAction="SetFootermenu"/>
					<splitButton id="MQSplitPrint" size="large">
						<button id="MQSplitFacePrint" imageMso="PrintListRange" label="打印当前页" supertip="打印当前活动页" onAction="PrintActmenu"/>
						<menu id="MQ52">
							<!-- imageMso="PrintListRange" itemSize="large" size="large" label="打印计算式" supertip="打印计算式"-->
							<button id="MQ521" imageMso="FilePrint" label="打印当前计算式" supertip="打印当前计算式表，需要在计算式表，如需页脚，请先更新页脚" onAction="PrintCalSheetmenu"/>
							<button id="MQ522" imageMso="FilePrint" label="打印全部计算式" supertip="打印全部计算式表，如需页脚，请先更新页脚" onAction="PrintCalSheetsmenu"/>
							<button id="MQ523" imageMso="FilePrint" label="打印全部表" supertip="打印包括封面、汇总、计价、计算式等为一个PDF文件，如需页脚，请先更新页脚" onAction="PrintAllmenu"/>
							<button id="MQ524" imageMso="FileSaveAsPdf" label="打印全部为PDF" supertip="打印包括封面等所有计算书为PDF，如需页脚，请先更新页脚" onAction="SaveToPdfmenu"/>
						</menu>
					</splitButton>
				</group>
				<group id="MQ6" label="关于">
					<button id="MQ61" imageMso="FunctionsLogicalInsertGallery" size="large" label="about MQCal" supertip="关于MQCal工程计算式算量" onAction="AboutMQCalmenu"/>
				</group>
			</tab>
		</tabs>
	</ribbon>
</customUI>
