第二次作业

[实验概要]

使用pycharm创建一个flask项目+html+css

[实验目的]

1.掌握软件开发的基本流程

2.掌握常用的软件开发方式和工具。

[实验内容]

设计一个包含登录界面的计算器软件，该软件可以实现第一次作业中的全部功能，同时可以保存用户的历史计算记录。

[软件测试开发环境与工具]

PyCharm 2023.2.1，Navicat，mysql-5.7.37-winx64

[流程图]



图2.登录时序图

图3.登录流程图

图4.计算器流程图

[测试用例及项目的图片]

图5：http://127.0.0.1:5000/登录页面

图6：输入正确的用户名和密码



图7：跳转到计算器页面，输入9开方

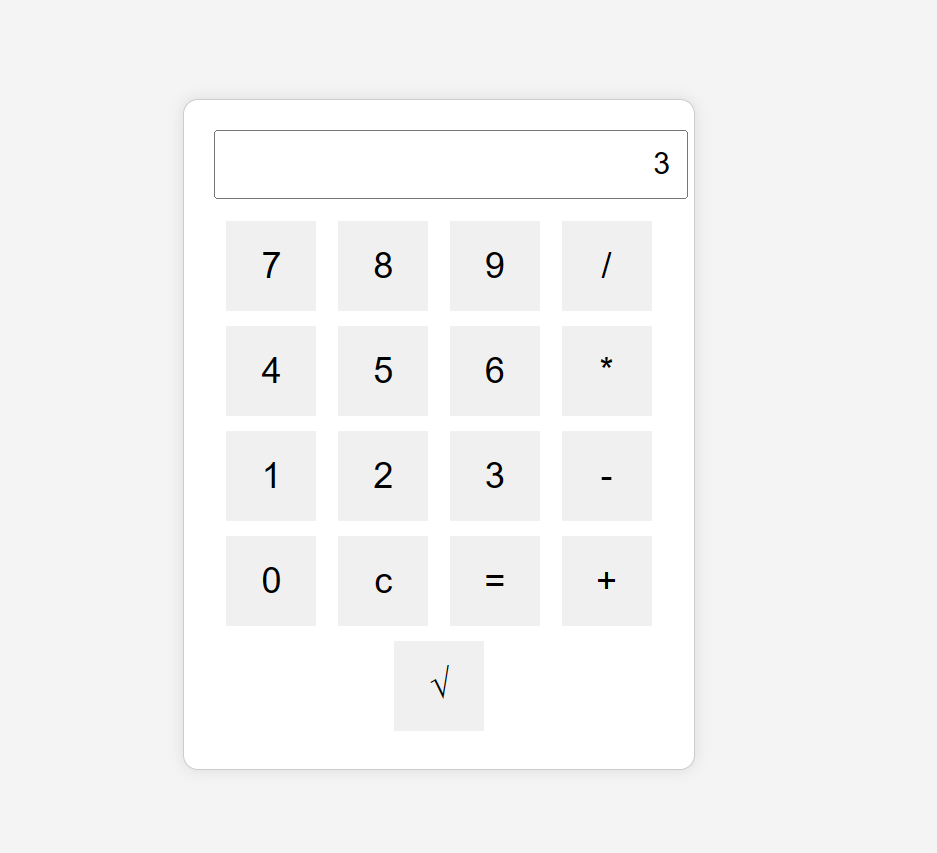

图8：输出3

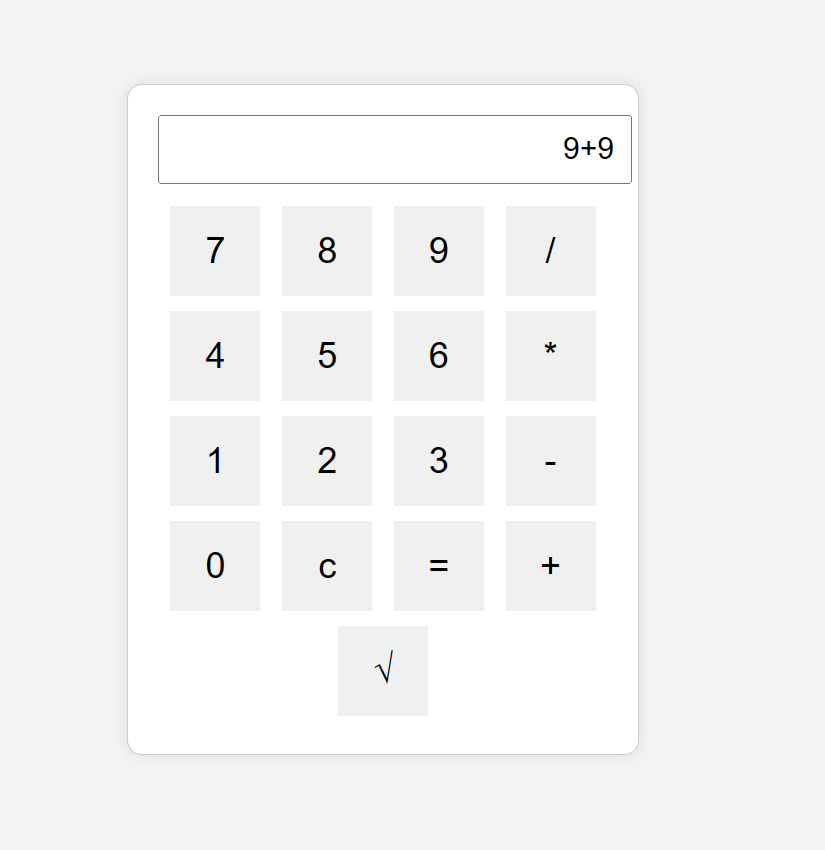

图9：输入9+9

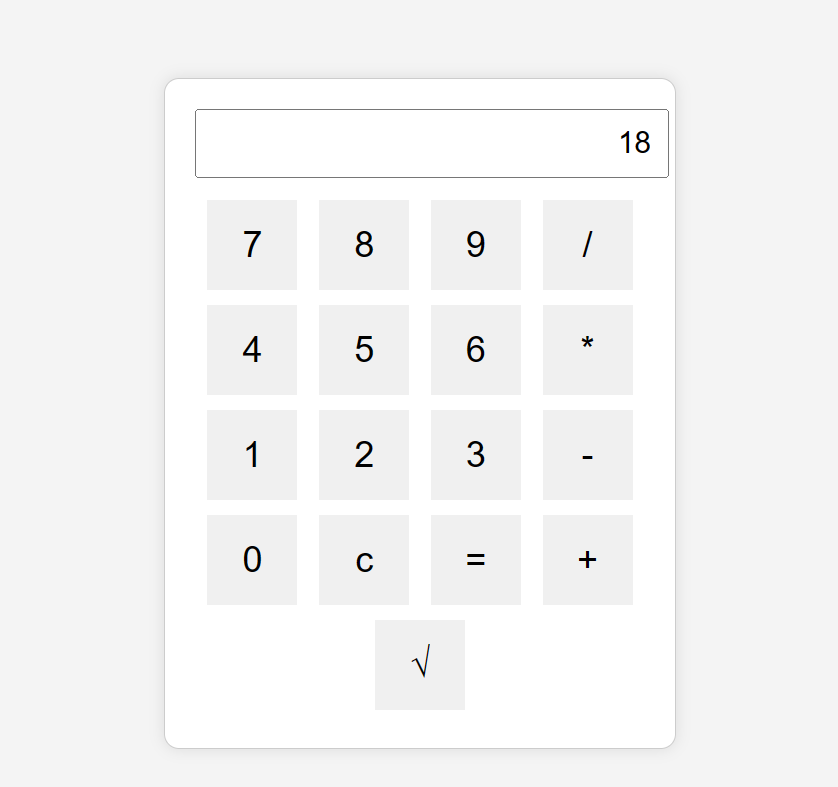

图10：输出18

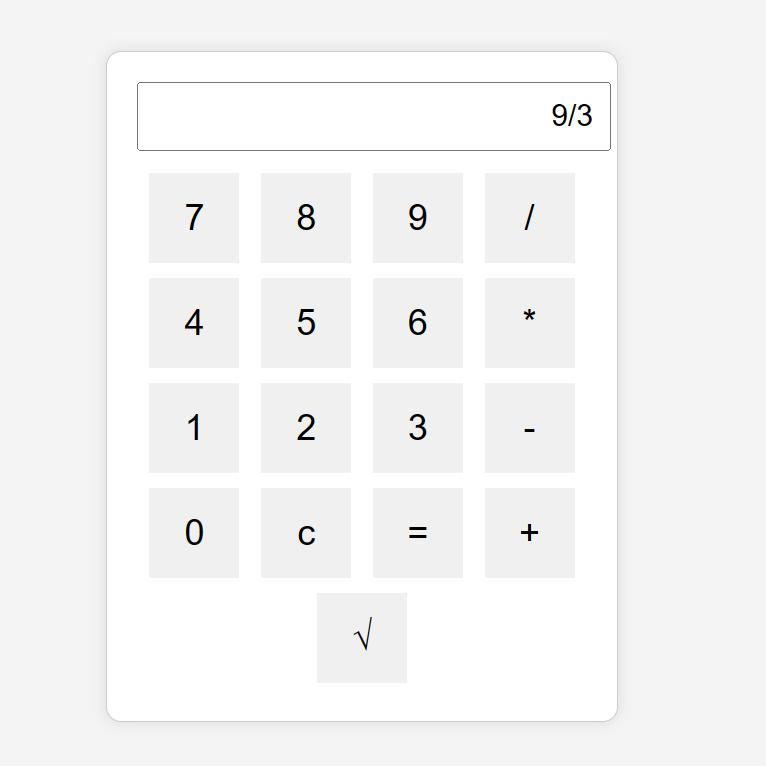

图11：输入9除以3

图12：输出3

图13：输入10

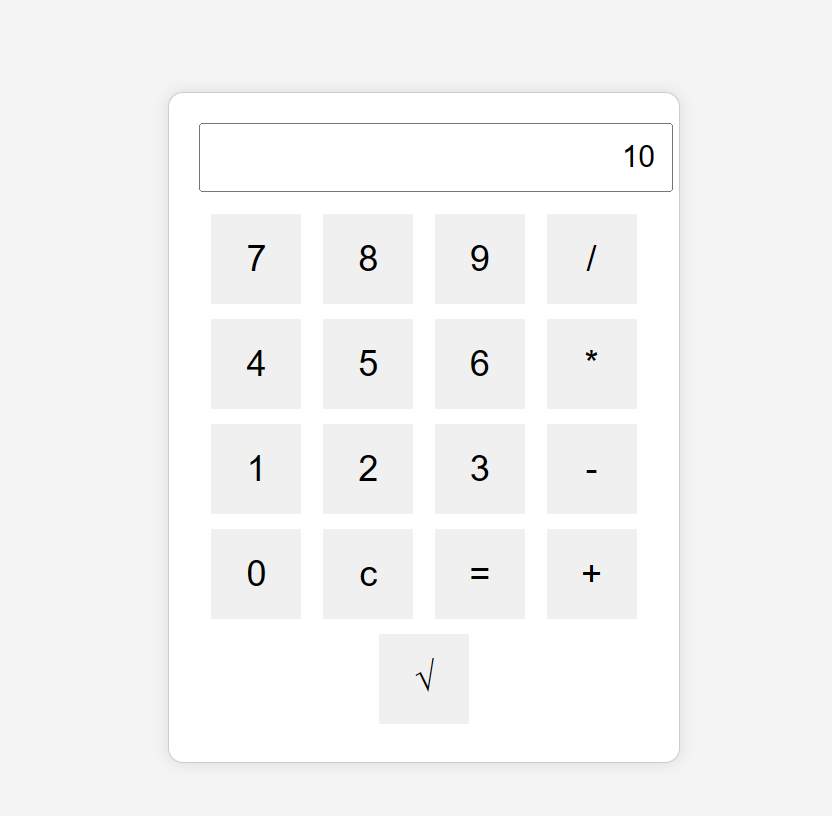

图14：输出10

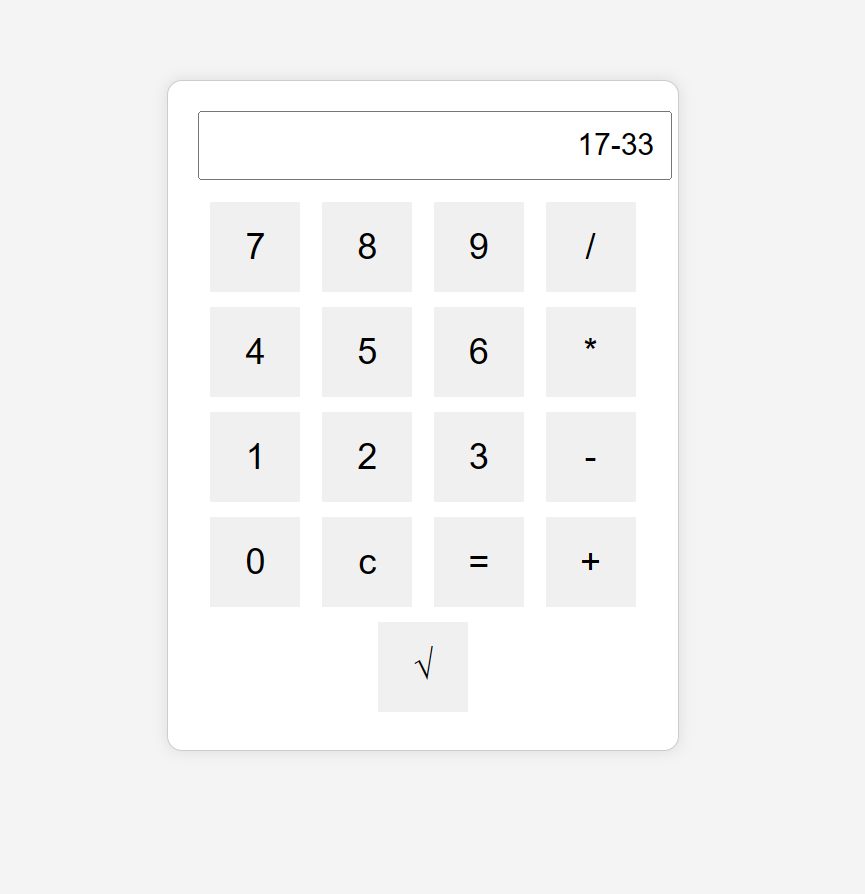

图15：输入17-33

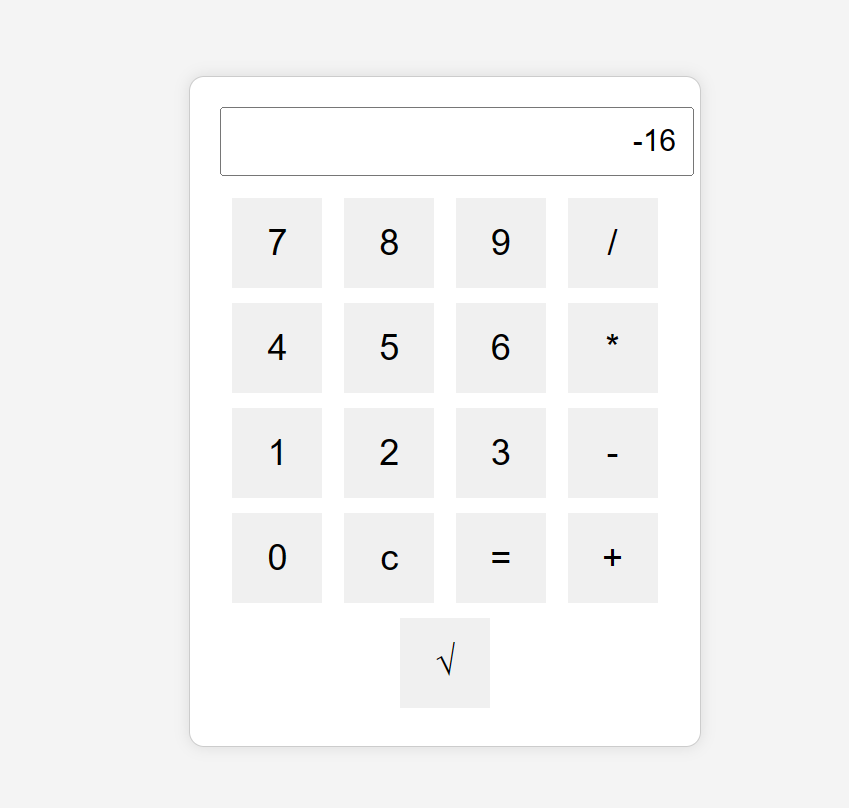

图16：输出-16



[项目主要代码及其示意图]

login.html

 1 <!DOCTYPE html>
 2 <html lang="en">
 3 <head>
 4   <meta charset="UTF-8">
 5   <meta http-equiv="X-UA-Compatible" content="width=device-width, initial-scale=1.0">
 6   <link rel="stylesheet" href="/static/login.css">
 7   <title>Login</title>
 8 </head>
 9 <body>
10   <form class="login" action="/" method="post">
11     <p>Login</p>
12     <label for="username">用户名：</label>
13     <input type="text" id="username" name="username" placeholder="用户名">
14     <label for="password">密码：</label>
15     <input type="password" id="password" name="password" placeholder="密码">
16     <p id="message" class="error">{{ message }}</p>
17     <input type="submit" value="登录">
18   </form>
19
20
21 <script>
22   document.querySelector('.login').onsubmit = function(e) {
23     e.preventDefault(); // Prevent form submission
24
25     let username = document.getElementById('username').value;
26     const password = document.getElementById('password').value;
27
28     fetch("{{ url_for('login') }}", {
29       method: 'POST',
30       headers: {
31         'Content-Type': 'application/x-www-form-urlencoded',
32       },
33       body: new URLSearchParams({
34         'username': username,
35         'password': password,
36       }),
37     })
38     .then(response => response.json())
39     .then(data => {
40       if (data.success) {
41         document.getElementById('message').innerHTML = "登录成功";
42         setTimeout(function() {
43           window.location.href="{{ url_for('computer') }}"; // Redirect to the computer page after 1 second
44         }, 1000);
45       } else {
46         document.getElementById('message').innerHTML = data.message;
47       }
48     });
49   };
50 </script>
51 </body>
52 </html>



login.css

 1 *{
 2     user-select: none;
 3     /* 无法选中，整体感更强 */
 4 }
 5
 6 body{
 7     background: url(./R-C.jpg) no-repeat;
 8     background-size: cover;
 9     background-attachment: fixed;
10 }
11
12 .login{
13     position: absolute;
14     top: 50%;
15     margin-top: -200px;
16     left: 50%;
17     margin-left: -200px;
18     /* absolute居中的一种方法 */
19     background-color: whitesmoke;
20     width: 400px;
21     height: 400px;
22     border-radius: 25px;
23     text-align: center;
24     padding: 5px 40px;
25     box-sizing: border-box;
26     /* 这样padding就不会影响大小 */
27 }
28
29 p{
30     font-size: 42px;
31     font-weight: 600;
32 }
33
34 input{
35     background-color: whitesmoke;
36     width: 100%;
37     height: 48px;
38     margin-bottom: 10px;
39     border: none;
40     border-bottom: 2px solid silver;
41     /* 下面的会覆盖上面的步伐 */
42     outline: none;
43     font-size: 22px;
44 }
45
46 .btn{
47     background-color: #3b0e0f;
48     width: 38%;
49     height: 48px;
50     border-radius: 8px;
51     margin-top: 40px;
52     font-size: 28px;
53     font-weight: 600;
54     color: white;
55 }
56 .btn:hover{
57     background-color: #d69d9e;
58 }



app.py

 1 from flask import Flask, render_template, request, redirect, url_for, send_from_directory
 2 import mysql.connector
 3
 4 app = Flask(__name__)
 5 app.static_url_path = '/static'  # Set the base URL path for static files
 6
 7 def create_db_connection():
 8     # Create a connection to the MySQL database
 9     db = mysql.connector.connect(
10         host="127.0.0.1",
11         user="root",
12         password="root",
13         database="mysql"
14     )
15
16     # Create a cursor to execute SQL queries
17     cursor = db.cursor()
18     return db, cursor
19
20 def close_db_connection(db, cursor):
21     # Close the cursor and connection
22     cursor.close()
23     db.close()
24
25
26
27 # Define the route for the login page
28
29 @app.route('/', methods=['GET', 'POST'])
30 def login():
31     db, cursor = create_db_connection()
32
33     if request.method == 'POST':
34         username = request.form['username']
35         password = request.form['password']
36
37         cursor.execute("SELECT * FROM users WHERE username=%s AND password=%s", (username, password))
38         user = cursor.fetchone()
39
40         if user:
41             close_db_connection(db, cursor)
42             return redirect(url_for('computer'))
43         else:
44             error = "登录失败，请输入正确的用户名和密码"
45             close_db_connection(db, cursor)
46             return render_template('login.html', message=error)
47
48     close_db_connection(db, cursor)
49     return render_template('login.html')
50 # Define the route for the computer page
51 @app.route('/computer')
52 def computer():
53     return render_template('computer.html')
54
55 # Define the route for the favicon.ico request
56 @app.route('/favicon.ico')
57 def favicon():
58     return send_from_directory(app.root_path, 'static/favicon.ico', mimetype='image/vnd.microsoft.icon')
59
60 if __name__ == '__main__':
61     app.run(debug=True, host='0.0.0.0', port='5000')





computer.html

<!DOCTYPE html>
<html lang="en">
<head>
  <meta charset="UTF-8">
  <title>Calculator</title>
  <style>
    body {
      font-family: Arial, sans-serif;
      background-color: #f4f4f4;
      display: flex;
      justify-content: center;
      align-items: center;
      height: 100vh;
      margin: 0;
    }
    .calculator {
      border: 1px solid #ccc;
      border-radius: 10px;
      width: 300px;
      background-color: #fff;
      box-shadow: 0 0 10px rgba(0, 0, 0, 0.1);
      padding: 20px;
      text-align: center;
    }
    input[type=text] {
      width: 100%;
      height: 40px;
      margin-bottom: 10px;
      font-size: 20px;
      text-align: right;
      padding-right: 10px;
    }
    input[type=button] {
      width: 60px;
      height: 60px;
      margin: 5px;
      font-size: 24px;
      border: none;
      background-color: #f0f0f0;
      cursor: pointer;
      transition: background-color 0.3s;
    }
    input[type=button]:hover {
      background-color: #e0e0e0;
    }
  </style>
</head>
<body>
  <div class="calculator">
    <label for="input">Enter equation:</label>
    <input type="text" id="input" value="" readonly>
    <div>
      <input type="button" value="7" onclick="addToInput(this)">
      <input type="button" value="8" onclick="addToInput(this)">
      <input type="button" value="9" onclick="addToInput(this)">
      <input type="button" value="/" onclick="addToInput(this)">
    </div>
    <div>
      <input type="button" value="4" onclick="addToInput(this)">
      <input type="button" value="5" onclick="addToInput(this)">
      <input type="button" value="6" onclick="addToInput(this)">
      <input type="button" value="*" onclick="addToInput(this)">
    </div>
    <div>
      <input type="button" value="1" onclick="addToInput(this)">
      <input type="button" value="2" onclick="addToInput(this)">
      <input type="button" value="3" onclick="addToInput(this)">
      <input type="button" value="-" onclick="addToInput(this)">
    </div>
    <div>
      <input type="button" value="0" onclick="addToInput(this)">
      <input type="button" value="c" onclick="clearInput()">
      <input type="button" value="=" onclick="calculate()">
      <input type="button" value="+" onclick="addToInput(this)">
    </div>
    <div>
      <input type="button" value="√" onclick="calculateSquareRoot()">
    </div>
  </div>

  <script>
    function addToInput(btn) {
      document.getElementById("input").value += btn.value;
    }

    function clearInput() {
      document.getElementById("input").value = "";
    }

    function calculate() {
      document.getElementById("input").value = eval(document.getElementById("input").value);
    }

    function calculateSquareRoot() {
      var inputValue = document.getElementById('input').value;
      var result = Math.sqrt(parseFloat(inputValue));
      document.getElementById('input').value = result;
    }
  </script>
</body>
</html>

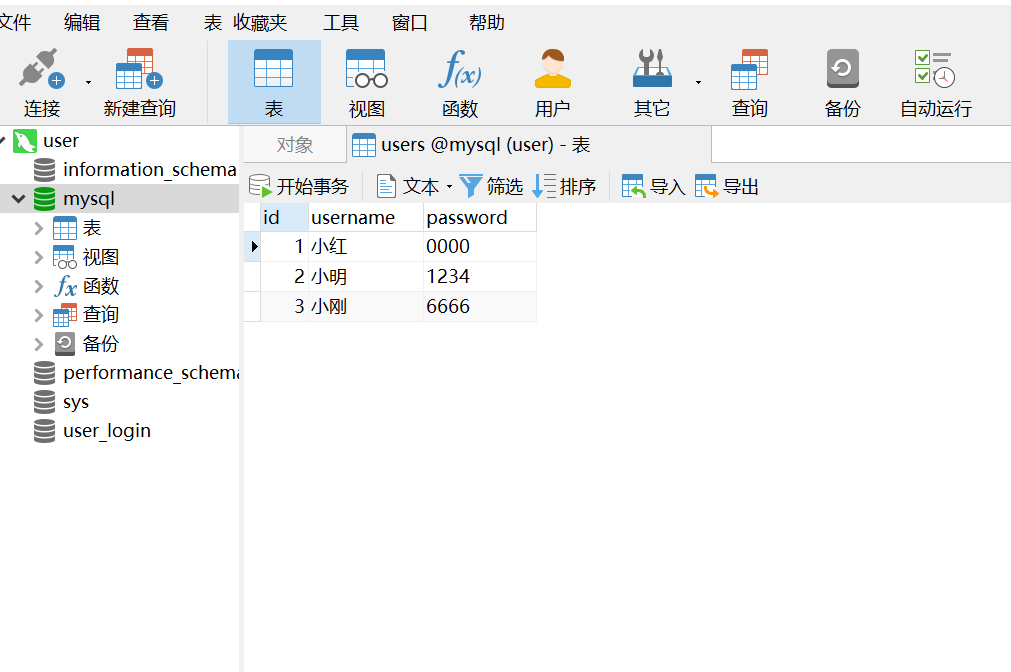

图17：用Naviicat创建了表

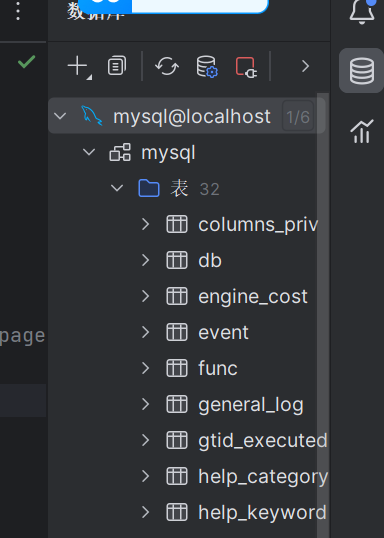

图18.在pycharm连接数据库

[反思]

在运行时，mysql的服务没有开启，连接不上mysql的数据库，导致页面无法出现，开启后问题解决
