Python · House Prices - Advanced Regression TechniquesKaggle实战：预测房价（Kaggle版本）

课程版本在这里。

https://blog.csdn.net/pxyp123/article/details/123150394

搬运Kaggle的代码，再改进一下适合本地使用。因为它图片很好看。

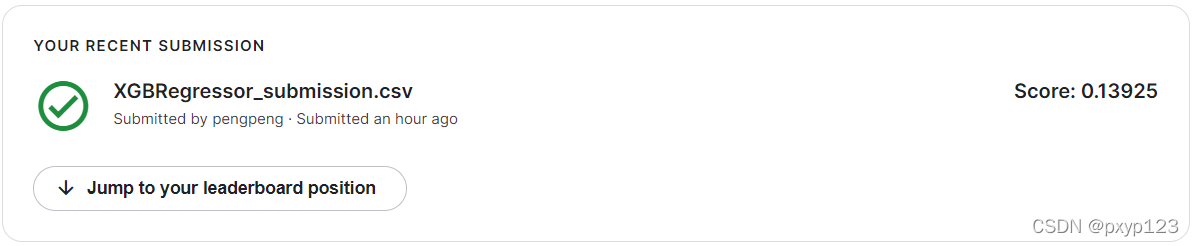

话不多说，先给结果，如下图。已经接近李沐老师的结果了。

import os
for dirname, _, filenames in os.walk('/kaggle/input'):
    for filename in filenames:
        print(os.path.join(dirname, filename))

# 使用jupyter notebook如果缺少库一般可以直接使用如下的形式安装
!pip install seaborn
!pip install sklearn
!pip install xgboost
import warnings
import numpy as np
import pandas as pd
import seaborn as sns
import matplotlib.pyplot as plt
from scipy import stats
from scipy.stats import norm
from sklearn.impute import SimpleImputer
from sklearn.metrics import mean_absolute_error, mean_squared_error
from sklearn.model_selection import train_test_split
from sklearn.linear_model import Lasso
from sklearn.linear_model import Ridge
from sklearn.tree import DecisionTreeRegressor
from sklearn.ensemble import RandomForestRegressor
from xgboost import XGBRegressor

warnings.filterwarnings('ignore')

import hashlib
import os
import tarfile
import zipfile
import requests

#@save
DATA_HUB = dict()
DATA_URL = 'http://d2l-data.s3-accelerate.amazonaws.com/'

def download(name, cache_dir=os.path.join('..', 'data')):  #@save
    """下载一个DATA_HUB中的文件，返回本地文件名"""
    assert name in DATA_HUB, f"{name} 不存在于 {DATA_HUB}"
    url, sha1_hash = DATA_HUB[name]
    os.makedirs(cache_dir, exist_ok=True)
    fname = os.path.join(cache_dir, url.split('/')[-1])
    if os.path.exists(fname):
        sha1 = hashlib.sha1()
        with open(fname, 'rb') as f:
            while True:
                data = f.read(1048576)
                if not data:
                    break
                sha1.update(data)
        if sha1.hexdigest() == sha1_hash:
            return fname  # 命中缓存
    print(f'正在从{url}下载{fname}...')
    r = requests.get(url, stream=True, verify=True)
    with open(fname, 'wb') as f:
        f.write(r.content)
    return fname

def download_extract(name, folder=None):  #@save
    """下载并解压zip/tar文件"""
    fname = download(name)
    base_dir = os.path.dirname(fname)
    data_dir, ext = os.path.splitext(fname)
    if ext == '.zip':
        fp = zipfile.ZipFile(fname, 'r')
    elif ext in ('.tar', '.gz'):
        fp = tarfile.open(fname, 'r')
    else:
        assert False, '只有zip/tar文件可以被解压缩'
    fp.extractall(base_dir)
    return os.path.join(base_dir, folder) if folder else data_dir

def download_all():  #@save
    """下载DATA_HUB中的所有文件"""
    for name in DATA_HUB:
        download(name)

DATA_HUB['kaggle_house_train'] = (  #@save
    DATA_URL + 'kaggle_house_pred_train.csv',
    '585e9cc93e70b39160e7921475f9bcd7d31219ce')

DATA_HUB['kaggle_house_test'] = (  #@save
    DATA_URL + 'kaggle_house_pred_test.csv',
    'fa19780a7b011d9b009e8bff8e99922a8ee2eb90')

df_train = pd.read_csv(download('kaggle_house_train'))
test_csv = pd.read_csv(download('kaggle_house_test'))

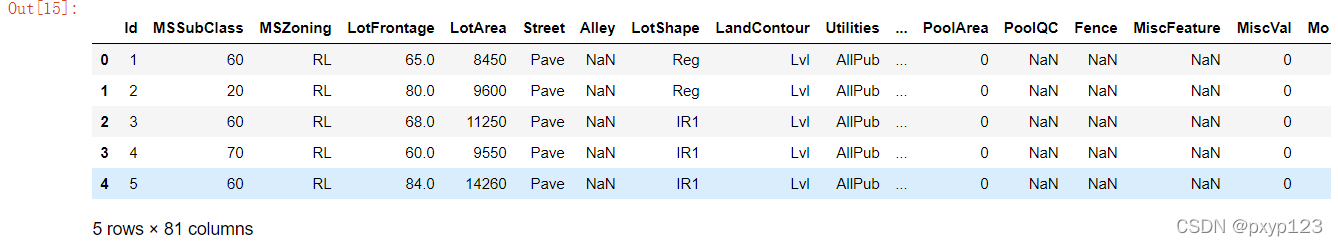

df_train.head()

结果如下：

# Creating dataframe for numeric and categorical features separately
numeric_df = df_train.select_dtypes(include=['int64', 'float64'])
categorical_df = df_train.select_dtypes(include=['object'])

#numeric_df.drop( axis=1, inplace=True)

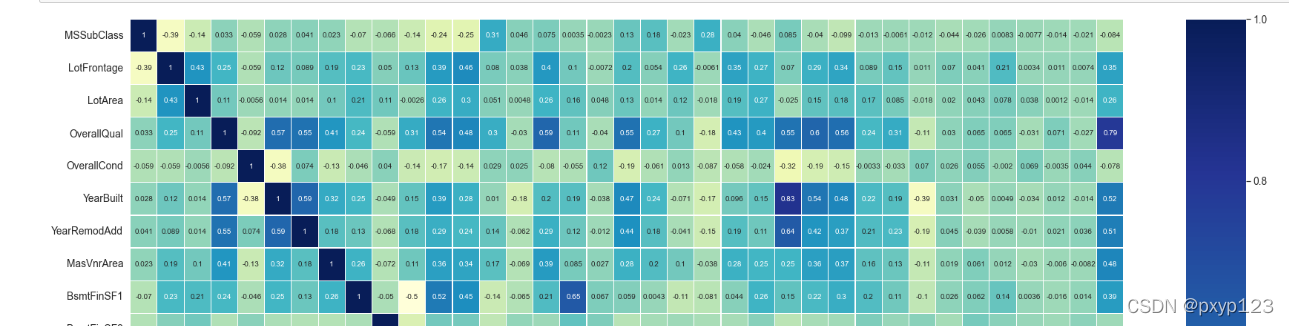

corrmat = numeric_df.corr()
f, ax = plt.subplots(figsize=(30, 30))
sns.heatmap(corrmat, annot=True, cmap="YlGnBu", linewidths=0.1, annot_kws={"fontsize":10});

结果如下（图片太大只截取一部分）

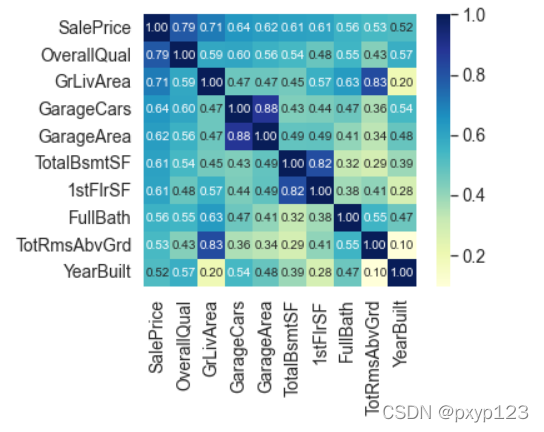

#'SalePrice' correlation matrix (zoomed heatmap style)
k = 10 #number of variables for heatmap
cols = corrmat.nlargest(k, 'SalePrice')['SalePrice'].index
cm = np.corrcoef(numeric_df[cols].values.T)
sns.set(font_scale=1.25)
hm = sns.heatmap(cm, cmap="YlGnBu", cbar=True, annot=True, square=True, fmt='.2f', annot_kws={'size': 10}, yticklabels=cols.values, xticklabels=cols.values)
plt.show()
k = 10 #number of variables for heatmap
cols = corrmat.nlargest(k, 'SalePrice')['SalePrice'].index
cm = np.corrcoef(numeric_df[cols].values.T)
sns.set(font_scale=1.25)
hm = sns.heatmap(cm, cmap="YlGnBu", cbar=True, annot=True, square=True, fmt='.2f', annot_kws={'size': 10}, yticklabels=cols.values, xticklabels=cols.values)
plt.show()

结果如下：

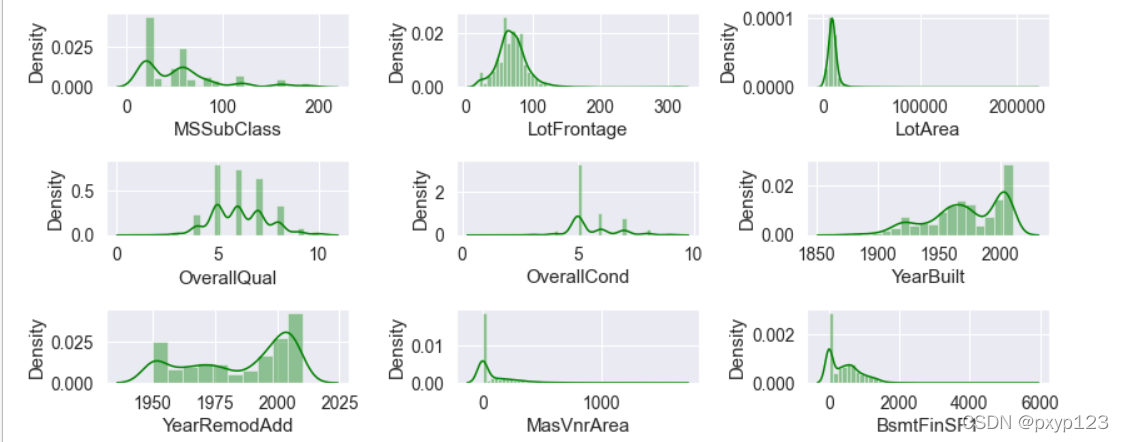

#Numerical data
fig=plt.subplots(figsize=(12, 21))
i=0
for feature in numeric_df.columns:
    if feature not in ['Id', 'SalePrice']:
        i+=1
        plt.subplot(13, 3, i)
        sns.distplot(df_train[feature], color='green')
        plt.tight_layout()

部分结果如下：

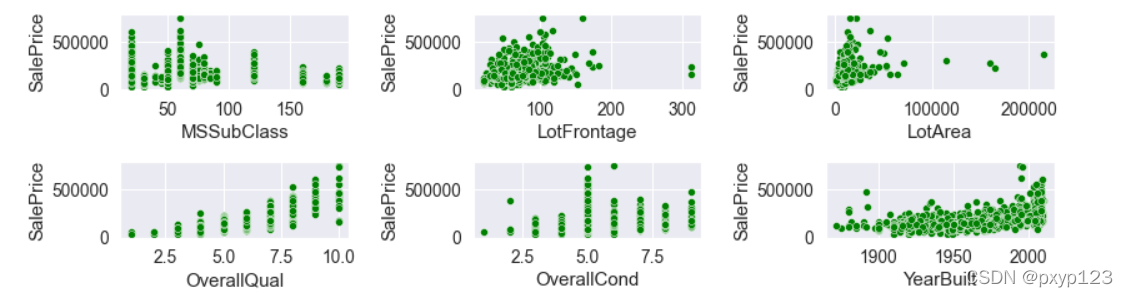

fig=plt.subplots(figsize=(12, 21))
i=0
for feature in numeric_df.columns:
    if feature not in ['Id', 'SalePrice']:
        i+=1
        plt.subplot(13, 3, i)
        sns.scatterplot(df_train[feature], df_train['SalePrice'], color='green')
        plt.tight_layout()

部分结果如下：

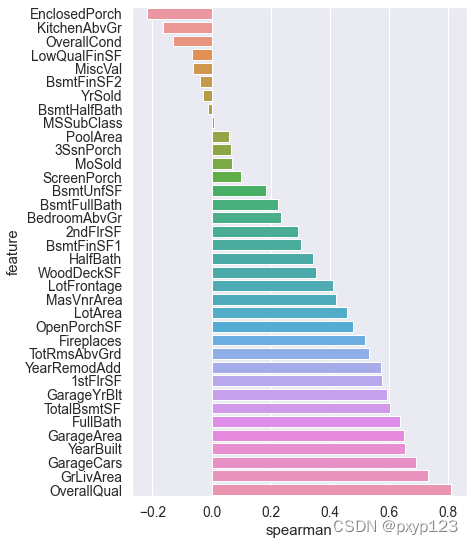

def spearman(frame, features):
    spr = pd.DataFrame()
    spr['feature'] = features
    spr['spearman'] = [frame[f].corr(frame['SalePrice'], 'spearman') for f in features]
    spr = spr.sort_values('spearman')
    plt.figure(figsize=(6, 0.25*len(features)))
    sns.barplot(data=spr, y='feature', x='spearman', orient='h')

features = corrmat[['SalePrice']].sort_values(['SalePrice'], ascending=False)
features = [f for f in features.index if f != 'SalePrice']

spearman(numeric_df, features)

#Preprocessing data
#missing data

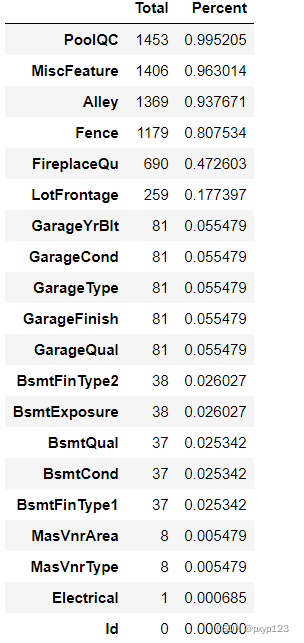

total = df_train.isnull().sum().sort_values(ascending=False)
percent = (df_train.isnull().sum()/df_train.isnull().count()).sort_values(ascending=False)
missing_data = pd.concat([total, percent], axis=1, keys=['Total', 'Percent'])
missing_data.head(20)

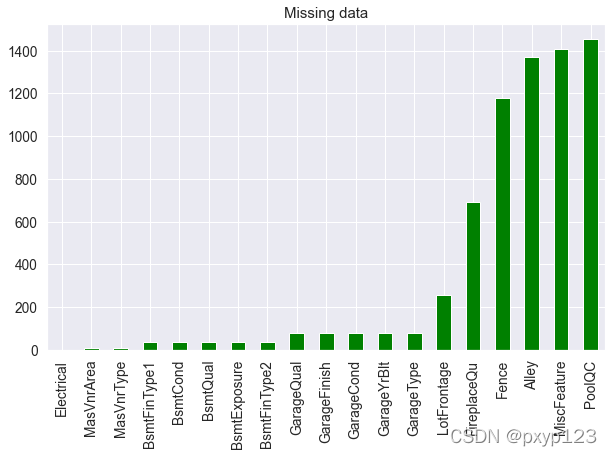

fig, ax = plt.subplots(figsize=(10,6))
deleted_data = missing_data[missing_data['Total'] >= 1]['Total'].copy()
deleted_data.sort_values(inplace=True)
ax.set_title('Missing data')
ax = deleted_data.plot.bar(color='green')

df_train = df_train.drop((missing_data[missing_data['Percent'] >= 0.15]).index,axis = 1)
df_train = df_train.drop(df_train.loc[df_train['Electrical'].isnull()].index)
if not df_train.isnull().sum().max():
    print(f'Dataset hasnt zeros')
else:
    print(f'Dataset has {df_train.isnull().sum().max()} zeros')

有如下结果：

Dataset has 81 zeros

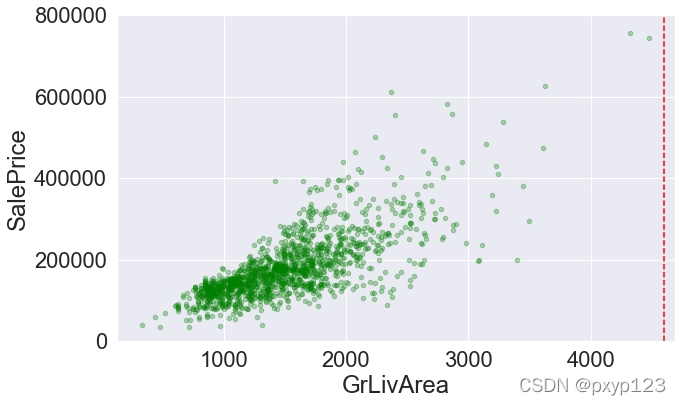

#bivariate analysis saleprice/grlivarea
data = pd.concat([df_train['SalePrice'], df_train['GrLivArea']], axis=1)
data.plot.scatter(x='GrLivArea', y='SalePrice', alpha=0.3, ylim=(0,800000), color='green', figsize=(10,6))
plt.axvline(x=4600, color='red', ls='--')

# cloud points

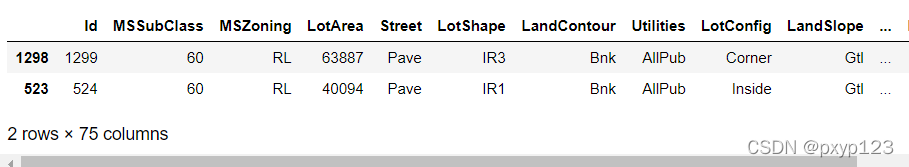

df_train.sort_values(by = 'GrLivArea', ascending = False)[:2]

# deleting points
df_train = df_train.drop(df_train[df_train['Id'] == 1299].index)
df_train = df_train.drop(df_train[df_train['Id'] == 524].index)

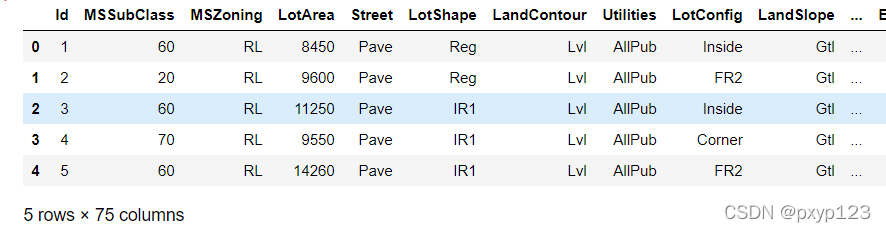

df_train.head()

训练集和测试集分离

#convert categorical variable into dummy
df_train = pd.get_dummies(df_train)
test_csv = pd.get_dummies(test_csv)
#
x = df_train.drop('Id', axis=1)
y = df_train['SalePrice']

# inner merge of train and test dataset
x = x.drop(x.columns.difference(test_csv.columns), axis =1)
test_csv = test_csv.drop(test_csv.columns.difference(x.columns), axis = 1)
if len(x.columns) == len(test_csv.columns):
       print(f'Train and test dataset are equal')

x_train, x_test, y_train, y_test = train_test_split(x.to_numpy(), y.to_numpy(), test_size=0.25, random_state=42)

imp_mean = SimpleImputer(missing_values=np.nan, strategy='mean')
# Imputation transformer for completing missing values. (nan to mean)
x_train = imp_mean.fit_transform(x_train)
x_test = imp_mean.fit_transform(x_test)

x_train, x_test, y_train, y_test = train_test_split(x.to_numpy(), y.to_numpy(), test_size=0.25, random_state=42)

imp_mean = SimpleImputer(missing_values=np.nan, strategy='mean')
# Imputation transformer for completing missing values. (nan to mean)
x_train = imp_mean.fit_transform(x_train)
x_test = imp_mean.fit_transform(x_test)

选择模型参数：

from sklearn.feature_selection import SelectFromModel
from sklearn.ensemble import RandomForestRegressor

select = SelectFromModel(
    RandomForestRegressor(n_estimators=100), threshold = "median")

select.fit(x_train,y_train)

x_train_l1 = select.transform(x_train)

print("форма обуч набора X: {}".format(x_train.shape))
print("форма обуч набора X c l1: {}".format(x_train_l1.shape))

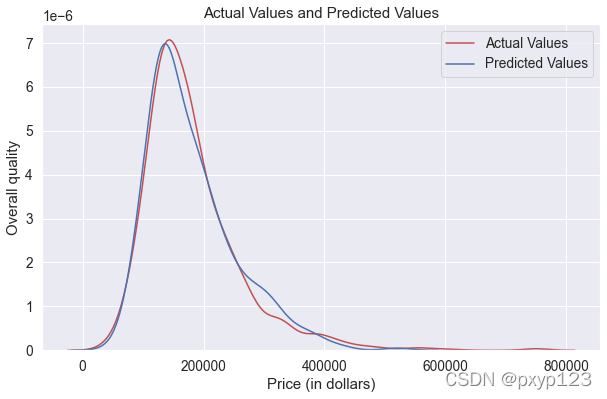

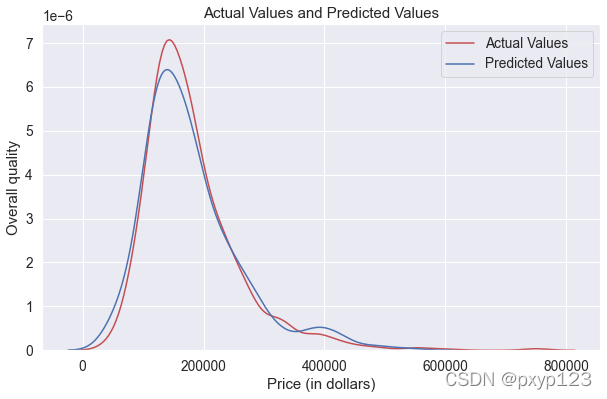

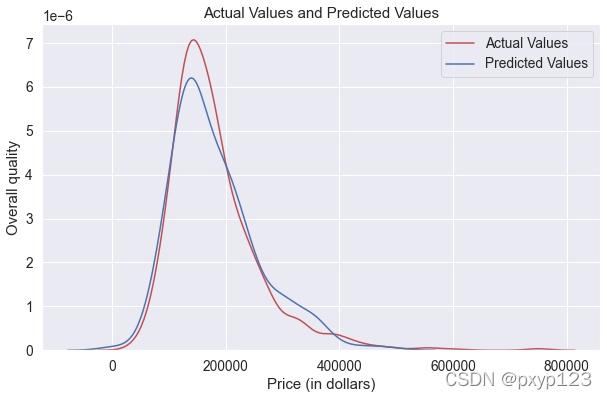

def DistribPlot(y_train, y_predicted):

    fig = plt.figure(figsize=(10, 6))

    ax1 = sns.distplot(y_train, hist=False, color="r", label='Actual Values')
    ax2 = sns.distplot(y_predicted, hist=False, color="b", label='Predicted Values', ax=ax1)

    plt.title('Actual Values and Predicted Values')
    plt.xlabel('Price (in dollars)')
    plt.ylabel('Overall quality')
    plt.gca().legend(('Actual Values','Predicted Values'))

    plt.show()


def scoreboard(model, y_predicted):
    print(f'Train dataset square root of {type(model).__name__} model is {model.score(x_train, y_train)}')
    print(f'Test dataset square root of {type(model).__name__} is {model.score(x_test, y_test)}')
    DistribPlot(y_train, y_predicted)

#Ridge
alpha = [0.1, 0.5, 1, 10]
models = {}
errors = {}
count = 0
for a in alpha:
    ridge = Ridge(alpha=a).fit(x_train, y_train)
    predicted_data = ridge.predict(x_test)
    errors[count] = mean_absolute_error(y_test, predicted_data)
    models[count] = ridge
    count +=1
    print(f'Mean absolute error of decision three model is {mean_absolute_error(y_test, predicted_data)}')
min_error = [k for k,v in errors.items() if v == min(errors.values())]
print()
ridge = models[min_error[0]]
scoreboard(ridge, predicted_data)

#Lasso
alpha = [0.0001, 0.001, 0.01, 0.1, 1]
models = {}
errors = {}
count = 0
for a in alpha:
    lasso = Lasso(alpha=a, max_iter=10000).fit(x_train, y_train)
    predicted_data = lasso.predict(x_test)
    errors[count] = mean_absolute_error(y_test, predicted_data)
    models[count] = lasso
    count +=1
    print(f'Mean absolute error of decision three model is {mean_absolute_error(y_test, predicted_data)}')
min_error = [k for k,v in errors.items() if v == min(errors.values())]
print()
lasso = models[min_error[0]]
scoreboard(lasso, predicted_data)

#Decision Trees
max_depth = [6, 7, 8, 10, 11, 12, 13]
models = {}
errors = {}
count = 0
for a in max_depth:
    decision_tree = DecisionTreeRegressor(max_depth=a).fit(x_train, y_train)
    predicted_data = decision_tree.predict(x_test)
    errors[count] = mean_absolute_error(y_test, predicted_data)
    models[count] = decision_tree
    count +=1
    print(f'Mean absolute error of decision three model is {mean_absolute_error(y_test, predicted_data)}')
min_error = [k for k,v in errors.items() if v == min(errors.values())]
print()
decision_tree = models[min_error[0]]
scoreboard(decision_tree, predicted_data)
max_depth = [6, 7, 8, 10, 11, 12, 13]
models = {}
errors = {}
count = 0
for a in max_depth:
    decision_tree = DecisionTreeRegressor(max_depth=a).fit(x_train, y_train)
    predicted_data = decision_tree.predict(x_test)
    errors[count] = mean_absolute_error(y_test, predicted_data)
    models[count] = decision_tree
    count +=1
    print(f'Mean absolute error of decision three model is {mean_absolute_error(y_test, predicted_data)}')
min_error = [k for k,v in errors.items() if v == min(errors.values())]
print()
decision_tree = models[min_error[0]]
scoreboard(decision_tree, predicted_data)

#Random Forest
n_estimators = [100, 200, 300, 400, 500, 1000]
models = {}
errors = {}
count = 0
for a in n_estimators:
    random_forest = RandomForestRegressor(n_estimators=a, max_depth=10).fit(x_train, y_train)
    predicted_data = random_forest.predict(x_test)
    errors[count] = mean_absolute_error(y_test, predicted_data)
    models[count] = random_forest
    count +=1
    print(f'Mean absolute error of decision three model is {mean_absolute_error(y_test, predicted_data)}')
min_error = [k for k,v in errors.items() if v == min(errors.values())]
print()
random_forest = models[min_error[0]]
scoreboard(random_forest, predicted_data)

#XGBOOST
n_estimators = [100, 200, 300, 400, 500, 1000]
max_depth = [3, 4, 5, 6, 7, 8, 10]
models = {}
errors = {}
count = 0
for a, b in zip(n_estimators, max_depth):
    xgboost = XGBRegressor(n_estimators=a, max_depth=b, eta=0.1, subsample=0.7, colsample_bytree=0.8).fit(x_train, y_train)
    predicted_data = xgboost.predict(x_test)
    errors[count] = mean_absolute_error(y_test, predicted_data)
    models[count] = xgboost
    count +=1
    print(f'Mean absolute error of decision three model is {mean_absolute_error(y_test, predicted_data)}')
min_error = [k for k,v in errors.items() if v == min(errors.values())]
print()
xgboost = models[min_error[0]]
scoreboard(xgboost, predicted_data)

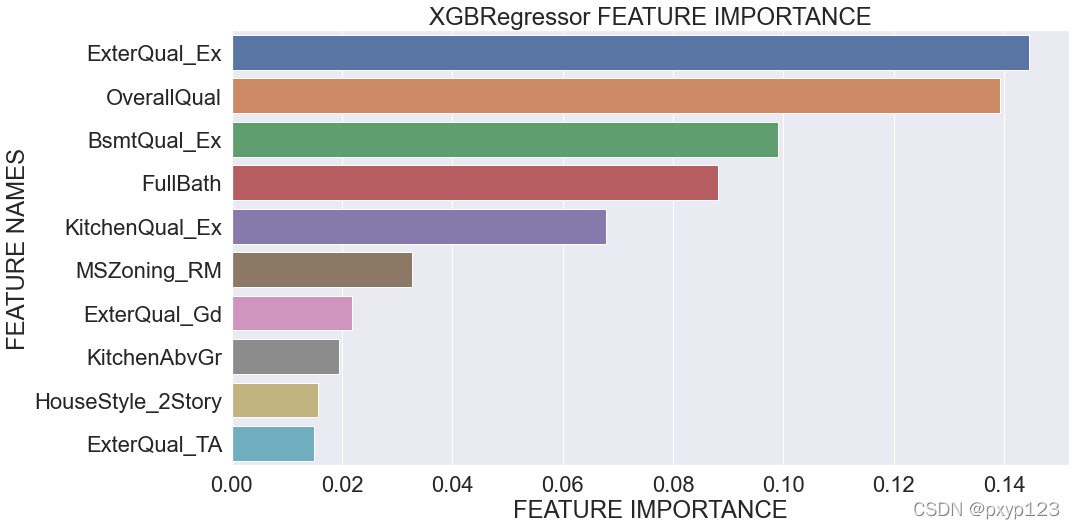

参数的重要性：

def plot_feature_importance(importance,names,model_type):

    #Create arrays from feature importance and feature names
    feature_importance = np.array(importance)
    feature_names = np.array(names)

    #Create a DataFrame using a Dictionary
    data={'feature_names':feature_names,'feature_importance':feature_importance}
    fi_df = pd.DataFrame(data)

    #Sort the DataFrame in order decreasing feature importance
    fi_df.sort_values(by=['feature_importance'], ascending=False,inplace=True)

    #Define size of bar plot
    plt.figure(figsize=(15,8))
    sns.set(font_scale=2)
    #Plot Searborn bar chart
    sns.barplot(x=fi_df['feature_importance'][:10], y=fi_df['feature_names'][:10])
    #Add chart labels
    plt.title(model_type + ' FEATURE IMPORTANCE')
    plt.xlabel('FEATURE IMPORTANCE')
    plt.ylabel('FEATURE NAMES')

plot_feature_importance(xgboost.feature_importances_,x.columns,'XGBRegressor')

sub_csv = pd.read_csv('sample_submission.csv')  # 读取数据
sub_csv.head()

# look at where 'SalePrices' is null and replace df_train
imp_mean = SimpleImputer(missing_values=np.nan, strategy='mean')
test_csv = imp_mean.fit_transform(test_csv)


models = [ridge, lasso, decision_tree, random_forest, xgboost]
for model in models:
    RMS = mean_squared_error(np.log(sub_csv['SalePrice']), np.log(model.predict(test_csv)), squared=False)
    print(f'Root-Mean-Squared-Error of {type(model).__name__} is {RMS}')

    data = pd.concat([sub_csv['Id'], pd.Series(model.predict(test_csv))], axis=1)
    data.rename(columns={"Id": "Id", 0: "SalePrice"}, inplace=True)
    data.to_csv(f'{type(model).__name__}_submission.csv', index=False)
#     data.info()
    print(f'Submission of {type(model).__name__} was successfully saved!')
