RabbitMQ-工作模式

RabbitMQ演示代码+Spring/SpringBoot整合RabbitMQ

✨ (GitHub仓库链接)[https://github.com/2537422279/RabbitMQDemo]

基于队列发送消息

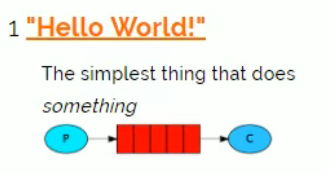

1.Hello_wordl!（基本消息队列）

代码实现

consumer

 package cn.pickle.consumer;

import com.rabbitmq.client.*;

import java.io.IOException;
import java.util.concurrent.TimeoutException;

/**
 * @author Pickle
 * @version V1.0
 * @date 2022/10/3 16:33
 */
public class Consumer_Hello {
    public static void main(String[] args) throws IOException, TimeoutException {
        ConnectionFactory factory = new ConnectionFactory();
        factory.setHost("localhost");
        factory.setPassword("pickle");
        factory.setUsername("pickle");
        factory.setPort(5672);
        factory.setVirtualHost("/");
        final Connection connection = factory.newConnection();
        final Channel channel = connection.createChannel();
        Consumer comsurmer = new DefaultConsumer(channel){
            /*
                回调方法，当收到消息后自动执行该方法。
             */
            @Override
            public void handleDelivery(String consumerTag, Envelope envelope, AMQP.BasicProperties properties, byte[] body) throws IOException {
                System.out.println("consumerTag: " + consumerTag);
                System.out.println("Exchange: " + envelope.getExchange());
                System.out.println("RoutingKey: " + envelope.getRoutingKey());
                System.out.println("Properties: " + properties);
                System.out.println("body: " + new String(body));
            }
        };
        channel.basicConsume("hello_world",true,comsurmer);
    }
}

producer

 package cn.pickle.producer;

import com.rabbitmq.client.AMQP;
import com.rabbitmq.client.Channel;
import com.rabbitmq.client.Connection;
import com.rabbitmq.client.ConnectionFactory;

import java.io.IOException;
import java.util.concurrent.TimeoutException;

/**
 * @describe 发送消息
 * @author Pickle
 * @version V1.0
 * @date 2022/10/3 15:08
 */

public class Producer_Hello {
    public static void main(String[] args) throws IOException, TimeoutException {
        //创建连接工厂
        ConnectionFactory factory = new ConnectionFactory();
        //设置参数,
        factory.setHost("localhost");       //IP地址
        factory.setPort(5672);              //端口，默认值5672
        factory.setVirtualHost("/");        //设置虚拟机，默认值"/"
        factory.setUsername("pickle");
        factory.setPassword("pickle");
        //创建连接
        final Connection connection = factory.newConnection();
        //创建channel
        final Channel channel = connection.createChannel();
        //创建消息队列
        /*
            queueDeclare(String queue, boolean durable, boolean exclusive, boolean autoDelete, Map<String, Object> arguments) throws IOException {
         */
        channel.queueDeclare("hello_world", true, false, false, null);
        //发送消息
        String body = "hello rabbitmq~~~~";
        channel.basicPublish("","hello_world",null,body.getBytes());

        //释放资源
        channel.close();
        connection.close();
    }
}

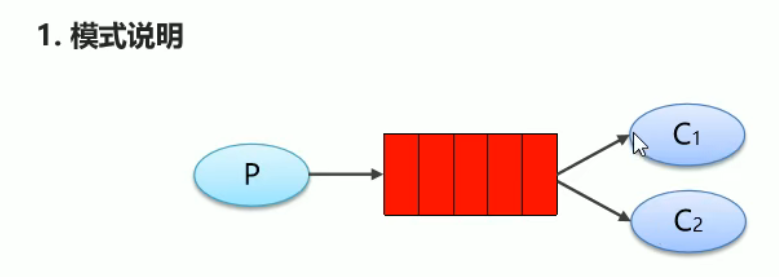

2、工作消息队列

producer

 package cn.pickle.producer;

import com.rabbitmq.client.Channel;
import com.rabbitmq.client.Connection;
import com.rabbitmq.client.ConnectionFactory;

import java.io.IOException;
import java.util.concurrent.TimeoutException;

/**
 * @author Pickle
 * @version V1.0
 * @date 2022/10/3 17:36
 */
public class Producer_WorkQueues {
    public static void main(String[] args) throws IOException, TimeoutException {
        final ConnectionFactory factory = new ConnectionFactory();
        factory.setPassword("pickle");
        factory.setUsername("pickle");
        factory.setPort(5672);
        factory.setHost("localhost");
        factory.setVirtualHost("/");
        final Connection connection = factory.newConnection();
        final Channel channel = connection.createChannel();
        //创建消息队列
        channel.queueDeclare("work_queues",true,false,false,null);
        for (int i = 1; i <= 10; i++) {
            String body = i + "hello rabbitmq~~~";
            channel.basicPublish("","work_queues",null,body.getBytes());
        }
    }
}

consumer1

 package cn.pickle.consumer;

import com.rabbitmq.client.*;

import java.io.IOException;
import java.util.concurrent.TimeoutException;

/**
 * @author Pickle
 * @version V1.0
 * @date 2022/10/3 17:47
 */
public class Consumer_WorkQueues1 {
    public static void main(String[] args) throws IOException, TimeoutException {
        ConnectionFactory factory = new ConnectionFactory();
        factory.setHost("localhost");
        factory.setPassword("pickle");
        factory.setUsername("pickle");
        factory.setPort(5672);
        factory.setVirtualHost("/");
        final Connection connection = factory.newConnection();
        final Channel channel = connection.createChannel();
        Consumer comsurmer = new DefaultConsumer(channel){
            /*
                回调方法，当收到消息后自动执行该方法。
             */
            @Override
            public void handleDelivery(String consumerTag, Envelope envelope, AMQP.BasicProperties properties, byte[] body) throws IOException {
//                System.out.println("consumerTag: " + consumerTag);
//                System.out.println("Exchange: " + envelope.getExchange());
//                System.out.println("RoutingKey: " + envelope.getRoutingKey());
//                System.out.println("Properties: " + properties);
                System.out.println("body: " + new String(body));
            }
        };
        channel.basicConsume("work_queues",true,comsurmer);
    }
}

consumer2

 package cn.pickle.consumer;

import com.rabbitmq.client.*;

import java.io.IOException;
import java.util.concurrent.TimeoutException;

/**
 * @author Pickle
 * @version V1.0
 * @date 2022/10/3 17:47
 */
public class Consumer_WorkQueues1 {
    public static void main(String[] args) throws IOException, TimeoutException {
        ConnectionFactory factory = new ConnectionFactory();
        factory.setHost("localhost");
        factory.setPassword("pickle");
        factory.setUsername("pickle");
        factory.setPort(5672);
        factory.setVirtualHost("/");
        final Connection connection = factory.newConnection();
        final Channel channel = connection.createChannel();
        Consumer comsurmer = new DefaultConsumer(channel){
            /*
                回调方法，当收到消息后自动执行该方法。
             */
            @Override
            public void handleDelivery(String consumerTag, Envelope envelope, AMQP.BasicProperties properties, byte[] body) throws IOException {
//                System.out.println("consumerTag: " + consumerTag);
//                System.out.println("Exchange: " + envelope.getExchange());
//                System.out.println("RoutingKey: " + envelope.getRoutingKey());
//                System.out.println("Properties: " + properties);
                System.out.println("body: " + new String(body));
            }
        };
        channel.basicConsume("work_queues",true,comsurmer);
    }
}

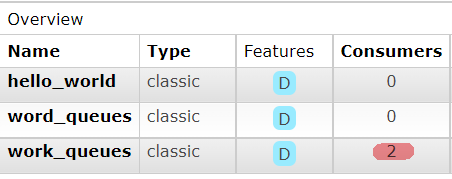

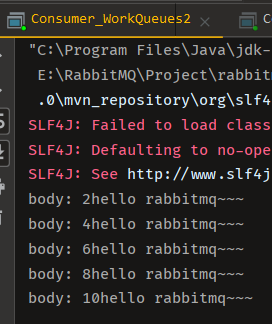

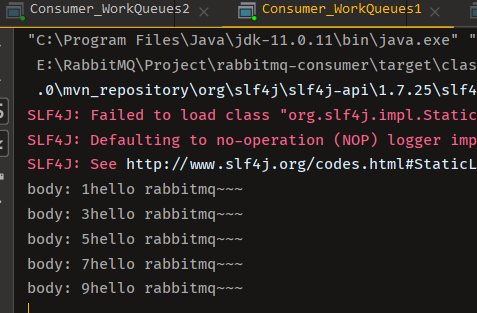

先启动两个消费者，再启动生产者.效果如下

总结

消费者对于同一个消息是竞争关系

消费者轮流的从消息队列中读取消息

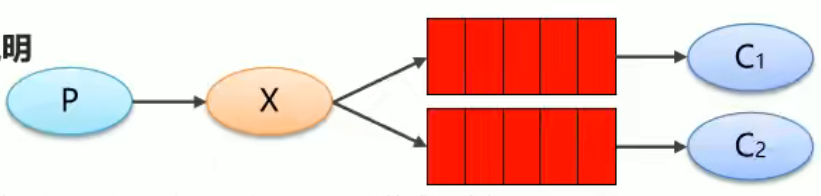

3、Pub/Sub工作模式

引入了交换机

Producer_PubSub

 package cn.pickle.producer;

import com.rabbitmq.client.BuiltinExchangeType;
import com.rabbitmq.client.Channel;
import com.rabbitmq.client.Connection;
import com.rabbitmq.client.ConnectionFactory;

import java.io.IOException;
import java.util.concurrent.TimeoutException;

/**
 * @author Pickle
 * @version V1.0
 * @date 2022/10/4 16:05
 */
public class Producer_PubSub {
    public static void main(String[] args) throws IOException, TimeoutException {
        final ConnectionFactory factory = new ConnectionFactory();
        factory.setHost("localhost");
        factory.setPort(5672);
        factory.setUsername("pickle");
        factory.setPassword("pickle");
        factory.setVirtualHost("/");

        final Connection connection = factory.newConnection();

        final Channel channel = connection.createChannel();

        //创建交换机
//        String exchange, BuiltinExchangeType type, boolean durable, boolean autoDelete, boolean internal, Map<String, Object> arguments
//        exchange:交换机名称
//        type:
        String exchangeName = "test_fanout";
        channel.exchangeDeclare(exchangeName, BuiltinExchangeType.FANOUT,true,false,false,null);

        //创建队列
        String queue1Name = "test_fanout_queue1";
        String queue2Name = "test_fanout_queue2";
        channel.queueDeclare(queue1Name,true,false,false,null);
        channel.queueDeclare(queue2Name,true,false,false,null);

        //绑定队列和交换机
        channel.queueBind(queue1Name,exchangeName,"");
        channel.queueBind(queue2Name,exchangeName,"");

        //发送消息
        String body = "日志信息：张三调用了fanout方法.... 日志级别：info...";
        channel.basicPublish(exchangeName,"",null,body.getBytes());

        channel.close();
        connection.close();
    }
}

Consumer_PubSub1

 package cn.pickle.consumer;

import com.rabbitmq.client.*;

import java.io.IOException;
import java.util.concurrent.TimeoutException;

/**
 * @author Pickle
 * @version V1.0
 * @date 2022/10/4 16:25
 */
public class Consumer_PubSub1 {
    public static void main(String[] args) throws IOException, TimeoutException {
        final ConnectionFactory factory = new ConnectionFactory();
        factory.setHost("localhost");
        factory.setVirtualHost("/");
        factory.setPort(5672);
        factory.setUsername("pickle");
        factory.setPassword("pickle");

        final Connection connection = factory.newConnection();

        final Channel channel = connection.createChannel();

        String queue1Name = "test_fanout_queue1";
        String queue2Name = "test_fanout_queue2";

        final Consumer consumer = new DefaultConsumer(channel){
            @Override
            public void handleDelivery(String consumerTag, Envelope envelope, AMQP.BasicProperties properties, byte[] body) throws IOException {
                System.out.println("body: " + new String(body));
                System.out.println("将日志信息打印到控制台....");
            }
        };

        channel.basicConsume(queue1Name,true,consumer);
    }
}

Consumer_PubSub2

 package cn.pickle.consumer;

import com.rabbitmq.client.*;

import java.io.IOException;
import java.util.concurrent.TimeoutException;

/**
 * @author Pickle
 * @version V1.0
 * @date 2022/10/4 16:25
 */
public class Consumer_PubSub2 {
    public static void main(String[] args) throws IOException, TimeoutException {
        final ConnectionFactory factory = new ConnectionFactory();
        factory.setHost("localhost");
        factory.setVirtualHost("/");
        factory.setPort(5672);
        factory.setUsername("pickle");
        factory.setPassword("pickle");

        final Connection connection = factory.newConnection();

        final Channel channel = connection.createChannel();

        String queue1Name = "test_fanout_queue1";
        String queue2Name = "test_fanout_queue2";

        final Consumer consumer = new DefaultConsumer(channel){
            @Override
            public void handleDelivery(String consumerTag, Envelope envelope, AMQP.BasicProperties properties, byte[] body) throws IOException {
                System.out.println("body: " + new String(body));
                System.out.println("将日志信息保存数据库....");
            }
        };

        channel.basicConsume(queue2Name,true,consumer);
    }
}

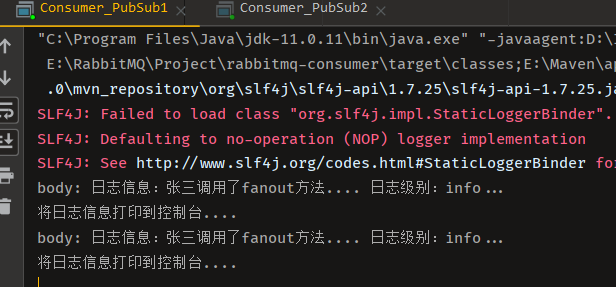

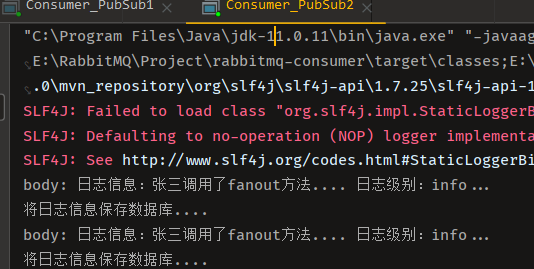

结果展示

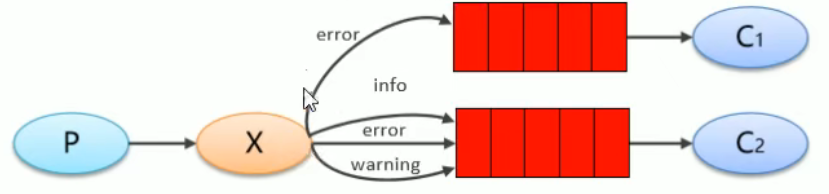

4、路由工作模式

Producer_Routing

 package cn.pickle.producer;

import com.rabbitmq.client.BuiltinExchangeType;
import com.rabbitmq.client.Channel;
import com.rabbitmq.client.Connection;
import com.rabbitmq.client.ConnectionFactory;

import java.io.IOException;
import java.util.concurrent.TimeoutException;

/**
 * @author Pickle
 * @version V1.0
 * @date 2022/10/4 16:45
 */
public class Producer_Routing {
    public static void main(String[] args) throws IOException, TimeoutException {
        final ConnectionFactory factory = new ConnectionFactory();
        factory.setHost("localhost");
        factory.setUsername("pickle");
        factory.setPassword("pickle");
        factory.setVirtualHost("/");
        factory.setPort(5672);
        final Connection connection = factory.newConnection();
        final Channel channel = connection.createChannel();
        String exchangeName="test_direct";
        channel.exchangeDeclare(exchangeName, BuiltinExchangeType.DIRECT,true,false,false,null);

        String queue1Name = "test_direct_queue1";
        String queue2Name = "test_direct_queue2";

        channel.queueDeclare(queue1Name,true,false,false,null);
        channel.queueDeclare(queue2Name,true,false,false,null);

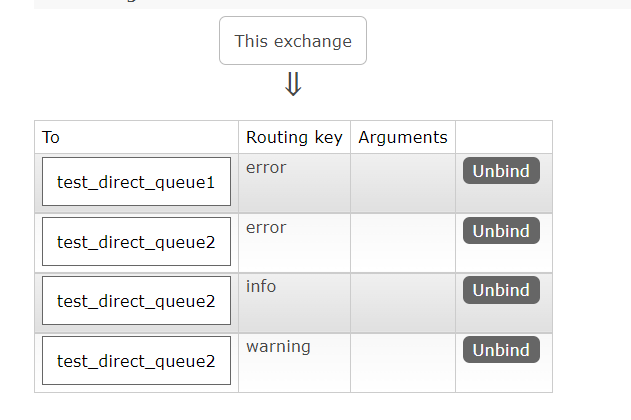

        channel.queueBind(queue1Name,exchangeName,"error");

        channel.queueBind(queue2Name,exchangeName,"error");
        channel.queueBind(queue2Name,exchangeName,"info");
        channel.queueBind(queue2Name,exchangeName,"warning");

        String body = "日志信息：张三调用了routing方法... 日志等级：info...";

        channel.basicPublish(exchangeName,"warning",null,body.getBytes());

        channel.close();
        connection.close();
    }
}

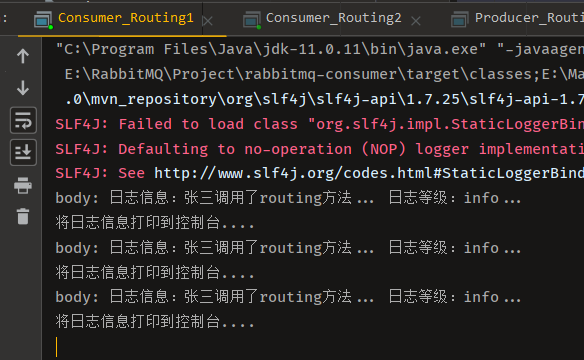

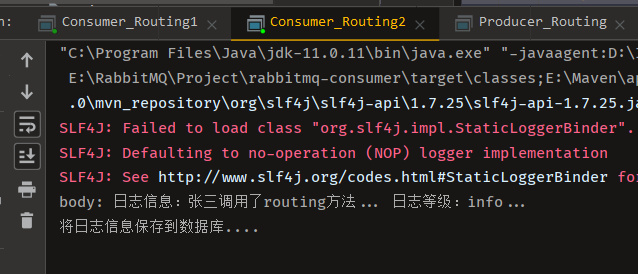

Consumer_Routing1

 package cn.pickle.consumer;

import com.rabbitmq.client.*;

import java.io.IOException;
import java.util.concurrent.TimeoutException;

/**
 * @author Pickle
 * @version V1.0
 * @date 2022/10/4 17:26
 */
public class Consumer_Routing1 {
    public static void main(String[] args) throws IOException, TimeoutException {
        final ConnectionFactory factory = new ConnectionFactory();
        factory.setPort(5672);
        factory.setPassword("pickle");
        factory.setUsername("pickle");
        factory.setVirtualHost("/");
        factory.setHost("localhost");
        final Connection connection = factory.newConnection();
        final Channel channel = connection.createChannel();
        String queue1Name = "test_direct_queue1";
        String queue2Name = "test_direct_queue2";
        Consumer consumer = new DefaultConsumer(channel){
            @Override
            public void handleDelivery(String consumerTag, Envelope envelope, AMQP.BasicProperties properties, byte[] body) throws IOException {
                System.out.println("body: " + new String(body));
                System.out.println("将日志信息打印到控制台....");
            }
        };
        channel.basicConsume(queue2Name,true,consumer);
    }
}

Consumer_Routing2

 package cn.pickle.consumer;

import com.rabbitmq.client.*;

import java.io.IOException;
import java.util.concurrent.TimeoutException;

/**
 * @author Pickle
 * @version V1.0
 * @date 2022/10/4 17:26
 */
public class Consumer_Routing2 {
    public static void main(String[] args) throws IOException, TimeoutException {
        final ConnectionFactory factory = new ConnectionFactory();
        factory.setPort(5672);
        factory.setPassword("pickle");
        factory.setUsername("pickle");
        factory.setVirtualHost("/");
        factory.setHost("localhost");
        final Connection connection = factory.newConnection();
        final Channel channel = connection.createChannel();
        String queue1Name = "test_direct_queue1";
        String queue2Name = "test_direct_queue2";
        Consumer consumer = new DefaultConsumer(channel){
            @Override
            public void handleDelivery(String consumerTag, Envelope envelope, AMQP.BasicProperties properties, byte[] body) throws IOException {
                System.out.println("body: " + new String(body));
                System.out.println("将日志信息保存到数据库....");
            }
        };
        channel.basicConsume(queue1Name,true,consumer);
    }
}

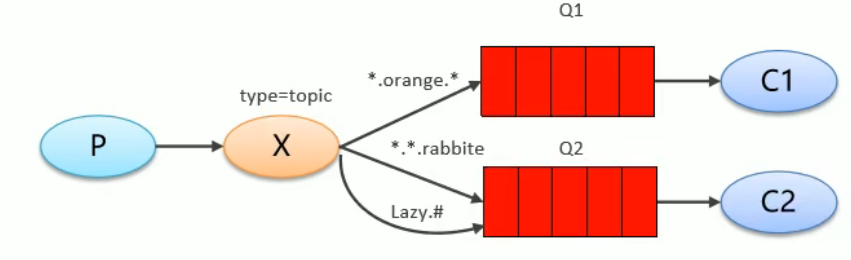

5、Topic模式

Producer_Topic

 package cn.pickle.producer;

import com.rabbitmq.client.BuiltinExchangeType;
import com.rabbitmq.client.Channel;
import com.rabbitmq.client.Connection;
import com.rabbitmq.client.ConnectionFactory;

import java.io.IOException;
import java.util.concurrent.TimeoutException;

/**
 * @author Pickle
 * @version V1.0
 * @date 2022/10/4 19:09
 */
public class Producer_Topic {
    public static void main(String[] args) throws IOException, TimeoutException {
        final ConnectionFactory factory = new ConnectionFactory();
        factory.setHost("localhost");
        factory.setUsername("pickle");
        factory.setPassword("pickle");
        factory.setVirtualHost("/");
        factory.setPort(5672);
        final Connection connection = factory.newConnection();
        final Channel channel = connection.createChannel();
        String exchangeName="test_topic";
        channel.exchangeDeclare(exchangeName, BuiltinExchangeType.TOPIC,true,false,false,null);
        String queue1Name = "test_topic_queue1";
        String queue2Name = "test_topic_queue2";

        channel.queueDeclare(queue1Name,true,false,false,null);
        channel.queueDeclare(queue2Name,true,false,false,null);



        channel.queueBind(queue1Name,exchangeName,"#.error");
        channel.queueBind(queue1Name,exchangeName,"order.*");

        channel.queueBind(queue2Name,exchangeName,"*.*");

        String body = "我TM是一条消息...";
        channel.basicPublish(exchangeName,"goods.error",null,body.getBytes());

    }
}

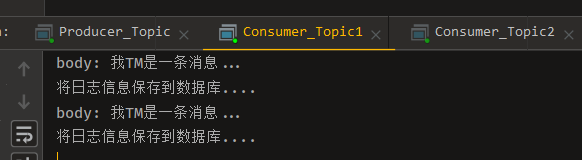

Consumer_Topic1

 package cn.pickle.consumer;

import com.rabbitmq.client.*;

import java.io.IOException;
import java.util.concurrent.TimeoutException;

/**
 * @author Pickle
 * @version V1.0
 * @date 2022/10/4 19:26
 */
public class Consumer_Topic1 {
    public static void main(String[] args) throws IOException, TimeoutException {
        final ConnectionFactory factory = new ConnectionFactory();
        factory.setPort(5672);
        factory.setPassword("pickle");
        factory.setUsername("pickle");
        factory.setVirtualHost("/");
        factory.setHost("localhost");
        final Connection connection = factory.newConnection();
        final Channel channel = connection.createChannel();
        String queue1Name = "test_topic_queue1";
        String queue2Name = "test_topic_queue2";
        Consumer consumer = new DefaultConsumer(channel){
            @Override
            public void handleDelivery(String consumerTag, Envelope envelope, AMQP.BasicProperties properties, byte[] body) throws IOException {
                System.out.println("body: " + new String(body));
                System.out.println("将日志信息保存到数据库....");
            }
        };
        channel.basicConsume(queue1Name,true,consumer);
    }
}

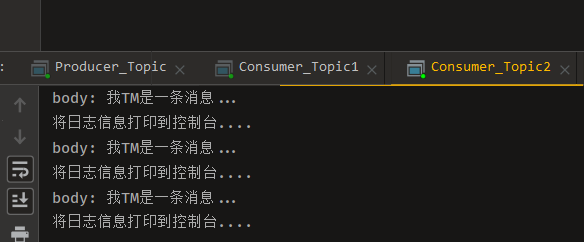

Consumer_Topic2

 package cn.pickle.consumer;

import com.rabbitmq.client.*;

import java.io.IOException;
import java.util.concurrent.TimeoutException;

/**
 * @author Pickle
 * @version V1.0
 * @date 2022/10/4 19:26
 */
public class Consumer_Topic2 {
    public static void main(String[] args) throws IOException, TimeoutException {
        final ConnectionFactory factory = new ConnectionFactory();
        factory.setPort(5672);
        factory.setPassword("pickle");
        factory.setUsername("pickle");
        factory.setVirtualHost("/");
        factory.setHost("localhost");
        final Connection connection = factory.newConnection();
        final Channel channel = connection.createChannel();
        String queue1Name = "test_topic_queue1";
        String queue2Name = "test_topic_queue2";
        Consumer consumer = new DefaultConsumer(channel){
            @Override
            public void handleDelivery(String consumerTag, Envelope envelope, AMQP.BasicProperties properties, byte[] body) throws IOException {
                System.out.println("body: " + new String(body));
                System.out.println("将日志信息打印到控制台....");
            }
        };
        channel.basicConsume(queue2Name,true,consumer);

    }
}

posted @ 2022-10-04 19:36 破忒头头阅读(22) 评论(0) 编辑收藏举报

刷新页面返回顶部

登录后才能查看或发表评论，立即登录或者逛逛博客园首页

相关博文：

· Small-Spring

· org.springframework.beans.factory

· RabbitMQ

· RabbitMQ-消息队列的收发模式（二）

阅读排行：
· 25岁的心里话
· 闲置电脑爆改个人服务器（超详细） #公网映射 #Vmware虚拟网络编辑器
· 基于 Docker 搭建 FRP 内网穿透开源项目（很简单哒）
· 零经验选手，Compose 一天开发一款小游戏！
· AI Agent开发，如何调用三方的API Function，是通过提示词来发起调用的吗
