kubernetes的yml

1: 创建namespace

文件po.yml 内容如下

apiVersion: v1
kind: Namespace
metadata:
 name: po

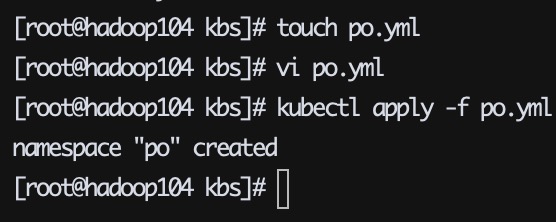

命令：

1	`kubectl apply -f po.yml`

删除namespace

1	`kubectl delete -f po.yml`

2: 创建pod

文件po-pods.yml 内容如下

apiVersion: v1
kind: Pod
metadata:
 name: tomcat9
 labels:
   app: tomcat9
spec:
 containers:
   - name: tomcat9
     image: tomcat:9.0.20-jre8-alpine
     imagePullPolicy: IfNotPresent
 restartPolicy: Always

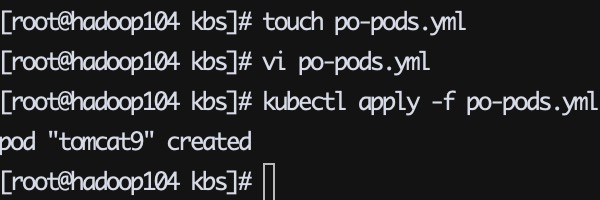

执行命令

1	`kubectl apply -f po-pods.yml`

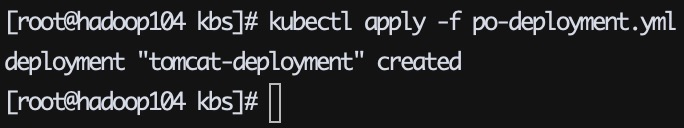

3: 创建deployment

apiVersion: extensions/v1beta1
kind: Deployment
metadata:
  name: tomcat-deployment
  labels:
    app: tomcat-deployment
spec:
   replicas: 3
   selector:
    matchLabels:
     app: tomcat
   template:
    metadata:
      name: tomcat-deployment
      labels:
        app: tomcat
    spec:
      containers:
        - name: tomcat-deployment
          image: tomcat:9.0.20-jre8-alpine
          imagePullPolicy: IfNotPresent
      restartPolicy: Always

说明：

在Deployment中必须写matchLables 在定义模板的时候必须定义labels,

因为Deployment.spec.selector是必须字段,而他又必须和 template.labels对应

Deployment控制器：
具有上线部署、滚动升级、创建副本、回滚到以前某一版本（成功/ 稳定）等功能。

Deployment包含ReplicaSet，除非需要自定义升级功能或者根本不需要升级Pod，

否则还是建议使用 Deployment而不直接使用ReplicaSet 。

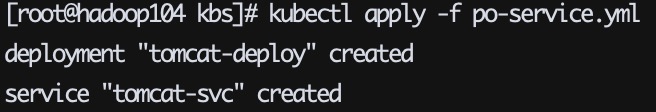

4: 创建service

apiVersion: extensions/v1beta1
kind: Deployment
metadata:
  name: tomcat-deploy
  labels:
    app: tomcat-deploy
spec:
   replicas: 1
   selector:
    matchLabels:
     app: tomcat-pod
   template:
    metadata:
      name: tomcat-deploy
      labels:
        app: tomcat-pod
    spec:
      containers:
        - name: tomcat-deploy
          image: tomcat:9.0.20-jre8-alpine
          imagePullPolicy: IfNotPresent
          ports:
            - containerPort: 8080
      restartPolicy: Always
---
apiVersion: v1
kind: Service
metadata:
  name: tomcat-svc
spec:
  selector:
    app: tomcat-pod
  ports:
    - port: 8888
      targetPort: 8080

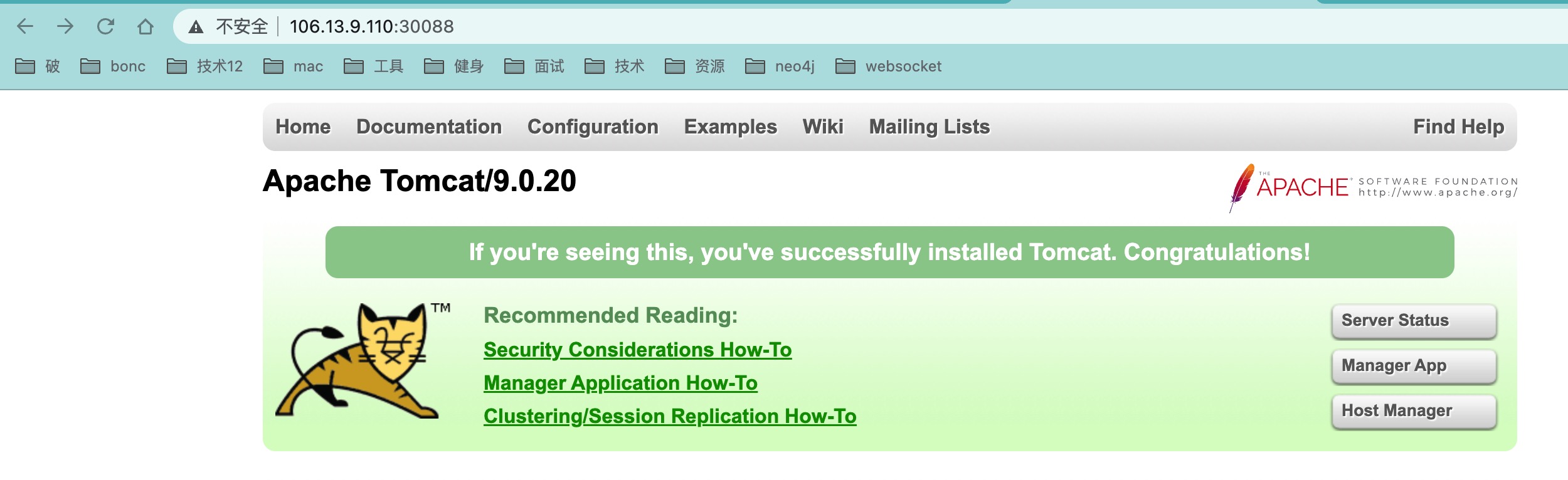

      nodePort: 30088
      protocol: TCP
  type: NodePort
