实验 22：状态模式

本次实验属于模仿型实验，通过本次实验学生将掌握以下内容：

1、理解状态模式的动机，掌握该模式的结构；

2、能够利用状态模式解决实际问题。



[实验任务一]：银行账户



用Java代码模拟实现课堂上的“银行账户”的实例，要求编写客户端测试代码模拟用户存款和取款，注意账户对象状态和行为的变化。

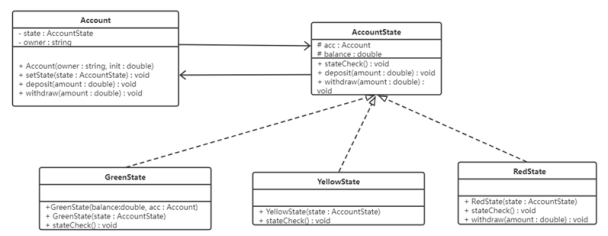

类图



源代码

?

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101 102 103 104 105 106 107 108 109 110 111 112 113 114 115 116 117 118 119 120 121 122 123 124 125 126 127 128 129 130 131 132 133 134 135 136 137 138 139 140 141 142 143 144 145 146 147 148 149 150 151 152 153 154 155 156 157 158 159 160 161 162 163

package com.gazikel;   public class Account {       private AccountState state;     private String owner;       public Account(String owner, double init) {         this.owner = owner;         state = new GreenState(init, this);         System.out.println("账户:" + this.owner + ",余额:" + init);       }       public void setState(AccountState state) {         this.state = state;     }     /**      * 存款      * @param amount      */     public void deposit(double amount) {         state.deposit(amount);         System.out.println("现金余额为" + this.state.balance);     }         /**      * 取款      * @param amount      */     public void withdraw(double amount){         state.withdraw(amount);         System.out.println("现金余额为" + state.balance);     } }   package com.gazikel;   /**  * 状态抽象类  */ public abstract class AccountState {       protected Account acc;     protected double balance;       public abstract void stateCheck();       public abstract void deposit(double amount);       public abstract void withdraw(double amount); } package com.gazikel;   public class GreenState extends AccountState {       public GreenState() {}       public GreenState(double amount, Account account) {         balance = amount;         acc = account;     }       @Override     public void stateCheck() {         if (balance >= 0) {             acc.setState(new GreenState(balance, acc));             System.out.println("当前为正常（绿色）状态");         } else if(balance <0 && balance >= -1000) {             acc.setState(new YellowState(balance, acc));             System.out.println("当前为欠费（黄色）状态");         } else {             acc.setState(new RedState(balance, acc));             System.out.println("当前透支（红色）状态");         }       }       @Override     public void deposit(double amount) {         balance += amount;         System.out.println(balance);         stateCheck();     }       @Override     public void withdraw(double amount) {         balance -= amount;         stateCheck();     } } package com.gazikel;   public class RedState extends AccountState {       public RedState(double amount, Account acc) {         this.balance = amount;         this.acc = acc;     }     @Override     public void stateCheck() {         if (balance >= 0) {             acc.setState(new GreenState(balance, acc));             System.out.println("当前为正常（绿色）状态");         } else if(balance <0 && balance >= -1000) {             acc.setState(new YellowState(balance, acc));             System.out.println("当前为欠费（黄色）状态");         } else {             acc.setState(new RedState(balance, acc));             System.out.println("当前透支（红色）状态");         }       }       @Override     public void deposit(double amount) {         balance += amount;         stateCheck();     }       @Override     public void withdraw(double amount) {         System.out.println("透支状态，无法取款！");     } } package com.gazikel;   public class YellowState extends AccountState {       public YellowState(double amount, Account acc) {         this.balance = amount;         this.acc = acc;     }       @Override     public void stateCheck() {         if (balance >= 0) {             acc.setState(new GreenState(balance, acc));             System.out.println("当前为正常（绿色）状态");         } else if(balance <0 && balance >= -1000) {             acc.setState(new YellowState(balance, acc));             System.out.println("当前为欠费（黄色）状态");         } else {             acc.setState(new RedState(balance, acc));             System.out.println("当前透支（红色）状态");         }     }       @Override     public void deposit(double amount) {         balance += amount;         stateCheck();       }       @Override     public void withdraw(double amount) {         balance -= amount;         stateCheck();       } }
