C++版的神经网络训练用的图像集合加载



1、构造图像的基本单元类

class ImgUnit
{
public:
    ImgUnit(unsigned char *p)
    {
        for(int i=0;i<3;i++)
        {
            unsigned char *pp=p+1+i*1024;
            m[i]=Mat(32,32,CV_8U,pp);
        }
        merge(m,3,m_bgr);

        label=(int)p[0];
//        imshow("img unit",m_bgr);
    }
    ImgUnit(){}
    void makeImg(unsigned char *p)
    {
        for(int i=0;i<3;i++)
        {
            unsigned char *pp=p+1+i*1024;
            m[(2-i)]=Mat(32,32,CV_8U,pp);
        }
        merge(m,3,m_bgr);

        label=(int)p[0];
    }
    Mat m[3];
    Mat m_bgr;
    int label;
};
//1.加载训练图片
void loadImgSet(ImgUnit *imgset,string datapath)
{
    unsigned char* p=new unsigned char[30730000];
    ifstream infile(datapath,ios::binary);
    if(!infile)
    {
        cerr<<"open err!"<<endl;
        exit(1);
    }
    infile.read((char*)p,30730000);

    for(int i=0;i<10000;i++)

    {
        uchar* pi=p+i*3073;
        imgset[i].makeImg(pi);
    }
    infile.close();
}

2. 测试程序

#include <iostream>
#include<opencv2/opencv.hpp>
#include<myfunction.hpp>
#include<iostream>
#include<fstream>

#include<string.h>
using namespace cv;
using namespace std;


int main()
{
    ImgUnit* imgset=new ImgUnit[10000];

    string datapath="D:/Qt/MyImage/cifar10/data_batch_1.bin";
    loadImgSet(imgset,datapath);

    Mat ms[100];
    Mat implay(640,640,CV_8UC3,Scalar::all(0));


    for(int i=0;i<100;i++)
    {
        resize(imgset[i+100].m_bgr,ms[i],Size(64,64),0,0,INTER_CUBIC);
        int y=i/10,x=i%10;
        Mat temp=implay(Rect(x*64,y*64,64,64));
        ms[i].copyTo(temp);
    }
    imshow("100 image",implay);
    waitKey();

    delete [] imgset;

    return 0;
}

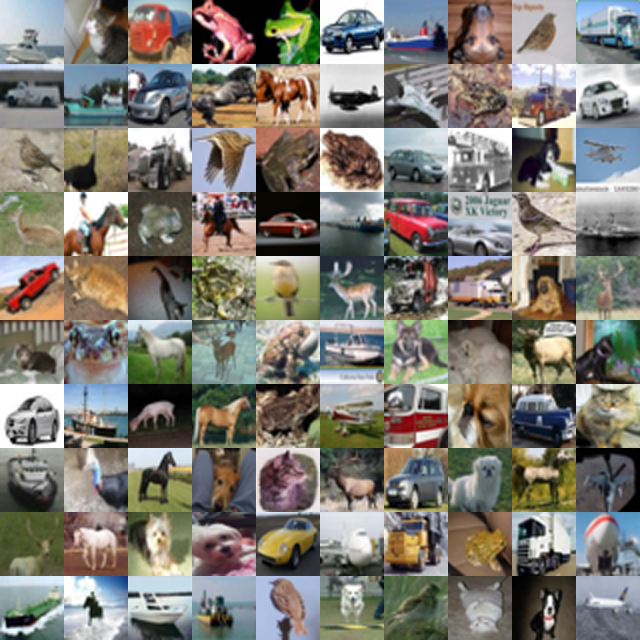

运行结果如下，显示了一百幅图像，说真的，我人眼都识别不了，不知道机器式怎么识别的：）  ：
