OCS2::legged_robot::SwingTrajectoryPlanner_摆动腿轨迹规划

计算特定时间点指定腿的垂直速度约束

\(v_z=trajectory[index].velocity(time)\)

scalar_t SwingTrajectoryPlanner::getZvelocityConstraint(size_t leg, scalar_t time) const {
  const auto index = lookup::findIndexInTimeArray(feetHeightTrajectoriesEvents_[leg], time);
  return feetHeightTrajectories_[leg][index].velocity(time);
}

计算特定时间点指定腿的垂直位置约束

\(z=trajectory[index].position(time)\)

scalar_t SwingTrajectoryPlanner::getZpositionConstraint(size_t leg, scalar_t time) const {
  const auto index = lookup::findIndexInTimeArray(feetHeightTrajectoriesEvents_[leg], time);
  return feetHeightTrajectories_[leg][index].position(time);
}

根据模式和地形高度，更新所有腿的轨迹

void SwingTrajectoryPlanner::update(const ModeSchedule& modeSchedule, scalar_t terrainHeight) {
  const scalar_array_t terrainHeightSequence(modeSchedule.modeSequence.size(), terrainHeight);
  feet_array_t<scalar_array_t> liftOffHeightSequence;
  liftOffHeightSequence.fill(terrainHeightSequence);
  feet_array_t<scalar_array_t> touchDownHeightSequence;
  touchDownHeightSequence.fill(terrainHeightSequence);
  update(modeSchedule, liftOffHeightSequence, touchDownHeightSequence);
}

根据模式、升降高度和触地点高度，更新摆动和站立腿的轨迹

• 提取腿的接触标志数组
• 根据接触标志，生成每条腿的时间索引
• 使用三次样条（Cubic Spline）生成摆动轨迹

void SwingTrajectoryPlanner::update(const ModeSchedule& modeSchedule, const feet_array_t<scalar_array_t>& liftOffHeightSequence,
                                    const feet_array_t<scalar_array_t>& touchDownHeightSequence) {
  const auto& modeSequence = modeSchedule.modeSequence;
  const auto& eventTimes = modeSchedule.eventTimes;

  //获取四条腿的接触状态
  const auto eesContactFlagStocks = extractContactFlags(modeSequence);

  feet_array_t<std::vector<int>> startTimesIndices;
  feet_array_t<std::vector<int>> finalTimesIndices;
  for (size_t leg = 0; leg < numFeet_; leg++) {
    std::tie(startTimesIndices[leg], finalTimesIndices[leg]) = updateFootSchedule(eesContactFlagStocks[leg]);
  }

  for (size_t j = 0; j < numFeet_; j++) {
    feetHeightTrajectories_[j].clear();
    feetHeightTrajectories_[j].reserve(modeSequence.size());
    for (int p = 0; p < modeSequence.size(); ++p) {
      if (!eesContactFlagStocks[j][p]) {  // for a swing leg
        const int swingStartIndex = startTimesIndices[j][p];
        const int swingFinalIndex = finalTimesIndices[j][p];
        checkThatIndicesAreValid(j, p, swingStartIndex, swingFinalIndex, modeSequence);

        const scalar_t swingStartTime = eventTimes[swingStartIndex];
        const scalar_t swingFinalTime = eventTimes[swingFinalIndex];

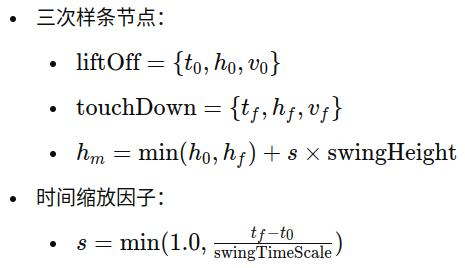

        const scalar_t scaling = swingTrajectoryScaling(swingStartTime, swingFinalTime, config_.swingTimeScale);

        const CubicSpline::Node liftOff{swingStartTime, liftOffHeightSequence[j][p], scaling * config_.liftOffVelocity};
        const CubicSpline::Node touchDown{swingFinalTime, touchDownHeightSequence[j][p], scaling * config_.touchDownVelocity};
        const scalar_t midHeight = std::min(liftOffHeightSequence[j][p], touchDownHeightSequence[j][p]) + scaling * config_.swingHeight;
        feetHeightTrajectories_[j].emplace_back(liftOff, midHeight, touchDown);
      } else {  // for a stance leg
        // Note: setting the time here arbitrarily to 0.0 -> 1.0 makes the assert in CubicSpline fail
        const CubicSpline::Node liftOff{0.0, liftOffHeightSequence[j][p], 0.0};
        const CubicSpline::Node touchDown{1.0, liftOffHeightSequence[j][p], 0.0};
        feetHeightTrajectories_[j].emplace_back(liftOff, liftOffHeightSequence[j][p], touchDown);
      }
    }
    feetHeightTrajectoriesEvents_[j] = eventTimes;
  }
}

基于接触标志确定摆动腿的开始和结束时间索引

• 对于非接触阶段，找到最近的接触阶段时间索引作为开始时间
• 找到后续接触阶段的前一个时间点作为结束时间

std::pair<std::vector<int>, std::vector<int>> SwingTrajectoryPlanner::updateFootSchedule(const std::vector<bool>& contactFlagStock) {
  const size_t numPhases = contactFlagStock.size();

  std::vector<int> startTimeIndexStock(numPhases, 0);
  std::vector<int> finalTimeIndexStock(numPhases, 0);

  // find the startTime and finalTime indices for swing feet
  for (size_t i = 0; i < numPhases; i++) {
    if (!contactFlagStock[i]) {
      std::tie(startTimeIndexStock[i], finalTimeIndexStock[i]) = findIndex(i, contactFlagStock);
    }
  }
  return {startTimeIndexStock, finalTimeIndexStock};
}
