展示二维室内定位

1、需求：最近在弄一个实时定位的展示模块，就是说前端通过webSocket获取到用户位置信息：实时展示在图上，还会有图文提示等



2、思路：这个有两种解决方案：1、canvas来处理。2、svg来处理

一开始不知道哪个解决方案好，就做了两个demo探探水

总体来说：如果交互并不多的话推荐canvas处理就完事了，如果交互很强的话，比如说里面很多元素需要触发各种不同的事件，推荐svg

3、解决：

3-1、canvas

html

<canvas id="myCanvas" ref="myCanvas"></canvas>

js

复制代码
            /*画布属性 */
            let c = this.$refs.myCanvas;
            c.width = 800;
            c.height = 400;
            const ctx = c.getContext("2d");
            /*加载图片 */
            let img = new Image();
            img.src = require("./assets/003.jpg");
            img.onload = function () {
                drawImageData(0, 0, 150, 150);
            };
            let seat = new Image();
            seat.src = require("./assets/004.png");
            /*拖动计算位置需要的变量 */
            let beforeX = 0,
                beforeY = 0,
                afterX = 0,
                afterY = 0,
                chaX = add(beforeX, -afterX),
                chaY = add(beforeY, -afterY),
                isMousemove = false,
                multiple = 1;
            /**图片位置 */
            let x = 0,
                y = 0,
                width = 150,
                height = 150;
            /**监听拖动图片 */
            c.addEventListener("mousedown", (e) => {
                beforeX = e.offsetX;
                beforeY = e.offsetY;
                isMousemove = true;
            });
            c.addEventListener("mouseup", (e) => {
                isMousemove = false;
                x = add(x, -chaX);
                y = add(y, -chaY);
                beforeX = e.offsetX;
                beforeY = e.offsetY;
            });
            c.addEventListener("mouseleave", (e) => {
                isMousemove = false;
            });
            c.addEventListener("mousemove", (e) => {
                if (isMousemove) {
                    afterX = e.offsetX;
                    afterY = e.offsetY;
                    chaX = except(add(beforeX, -afterX), multiple);
                    chaY = except(add(beforeY, -afterY), multiple);
                    drawImageData(add(x, -chaX), add(y, -chaY), width, height);
                }
            });
            /**定义放大缩小倍数参数 */
            let initScale = 1,
                spacing = 0.1;
            /*监听滚轮放大缩小 */
            c.addEventListener("wheel", (e) => {
                if (e.wheelDelta > 0) {
                    initScale = add(initScale, spacing);
                    console.log("放大", initScale);
                } else {
                    initScale = add(initScale, -spacing);
                    console.log("缩小", initScale);
                }
                dramImageByScale(initScale);
                initScale = 1;
            });
            /*放大缩小 */
            function dramImageByScale(scale) {
                multiple = ride(multiple, scale);
                console.log("放大倍数", multiple);
                ctx.scale(scale, scale);
                if (!isMousemove) {
                    drawImageData();
                }
            }
            let dataArr = [];
            getData();
            function getData() {
                let num = 130;
                // let time =
                setInterval(() => {
                    if (dataArr.length > 90) {
                        // clearInterval(time);
                        dataArr = [];
                        num = 130;
                    }
                    dataArr.push({
                        x: num,
                        y: 70,
                    });
                    num -= 1;
                    if (!isMousemove) {
                        drawImageData();
                    }
                }, 100);
            }
            /*绘制数据 */
            function drawImageData(
                dataX = x,
                dataY = y,
                dataWidth = width,
                dataHeight = height
            ) {
                /**地图 */
                ctx.clearRect(0, 0, c.width, c.height);
                ctx.drawImage(img, dataX, dataY, dataWidth, dataHeight);
                /**位置信息数据 */
                dataArr.forEach((e, i) => {
                    /**点 */
                    // console.log(i);
                    // ctx.beginPath();
                    // ctx.strokeStyle = "red";
                    // ctx.arc(
                    //     add(e.x, dataX),
                    //     add(e.y, dataY),
                    //     2,
                    //     0,
                    //     2 * Math.PI
                    // );
                    // ctx.stroke();
                    // ctx.fillStyle = "red";
                    // ctx.fill();
                    /**线 */
                    if (i == 0) {
                        ctx.moveTo(add(e.x, dataX), add(e.y, dataY));
                    } else {
                        ctx.lineTo(add(e.x, dataX), add(e.y, dataY));
                    }
                    ctx.lineCap = "round";
                    ctx.strokeStyle = "red";
                    ctx.stroke();
                    if (i == dataArr.length - 1) {
                        ctx.drawImage(
                            seat,
                            add(add(e.x, dataX), -5),
                            add(add(e.y, dataY), -10),
                            10,
                            10
                        );
                    }
                });
                ctx.beginPath();
            }
            /*精度加减 */
            function add(n1, n2) {
                var s1, s2, m;
                try {
                    s1 = n1.toString().split(".")[1].length;
                } catch (e) {
                    s1 = 0;
                }
                try {
                    s2 = n2.toString().split(".")[1].length;
                } catch (e) {
                    s2 = 0;
                }
                m = Math.pow(10, Math.max(s1, s2));
                return (n1 * m + n2 * m) / m;
            }
            /*精度乘 */
            function ride(arg1, arg2) {
                if (arg1 == null || arg2 == null) {
                    return null;
                }
                var n1, n2;
                var r1, r2; // 小数位数
                try {
                    r1 = arg1.toString().split(".")[1].length;
                } catch (e) {
                    r1 = 0;
                }
                try {
                    r2 = arg2.toString().split(".")[1].length;
                } catch (e) {
                    r2 = 0;
                }
                n1 = Number(arg1.toString().replace(".", ""));
                n2 = Number(arg2.toString().replace(".", ""));
                return (n1 * n2) / Math.pow(10, r1 + r2);
            }
            /*精度除 */
            function except(arg1, arg2) {
                if (arg1 == null) {
                    return null;
                }
                if (arg2 == null || arg2 == 0) {
                    return null;
                }
                var n1, n2;
                var r1, r2; // 小数位数
                try {
                    r1 = arg1.toString().split(".")[1].length;
                } catch (e) {
                    r1 = 0;
                }
                try {
                    r2 = arg2.toString().split(".")[1].length;
                } catch (e) {
                    r2 = 0;
                }
                n1 = Number(arg1.toString().replace(".", ""));
                n2 = Number(arg2.toString().replace(".", ""));
                return (n1 / n2) * Math.pow(10, r2 - r1);
            }
复制代码

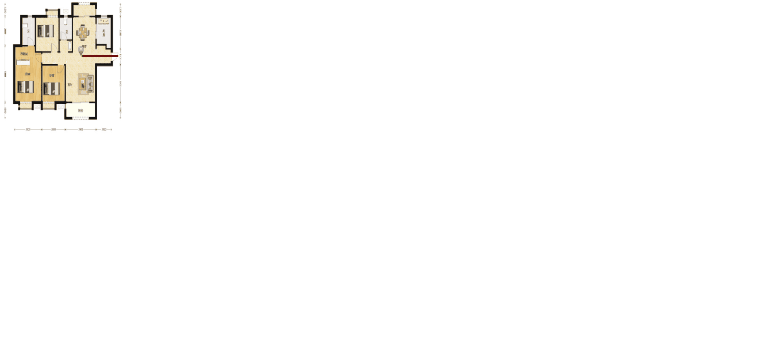

效果

3-2、svg

html

复制代码
        <svg
            xmlns="http://www.w3.org/2000/svg"
            version="1.1"
            baseProfile="full"
            width="100%"
            height="100%"
            viewBox="0 0 1400 800"
            ref="mySvg"
        >
            <image
                :x="x"
                :y="y"
                :width="width + 'px'"
                :height="height + 'px'"
                xlink:href="./assets/003.jpg"
                preserveAspectRatio="none"
            ></image>
            <polyline
                :points="points"
                style="fill: white; stroke: red; stroke-width: 4"
            />
            <image
                :x="px"
                :y="py"
                width="20px"
                height="20px"
                xlink:href="./assets/004.png"
                preserveAspectRatio="none"
            ></image>
        </svg>
复制代码

vue data

复制代码
...
    data() {
        return {
            x: 0,
            y: 0,
            px: 0,
            py: 0,
            width: 1200,
            height: 600,
            points: "",
        };
    },
...
复制代码

js

复制代码
            const s = this.$refs.mySvg,
                _this = this,
                w = this.width,
                h = this.height;
            /*放大缩小 */
            let initScale = 1,
                spacing = 0.1,
                multiple = 1;
            s.addEventListener("wheel", (e) => {
                if (e.wheelDelta < 0) {
                    multiple = ride(multiple, add(initScale, -spacing));
                    _this.width = ride(w, multiple);
                    _this.height = ride(h, multiple);
                } else {
                    multiple = ride(multiple, add(initScale, spacing));
                    _this.width = ride(w, multiple);
                    _this.height = ride(h, multiple);
                }
                initScale = 1;
            });
            /*拖动 */
            let beforeX = 0,
                beforeY = 0,
                afterX = 0,
                afterY = 0,
                chaX = add(beforeX, -afterX),
                chaY = add(beforeY, -afterY),
                isMousemove = false,
                originX = 0,
                originY = 0;
            s.addEventListener("mousedown", (e) => {
                beforeX = e.offsetX;
                beforeY = e.offsetY;
                originX = _this.x;
                originY = _this.y;
                isMousemove = true;
            });
            s.addEventListener("mouseup", () => {
                isMousemove = false;
                originX = _this.x;
                originY = _this.y;
            });
            s.addEventListener("mouseleave", () => {
                isMousemove = false;
                originX = _this.x;
                originY = _this.y;
            });
            s.addEventListener("mousemove", (e) => {
                if (isMousemove) {
                    afterX = e.offsetX;
                    afterY = e.offsetY;
                    chaX = add(beforeX, -afterX);
                    chaY = add(beforeY, -afterY);
                    setXY(add(originX, -chaX), add(originY, -chaY));
                }
            });
            let dataArr = [];

            getData();
            function setXY(x = _this.x, y = _this.y) {
                _this.x = x;
                _this.y = y;
                getPoints();
            }
            function getData() {
                let num = 1000;
                // let time =
                setInterval(() => {
                    if (dataArr.length > 75) {
                        // clearInterval(time);
                        dataArr = [];
                        num = 1000;
                    }
                    dataArr.push({
                        x: num,
                        y: 285,
                    });
                    num -= 10;
                    getPoints();
                }, 100);
            }
            function getPoints() {
                _this.points = "";
                dataArr.forEach((e, i) => {
                    _this.points += ` ${add(
                        ride(e.x, multiple),
                        _this.x
                    )},${add(ride(e.y, multiple), _this.y)}`;
                    /**设置地标位置 */
                    if (i == dataArr.length - 1) {
                        _this.px = add(add(ride(e.x, multiple), _this.x), -10);
                        _this.py = add(add(ride(e.y, multiple), _this.y), -20);
                    }
                });
            }
            /*精度加减 */
            function add(n1, n2) {
                var s1, s2, m;
                try {
                    s1 = n1.toString().split(".")[1].length;
                } catch (e) {
                    s1 = 0;
                }
                try {
                    s2 = n2.toString().split(".")[1].length;
                } catch (e) {
                    s2 = 0;
                }
                m = Math.pow(10, Math.max(s1, s2));
                return (n1 * m + n2 * m) / m;
            }
            /*精度乘 */
            function ride(arg1, arg2) {
                if (arg1 == null || arg2 == null) {
                    return null;
                }
                var n1, n2;
                var r1, r2; // 小数位数
                try {
                    r1 = arg1.toString().split(".")[1].length;
                } catch (e) {
                    r1 = 0;
                }
                try {
                    r2 = arg2.toString().split(".")[1].length;
                } catch (e) {
                    r2 = 0;
                }
                n1 = Number(arg1.toString().replace(".", ""));
                n2 = Number(arg2.toString().replace(".", ""));
                return (n1 * n2) / Math.pow(10, r1 + r2);
            }
复制代码

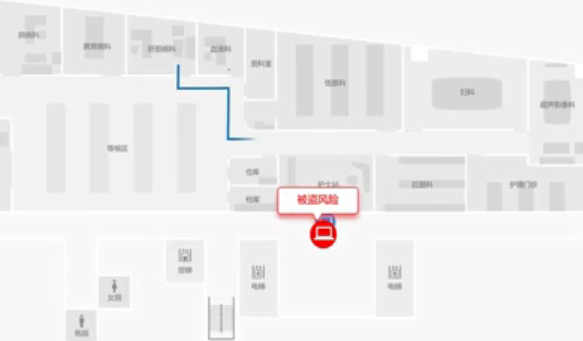

效果：
