通过拖拽调整div宽度

1、需求:有个页面有两个模块,两个模块里面的内容都挺多并且需要,就要一个拖拽来控制两个模块的占位面积了

2、思路:设置右边模块margin空出一块空间放置拖拽的线,给线绑定mousedown方法,通过鼠标点击配置onmousemove和onmouseup的方法来计算需要的参数,通过动态设置style来控制左右模块及线的位置,当松开鼠标的时候解除onmousemove和onmouseup的方法防止占用资源

3、实现

html:(写style要注意px这些单位容易忘记导致不会生效)

//左边div
<div class="left" ref="left" :style="leftWidth ? `width:${leftWidth}px;` : ''">//...以下省略

//右边div
<div class="right" ref="right" :style="rightWidth ? `width:${rightWidth}px;` : ''">//...以下省略

//线
<div class="line" @mousedown="dragLine" :style="`left:${moveLineLeft}px;`"></div>

线的css(scss):(拖动div时会出现选中字体现象,所以要加user-select: none;)

复制代码
.line {
    position: fixed;
    width: 20px;
    height: calc(100% - 130px);
    cursor: col-resize;
    overflow: hidden;
    z-index: 4;
    user-select: none;
    &::after {
        content: '';
        position: absolute;
        top: 0;
        bottom: 0;
        left: 0;
        right: 0;
        display: block;
        margin: auto;
        width: 0;
        border: 1px dashed #ccc;
    }
}
复制代码

js:

复制代码
        dragLine() {
            let width = this.$refs.main_box.clientWidth//获取盒子的宽
       //绑定onmousemove
            document.onmousemove = (e) => {//鼠标点击拖动时
                this.moveLineLeft = e.clientX
            }
       //绑定onmouseup
            document.onmouseup = () => {//松开鼠标时
                if (this.moveLineLeft < 655) {//设置一个最小值  以下计算根据实际需求
                    this.leftWidth = 585
                    this.moveLineLeft = 695
                    this.rightWidth = width - 585
                } else if (this.moveLineLeft > (width + 70) - 555) {//设置一个最大值 以下计算根据实际需求
                    this.rightWidth = 555
                    this.leftWidth = width - 555
                    this.moveLineLeft = width - 505
                } else {
                    this.leftWidth = this.moveLineLeft - 102
                    this.rightWidth = width - this.moveLineLeft - 142
                }
          //解绑
                document.onmousemove = null;
                document.onmouseup = null;
            }
        }
复制代码

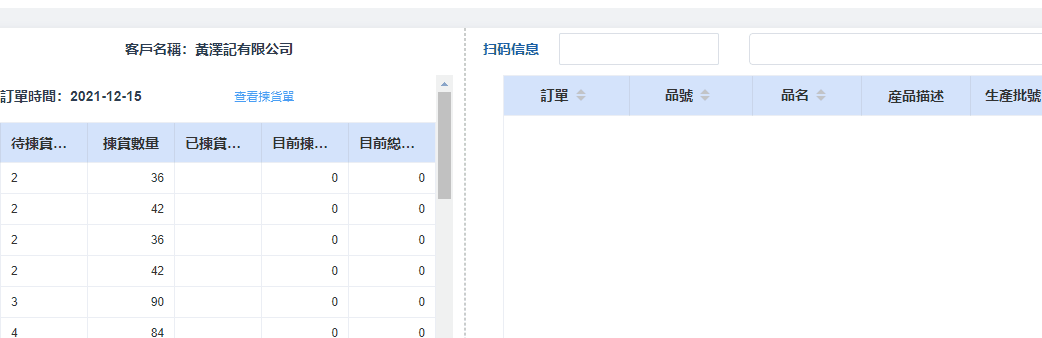

4、效果
