prometheus学习笔记之集群外服务发现

一、部署二进制prometheus

略，参考之前文档或自行百度

二、创建prometheus获取api-server的token

1.获取token

kubectl get sa -n monitoring monitor  #上一篇给prometheus创建的sa
kubectl get sa -n monitoring monitor -o yaml #每个sa默认会创建一个secret
kubectl get secrets -n monitoring monitor-token-585gg  -o   jsonpath='{.data.token}' #从secret获取token

2.验证

token=$(kubectl get secrets -n monitoring monitor-token-585gg  -o  jsonpath='{.data.token}' | base64 -d ) #token需要解密
curl --cacert /etc/kubernetes/pki/ca.crt -H "Authorization: Bearer ${token}" https://192.168.10.89:6443/api/v1/nodes/k8s-node1/proxy/metrics/cadvisor|head #替换你的api-server地址和其中的node名称
value labeled by kernel version, OS version, docker version, cadvisor version & cadvisor revision.
# TYPE cadvisor_version_info gauge
cadvisor_version_info{cadvisorRevision="",cadvisorVersion="",dockerVersion="",kernelVersion="3.10.0-1160.108.1.el7.x86_64",osVersion="CentOS Linux 7 (Core)"} 1
# HELP container_blkio_device_usage_total Blkio Device bytes usage
# TYPE container_blkio_device_usage_total counter
container_blkio_device_usage_total{container="",device="/dev/vda",id="/",image="",major="253",minor="0",name="",namespace="",operation="Async",pod=""} 3.12744192e+09 1725501954356
............

3.将token保存为文件

kubectl get secrets -n monitoring monitor-token-585gg  -o   jsonpath='{.data.token}' | base64 -d > k8s-cluster.token #保存token到文件
scp -P 15678 k8s-cluster.token 192.168.10.91:/usr/local/prometheus/ #拷贝到prometheus服务器

三、创建prometheus抓取job

1.抓取api-server

  - job_name: 'kubernetes-apiservers-monitor'
    metrics_path: /metrics
    scheme: https
    tls_config:
      insecure_skip_verify: true #因为我们的证书是自建的，所以需要跳过验证
    bearer_token_file: /usr/local/prometheus/k8s-cluster.token #我们生成的token的路径
    kubernetes_sd_configs:
    - role: endpoints
      api_server: https://192.168.10.89:6443  #k8s集群的api-servier地址
      tls_config:
        insecure_skip_verify: true
      bearer_token_file: /usr/local/prometheus/k8s-cluster.token
    relabel_configs:
    - source_labels: [__meta_kubernetes_namespace, __meta_kubernetes_service_name,__meta_kubernetes_endpoint_port_name]
      action: keep
      regex: default;kubernetes;https
    - target_label: __address__
      replacement: 192.168.10.89:6443

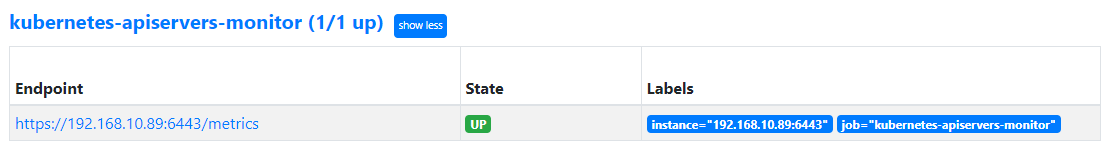

效果如下

2.抓取node

  - job_name: 'kubernetes-node-monitor'
    metrics_path: /metrics
    scheme: http #注意此处的协议为http
    tls_config:
      insecure_skip_verify: true
    bearer_token_file: /usr/local/prometheus/k8s-cluster.token
    kubernetes_sd_configs:
    - role: node
      api_server: https://192.168.10.89:6443
      tls_config:
        insecure_skip_verify: true
      bearer_token_file: /usr/local/prometheus/k8s-cluster.token
    relabel_configs:
     - source_labels: [__address__]
       regex: '(.*):10250'
       replacement: '${1}:9100'
       target_label: __address__
       action: replace
     - source_labels: [__meta_kubernetes_node_label_failure_domain_beta_kubernetes_io_region]
       regex: '(.*)'
       replacement: 'NODE'
       action: replace
       target_label: Type
     - action: labelmap
       regex: __meta_kubernetes_node_label_(.+)

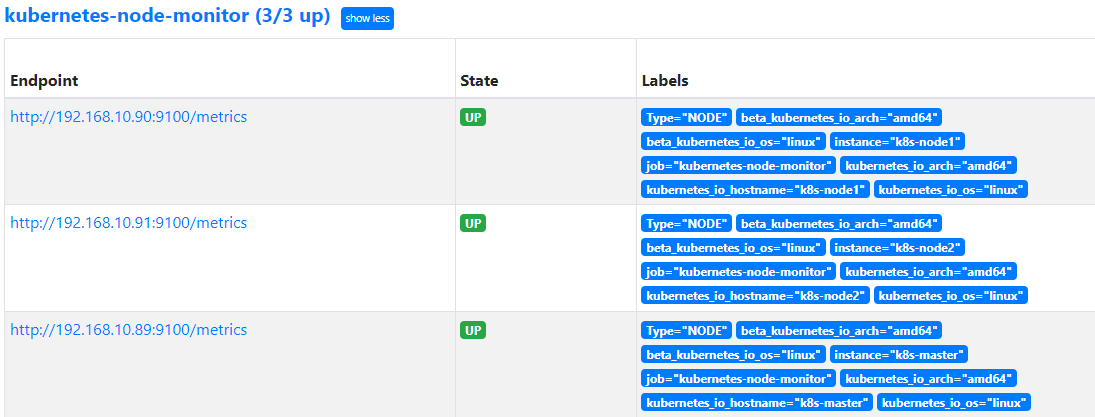

效果如下

3.抓取pod

因为当前k8s为新搭建集群，没有应用，所以在prometheus配置中我删除了 prometheus_io_scrape相关配置，所以所有的pod都会被抓取

  - job_name: 'kubernetes-pod-monitor'
    tls_config:
      insecure_skip_verify: true
    bearer_token_file: /usr/local/prometheus/k8s-cluster.token
    kubernetes_sd_configs:
    - role: pod
      api_server: https://192.168.10.89:6443
      tls_config:
        insecure_skip_verify: true
      bearer_token_file: /usr/local/prometheus/k8s-cluster.token
    relabel_configs:
    - source_labels: [__meta_kubernetes_pod_annotation_prometheus_io_scrape] #如果和我一样新集群没有服务配置了prometheus注解可以删除此配置
      action: keep
      regex: true
    - source_labels: [__meta_kubernetes_pod_annotation_prometheus_io_path]
      action: replace
      target_label: __metrics_path__
      regex: (.+)
    - source_labels: [__address__, __meta_kubernetes_pod_annotation_prometheus_io_port]
      action: replace
      regex: ([^:]+)(?::\d+)?;(\d+)
      replacement: $1:$2
      target_label: __address__
    - action: labelmap
      regex: __meta_kubernetes_pod_label_(.+)
    - source_labels: [__meta_kubernetes_namespace]
      action: replace
      target_label: kubernetes_namespace
    - source_labels: [__meta_kubernetes_pod_name]
      action: replace
      target_label: kubernetes_pod_name

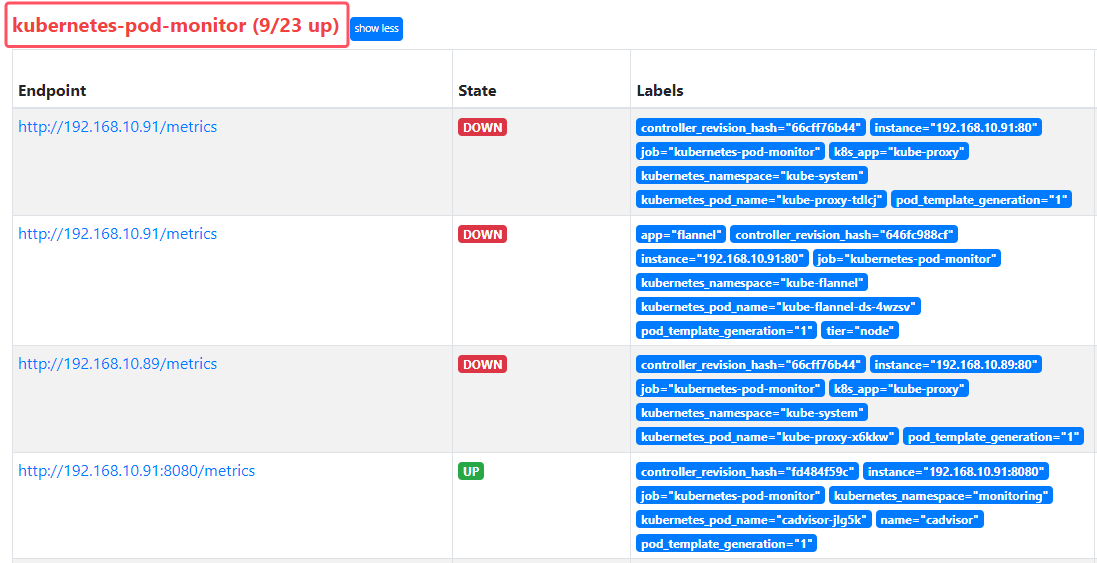

效果如下

因为所有的pod都会被抓取，有些并没有/metrics端口，所以会报错

其他抓取配置与集群内部署方式相同，主要为证书及token相关配置，此处不在赘述
