What are the channels?
A channel is a communication object using which goroutines can communicate with each other. Technically, a channel is a data transfer pipe where data can be passed into or read from. Hence one goroutine can send data into a channel, while other goroutines can read that data from the same channel.
Declaring a channel
Go provides chan
keyword to create a channel. A channel can transport data of only one data type. No other data types are allowed to be transported from that channel.
![](https://img2018.cnblogs.com/blog/575868/201912/575868-20191209203833468-1162003106.png)
https://play.golang.org/p/iWOFLfcgfF-
Above program declares a channel c
which can transport data type of int
. Above program prints <nil>
because zero-value of a channel is nil
. But a nil
channel is not useful. You can not pass data to or read data from a channel which is nil
. Hence, we have to use make
function to create a ready-to-use channel.
![](https://img2018.cnblogs.com/blog/575868/201912/575868-20191209203858349-2080471069.png)
![](https://miro.medium.com/max/1628/1*mLdlgjuT6ZllylQKPSQ5wg.png)
https://play.golang.org/p/N4dU7Ql9bK7
We have used short-hand syntax :=
to make a channel using make
function. The above program yields the following result.
type of `c` is chan int
value of `c` is 0xc0420160c0
Notice value of the channel c
. Looks like it is a memory address. Channels by default are pointers. Mostly, when you want to communicate with a goroutine, you pass the channel as an argument to the function or method. Hence when goroutine receives that channel as an argument, you don’t need to dereference it to push or pull data from that channel.
Data read and write
Go provide very easy to remember left arrow syntax <-
to read and write data from a channel.
c <- data
Above syntax means, we want to push or write data
to the channel c
. Look at the direction of the arrow. It points from data
to channel c
. Hence we can imagine that we are trying to push data
to c
.
<- c
Above syntax means, we want to read some data from channel c
. Look at the direction of the arrow, it starts from the channel c
. This statement does not push data into anything, but still, it’s a valid statement. If you have a variable that can hold the data coming from the channel, you can use below syntax
var data int
data = <- c
Now data coming from the channel c
which is of type int
can be stored into the variable data
of type int
.
Above syntax can be re-written using shorthand syntax as below
data := <- c
Go will figure out the data type of data being transported in channel c
and gives data
a valid data type.
All the above channel operations are blocking by default. In the previous lesson, we saw time.Sleep
blocking a goroutine. Channel operations are also blocking in nature. When some data is written to the channel, goroutine is blocked until some other goroutine reads it from that channel. At the same time, as we seen in concurrency chapter
, channel operations tell the scheduler to schedule another goroutine, that’s why a program doesn’t block forever on the same goroutine. These features of a channel are very useful in goroutines communication as it prevents us from writing manual locks and hacks to make them work with each other.
Channels in practice
Enough talking among us, let’s talk to a goroutine
https://play.golang.org/p/OeYLKEz7qKiLet’s talk about the execution of the above program step by step.
- We declared
greet
function which accepts a channelc
of transport data typestring
. In that function, we are reading data from the channelc
and printing that data to the console. - In the main function, program prints
main started
to the console as it is the first statement. - Then we made the channel
c
of typestring
usingmake
function. - We passed channel
c
to thegreet
function but executed it as a goroutine usinggo
keyword. - At this point, the process has 2 goroutines while active goroutine is
main goroutine
(check the previous lesson to know what it is). Then control goes to the next line. - We pushed a string value
John
to channelc
. At this point, goroutine is blocked until some goroutine reads it. Go scheduler schedulegreet
goroutine and it’s execution starts as per mentioned in the first point. - Then
main goroutine
becomes active and execute the final statement, printingmain stopped
.
Deadlock
As discussed, when we write or read data from a channel, that goroutine is blocked and control is passed to available goroutines. What if there are no other goroutines available, imagine all of them are sleeping. That’s where deadlock
error occurs crashing the whole program.
If you are trying to read data from a channel but channel does not have a value available with it, it blocks the current goroutine and unblocks other in a hope that some goroutine will push a value to the channel. Hence, this read operation will be blocking. Similarly, if you are to send data to a channel, it will block current goroutine and unblock others until some goroutine reads the data from it. Hence, this send operation will be blocking.
A simple example of deadlock would be only main goroutine doing some channel operation.
![](https://miro.medium.com/max/60/1*gZXmlZwi61MQsngF0NdYLg.png?q=20)
![](https://miro.medium.com/max/1678/1*gZXmlZwi61MQsngF0NdYLg.png)
Above program will throw below error in runtime.
main() started
fatal error: all goroutines are asleep - deadlock!goroutine 1 [chan send]:
main.main()
program.Go:10 +0xfd
exit status 2
fatal error: all goroutines are asleep — deadlock!. Seems like all goroutines are asleep or simply no other goroutines are available to schedule.
☛ Closing a channel
A channel can be closed so that no more data can be sent through it. Receiver goroutine can find out the state of the channel using val, ok := <- channel
syntax where ok
is true
if the channel is open or read operations can be performed and false
if the channel is closed and no more read operations can be performed. A channel can be closed using close
built-in function with syntax close(channel)
. Let’s see a simple example.
![](https://miro.medium.com/max/60/1*ZIpjlR3syTarKK0TVF8JRQ.png?q=20)
![](https://miro.medium.com/max/1600/1*ZIpjlR3syTarKK0TVF8JRQ.png)
Just to help you understand blocking concept, first send operation
c <- "John"
is blocking and some goroutine has to read data from the channel, hencegreet
goroutine is scheduled by the Go Scheduler. Then first read operation<-c
is non-blocking because data is present in channelc
to be read from. Second read operation<-c
will be blocking because channelc
does not have any data to be read from, hence Go Scheduler activatesmain
goroutine and program starts execution fromclose(c)
function.
From the above error, we can see that we are trying to send data on a closed channel. To better understand the usability of closed channels, let’s see for
loop.
☛ For loop
An infinite syntax for
loop for{}
can be used to read multiple values sent through a channel.
![](https://miro.medium.com/max/42/1*ibev09eQ9yfzxBCmaBsfQA.png?q=20)
![](https://miro.medium.com/max/1098/1*ibev09eQ9yfzxBCmaBsfQA.png)
In the above example, we are creating goroutine squares
which returns squares of numbers from 0
to 9
one by one. In main
goroutine, we are reading those numbers inside infinite for loop.
In infinite for
loop, since we need a condition to break the loop at some point, we are reading the value from the channel with syntax val, ok := <-c
. Here, ok
will give us additional information when the channel is closed. Hence, in squares
goroutine, after done writing all data, we close the channel using the syntax close(c)
. When ok
is true
, program prints value in val
and channel status ok
. When it is false
, we break out of the loop using break
keyword. Hence, the above program yields the following result.
main() started
0 true
1 true
4 true
9 true
16 true
25 true
36 true
49 true
64 true
81 true
0 false <-- loop broke!
main() stopped
When channel is closed, value read by the goroutine is zero value of the data type of the channel. In this case, since channel is transporting
int
data type, it will be0
as we can see from the result.
To avoid the pain of manually checking for channel closed condition, Go gives easier for range
loop which will automatically close when the channel is closed. Let’s modify our previous above program.
![](https://miro.medium.com/max/48/1*Pr2CGe7m6KyK-RWCrSAhJw.png?q=20)
![](https://miro.medium.com/max/1106/1*Pr2CGe7m6KyK-RWCrSAhJw.png)
In the above program, we used for val := range c
instead of for{}
. range
will read the value from the channel one at a time until it is closed. Hence, the above program yields below result
main() started
0
1
4
9
16
25
36
49
64
81
main() stopped
If you don’t close the channel in
for range
loop, program will throwdeadlock
fetal error in runtime.
☛ Buffer size or channel capacity
As we saw, every send operation on channel blocks the current goroutine. But so far we used make
function without the second parameter. This second parameter is the capacity of a channel or the buffer size. By default, a channel buffer size is 0 also called as unbuffered
channel. Whatever written to the channel is immediately available to read.
When the buffer size is non-zero n
, goroutine is not blocked until after buffer is full. When the buffer is full, any value sent to the channel is added to the buffer by throwing out last value in the buffer which is available to read (where the goroutine will be blocked). But there is a catch, read operation on buffered is thirsty. That means, once read operation starts, it will continue until the buffer is empty. Technically, that means goroutine that reads buffer channel will not block until the buffer is empty.
We can define a buffered channel with the following syntax.
c := make(chan Type, n)
This will create a channel of a data type Type
with buffer size n
. Until the channel receives n+1
send operations, it won’t block the current goroutine.
Let’s prove that goroutine doesn’t block until the buffer is full and overflows.
![](https://miro.medium.com/max/60/1*GseXQg6_UiqX71YNzuIzHw.png?q=20)
![](https://miro.medium.com/max/1092/1*GseXQg6_UiqX71YNzuIzHw.png)
In the above program, channel c
has buffer capacity of 3
. That means it can hold 3
values, which is does at line no. 20 but since the buffer is not overflowing (as we didn’t push any new value), the main goroutine will not block and program exists.
Let’s push send extra value.
![](https://miro.medium.com/max/56/1*Ac_JV7syiGYodvbKnhntSA.png?q=20)
![](https://miro.medium.com/max/1092/1*Ac_JV7syiGYodvbKnhntSA.png)
As stated earlier, as now a filled buffer gets the push by c <- 4
send operation, main goroutine blocks and squares
goroutine drain out all the values.

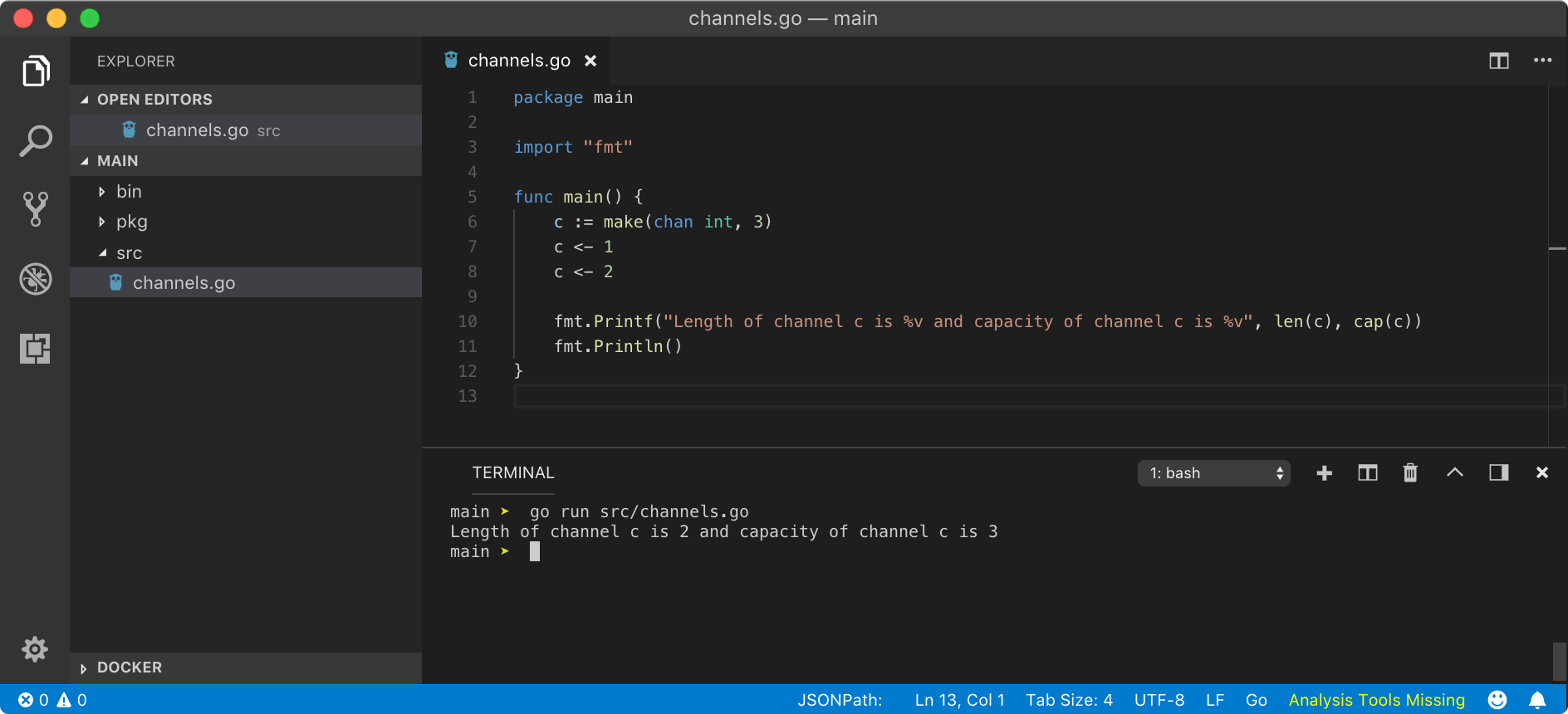

length
and capacity
of a channel
Similar to a slice, a buffered channel has length and capacity. Length of a channel is the number of values queued (unread) in channel buffer while the capacity of a channel is the buffer size. To calculate length, we use len
function while to find out capacity, we use cap
function, just like a slice.
If you are wondering, why the above program runs well and deadlock error was not thrown. This is because, as channel capacity is 3 and only 2 values are available in the buffer, Go did not try to schedule another goroutine by blocking main goroutine execution. You can simply read these value in the main goroutine if you want because even if the buffer is not full, that doesn’t prevent you to read values from the channel.
Here is another cool example
![](https://miro.medium.com/max/60/1*7qH7EdSAWuy21hAzFfWypQ.png?q=20)
![](https://miro.medium.com/max/1384/1*7qH7EdSAWuy21hAzFfWypQ.png)
I have a brain teaser for you.
![](https://miro.medium.com/max/34/1*xtW_yhzwEX-JbEVSE3S0eA.png?q=20)
![](https://miro.medium.com/max/898/1*xtW_yhzwEX-JbEVSE3S0eA.png)
Using buffered channel and for range
, we can read from closed channels. Since for closed channels, data lives in the buffer, we can still extract that data.
![](https://miro.medium.com/max/60/1*gjYR-GuBnQsJIcEJ8RbTNg.png?q=20)
![](https://miro.medium.com/max/1058/1*gjYR-GuBnQsJIcEJ8RbTNg.png)
Buffered channels are like Pythagoras Cup, watch this interesting video on Pythagoras Cup.
Working with multiple goroutines
Let’s write 2 goroutines, one for calculating the square of integers and other for the cube of integers.
![](https://miro.medium.com/max/42/1*ELgCmt5V4h5zTR2VMhA_nA.png?q=20)
![](https://miro.medium.com/max/1112/1*ELgCmt5V4h5zTR2VMhA_nA.png)
Let’s talk about the execution of the above program step by step.
- We created 2 functions
square
andcube
which we will run as goroutines. Both receive the channel of typeint
as an argument in argumentc
and we read data from it in variablenum
. Then we write data to the channelc
in the next line. - In the main goroutine, we create 2 channels
squareChan
andcubeChan
of typeint
usingmake
function. - Then we run
square
andcube
goroutine. - Since control is still inside the main goroutine,
testNumb
variable gets the value of3
. - Then we push data to
squareChan
andcubeChan
. The main goroutine will be blocked until these channels read it from. Once they read it, the main goroutine will continue execution. - When in the main goroutine, we try to read data from given channels, control will be blocked until these channels write some data from their goroutines. Here, we have used shorthand syntax
:=
to receive data from multiple channels. - Once these goroutines write some data to the channel, the main goroutine will be blocked.
- When the channel write operation is done, the main goroutine starts executing. Then we calculate the sum and print it on the console.
Hence the above program will yield the following result
[main] main() started
[main] sent testNum to squareChan
[square] reading
[main] resuming
[main] sent testNum to cubeChan
[cube] reading
[main] resuming
[main] reading from channels
[main] sum of square and cube of 3 is 36
[main] main() stopped
☛ Unidirectional channels
So far, we have seen channels which can transmit data from both sides or in simple words, channels on which we can do read and write operations. But we can also create channels which are unidirectional in nature. For example, receive-only channels which allow only read operation on them and send-only channels which allow only to write operation on them.
The unidirectional channel is also created using make
function but with additional arrow syntax.
roc := make(<-chan int)
soc := make(chan<- int)
In the above program, roc
is receive-only channel as arrow direction in make
function points away from chan
keyword. While soc
is send-only channel where arrow direction in make
function points towards chan
keyword. They also have a different type.
![](https://miro.medium.com/max/60/1*WzdTXUIJXWsvgHXEgMfRUw.png?q=20)
![](https://miro.medium.com/max/1304/1*WzdTXUIJXWsvgHXEgMfRUw.png)
But what is the use of unidirectional channel? Using unidirectional channels increases the type-safety of a program. Hence the program is less prone to error.
But let’s say that you have a goroutine where you need to only read data from a channel but main
goroutine needs to read and write data from/to the same channel. How that will work?
Luckily, Go provide easier syntax to convert bi-directional channel to unidirectional channel.
![](https://miro.medium.com/max/60/1*DjlR83ttXZSXt5hm3y_ZMg.png?q=20)
![](https://miro.medium.com/max/1304/1*DjlR83ttXZSXt5hm3y_ZMg.png)
We modified greet
goroutine example to convert bi-directional channel c
to receive-only channel roc
in greet
function. Now we can only read from that channel. Any write operation on it will result in a fetal error "invalid operation: roc <- "some text" (send to receive-only type <-chan string)"
.
☛ Anonymous goroutine
In goroutines
chapter, we learned about anonymous goroutines. We can also implement channels with them. Let’s modify the previous simple example to implement channel in an anonymous goroutine.
This was our earlier example
![](https://miro.medium.com/max/60/1*q-1jNlqnf5lNDiWHcYeNAA.png?q=20)
![](https://miro.medium.com/max/1304/1*q-1jNlqnf5lNDiWHcYeNAA.png)
Below one is the modified example where we made greet
goroutine an anonymous goroutine.
![](https://miro.medium.com/max/60/1*-9_M5GdsZT7DkK5ZwvBPoQ.png?q=20)
![](https://miro.medium.com/max/1304/1*-9_M5GdsZT7DkK5ZwvBPoQ.png)
☛ channel as the data type of channel
Yes, channels are first-class values and can be used anywhere like other values: as struct elements, function arguments, returning values and even like a type for another channel. Here, we are interested in using a channel as the data type of another channel.
![](https://miro.medium.com/max/54/1*DH--_irN-hjWTwf9d8ZFFw.png?q=20)
![](https://miro.medium.com/max/1304/1*DH--_irN-hjWTwf9d8ZFFw.png)
☛ Select
select
is just like switch
without any input argument but it only used for channel operations. The select
statement is used to perform an operation on only one channel out of many, conditionally selected by case
block.
Let’s first see an example, then discuss how it works.
![](https://miro.medium.com/max/48/1*6LuGZevT75yfzC1eAssKHg.png?q=20)
![](https://miro.medium.com/max/1306/1*6LuGZevT75yfzC1eAssKHg.png)
From the above program, we can see that select
statement is just like switch
but instead of boolean operations, we add channel operations like read
or write
or mixed of read
and write
. The select statement is blocking except when it has a default case (we will see that later). Once, one of the case conditions fulfill, it will unblock. So when a case condition fulfills?
If all case statements (channel operations) are blocking then select statement will wait until one of the case statement (its channel operation) unblocks and that case will be executed. If some or all of the channel operations are non-blocking, then one of the non-blocking cases will be chosen randomly and executed immediately.
To explain the above program, we started 2 goroutines with independent channels. Then we introduced select
statement with 2 cases. One case reads a value from chan1
and other from chan2
. Since these channels are unbuffered, read
operation will be blocking (so the write operations). So both the cases of select are blocking. Hence select
will wait until one of the case
becomes unblocking.
When control is at select
statement, the main goroutine will block and it will schedule all goroutines present in the select statement (one at a time), which are service1
and service2
. service1
waits for 3 second
and then unblocks by writing to the chan1
. Similarly, service2
waits for 5 second
and then unblocks by writing to the chan2
. Since service1
unblocks earlier than service2
, case 1 will be unblocked first and hence that case will be executed and other cases (here case 2) will be ignored. Once done with case execution, main
function execution will proceed further.
Above program simulates real world web service where a load balancer gets millions of requests and it has to return a response from one of the services available. Using goroutines, channels and select, we can ask multiple services for a response, and one which responds quickly can be used.
To simulate when all the cases are blocking and response is available nearly at the same time, we can simply remove Sleep
call.
![](https://miro.medium.com/max/48/1*qcRFjcyjfx8vVhdCaYTxcw.png?q=20)
![](https://miro.medium.com/max/1306/1*qcRFjcyjfx8vVhdCaYTxcw.png)
The above program yields the following result (you may get different result)
main() started 0s
service2() started 481µs
Response from service 2 Hello from service 2 981.1µs
main() stopped 981.1µs
but sometimes, it can also be
main() started 0s
service1() started 484.8µs
Response from service 1 Hello from service 1 984µs
main() stopped 984µs
This happens because chan1
and chan2
operations happen at nearly the same time, but still, there is some time difference in execution and scheduling.
To simulate when all the cases are non-blocking and response is available at the same time, we can use a buffered channel.
![](https://miro.medium.com/max/56/1*D5Vmt9_n1E-ZU7nDhwGNBw.png?q=20)
![](https://miro.medium.com/max/1306/1*D5Vmt9_n1E-ZU7nDhwGNBw.png)
The above program yields the following result.
main() started 0s
Response from chan2 Value 1 0s
main() stopped 1.0012ms
In some cases, it can also be
main() started 0s
Response from chan1 Value 1 0s
main() stopped 1.0012ms
In the above program, both channels have 2 values in their buffer. Since we are sending on 2 values in a channel of buffer capacity 2, these channel operations won’t block and control will go to select
statement. Since reading from the buffered channel is non-blocking operation until the entire buffer is empty and we are reading only one value in case condition, all case operations are non-blocking. Hence, Go runtime will select any case
statement at random.
default
case
Like switch
statement, select
statement also has default
case. A default case is non-blocking. But that’s not all, default
case makes select
statement always non-blocking. That means, send
and receive
operation on any channel (buffered or unbuffered) is always non-blocking.
If a value is available on any channel then select
will execute that case. If not then it will immediately execute the default
case.
![](https://miro.medium.com/max/40/1*u8CEJ8wBPirDCTEn-kdweA.png?q=20)
![](https://miro.medium.com/max/980/1*u8CEJ8wBPirDCTEn-kdweA.png)
In the above program, since channels are unbuffered and value is not immediately available on both channel operations, default
case will be executed. If the above select
statement wouldn’t have default
case, select
would have been blocking and the response would have been different.
Since with default
, select
is non-blocking, the scheduler does not get a call from main
goroutine to schedule available goroutines. But we can do that manually by calling time.Sleep
. This way, all goroutines will execute and die, returning control to main
goroutine which will wake up after some time. When main
goroutine wakes up, channels will have values immediately available.
![](https://miro.medium.com/max/40/1*MTYFLxJ6JMIIoJxeZLzCiQ.png?q=20)
![](https://miro.medium.com/max/980/1*MTYFLxJ6JMIIoJxeZLzCiQ.png)
Hence, the above program yields the following result.
main() started 0s
service1() started 0s
service2() started 0s
Response from service 1 Hello from service 1 3.0001805s
main() stopped 3.0001805s
In some case, it could also be
main() started 0s
service1() started 0s
service2() started 0s
Response from service 2 Hello from service 2 3.0000957s
main() stopped 3.0000957s
Deadlock
default
case is useful when no channels are available to send or receive data. To avoid deadlock, we can use default
case. This is possible because all channel operations due to default
case are non-blocking, Go does not schedule any other goroutines to send data to channels if data is not immediately available.
![](https://miro.medium.com/max/52/1*8EsiREe0AmKU8cwACESYYA.png?q=20)
![](https://miro.medium.com/max/982/1*8EsiREe0AmKU8cwACESYYA.png)
Similar to receive, in send operation, if other goroutines are sleeping (not ready to receive value), default
case is executed.
☛ nil
channel
As we know, the default value of a channel is nil
. Hence we can not perform send
or receive
operations on a nil channel. But in a case, when a nil
channel is used in select
statement, it will throw one of the below or both errors.
![](https://miro.medium.com/max/42/1*s-LSV4rbD4wxC_fSpImD4w.png?q=20)
![](https://miro.medium.com/max/986/1*s-LSV4rbD4wxC_fSpImD4w.png)
From the above result, we can see that select (no cases)
means that select
statement is virtually empty because cases with nil channel are ignored. But as empty select{}
statement blocks the main
goroutine and service
goroutine is scheduled in its place, channel operation on nil
channels throws chan send (nil chan)
error. To avoid this, we use default
case.
![](https://miro.medium.com/max/52/1*-pkHV1XquXTZ9ILHzm8tSw.png?q=20)
![](https://miro.medium.com/max/1004/1*-pkHV1XquXTZ9ILHzm8tSw.png)
Above program not-only ignores the case
block but executes the default
statement immediately. Hence scheduler does not get time to schedule service
goroutine. But this is really bad design. You should always check a channel for nil
value.
☛ Adding timeout
Above program is not very useful since only default
case is getting executed. But sometimes, what we want is that any available services should respond in a desirable time, if it doesn’t, then default
case should get executed. This can be done using a case
with a channel operation that unblocks after defined time. This channel operation is provided by time
package’s After
function. Let’s see an example.
![](https://miro.medium.com/max/38/1*QGwXinOA4vVyTGHUL4BaJA.png?q=20)
![](https://miro.medium.com/max/938/1*QGwXinOA4vVyTGHUL4BaJA.png)
Above program, yields the following result after 2 seconds.
main() started 0s
No response received 2.0010958s
main() stopped 2.0010958s
In the above program, <-time.After(2 * time.Second)
unblocks after 2 seconds returning time at which it was unblocked, but here, we are not interested in its return value. Since it also acts like a goroutine, we have 3 goroutines out of which this one unblocks first. Hence, the case corresponding to that goroutine operation gets executed.
This is useful because you don’t want to wait too long for a response from available services, where the user has to wait a long time before getting anything from the service. If we add 10 * time.Second
in the above example, the response from service1
will be printed, I guess that’s obvious now.
☛ Empty select
Like for{}
empty loop, an empty select{}
syntax is also valid but there is a gotcha. As we know, select
statement is blocked until one of the cases unblocks, and since there are no case
statements available to unblock it, the main goroutine will block forever resulting in a deadlock.
![](https://miro.medium.com/max/56/1*Ukk-gzgkYjJTjUUoKCGVHg.png?q=20)
![](https://miro.medium.com/max/956/1*Ukk-gzgkYjJTjUUoKCGVHg.png)
In the above program, as we know select
will block the main
goroutine, the scheduler will schedule another available goroutine which is service
. But after that, it will die and the schedule has to schedule another available goroutine, but since main
routine is blocked and no other goroutines are available, resulting in a deadlock.
main() started
Hello from service!
fatal error: all goroutines are asleep - deadlock!goroutine 1 [select (no cases)]:
main.main()
program.Go:16 +0xba
exit status 2
☛ WaitGroup
Let’s imagine a condition where you need to know if all goroutines finished their job. This is somewhat opposite to select
where you needed only one condition to be true
, but here you need all conditions to be true
in order to unblock the main goroutine. Here the condition is successful channel operation.
WaitGroup is a struct
with a counter
value which tracks how many goroutines were spawned and how many have completed their job. This counter when reaches zero, means all goroutines have done their job.
Let’s dive into an example and see the terminology.
![](https://miro.medium.com/max/46/1*QimR18tMSHg9RpxSOwpaHw.png?q=20)
![](https://miro.medium.com/max/968/1*QimR18tMSHg9RpxSOwpaHw.png)
In the above program, we created empty struct (with zero-value fields) wg
of type sync.WaitGroup
. WaitGroup struct has unexported fields like noCopy
, state1
and sema
whose internal implementation we don’t need to know. This struct has three methods viz. Add
, Wait
and Done
.
Add
method expects one int
argument which is delta
for the WaitGroup counter
. The counter is nothing but an integer with default value 0. It holds how many goroutines are running. When WaitGroup is created, its counter value is 0 and we can increment it by passing delta
as parameter using Add
method. Remember, counter
does not automatically understand when a goroutine was launched, hence we need to manually increment it.
Wait
method is used to block the current goroutine from where it was called. Once counter
reaches 0, that goroutine will unblock. Hence, we need something to decrement the counter.
Done
method decrements the counter. It does not accept any argument, hence it only decrements the counter by 1.
In the above program, after creating wg
, we ran for
loop for 3 times. In each turn, we launched 1 goroutine and incremented the counter by 1. That means, now we have 3 goroutines waiting to be executed and WaitGroup counter is 3. Notice that, we passed a pointer to wg
in goroutine. This is because in goroutine, once we are done with whatever the goroutine was supposed to do, we need to call Done
method to decrement the counter. If wg
was passed as a value, wg
in main
would not get decremented. This is pretty obvious.
After for
loop has done executing, we still did not pass control to other goroutines. This is done by calling Wait
method on wg
like wg.Wait()
. This will block the main goroutine until the counter reaches 0. Once the counter reaches 0 because from 3 goroutines, we called Done
method on wg
3 times, main
goroutine will unblock and starts executing further code.
Hence above program yields below result
main() started
Service called on instance 2
Service called on instance 3
Service called on instance 1
main() stopped
Above result might be different for you guys, as the order of execution of goroutines may vary.
Add
method accept type ofint
, that means delta can also be negative. To know more about this, visit official documentation here.
☛ Worker pool
As from the name, a worker pool
is a collection of goroutines working concurrently to perform a job. In WaitGroup
, we saw a collection of goroutines working concurrently but they did not have a specific job. Once you throw channels in them, they have some job to do and becomes a worker pool.
So the concept behind worker pool is maintaining a pool of worker goroutines which receives some task and returns the result. Once they all done with their job, we collect the result. All of these goroutines use the same channel for individual purpose.
Let’s see a simple example with two channels viz. tasks
and results
.
![](https://miro.medium.com/max/40/1*ronJMvwZhMPC6ngKIFolVg.png?q=20)
![](https://miro.medium.com/max/1110/1*ronJMvwZhMPC6ngKIFolVg.png)
Don’t worry, I am going to explain what’s happening here.
sqrWorker
is a worker function which takestasks
channel,results
channel andid
. The job of this goroutine is to send squares of the number received fromtasks
channel toresults
channel.- In the main function, we created
tasks
andresult
channel with buffer capacity10
. Hence any send operation will be non-blocking until the buffer is full. Hence setting large buffer value is not a bad idea. - Then we spawn multiple instances of
sqrWorker
as goroutines with above two channels and id parameter to get information on which worker is executing a task. - Then we passed 5 tasks to the
tasks
channel which was non-blocking. - Since we are done with tasks channel, we closed it. This is not necessary but it will save a lot of time in the future if some bugs get in.
- Then using for loop, with 5 iterations, we are pulling data from
results
channel. Since read operation on an empty buffer is blocking, a goroutine will be scheduled from the worker pool. Until that goroutine returns some result, the main goroutine will be blocked. - Since we are simulating blocking operation in worker goroutine, that will call the scheduler to schedule another available goroutine until it becomes available. When worker goroutine becomes available, it writes to the
results
channel. As writing to buffered channel is non-blocking until the buffer is full, writing toresults
channel here is non-blocking. Also while current worker goroutine was unavailable, multiple other worker goroutines were executed consuming values intasks
buffer. After all worker goroutines consumed tasks,for range
loop finishes whentasks
channel buffer is empty. It won’t throw deadlock error astasks
channel was closed. - Sometimes, all worker goroutines can be sleeping, so
main
goroutine will wake up and works untilresults
channel buffer is again empty. - After all worker goroutines died,
main
goroutine will regain control and print remaining results fromresults
channel and continue its execution.
Above example is a mouthful but brilliantly explain how multiple goroutines can feed on the same channel and get the job done elegantly. goroutines are powerful when worker’s job is blocking. If you remove, time.Sleep()
call, then only one goroutine will perform the job as no other goroutines are scheduled until for range
loop is done and goroutine dies.
You can get different result like in previous example depending on how fast your system is because if all worker gorutines are blocked even for micro-second,
main
goroutine will wake up as explained.
Now, let’s use WaitGroup
concept of synchronizing goroutines. Using the previous example with WaitGroup
, we can achieve the same results but more elegantly.
![](https://miro.medium.com/max/34/1*ZU8xl8VJ2ilHqJp5DYGbbw.png?q=20)
![](https://miro.medium.com/max/930/1*ZU8xl8VJ2ilHqJp5DYGbbw.png)
Above result looks neat because read operations on results
channel in the main goroutine is non-blocking as result
channel is already populated by result while the main goroutine was blocked by wg.Wait()
call. Using waitGroup
, we can prevent lots of (unnecessary) context switching (scheduling), 7 here compared to 9 in the previous example. But there is a sacrifice, as you have to wait until all jobs are done.
☛ Mutex
Mutex is one of the easiest concepts in Go. But before I explain it, let’s first understand what a race condition is. goroutines have their independent stack and hence they don’t share any data between them. But there might be conditions where some data in heap is shared between multiple goroutines. In that case, multiple goroutines are trying to manipulate data at the same memory location resulting in unexpected results. I will show you one simple example.
![](https://miro.medium.com/max/52/1*Thv6PPSWBS377wNOTxkcgA.png?q=20)
![](https://miro.medium.com/max/1110/1*Thv6PPSWBS377wNOTxkcgA.png)
In the above program, we are spawning 1000 goroutines which increments the value of a global variable i
which initially is at 0
. Since we are implementing WaitGroup
, we want all 1000 goroutines to increment the value of i
one by one resulting final value of i
to be 1000
. When the main goroutine starts executing again after wg.Wait()
call, we are printing i
. Let’s see the final result.
value of i after 1000 operations is 937
What? Why we got less than 1000? Looks like some goroutines did not work. But actually, our program had a race condition. Let’s see what might have happened.
i = i + 1
calculation has 3 steps
- (1) get value of i
- (2) increment value of i by 1
- (3) update value of i with new value
Let’s imagine a scenario where different goroutines were scheduled in between these steps. For example, let’s consider 2 goroutines out of the pool of 1000 goroutines viz. G1 and G2.
G1 starts first when i
is 0
, run first 2 steps and i
is now 1
. But before G1 updates value of i
in step 3, new goroutine G2 is scheduled and it runs all steps. But in case of G2, value of i
is still 0
hence after it executes step 3, i
will be 1. Now G1 is again scheduled to finish step 3 and updates value of i
which is 1
from step 2. In a perfect world where goroutines are scheduled after completing all 3 steps, successful operations of 2 goroutines would have produced the value of i
to be 2
but that’s not the case here. Hence, we can pretty much speculate why our program did not yield value of i
to be 1000
.
So far we learned that goroutines are cooperatively scheduled. Until unless a goroutine blocks with one of the conditions mentioned in concurrency
lesson, another goroutine won’t take its place. And since i = i + 1
is not blocking, why Go scheduler schedules another goroutine?
You should definitely check out this answer on stackoverflow. At any condition, you shouldn’t rely on Go’s scheduling algorithm and implement your own logic to synchronize different goroutines.
One way to make sure that only one goroutine complete all 3 above steps at a time is by implementing the mutex. Mutex (mutual exclusion) is a concept in programming where only one routine (thread) can perform multiple operations at a time. This is done by one routine acquiring the lock on value, do whatever manipulation on the value it has to do and then releasing the lock. When the value is locked, no other routine can read or write to it.
In Go, the mutex data structure (a map) is provided by sync
package. In Go, before performing any operation on a value which might cause race condition, we acquire a lock using mutex.Lock()
method followed by code of operation. Once we are done with the operation, in above program i = i + 1
, we unlock it using mutext.Unlock()
method. When any other goroutine is trying to read or write value of i
when the lock is present, that goroutine will block until the operation is unlocked from the first goroutine. Hence only 1 goroutine can get to read or write value of i
, avoiding race conditions. Remember, any variables present in operation(s) between the lock and unlock will not be available for other goroutines until the whole operation(s) is unlocked.
Let’s modify the previous example with a mutex.
![](https://miro.medium.com/max/48/1*lDHFDD1DKyI8KTC_4He4Iw.png?q=20)
![](https://miro.medium.com/max/1110/1*lDHFDD1DKyI8KTC_4He4Iw.png)
In the above program, we have created one mutex m
and passed a pointer to it to all spawned goroutines. Before we begin operation on i
, we acquired the lock on mutex m
using m.Lock()
syntax and after operation, we unlocked it using m.Unlock()
syntax. Above program yields below result
value of i after 1000 operations is 1000
From the above result, we can see that mutex helped us resolve racing conditions. But the first rule is to avoid shared resources between goroutines.
You can test for race condition in Go using
race
flag while running a program likeGo run -race program.Go
. Read more about race detector here.
Concurrency Patterns
There are tons of ways concurrency makes our day to day programming life easier. Following are few concepts and methodologies using which we can make programs faster and reliable.
Generator
Using channels, we can implement a generator in a much better way. If a generator is computationally expensive, then we might as well do the generation of data concurrently. That way, the program doesn’t have to wait until all data is generated. For example, generating a fibonacci series.
![](https://miro.medium.com/max/52/1*rFKYal44BruN5OQM3AISwA.png?q=20)
![](https://miro.medium.com/max/1108/1*rFKYal44BruN5OQM3AISwA.png)
Using fib
function, we are getting a channel over which we can iterate and make use of data received from it. While inside fib
function, since we have to return a receive-only
channel, we are creating a buffered channel and returning it at the end. The return value of this function will convert this bi-directional channel to unidirectional receive-only channel. While using anonymous goroutine, we are pushing the fibonacci number to this channel using for
loop. Once we are done with for loop, we are closing it from the inside of goroutine. In main
goroutine, using for range
on fib
function call, we are getting direct access to this channel.
fan-in & fan-out
fan-in is a multiplexing strategy where the inputs of several channels are combined to produce an output channel. fan-out is demultiplexing strategy where a single channel is split into multiple channels.
![](https://miro.medium.com/max/60/1*KmwgYxh3tCxU7nwKuopn0Q.png?q=20)
![](https://miro.medium.com/max/1170/1*KmwgYxh3tCxU7nwKuopn0Q.png)
I am not going to explain how the above program is working because I have added comments in the program explaining just that. The above program yields the following result.
