Android RecycleView实现防QQ左滑删除
仿QQ消息列表左滑弹出菜单，标记已读和删除

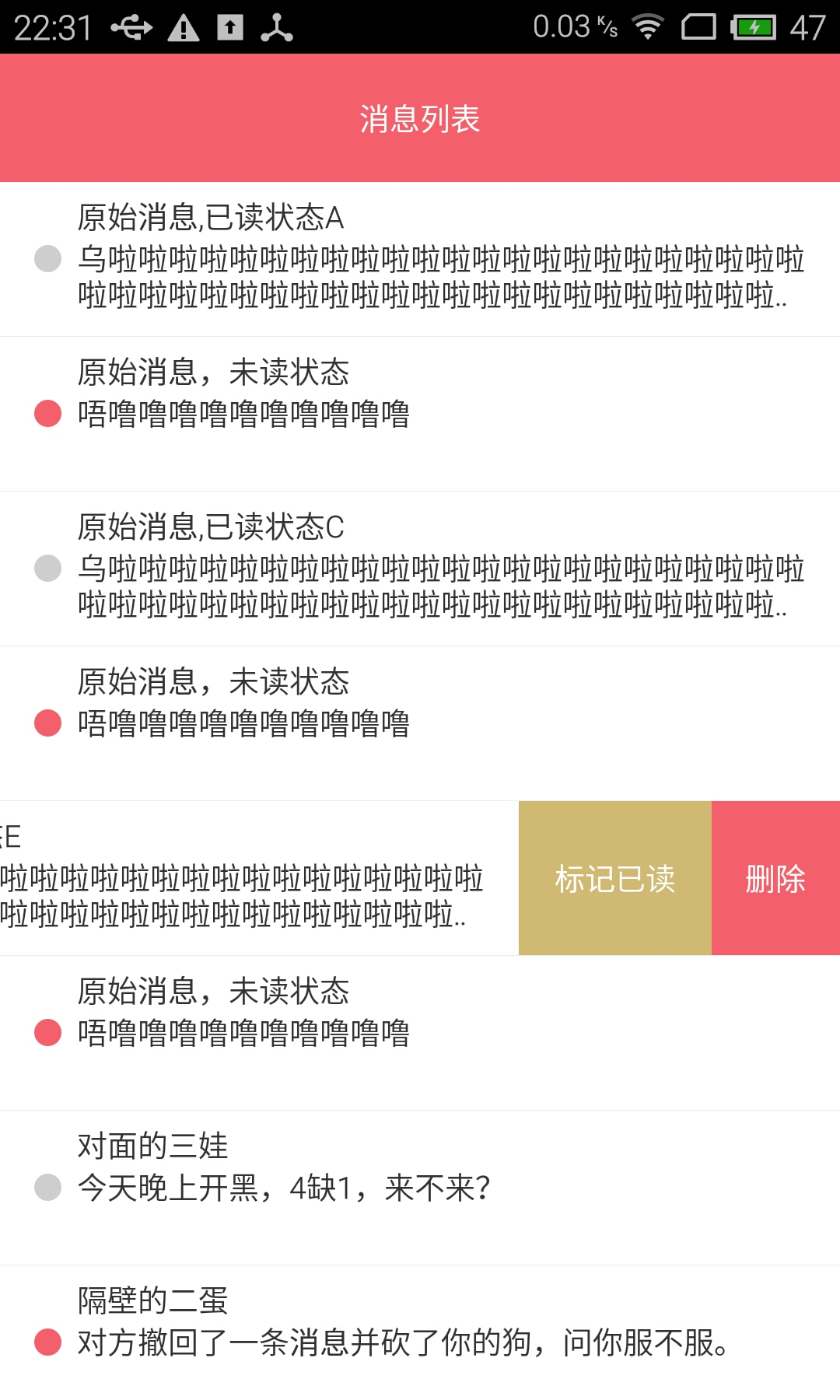

话不多说，看到这样的效果心动了么？
1.先上build .gradle，dependencies里面要这样写，其实就是导入v7里面的recyclerView。要用butterknife的话， 记得加到这里来:
dependencies {
compile fileTree(include: ['*.jar'], dir: 'libs')
testCompile 'junit:junit:4.12'
compile 'com.android.support:support-v4:23.4.0'
compile 'com.android.support:recyclerview-v7:23.2.0'
//butterknife
compile 'com.jakewharton:butterknife:6.1.0'
}- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
2.再来列表的item， item_msg_remind.xml：
<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
android:layout_width="match_parent"
android:layout_height="72dp"
android:background="@color/white"
android:orientation="horizontal">
<!-- 消息主体,width记得match_parent,直接把后面两个布局顶出去 -->
<LinearLayout
android:id="@+id/ll_msg_remind_main"
android:layout_width="match_parent"
android:layout_height="match_parent"
android:background="@color/white"
android:layout_marginLeft="15dp"
android:layout_marginRight="8dp"
android:orientation="horizontal">
<View
android:id="@+id/msg_remind_point"
android:layout_width="15dp"
android:layout_height="15dp"
android:layout_gravity="center_vertical"
android:background="@drawable/shape_remind_point_theme" />
<LinearLayout
android:layout_width="match_parent"
android:layout_height="match_parent"
android:orientation="vertical"
android:padding="6dp">
<TextView
android:id="@+id/tv_remind_title"
android:layout_width="match_parent"
android:layout_height="0dp"
android:layout_weight="1"
android:text="隔壁的二蛋" />
<TextView
android:id="@+id/tv_remind_content"
android:layout_width="match_parent"
android:layout_height="0dp"
android:layout_weight="2"
android:ellipsize="end"
android:maxLines="2"
android:text="对方撤回了一条消息并砍了你的狗" />
</LinearLayout>
</LinearLayout>
<LinearLayout
android:layout_width="90dp"
android:layout_height="match_parent"
android:background="#D1BA74">
<TextView
android:id="@+id/tv_msg_remind_check"
android:layout_width="match_parent"
android:layout_height="match_parent"
android:gravity="center"
android:text="标记已读"
android:textColor="@color/white" />
</LinearLayout>
<LinearLayout
android:layout_width="60dp"
android:layout_height="match_parent"
android:background="@color/theme_color">
<TextView
android:id="@+id/tv_msg_remind_delete"
android:layout_width="match_parent"
android:layout_height="match_parent"
android:gravity="center"
android:text="删除"
android:textColor="@color/white" />
</LinearLayout>
</LinearLayout>- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
- 10
- 11
- 12
- 13
- 14
- 15
- 16
- 17
- 18
- 19
- 20
- 21
- 22
- 23
- 24
- 25
- 26
- 27
- 28
- 29
- 30
- 31
- 32
- 33
- 34
- 35
- 36
- 37
- 38
- 39
- 40
- 41
- 42
- 43
- 44
- 45
- 46
- 47
- 48
- 49
- 50
- 51
- 52
- 53
- 54
- 55
- 56
- 57
- 58
- 59
- 60
- 61
- 62
- 63
- 64
- 65
- 66
- 67
- 68
- 69
- 70
- 71
- 72
- 73
- 74
- 75
- 76
- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
- 10
- 11
- 12
- 13
- 14
- 15
- 16
- 17
- 18
- 19
- 20
- 21
- 22
- 23
- 24
- 25
- 26
- 27
- 28
- 29
- 30
- 31
- 32
- 33
- 34
- 35
- 36
- 37
- 38
- 39
- 40
- 41
- 42
- 43
- 44
- 45
- 46
- 47
- 48
- 49
- 50
- 51
- 52
- 53
- 54
- 55
- 56
- 57
- 58
- 59
- 60
- 61
- 62
- 63
- 64
- 65
- 66
- 67
- 68
- 69
- 70
- 71
- 72
- 73
- 74
- 75
- 76
3.那什么，Adapter来了，MsgRemindAdapter：
package com.simbaliu3.swiperecyclerlist;
import android.content.Context;
import android.support.v7.widget.RecyclerView;
import android.view.LayoutInflater;
import android.view.View;
import android.view.ViewGroup;
import android.widget.LinearLayout;
import android.widget.TextView;
import java.util.ArrayList;
import java.util.List;
import butterknife.ButterKnife;
import butterknife.InjectView;
/**
* 消息adapter
* <p/>
* -->特别注意extends后面Adapter<>里面要写自己定义的ViewHolder
*/
public class MsgRemindAdapter extends RecyclerView.Adapter<MsgRemindAdapter.RemindViewHolder>
implements ItemSlideHelper.Callback {
private Context context;
private List<MsgVo> mDatas = new ArrayList<MsgVo>();
private RecyclerView mRecyclerView;
public MsgRemindAdapter(Context context, List<MsgVo> mDatas) {
this.context = context;
this.mDatas = mDatas;
}
@Override
public RemindViewHolder onCreateViewHolder(ViewGroup parent, int viewType) {
View view = LayoutInflater.from(parent.getContext()).
inflate(R.layout.item_msg_remind, parent, false);
return new RemindViewHolder(view);
}
/**
* 将recyclerView绑定Slide事件
*
* @param recyclerView
*/
@Override
public void onAttachedToRecyclerView(RecyclerView recyclerView) {
super.onAttachedToRecyclerView(recyclerView);
mRecyclerView = recyclerView;
mRecyclerView.addOnItemTouchListener(new ItemSlideHelper(mRecyclerView.getContext(), this));
}
@Override
public void onBindViewHolder(final RemindViewHolder holder, final int position) {
/**
* 消息状态
*/
if (mDatas.get(position).isChecked()) {
holder.msgRemindPoint.setBackgroundResource(R.drawable.shape_remind_point_gray);
} else {
holder.msgRemindPoint.setBackgroundResource(R.drawable.shape_remind_point_theme);
}
//消息标题
holder.tvRemindTitle.setText(mDatas.get(position).getTitle());
//消息内容
holder.tvRemindContent.setText(mDatas.get(position).getContent());
/**
* -->特别注意，敲黑板了啊！！！在执行notify的时候，取position要取holder.getAdapterPosition()，
* 消息被删除之后，他原来的position是final的，所以取到的值不准确，会报数组越界。
*/
//消息主体监听，这里我是让他添加一条数据，替换成你需要的操作即可
holder.llMsgRemindMain.setOnClickListener(new View.OnClickListener() {
@Override
public void onClick(View view) {
addData(mDatas.size());
}
});
//标记已读监听
holder.tvMsgRemindCheck.setOnClickListener(new View.OnClickListener() {
@Override
public void onClick(View view) {
mDatas.get(holder.getAdapterPosition()).setChecked(true);
notifyItemChanged(holder.getAdapterPosition());
}
});
//删除监听
holder.tvMsgRemindDelete.setOnClickListener(new View.OnClickListener() {
@Override
public void onClick(View view) {
removeData(holder.getAdapterPosition());
}
});
}
@Override
public int getItemCount() {
return mDatas.size();
}
/**
* 此方法用来计算水平方向移动的距离
*
* @param holder
* @return
*/
@Override
public int getHorizontalRange(RecyclerView.ViewHolder holder) {
if (holder.itemView instanceof LinearLayout) {
ViewGroup viewGroup = (ViewGroup) holder.itemView;
//viewGroup包含3个控件，即消息主item、标记已读、删除，返回为标记已读宽度+删除宽度
return viewGroup.getChildAt(1).getLayoutParams().width
+ viewGroup.getChildAt(2).getLayoutParams().width;
}
return 0;
}
@Override
public RecyclerView.ViewHolder getChildViewHolder(View childView) {
return mRecyclerView.getChildViewHolder(childView);
}
@Override
public View findTargetView(float x, float y) {
return mRecyclerView.findChildViewUnder(x, y);
}
/**
* 自定义的ViewHolder
*/
public class RemindViewHolder extends RecyclerView.ViewHolder {
@InjectView(R.id.msg_remind_point)
View msgRemindPoint;
@InjectView(R.id.tv_remind_title)
TextView tvRemindTitle;
@InjectView(R.id.tv_remind_content)
TextView tvRemindContent;
@InjectView(R.id.ll_msg_remind_main)
LinearLayout llMsgRemindMain;
@InjectView(R.id.tv_msg_remind_check)
TextView tvMsgRemindCheck;
@InjectView(R.id.tv_msg_remind_delete)
TextView tvMsgRemindDelete;
public RemindViewHolder(View itemView) {
super(itemView);
ButterKnife.inject(this, itemView);
}
}
/**
* 添加单条数据
*
* @param position
*/
public void addData(int position) {
MsgVo vo = new MsgVo();
if (position % 2 == 1) {
vo.setChecked(false);
vo.setTitle("隔壁的二蛋");
vo.setContent("对方撤回了一条消息并砍了你的狗，问你服不服。");
} else {
vo.setChecked(false);
vo.setTitle("对面的三娃");
vo.setContent("今天晚上开黑，4缺1，来不来？");
}
mDatas.add(position, vo);
notifyItemInserted(position);
}
/**
* 删除单条数据
*
* @param position
*/
public void removeData(int position) {
mDatas.remove(position);
notifyItemRemoved(position);
}
}
