《“透视”个人大数据》项目开发小记 --（三）Android APP 开发（2）自定ImageView

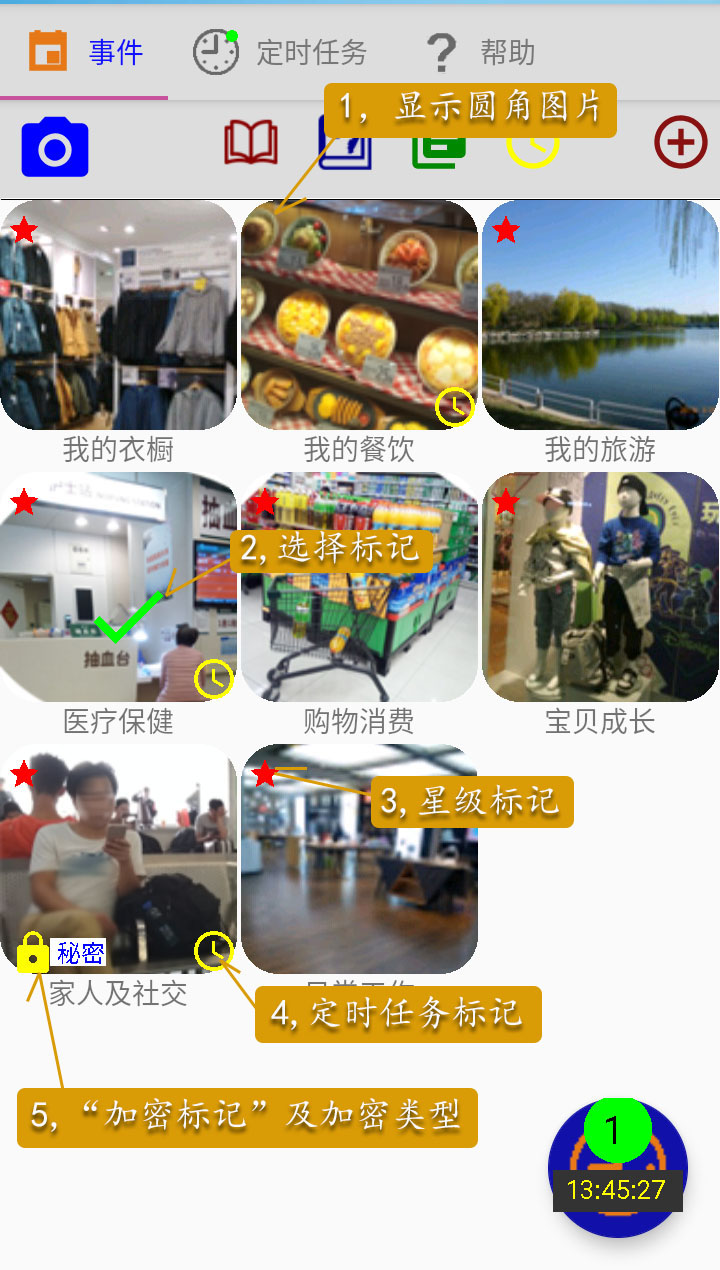

在以图片为主的项目数据表界面中，普遍的应用了自定义的ImageView，这增强了图片的表现力。这里以“事件表”介绍一个自定ImageView的实例。这个自定ImageView通过clipPath实现了圆角图片的显示，通过描绘Vector 图标在图片中，绘出了“选择标记”，“星级标记”，“定时任务标记”，“加密标记”及加密类型。

---- 自定的 ImageView

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

121

122

123

124

125

126

127

128

129

130

131

132

133

134

135

136

137

138

139

140

141

142

143

144

145

package com.bi3eview.newstart60.local.SelfWidget;

import android.graphics.Matrix;
import android.support.v7.widget.AppCompatImageView;
import android.util.DisplayMetrics;
import android.graphics.RectF;
import android.content.Context;
import android.graphics.Canvas;
import android.graphics.Color;
import android.graphics.Paint;
import android.graphics.Path;
import android.util.AttributeSet;

import com.bi3eview.newstart60.local.COMCONST;

public class TextImageView extends AppCompatImageView {
    private static final int TEXT_SIZE = 12;// sp
    private static int BACKGROUND_COLOR = Color.WHITE;
    private static int TEXT_COLOR = Color.BLUE;
    private static int MARKICON_COLOR = Color.YELLOW;
    private static int SELMARK_COLOR = Color.GREEN;
    private static int STAR_COLOR = Color.RED;

    public static String secretName = "se";
    public static String topSecretName = "tse";
    private int secretLockClass = 0;
    private int tasknum = 0;
    private int starClassno = 0;
    private boolean selmarkblv = false;

    public TextImageView(Context context, AttributeSet attrs) {
        super(context, attrs);

    }

    public void setSecretClassno(int isecretClass) {
        secretLockClass = isecretClass;
    }

    public void setTimerTasknum(int iTasknum) {
        tasknum = iTasknum;
    }
    public void setStarClassno(int iStarClassno) {
        starClassno = iStarClassno;
    }
    public void setSelectMark(Boolean setselblv) {
        selmarkblv = setselblv;
    }

    @Override
    public void draw(Canvas canvas) {
        // 设置图片圆角修剪路经
        canvas.save();
        Path borderpath = new Path();
        int w = this.getWidth();
        int h = this.getHeight();
        float fCornerRadius = h/6;
        borderpath.addRoundRect(new RectF(0,0,w,h),fCornerRadius,fCornerRadius,Path.Direction.CW);
        canvas.clipPath(borderpath);
        super.draw(canvas);
        canvas.restore();
        // 描绘标记
        fCornerRadius = 0;
        canvas.save();
        int iwidth = canvas.getWidth();
        int iheight = canvas.getHeight();
        final Paint paint = new Paint();

        final DisplayMetrics dm = getContext().getResources().getDisplayMetrics();
        paint.setColor(MARKICON_COLOR);
        int ifnsize = (int)(TEXT_SIZE*dm.scaledDensity);
        paint.setTextSize(ifnsize);// 设置文字大小
        int ishapesize = (int)(19*dm.scaledDensity);
        paint.setStrokeWidth(1);
        Matrix cmaxtrix = new Matrix();
        Path starpath;
        /** 描绘定时任务标记 */
        if(tasknum > 0) {
            starpath = PathParser.doPath(COMCONST.VECTORPATH_TASK);
            cmaxtrix.setScale(2, 2);
            starpath.transform(cmaxtrix);
            starpath.offset(iwidth - ishapesize - ishapesize / 4, iheight - ishapesize - ishapesize / 4);
            canvas.drawPath(starpath, paint);
        }
        /** 描绘选择标记 */
        if(selmarkblv == true) {
            starpath = PathParser.doPath(COMCONST.VECTORPATH_SELMARK);
            cmaxtrix.reset();
            cmaxtrix.setScale(4, 4);
            starpath.transform(cmaxtrix);
            starpath.offset(iwidth/2 - ishapesize, iheight/2 - ishapesize/2);
            paint.setColor(SELMARK_COLOR);
            canvas.drawPath(starpath, paint);
        }
        /** 描绘星级标记 */
        if(starClassno >= 10){
            int istarjn = starClassno/10;
            starpath = PathParser.doPath(COMCONST.VECTORPATH_STAR);
            cmaxtrix.reset();
            cmaxtrix.setScale((float)1.5, (float)1.5);
            starpath.transform(cmaxtrix);
            starpath.offset(ishapesize/6, ishapesize/3);
            paint.setColor(STAR_COLOR);
            canvas.drawPath(starpath, paint);
            if(istarjn > 1) {
                for(int j = 1;j < istarjn;j++) {
                    starpath.offset(ishapesize, 0);
                    canvas.drawPath(starpath, paint);
                }
            }
        }
        /** 描绘“加密标记”及标注加密类型 */
        if(secretLockClass > 0) {
            paint.setColor(MARKICON_COLOR);
            starpath = PathParser.doPath(COMCONST.VECTORPATH_LOCK);
            cmaxtrix.reset();
            cmaxtrix.setScale(2, 2);
            starpath.transform(cmaxtrix);
            starpath.offset(ishapesize / 4, iheight - ishapesize-ishapesize/5);// (100,100);
            canvas.drawPath(starpath, paint);
            String secretTxt = secretName;//" 秘密 ";
            if(secretLockClass == 2) secretTxt = topSecretName;//" 绝密 ";
            int iclen = secretTxt.length();
            // 设置Rect Path
            Path path = new Path();
            int iLeft = ishapesize / 3+ishapesize;
            if(iclen > 2) iclen = iclen-1;
            int iRight = iLeft+ifnsize*iclen+ifnsize / 3;
            path.addRect(iLeft, iheight-ifnsize-ifnsize/2, iRight, iheight-ifnsize/3, Path.Direction.CW);
            path.setFillType(Path.FillType.WINDING);
            paint.setColor(BACKGROUND_COLOR);
            canvas.drawPath(path, paint);
            paint.setColor(TEXT_COLOR);
            canvas.drawText(secretTxt,ishapesize / 2+ishapesize,iheight-ifnsize/2,paint);
        }
        canvas.restore();

    }

    @Override
    protected void onSizeChanged(int w, int h, int oldw, int oldh) {
        super.onSizeChanged(w, h, oldw, oldh);
    }

}

　　----- 自定ImageView中用到 vector path Parser 的相关代码及数据

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

121

122

123

124

125

126

127

128

129

130

131

132

133

134

135

136

137

138

139

140

141

142

143

144

145

146

147

148

149

150

151

152

153

154

155

156

157

158

159

160

161

162

163

164

165

166

167

168

169

170

171

172

173

174

175

176

177

178

179

180

181

182

183

184

185

186

187

188

189

190

191

192

193

194

195

196

197

198

199

200

201

202

203

204

205

206

207

208

209

210

211

212

213

214

215

216

217

218

219

220

221

222

223

224

225

226

227

228

229

230

231

232

233

234

235

236

237

238

239

240

241

242

243

244

245

246

247

248

249

250

251

252

253

254

255

256

257

258

259

260

261

262

263

264

265

266

267

268

269

270

271

272

273

274

275

276

277

278

279

280

281

282

283

284

285

286

287

288

289

290

291

292

293

294

295

296

297

298

299

300

301

302

303

304

305

306

307

308

309

310

311

312

313

314

package com.bi3eview.newstart60.local.SelfWidget;

import android.graphics.Path;
import android.graphics.RectF;
import android.util.Log;

public class PathParser {

    private static final String TAG = "SvgToPath.TAG";

    /*
     * This is where the hard-to-parse paths are handled.
     * Uppercase rules are absolute positions, lowercase are relative.
     * Types of path rules:
     * <p/>
     * <ol>
     * <li>M/m - (x y)+ - Move to (without drawing)
     * <li>Z/z - (no params) - Close path (back to starting point)
     * <li>L/l - (x y)+ - Line to
     * <li>H/h - x+ - Horizontal ine to
     * <li>V/v - y+ - Vertical line to
     * <li>C/c - (x1 y1 x2 y2 x y)+ - Cubic bezier to
     * <li>S/s - (x2 y2 x y)+ - Smooth cubic bezier to (shorthand that assumes the x2, y2 from previous C/S is the x1, y1 of this bezier)
     * <li>Q/q - (x1 y1 x y)+ - Quadratic bezier to
     * <li>T/t - (x y)+ - Smooth quadratic bezier to (assumes previous control point is "reflection" of last one w.r.t. to current point)
     * </ol>
     * <p/>
     * Numbers are separate by whitespace, comma or nothing at all (!) if they are self-delimiting, (ie. begin with a - sign)
     */
    public static Path doPath(String s) {
        int n = s.length();
        ParserHelper ph = new ParserHelper(s);
        ph.skipWhitespace();
        Path p = new Path();
        float lastX = 0;
        float lastY = 0;
        float lastX1 = 0;
        float lastY1 = 0;
        float contourInitialX = 0;
        float contourInitialY = 0;
        RectF r = new RectF();
        char cmd = 'x';
        while (ph.pos < n) {
            char next = s.charAt(ph.pos);
            if (!Character.isDigit(next) && !(next == '.') && !(next == '-')) {
                cmd = next;
                ph.advance();
            } else if (cmd == 'M') { // implied command
                cmd = 'L';
            } else if (cmd == 'm') { // implied command
                cmd = 'l';
            } else { // implied command
                //ignore
            }
            p.computeBounds(r, true);
            // Log.d(TAG, "  " + cmd + " " + r);
            // Util.debug("* Commands remaining: '" + path + "'.");
            boolean wasCurve = false;
            switch (cmd) {
                case 'M':
                case 'm': {
                    float x = ph.nextFloat();
                    float y = ph.nextFloat();
                    if (cmd == 'm') {
                        p.rMoveTo(x, y);
                        lastX += x;
                        lastY += y;
                    } else {
                        p.moveTo(x, y);
                        lastX = x;
                        lastY = y;
                    }
                    contourInitialX = lastX;
                    contourInitialY = lastY;
                    break;
                }
                case 'Z':
                case 'z': {
                    /// p.lineTo(contourInitialX, contourInitialY);
                    p.close();
                    lastX = contourInitialX;
                    lastY = contourInitialY;
                    break;
                }
                case 'L':
                case 'l': {
                    float x = ph.nextFloat();
                    float y = ph.nextFloat();
                    if (cmd == 'l') {
                        p.rLineTo(x, y);
                        lastX += x;
                        lastY += y;
                    } else {
                        p.lineTo(x, y);
                        lastX = x;
                        lastY = y;
                    }
                    break;
                }
                case 'H':
                case 'h': {
                    float x = ph.nextFloat();
                    if (cmd == 'h') {
                        p.rLineTo(x, 0);
                        lastX += x;
                    } else {
                        p.lineTo(x, lastY);
                        lastX = x;
                    }
                    break;
                }
                case 'V':
                case 'v': {
                    float y = ph.nextFloat();
                    if (cmd == 'v') {
                        p.rLineTo(0, y);
                        lastY += y;
                    } else {
                        p.lineTo(lastX, y);
                        lastY = y;
                    }
                    break;
                }
                case 'C':
                case 'c': {
                    wasCurve = true;
                    float x1 = ph.nextFloat();
                    float y1 = ph.nextFloat();
                    float x2 = ph.nextFloat();
                    float y2 = ph.nextFloat();
                    float x = ph.nextFloat();
                    float y = ph.nextFloat();
                    if (cmd == 'c') {
                        x1 += lastX;
                        x2 += lastX;
                        x += lastX;
                        y1 += lastY;
                        y2 += lastY;
                        y += lastY;
                    }
                    p.cubicTo(x1, y1, x2, y2, x, y);
                    lastX1 = x2;
                    lastY1 = y2;
                    lastX = x;
                    lastY = y;
                    break;
                }
                case 'S':
                case 's': {
                    wasCurve = true;
                    float x2 = ph.nextFloat();
                    float y2 = ph.nextFloat();
                    float x = ph.nextFloat();
                    float y = ph.nextFloat();
                    if (cmd == 's') {
                        x2 += lastX;
                        x += lastX;
                        y2 += lastY;
                        y += lastY;
                    }
                    float x1 = 2 * lastX - lastX1;
                    float y1 = 2 * lastY - lastY1;
                    p.cubicTo(x1, y1, x2, y2, x, y);
                    lastX1 = x2;
                    lastY1 = y2;
                    lastX = x;
                    lastY = y;
                    break;
                }
                case 'A':
                case 'a': {
                    float rx = ph.nextFloat();
                    float ry = ph.nextFloat();
                    float theta = ph.nextFloat();
                    int largeArc = (int) ph.nextFloat();
                    int sweepArc = (int) ph.nextFloat();
                    float x = ph.nextFloat();
                    float y = ph.nextFloat();
                    if (cmd == 'a') {
                        x += lastX;
                        y += lastY;
                    }
                    drawArc(p, lastX, lastY, x, y, rx, ry, theta, largeArc == 1, sweepArc == 1);
                    lastX = x;
                    lastY = y;
                    break;
                }
                case 'T':
                case 't': {
                    wasCurve = true;
                    float x = ph.nextFloat();
                    float y = ph.nextFloat();
                    if (cmd == 't') {
                        x += lastX;
                        y += lastY;
                    }
                    float x1 = 2 * lastX - lastX1;
                    float y1 = 2 * lastY - lastY1;
                    p.cubicTo( lastX, lastY, x1, y1, x, y );
                    lastX = x;
                    lastY = y;
                    lastX1 = x1;
                    lastY1 = y1;
                    break;
                }
                case 'Q':
                case 'q': {
                    wasCurve = true;
                    float x1 = ph.nextFloat();
                    float y1 = ph.nextFloat();
                    float x = ph.nextFloat();
                    float y = ph.nextFloat();
                    if (cmd == 'q') {
                        x += lastX;
                        y += lastY;
                        x1 += lastX;
                        y1 += lastY;
                    }
                    p.cubicTo( lastX, lastY, x1, y1, x, y );
                    lastX1 = x1;
                    lastY1 = y1;
                    lastX = x;
                    lastY = y;
                    break;
                }
                default:
                    Log.w(TAG, "Invalid path command: " + cmd);
                    ph.advance();
            }
            if (!wasCurve) {
                lastX1 = lastX;
                lastY1 = lastY;
            }
            ph.skipWhitespace();
        }
        return p;
    }

    /*
     * Elliptical arc implementation based on the SVG specification notes
     * Adapted from the Batik library (Apache-2 license) by SAU
     */
    private static void drawArc(Path path, double x0, double y0, double x, double y, double rx,
                                double ry, double angle, boolean largeArcFlag, boolean sweepFlag) {
        double dx2 = (x0 - x) / 2.0;
        double dy2 = (y0 - y) / 2.0;
        angle = Math.toRadians(angle % 360.0);
        double cosAngle = Math.cos(angle);
        double sinAngle = Math.sin(angle);

        double x1 = (cosAngle * dx2 + sinAngle * dy2);
        double y1 = (-sinAngle * dx2 + cosAngle * dy2);
        rx = Math.abs(rx);
        ry = Math.abs(ry);

        double Prx = rx * rx;
        double Pry = ry * ry;
        double Px1 = x1 * x1;
        double Py1 = y1 * y1;

        // check that radii are large enough
        double radiiCheck = Px1 / Prx + Py1 / Pry;
        if (radiiCheck > 1) {
            rx = Math.sqrt(radiiCheck) * rx;
            ry = Math.sqrt(radiiCheck) * ry;
            Prx = rx * rx;
            Pry = ry * ry;
        }

        // Step 2 : Compute (cx1, cy1)
        double sign = (largeArcFlag == sweepFlag) ? -1 : 1;
        double sq = ((Prx * Pry) - (Prx * Py1) - (Pry * Px1))
                / ((Prx * Py1) + (Pry * Px1));
        sq = (sq < 0) ? 0 : sq;
        double coef = (sign * Math.sqrt(sq));
        double cx1 = coef * ((rx * y1) / ry);
        double cy1 = coef * -((ry * x1) / rx);

        double sx2 = (x0 + x) / 2.0;
        double sy2 = (y0 + y) / 2.0;
        double cx = sx2 + (cosAngle * cx1 - sinAngle * cy1);
        double cy = sy2 + (sinAngle * cx1 + cosAngle * cy1);

        // Step 4 : Compute the angleStart (angle1) and the angleExtent (dangle)
        double ux = (x1 - cx1) / rx;
        double uy = (y1 - cy1) / ry;
        double vx = (-x1 - cx1) / rx;
        double vy = (-y1 - cy1) / ry;
        double p, n;

        // Compute the angle start
        n = Math.sqrt((ux * ux) + (uy * uy));
        p = ux; // (1 * ux) + (0 * uy)
        sign = (uy < 0) ? -1.0 : 1.0;
        double angleStart = Math.toDegrees(sign * Math.acos(p / n));

        // Compute the angle extent
        n = Math.sqrt((ux * ux + uy * uy) * (vx * vx + vy * vy));
        p = ux * vx + uy * vy;
        sign = (ux * vy - uy * vx < 0) ? -1.0 : 1.0;
        double angleExtent = Math.toDegrees(sign * Math.acos(p / n));
        if (!sweepFlag && angleExtent > 0) {
            angleExtent -= 360f;
        } else if (sweepFlag && angleExtent < 0) {
            angleExtent += 360f;
        }
        angleExtent %= 360f;
        angleStart %= 360f;

        RectF oval = new RectF((float) (cx - rx), (float) (cy - ry), (float) (cx + rx), (float) (cy + ry));
        path.addArc(oval, (float) angleStart, (float) angleExtent);
    }

}

　　------ vector path 数据表

package com.bi3eview.newstart60.local;

import android.Manifest;
import android.app.Activity;
import android.content.Context;
import android.content.SharedPreferences;
import android.content.pm.PackageManager;
import android.graphics.Bitmap;
import android.graphics.Color;
import android.os.Build;
import android.database.Cursor;
import android.os.Environment;
import android.support.v4.app.ActivityCompat;
import android.support.v4.content.ContextCompat;
import android.media.Ringtone;
import android.media.RingtoneManager;
import android.net.Uri;
import android.view.Gravity;
import android.view.View;
import android.widget.EditText;
import android.text.InputFilter;
import android.widget.Toast;
import android.widget.ImageView;
import android.widget.TextView;
import android.widget.LinearLayout;

import java.io.File;
import java.io.FileNotFoundException;
import java.io.FileOutputStream;
import java.io.IOException;
import java.text.SimpleDateFormat;
import java.util.Date;
import java.util.List;
import java.util.ArrayList;
import java.util.Timer;
import java.util.TimerTask;

public class COMCONST {
    // 。。。。。。
    // vector path
    public static final String VECTORPATH_TASK = "M11.99,2C6.47,2 2,6.48 2,12s4.47,10 9.99,10C17.52,22 22,17.52 22,12S17.52,2 11.99,2zM12,20c-4.42,0 -8,-3.58 -8,-8s3.58,-8 8,-8 8,3.58 8,8 -3.58,8 -8,8zM12.5,7H11v6l5.25,3.15 0.75,-1.23 -4.5,-2.67z";
    public static final String VECTORPATH_STAR = "M12,17.27L18.18,21l-1.64,-7.03L22,9.24l-7.19,-0.61L12,2 9.19,8.63 2,9.24l5.46,4.73L5.82,21z";
    public static final String VECTORPATH_SELMARK = "M9,16.17L4.83,12l-1.42,1.41L9,19 21,7l-1.41,-1.41z";
    public static final String VECTORPATH_LOCK = "M18,8h-1L17,6c0,-2.76 -2.24,-5 -5,-5S7,3.24 7,6v2L6,8c-1.1,0 -2,0.9 -2,2v10c0,1.1 0.9,2 2,2h12c1.1,0 2,-0.9 2,-2L20,10c0,-1.1 -0.9,-2 -2,-2zM12,17c-1.1,0 -2,-0.9 -2,-2s0.9,-2 2,-2 2,0.9 2,2 -0.9,2 -2,2zM15.1,8L8.9,8L8.9,6c0,-1.71 1.39,-3.1 3.1,-3.1 1.71,0 3.1,1.39 3.1,3.1v2z";;
    // 。。。。
}
