Fresco源码解析 - DataSource怎样存储数据

datasource是一个独立的 package，与FB导入的guava包都在同一个工程内 - fbcore。

fbcore的工程结构

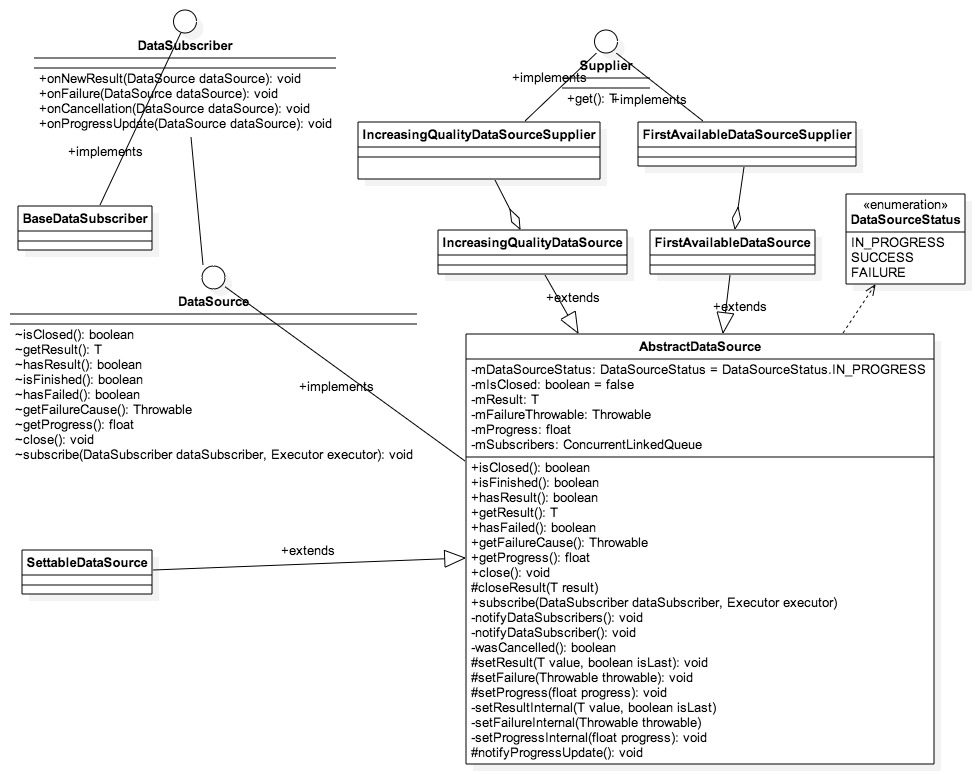

datasource的类关系比较简单，一张类图基本就可以描述清楚它们间的关系。

datasource uml diagram

DataSource 是一个 interface，功能与JDK中的Future类似，但是相比于Future，它的先进之处则在于不仅仅只生产一个单一的结果，而是能够提供系列结果。

Unlike Futures, DataSource can issue a series of results, rather than just one.

最典型的用途就是渐进式加载图片时可以提供加载中的中间数据。

DataSubscriber 和 DataSource 构成了一个观察者模式。

Datasource 提供了注册方法。

<code class="hljs cs has-numbering" style="display: block; padding: 0px; color: inherit; box-sizing: border-box; font-family: 'Source Code Pro', monospace;font-size:undefined; white-space: pre; border-radius: 0px; word-wrap: normal; background: transparent;"><span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">void</span> subscribe(DataSubscriber<T> dataSubscriber, Executor executor);</code><ul class="pre-numbering" style="box-sizing: border-box; position: absolute; width: 50px; top: 0px; left: 0px; margin: 0px; padding: 6px 0px 40px; border-right-width: 1px; border-right-style: solid; border-right-color: rgb(221, 221, 221); list-style: none; text-align: right; background-color: rgb(238, 238, 238);"><li style="box-sizing: border-box; padding: 0px 5px;">1</li></ul>

通过 subscribe 方法我们可以把 DataSubscriber 注册成为 DataSource 的观察者，然后当 DataSource 的数据发生变化时，在 Executor 中通知所有的观察者 - DataSubscriber。

DataSubscriber 会响应数据的四种变化。

onNewResult
onFailure
onCancellation
onProgressUpdate

使用Executor来通知观察者是比较高明的，这样做可以让回调方法的执行线程交由 DataSubscriber 来处理，增加了灵活性。

DataSource 只是一个接口，没有提供任何实现，AbstractDataSource 实现了 DataSource 后封装了一些基础的操作，例如通知观察者，记录数据状态。

Datasource 的状态记录使用了一个枚举类型。

<code class="language-java hljs  has-numbering" style="display: block; padding: 0px; color: inherit; box-sizing: border-box; font-family: 'Source Code Pro', monospace;font-size:undefined; white-space: pre; border-radius: 0px; word-wrap: normal; background: transparent;"><span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">private</span> <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">enum</span> DataSourceStatus {
  <span class="hljs-comment" style="color: rgb(136, 0, 0); box-sizing: border-box;">// data source has not finished yet</span>
  IN_PROGRESS,

  <span class="hljs-comment" style="color: rgb(136, 0, 0); box-sizing: border-box;">// data source has finished with success</span>
  SUCCESS,

  <span class="hljs-comment" style="color: rgb(136, 0, 0); box-sizing: border-box;">// data source has finished with failure</span>
  FAILURE,
}</code><ul class="pre-numbering" style="box-sizing: border-box; position: absolute; width: 50px; top: 0px; left: 0px; margin: 0px; padding: 6px 0px 40px; border-right-width: 1px; border-right-style: solid; border-right-color: rgb(221, 221, 221); list-style: none; text-align: right; background-color: rgb(238, 238, 238);"><li style="box-sizing: border-box; padding: 0px 5px;">1</li><li style="box-sizing: border-box; padding: 0px 5px;">2</li><li style="box-sizing: border-box; padding: 0px 5px;">3</li><li style="box-sizing: border-box; padding: 0px 5px;">4</li><li style="box-sizing: border-box; padding: 0px 5px;">5</li><li style="box-sizing: border-box; padding: 0px 5px;">6</li><li style="box-sizing: border-box; padding: 0px 5px;">7</li><li style="box-sizing: border-box; padding: 0px 5px;">8</li><li style="box-sizing: border-box; padding: 0px 5px;">9</li><li style="box-sizing: border-box; padding: 0px 5px;">10</li></ul>

这三种状态保存在一个成员变量(mDataSourceStatus)中。

<code class="language-java hljs  has-numbering" style="display: block; padding: 0px; color: inherit; box-sizing: border-box; font-family: 'Source Code Pro', monospace;font-size:undefined; white-space: pre; border-radius: 0px; word-wrap: normal; background: transparent;"><span class="hljs-annotation" style="color: rgb(155, 133, 157); box-sizing: border-box;">@GuardedBy</span>(<span class="hljs-string" style="color: rgb(0, 136, 0); box-sizing: border-box;">"this"</span>)
<span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">private</span> DataSourceStatus mDataSourceStatus;</code><ul class="pre-numbering" style="box-sizing: border-box; position: absolute; width: 50px; top: 0px; left: 0px; margin: 0px; padding: 6px 0px 40px; border-right-width: 1px; border-right-style: solid; border-right-color: rgb(221, 221, 221); list-style: none; text-align: right; background-color: rgb(238, 238, 238);"><li style="box-sizing: border-box; padding: 0px 5px;">1</li><li style="box-sizing: border-box; padding: 0px 5px;">2</li></ul>

AbstractDataSource 构造时，会把 mDataSourceStatus 设置为 IN_PROGRESS。

<code class="language-java hljs  has-numbering" style="display: block; padding: 0px; color: inherit; box-sizing: border-box; font-family: 'Source Code Pro', monospace;font-size:undefined; white-space: pre; border-radius: 0px; word-wrap: normal; background: transparent;"><span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">protected</span> <span class="hljs-title" style="box-sizing: border-box;">AbstractDataSource</span>() {
  mIsClosed = <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">false</span>;
  mDataSourceStatus = DataSourceStatus.IN_PROGRESS;
  mSubscribers = <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">new</span> ConcurrentLinkedQueue<>();
}</code><ul class="pre-numbering" style="box-sizing: border-box; position: absolute; width: 50px; top: 0px; left: 0px; margin: 0px; padding: 6px 0px 40px; border-right-width: 1px; border-right-style: solid; border-right-color: rgb(221, 221, 221); list-style: none; text-align: right; background-color: rgb(238, 238, 238);"><li style="box-sizing: border-box; padding: 0px 5px;">1</li><li style="box-sizing: border-box; padding: 0px 5px;">2</li><li style="box-sizing: border-box; padding: 0px 5px;">3</li><li style="box-sizing: border-box; padding: 0px 5px;">4</li><li style="box-sizing: border-box; padding: 0px 5px;">5</li></ul>

所有的观察者（订阅者）会被放在一个列表中 - mSubscribers。

<code class="language-java hljs  has-numbering" style="display: block; padding: 0px; color: inherit; box-sizing: border-box; font-family: 'Source Code Pro', monospace;font-size:undefined; white-space: pre; border-radius: 0px; word-wrap: normal; background: transparent;"><span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">private</span> <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">final</span> ConcurrentLinkedQueue<Pair<DataSubscriber<T>, Executor>> mSubscribers;</code><ul class="pre-numbering" style="box-sizing: border-box; position: absolute; width: 50px; top: 0px; left: 0px; margin: 0px; padding: 6px 0px 40px; border-right-width: 1px; border-right-style: solid; border-right-color: rgb(221, 221, 221); list-style: none; text-align: right; background-color: rgb(238, 238, 238);"><li style="box-sizing: border-box; padding: 0px 5px;">1</li></ul>

如果当前的数据请求没有关闭并且满足mDataSourceStatus == DataSourceStatus.IN_PROGRESS时才能注册成功观察者，因为只有当数据发生变化的时候，观察者才有存在的意义。

<code class="language-java hljs  has-numbering" style="display: block; padding: 0px; color: inherit; box-sizing: border-box; font-family: 'Source Code Pro', monospace;font-size:undefined; white-space: pre; border-radius: 0px; word-wrap: normal; background: transparent;">  <span class="hljs-annotation" style="color: rgb(155, 133, 157); box-sizing: border-box;">@Override</span>
<span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">public</span> <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">void</span> <span class="hljs-title" style="box-sizing: border-box;">subscribe</span>(<span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">final</span> DataSubscriber<T> dataSubscriber, <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">final</span> Executor executor) {
  Preconditions.checkNotNull(dataSubscriber);
  Preconditions.checkNotNull(executor);
  <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">boolean</span> shouldNotify;

  <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">synchronized</span>(<span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">this</span>) {
    <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">if</span> (mIsClosed) {
      <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">return</span>;
    }

    <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">if</span> (mDataSourceStatus == DataSourceStatus.IN_PROGRESS) {
      mSubscribers.add(Pair.create(dataSubscriber, executor));
    }

    shouldNotify = hasResult() || isFinished() || wasCancelled();
  }

  <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">if</span> (shouldNotify) {
    notifyDataSubscriber(dataSubscriber, executor, hasFailed(), wasCancelled());
  }
}</code><ul class="pre-numbering" style="box-sizing: border-box; position: absolute; width: 50px; top: 0px; left: 0px; margin: 0px; padding: 6px 0px 40px; border-right-width: 1px; border-right-style: solid; border-right-color: rgb(221, 221, 221); list-style: none; text-align: right; background-color: rgb(238, 238, 238);"><li style="box-sizing: border-box; padding: 0px 5px;">1</li><li style="box-sizing: border-box; padding: 0px 5px;">2</li><li style="box-sizing: border-box; padding: 0px 5px;">3</li><li style="box-sizing: border-box; padding: 0px 5px;">4</li><li style="box-sizing: border-box; padding: 0px 5px;">5</li><li style="box-sizing: border-box; padding: 0px 5px;">6</li><li style="box-sizing: border-box; padding: 0px 5px;">7</li><li style="box-sizing: border-box; padding: 0px 5px;">8</li><li style="box-sizing: border-box; padding: 0px 5px;">9</li><li style="box-sizing: border-box; padding: 0px 5px;">10</li><li style="box-sizing: border-box; padding: 0px 5px;">11</li><li style="box-sizing: border-box; padding: 0px 5px;">12</li><li style="box-sizing: border-box; padding: 0px 5px;">13</li><li style="box-sizing: border-box; padding: 0px 5px;">14</li><li style="box-sizing: border-box; padding: 0px 5px;">15</li><li style="box-sizing: border-box; padding: 0px 5px;">16</li><li style="box-sizing: border-box; padding: 0px 5px;">17</li><li style="box-sizing: border-box; padding: 0px 5px;">18</li><li style="box-sizing: border-box; padding: 0px 5px;">19</li><li style="box-sizing: border-box; padding: 0px 5px;">20</li><li style="box-sizing: border-box; padding: 0px 5px;">21</li><li style="box-sizing: border-box; padding: 0px 5px;">22</li></ul>

如果 DataSource 有了新的数据或者请求已经结束掉或被取消掉，会通知观察者。

<code class="language-java hljs  has-numbering" style="display: block; padding: 0px; color: inherit; box-sizing: border-box; font-family: 'Source Code Pro', monospace;font-size:undefined; white-space: pre; border-radius: 0px; word-wrap: normal; background: transparent;"><span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">private</span> <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">void</span> <span class="hljs-title" style="box-sizing: border-box;">notifyDataSubscribers</span>() {
  <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">final</span> <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">boolean</span> isFailure = hasFailed();
  <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">final</span> <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">boolean</span> isCancellation = wasCancelled();
  <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">for</span> (Pair<DataSubscriber<T>, Executor> pair : mSubscribers) {
    notifyDataSubscriber(pair.first, pair.second, isFailure, isCancellation);
  }
}

<span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">private</span> <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">void</span> <span class="hljs-title" style="box-sizing: border-box;">notifyDataSubscriber</span>(
    <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">final</span> DataSubscriber<T> dataSubscriber,
    <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">final</span> Executor executor,
    <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">final</span> <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">boolean</span> isFailure,
    <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">final</span> <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">boolean</span> isCancellation) {
  executor.execute(
      <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">new</span> Runnable() {
        <span class="hljs-annotation" style="color: rgb(155, 133, 157); box-sizing: border-box;">@Override</span>
        <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">public</span> <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">void</span> <span class="hljs-title" style="box-sizing: border-box;">run</span>() {
          <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">if</span> (isFailure) {
            dataSubscriber.onFailure(AbstractDataSource.<span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">this</span>);
          } <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">else</span> <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">if</span> (isCancellation) {
            dataSubscriber.onCancellation(AbstractDataSource.<span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">this</span>);
          } <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">else</span> {
            dataSubscriber.onNewResult(AbstractDataSource.<span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">this</span>);
          }
        }
      });
}</code><ul class="pre-numbering" style="box-sizing: border-box; position: absolute; width: 50px; top: 0px; left: 0px; margin: 0px; padding: 6px 0px 40px; border-right-width: 1px; border-right-style: solid; border-right-color: rgb(221, 221, 221); list-style: none; text-align: right; background-color: rgb(238, 238, 238);"><li style="box-sizing: border-box; padding: 0px 5px;">1</li><li style="box-sizing: border-box; padding: 0px 5px;">2</li><li style="box-sizing: border-box; padding: 0px 5px;">3</li><li style="box-sizing: border-box; padding: 0px 5px;">4</li><li style="box-sizing: border-box; padding: 0px 5px;">5</li><li style="box-sizing: border-box; padding: 0px 5px;">6</li><li style="box-sizing: border-box; padding: 0px 5px;">7</li><li style="box-sizing: border-box; padding: 0px 5px;">8</li><li style="box-sizing: border-box; padding: 0px 5px;">9</li><li style="box-sizing: border-box; padding: 0px 5px;">10</li><li style="box-sizing: border-box; padding: 0px 5px;">11</li><li style="box-sizing: border-box; padding: 0px 5px;">12</li><li style="box-sizing: border-box; padding: 0px 5px;">13</li><li style="box-sizing: border-box; padding: 0px 5px;">14</li><li style="box-sizing: border-box; padding: 0px 5px;">15</li><li style="box-sizing: border-box; padding: 0px 5px;">16</li><li style="box-sizing: border-box; padding: 0px 5px;">17</li><li style="box-sizing: border-box; padding: 0px 5px;">18</li><li style="box-sizing: border-box; padding: 0px 5px;">19</li><li style="box-sizing: border-box; padding: 0px 5px;">20</li><li style="box-sizing: border-box; padding: 0px 5px;">21</li><li style="box-sizing: border-box; padding: 0px 5px;">22</li><li style="box-sizing: border-box; padding: 0px 5px;">23</li><li style="box-sizing: border-box; padding: 0px 5px;">24</li><li style="box-sizing: border-box; padding: 0px 5px;">25</li><li style="box-sizing: border-box; padding: 0px 5px;">26</li><li style="box-sizing: border-box; padding: 0px 5px;">27</li></ul>

使用 DataSource 很重要的一点：不要产生内存泄露，也就是说，用过的资源一定要释放掉。
使用 DataSubscriber 注册成为了观察者后，回调方法都会带回一个 DataSource 的实例，如果请求已经结束后者失败了，拿到数据后一定要把 DataSource 给 close 掉，否则很容易造成 OOM。

BaseDataSubscriber 就是为了防止OOM，它本身的设计也很巧妙。

在毁掉方法 onNewResult 和 onFailure 中加了一个 try - catch，在 try 的 block 中调用子类必须重载的onNewResultImpl 方法，然后在 finally 的 block 中 close DataSource。

DataSourceSubscriber.java

<code class="language-java hljs  has-numbering" style="display: block; padding: 0px; color: inherit; box-sizing: border-box; font-family: 'Source Code Pro', monospace;font-size:undefined; white-space: pre; border-radius: 0px; word-wrap: normal; background: transparent;"><span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">public</span> <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">abstract</span> <span class="hljs-class" style="box-sizing: border-box;"><span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">class</span> <span class="hljs-title" style="box-sizing: border-box; color: rgb(102, 0, 102);">BaseDataSubscriber</span><<span class="hljs-title" style="box-sizing: border-box; color: rgb(102, 0, 102);">T</span>> <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">implements</span> <span class="hljs-title" style="box-sizing: border-box; color: rgb(102, 0, 102);">DataSubscriber</span><<span class="hljs-title" style="box-sizing: border-box; color: rgb(102, 0, 102);">T</span>> {</span>

  <span class="hljs-annotation" style="color: rgb(155, 133, 157); box-sizing: border-box;">@Override</span>
  <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">public</span> <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">void</span> <span class="hljs-title" style="box-sizing: border-box;">onNewResult</span>(DataSource<T> dataSource) {
    <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">try</span> {
      onNewResultImpl(dataSource);
    } <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">finally</span> {
      <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">if</span> (dataSource.isFinished()) {
        dataSource.close();
      }
    }
  }

  <span class="hljs-annotation" style="color: rgb(155, 133, 157); box-sizing: border-box;">@Override</span>
  <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">public</span> <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">void</span> <span class="hljs-title" style="box-sizing: border-box;">onFailure</span>(DataSource<T> dataSource) {
    <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">try</span> {
      onFailureImpl(dataSource);
    } <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">finally</span> {
      dataSource.close();
    }
  }

  <span class="hljs-annotation" style="color: rgb(155, 133, 157); box-sizing: border-box;">@Override</span>
  <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">public</span> <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">void</span> <span class="hljs-title" style="box-sizing: border-box;">onCancellation</span>(DataSource<T> dataSource) {
  }

  <span class="hljs-annotation" style="color: rgb(155, 133, 157); box-sizing: border-box;">@Override</span>
  <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">public</span> <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">void</span> <span class="hljs-title" style="box-sizing: border-box;">onProgressUpdate</span>(DataSource<T> dataSource) {
  }

  <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">protected</span> <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">abstract</span> <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">void</span> <span class="hljs-title" style="box-sizing: border-box;">onNewResultImpl</span>(DataSource<T> dataSource);

  <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">protected</span> <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">abstract</span> <span class="hljs-keyword" style="color: rgb(0, 0, 136); box-sizing: border-box;">void</span> <span class="hljs-title" style="box-sizing: border-box;">onFailureImpl</span>(DataSource<T> dataSource);
}</code><ul class="pre-numbering" style="box-sizing: border-box; position: absolute; width: 50px; top: 0px; left: 0px; margin: 0px; padding: 6px 0px 40px; border-right-width: 1px; border-right-style: solid; border-right-color: rgb(221, 221, 221); list-style: none; text-align: right; background-color: rgb(238, 238, 238);"><li style="box-sizing: border-box; padding: 0px 5px;">1</li><li style="box-sizing: border-box; padding: 0px 5px;">2</li><li style="box-sizing: border-box; padding: 0px 5px;">3</li><li style="box-sizing: border-box; padding: 0px 5px;">4</li><li style="box-sizing: border-box; padding: 0px 5px;">5</li><li style="box-sizing: border-box; padding: 0px 5px;">6</li><li style="box-sizing: border-box; padding: 0px 5px;">7</li><li style="box-sizing: border-box; padding: 0px 5px;">8</li><li style="box-sizing: border-box; padding: 0px 5px;">9</li><li style="box-sizing: border-box; padding: 0px 5px;">10</li><li style="box-sizing: border-box; padding: 0px 5px;">11</li><li style="box-sizing: border-box; padding: 0px 5px;">12</li><li style="box-sizing: border-box; padding: 0px 5px;">13</li><li style="box-sizing: border-box; padding: 0px 5px;">14</li><li style="box-sizing: border-box; padding: 0px 5px;">15</li><li style="box-sizing: border-box; padding: 0px 5px;">16</li><li style="box-sizing: border-box; padding: 0px 5px;">17</li><li style="box-sizing: border-box; padding: 0px 5px;">18</li><li style="box-sizing: border-box; padding: 0px 5px;">19</li><li style="box-sizing: border-box; padding: 0px 5px;">20</li><li style="box-sizing: border-box; padding: 0px 5px;">21</li><li style="box-sizing: border-box; padding: 0px 5px;">22</li><li style="box-sizing: border-box; padding: 0px 5px;">23</li><li style="box-sizing: border-box; padding: 0px 5px;">24</li><li style="box-sizing: border-box; padding: 0px 5px;">25</li><li style="box-sizing: border-box; padding: 0px 5px;">26</li><li style="box-sizing: border-box; padding: 0px 5px;">27</li><li style="box-sizing: border-box; padding: 0px 5px;">28</li><li style="box-sizing: border-box; padding: 0px 5px;">29</li><li style="box-sizing: border-box; padding: 0px 5px;">30</li><li style="box-sizing: border-box; padding: 0px 5px;">31</li><li style="box-sizing: border-box; padding: 0px 5px;">32</li><li style="box-sizing: border-box; padding: 0px 5px;">33</li><li style="box-sizing: border-box; padding: 0px 5px;">34</li></ul>

IncreasingQualityDataSourceSupplier 和 FirstAvailableDataSourceSupplier 是 DataSource 的两种不同的数据存储形式，等后面用到了再做分析。

Supplier 是一个设计比较巧妙的借口，用途非常广泛。

A class that can supply objects of a single type. Semantically, this could be a factory, generator, builder, closure, or something else entirely. No guarantees are implied by this interface.

SettableDataSource 在 set 方法中使用 Guava 的 Preconditions 来做数据合法性检验，它与 DataSource 的区别也是仅此而已。

Preconditions

checkArgument
checkState
checkNotNull
checkElementIndex
checkPositionIndex
checkPositionIndexes

如果 check 结果为 false，则抛出异常。Fresco 的错误处理基本上是用异常做的。
