visionpro根据不连续的区域拟合圆

代码如下:

  public override bool GroupRun(ref string message, ref CogToolResultConstants result)

  {

    // To let the execution stop in this script when a debugger is attached, uncomment the following lines.

    // #if DEBUG

    // if (System.Diagnostics.Debugger.IsAttached) System.Diagnostics.Debugger.Break();

    // #endif

    try

    {

      //初始化fitCircle工具

      Outputs.Flag = false;

      int num = Tools.CogFitCircleTool1.RunParams.NumPoints;

      for (int i = 0; i < num; i++)

      {

        if(Tools.CogFitCircleTool1.RunParams.NumPoints > 0)

          Tools.CogFitCircleTool1.RunParams.DeletePoint(0);

      }

      // Run each tool using the RunTool function

      foreach(ICogTool tool in Tools)

      {

        if (tool.Name.Contains("CogFindCircleTool"))

        {

          RunTool(tool, ref message, ref result);

          //是否接受

          if (tool.RunStatus.Result == CogToolResultConstants.Accept )

          {



            CogFindCircleTool mCir =  tool as CogFindCircleTool;

            //抓住的圆的点的数量

            int mCirclureAreFoundPointNum = mCir.Results.NumPointsFound;

            //3个点可以拟合圆，大于三个，将点添加到拟合圆工具中

            if (mCirclureAreFoundPointNum > 3)

            {

              for (int i = 0; i < mCirclureAreFoundPointNum; i++)

              {

                //循环将第i个FindCircle中的接受点 添加到拟合圆工具中

                if (mCir.Results[i].Found&&mCir.Results[i].Used)

                {

                  Tools.CogFitCircleTool1.RunParams.AddPoint(mCir.Results[i].X, mCir.Results[i].Y);

                }



              }

            }

          }

        }

      }

      //运行工具

      RunTool(Tools.CogFitCircleTool1, ref message, ref result);

      Outputs.Flag = true;

    }

    catch

    {

Outputs.Flag = false;

    }





    return false;

  }

 问题描述如下：

我们需要去拟合一个圆出来，找圆工具只能帮我们忽略部分点位。但是如果产品某区域有问题，需要舍弃某区域，利用不连续的区域去获得圆的各项数据，如何操作？

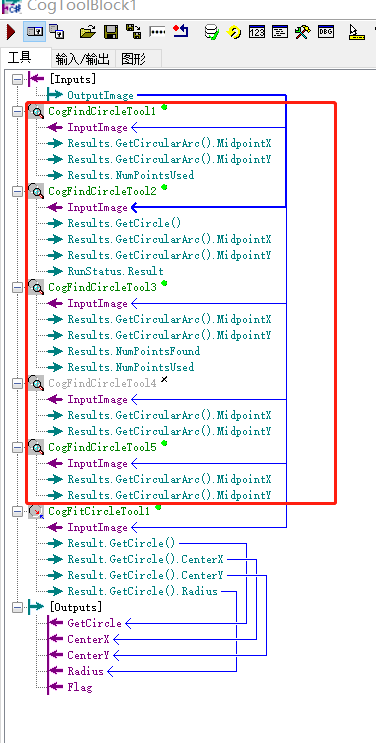

工具大致如下



结束。
