21 FragmentTabHost +Fragment代码案例

注意头导航标签过多会被压缩并
这里写图片描述

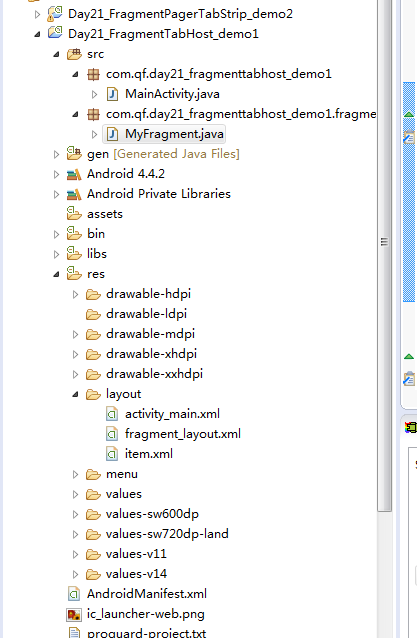

  • 结构
    这里写图片描述

MainActivity.java

package com.qf.day21_fragmenttabhost_demo1;

import com.qf.day21_fragmenttabhost_demo1.fragment.MyFragment;

import android.os.Bundle;
import android.support.v4.app.FragmentActivity;
import android.support.v4.app.FragmentTabHost;
import android.widget.TabHost.TabSpec;

/**
 * 步骤1:找出书签控件
 * 步骤2:初始化化书签控件
 * 步骤3:添加书签到书签控件
 *
 *
 */
public class MainActivity extends FragmentActivity {

    //声明书签控件
    private FragmentTabHost tabHost;

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_main);

        //1找出书签控件
        tabHost = (FragmentTabHost) findViewById(R.id.tabHost);

        //初始化书签控件
        /**
         * 参数1:上下文
         * 参数2:Fragment管理者对象
         * 参数3:接收Fragment的容器
         */
        tabHost.setup(MainActivity.this, getSupportFragmentManager(), R.id.layout_content_id);

        //获取书签的名称
        String[] arryTabs = getResources().getStringArray(R.array.arrTabs);

        //向TabHost添加书签
        for(int i=0;i<arryTabs.length;i++){

            //创建书签     setIndicator设置内容
            TabSpec tabSpec = tabHost.newTabSpec("tab"+i).setIndicator(arryTabs[i]);
            Bundle bundle = new Bundle();
            bundle.putInt("index", i+1);
            /**
             * 添加书签
             *
             * 参数1:书签
             * 参数2:Fragment对象
             * 参数3:是否向Fragment传值
             */
            tabHost.addTab(tabSpec, MyFragment.class, bundle);

        }


    }



}

MyFragment.java

package com.qf.day21_fragmenttabhost_demo1.fragment;

import java.util.ArrayList;
import java.util.HashMap;
import java.util.List;
import java.util.Map;

import android.app.Activity;
import android.os.Bundle;
import android.support.v4.app.ListFragment;
import android.view.LayoutInflater;
import android.view.View;
import android.view.ViewGroup;
import android.widget.SimpleAdapter;
import android.widget.TextView;

import com.qf.day21_fragmenttabhost_demo1.R;

public class MyFragment extends ListFragment {

    private  TextView tvShow;

    private int index =0;

    @Override
    public void onAttach(Activity activity) {
        // TODO Auto-generated method stub
        super.onAttach(activity);

        Bundle bundle = getArguments();
        if(bundle!=null){
            index = bundle.getInt("index");
        }
    }

    @Override
    public void onCreate(Bundle savedInstanceState) {
        // TODO Auto-generated method stub
        super.onCreate(savedInstanceState);
    }

    @Override
    public View onCreateView(LayoutInflater inflater, ViewGroup container,
            Bundle savedInstanceState) {
        // TODO Auto-generated method stub
        View v = inflater.inflate(R.layout.fragment_layout, container, false);

        tvShow = (TextView) v.findViewById(R.id.tv_show);
        return v;
    }

    @Override
    public void onActivityCreated(Bundle savedInstanceState) {
        // TODO Auto-generated method stub
        super.onActivityCreated(savedInstanceState);
        switch (index) {
        case 1:
            tvShow.setText("您点击了书签1");

            break;
        case 2:
            tvShow.setText("您点击了书签2");
            break;
        case 3:
            tvShow.setText("您点击了书签3");
            break;

        default:
            break;
        }

        SimpleAdapter adapter = new SimpleAdapter(
                getActivity(),
                loadNetWorkData(),
                R.layout.item,
                new String[]{"icon","title","content"},
                new int[]{R.id.iv_item,R.id.title_item,R.id.content_item});

        setListAdapter(adapter);

    }

    /**
     * 假设从网络获取数据
     * @return
     */
    private List<Map<String,Object>> loadNetWorkData(){

        List<Map<String,Object>> list = new ArrayList<Map<String,Object>>();
        for(int i=0;i<20;i++){
            Map<String, Object> map = new HashMap<String, Object>();
            map.put("icon", R.drawable.ic_launcher);
            map.put("title", "郭XX大战曹XXX"+i+"tab"+index);
            map.put("content", "降龙十八掌赢"+i+"tab"+index);
            list.add(map);

        }

        return list;

    }

    @Override
    public void onStart() {
        // TODO Auto-generated method stub
        super.onStart();
    }

    @Override
    public void onResume() {
        // TODO Auto-generated method stub
        super.onResume();
    }

    @Override
    public void onPause() {
        // TODO Auto-generated method stub
        super.onPause();
    }

    @Override
    public void onStop() {
        // TODO Auto-generated method stub
        super.onStop();
    }

    @Override
    public void onDestroyView() {
        // TODO Auto-generated method stub
        super.onDestroyView();
    }

    @Override
    public void onDestroy() {
        // TODO Auto-generated method stub
        super.onDestroy();
    }

    @Override
    public void onDetach() {
        // TODO Auto-generated method stub
        super.onDetach();
    }

}

activity_main.xml

<android.support.v4.app.FragmentTabHost
    xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:id="@+id/tabHost"
    tools:context=".MainActivity" >

    <FrameLayout
        android:id="@+id/layout_content_id"
        android:layout_marginTop="50dp"
        android:layout_width="match_parent"
        android:layout_height="match_parent"
     />

</android.support.v4.app.FragmentTabHost>

fragment_layout.xml

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:orientation="vertical" >

    <TextView
        android:id="@+id/tv_show"
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:textColor="#f00"
        android:text="AAA"
        />
    <ListView
        android:id="@android:id/list"
        android:layout_width="match_parent"
        android:layout_height="match_parent"
        ></ListView>


</LinearLayout>
