Linux(kali)使用libpcap抓包并在不影响原有通信基础上转发数据包

Linux(kali)使用libpcap抓包并在不影响原有通信基础上转发数据包

本文链接：https://www.cnblogs.com/muphy/p/14922039.html

也可以直接通过内核抓包而不需要安装libpcap：linux或者Android使用内核ioctl抓包

安装libpacp

sudo apt-get install libpcap

或者

#下载
wget http://www.tcpdump.org/release/libpcap-1.10.1.tar.gz
#解压
tar -zxvf libpcap-1.10.1.tar.gz
cd libpcap-1.10.1
#安装
./configure
make
make install

可能需要先依次安装flex和bsion，安装方式同libpcap

编写抓包及转发代码

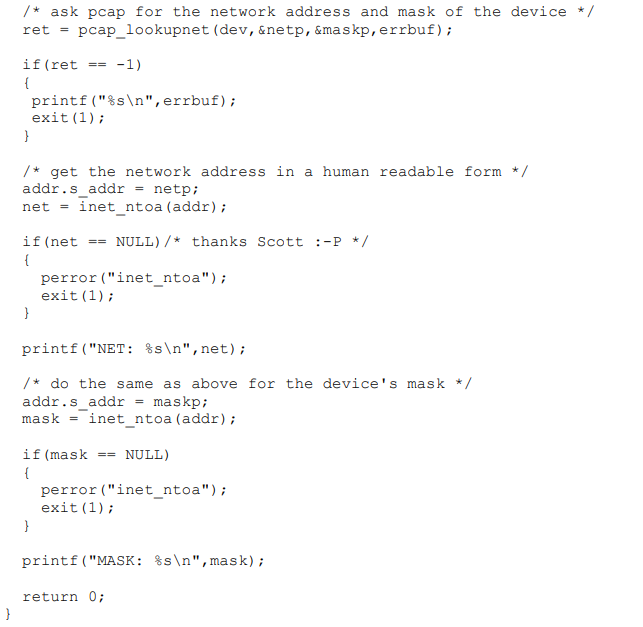

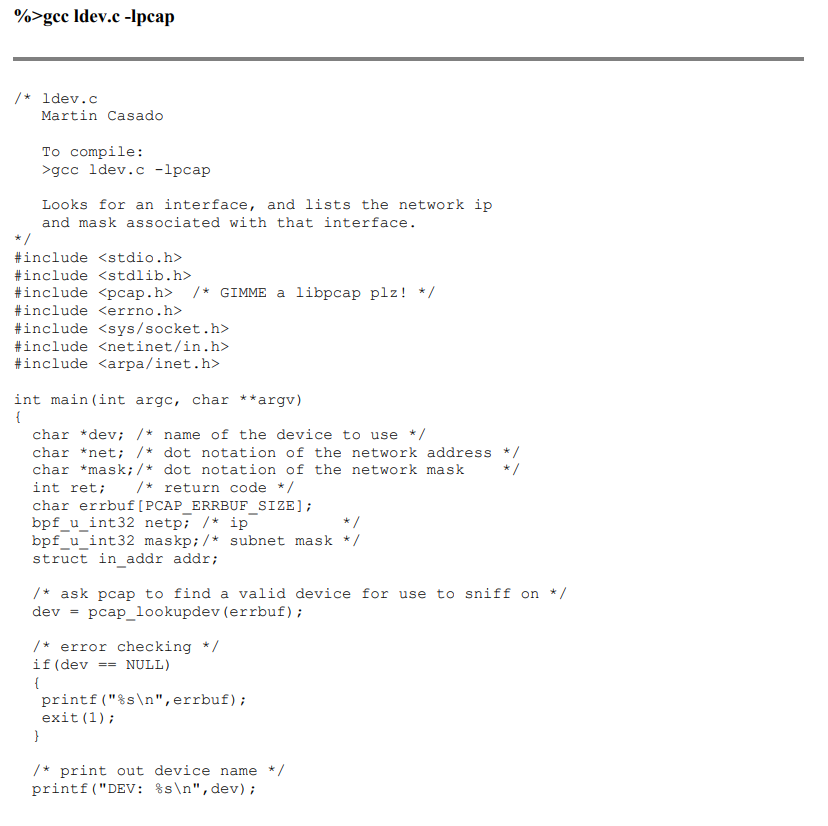

百度收索的使用方式基本上是翻译自文档，强烈推荐直接看文档，https://eecs.wsu.edu/~sshaikot/docs/lbpcap/libpcap-tutorial.pdf



 下面是抓包兼抓发代码，ruphy.c

#include <pcap.h>
#include <time.h>
#include <stdlib.h>
#include <stdio.h>
#include <string.h>
#include <unistd.h>
#include <errno.h>
#include <sys/types.h>
#include <sys/socket.h>
#include <pthread.h>
#include <netinet/in.h>
#include <arpa/inet.h>

//链路层数据包格式
typedef struct {
    u_char DestMac[6];
    u_char SrcMac[6];
    u_char Etype[2];
} ETHHEADER;

//IP层数据包格式
typedef struct {
    int header_len:4;
    int version:4;
    u_char tos:8;
    int total_len:16;
    int ident:16;
    int flags:16;
    u_char ttl:8;
    u_char proto:8;
    int checksum:16;
    u_char sourceIP[4];
    u_char destIP[4];
} IPHEADER;

//协议映射表
char *Proto[]={
    "Reserved","ICMP","IGMP","GGP","IP","ST","TCP"
};

/*
 强调：当客户端连接服务器时，服务器会产生一个新的文件描述符（套接字）与客户端交互，这个新的套接字不是服务器端的监听套接字
 套接字是全双工的，在一个网络管道中的两端，每端都可以进行读写操作。
 */
typedef struct _recvmodel
{
    int sockfd;
    struct sockaddr_in * addr;
} RecvModel;

RecvModel model;
char dev[20];
char filter_port[100];

//send message
void send_msg(const u_char *msg, int len)
{
    if (send(model.sockfd, msg, len, 0) == -1)
    {
        printf("send failed ! error message %s\n", strerror(errno));
    }
}

//recv message
void * recv_thread()
{
    int flag = 0;
    char buf[1024] = { 0 };
    while (1)
    {
        flag = recv(model.sockfd, buf, sizeof(buf), 0);
        if (flag == 0)
        {
            printf("对方已经关闭连接！\n");
            return NULL;
        } else if (flag == -1) {
            printf("recv failed ! error message : %s\n", strerror(errno));
            return NULL;
        }
        printf("%s:%s", inet_ntoa(model.addr->sin_addr), buf);
        memset(buf, 0, sizeof(buf));
    }
    return NULL;
}

//回调函数
void pcap_handle(u_char* user,const struct pcap_pkthdr* header,const u_char* pkt_data)
{
    ETHHEADER *eth_header=(ETHHEADER*)pkt_data;
    printf("---------------Begin Analysis: %d -----------------\n", user);
    printf("Packet length: %d \n",header->len);
    //解析数据包IP头部
    if(header->len>=14){
        IPHEADER *ip_header=(IPHEADER*)(pkt_data+14);
        //解析协议类型
        char strType[100];
        if(ip_header->proto>7)
            strcpy(strType,"IP/UNKNWN");
        else
            strcpy(strType,Proto[ip_header->proto]);
        printf("Source MAC : %02X-%02X-%02X-%02X-%02X-%02X==>",eth_header->SrcMac[0],eth_header->SrcMac[1],eth_header->SrcMac[2],eth_header->SrcMac[3],eth_header->SrcMac[4],eth_header->SrcMac[5]);
        printf("Dest   MAC : %02X-%02X-%02X-%02X-%02X-%02X\n",eth_header->DestMac[0],eth_header->DestMac[1],eth_header->DestMac[2],eth_header->DestMac[3],eth_header->DestMac[4],eth_header->DestMac[5]);
        printf("Source IP : %d.%d.%d.%d==>",ip_header->sourceIP[0],ip_header->sourceIP[1],ip_header->sourceIP[2],ip_header->sourceIP[3]);
        printf("Dest   IP : %d.%d.%d.%d\n",ip_header->destIP[0],ip_header->destIP[1],ip_header->destIP[2],ip_header->destIP[3]);
        printf("Protocol : %s\n",strType);
        //显示数据帧内容
        int i, len;
        len = (int)header->len;
        for(i=0; i<len; ++i)  {
            printf(" %02x", pkt_data[i]);
            if( (i + 1) % 16 == 0 )
                printf("\n");
        }
        printf("\n");

        send_msg(pkt_data, len);
        printf("\n\n");
    }

}

void * listen_thread(void *arg)
{
    pcap_t *handle;        /* Session handle */
    //char dev[] = "eth0";                /* Device to sniff on */
    char errbuf[PCAP_ERRBUF_SIZE];      /* Error string */
    struct bpf_program fp;            /* The compiled filter expression */
    char filter_exp[100] = "port "; // (char *)arg;    /* The filter expression */
    bpf_u_int32 mask;            /* The netmask of our sniffing device */
    bpf_u_int32 net;            /* The IP of our sniffing device */

    printf("000 %s", filter_exp);
    if (pcap_lookupnet(dev, &net, &mask, errbuf) == -1) {
        fprintf(stderr, "Can't get netmask for device %s\n", dev);
        net = 0;
        mask = 0;
    }
    handle = pcap_open_live(dev, BUFSIZ, 1, 1000, errbuf);
    if (handle == NULL) {
        fprintf(stderr, "Couldn't open device %s: %s\n", dev, errbuf);
        goto END;
    }
    printf("111 %s", filter_exp);
    strcat(filter_exp, filter_port);
    printf("222 %s", filter_exp);
    if (pcap_compile(handle, &fp, filter_exp, 0, net) == -1) {
        fprintf(stderr, "Couldn't parse filter %s: %s\n", filter_exp, pcap_geterr(handle));
        goto END;
    }
    if (pcap_setfilter(handle, &fp) == -1) {
        fprintf(stderr, "Couldn't install filter %s: %s\n", filter_exp, pcap_geterr(handle));
        goto END;
    }
     /* wait loop forever */
    int id = 0;
    if( pcap_loop(handle, 10, pcap_handle, (u_char*)&id) < 0){
        fprintf(stderr, "cap error!");
    }
    END: pcap_close(handle);
    printf("333 %s", filter_exp);
    return NULL;
}

int main()
{
    //打开socket
    int sockfd = socket(AF_INET, SOCK_STREAM, 0);
    if (sockfd == -1)
    {
        printf("open socket failed! error message:%s\n", strerror(errno));
        return -1;
    }
    //定义IP地址结构
    struct sockaddr_in addr;
    memset(&addr, 0, sizeof(addr));
    //设置TCP/IP连接
    addr.sin_family=AF_INET;
    //设置端口号
    int port;
    printf("设置转发端口号：");
    scanf("%d", &port);
    addr.sin_port = htons(port);
    //设置允许连接地址
    char ip[20];
    do {
        printf("设置转发IP：");
        scanf("%s", ip);
        printf("ip：%s, port: %d\n", ip, port);
    } while(ip[0] == '\0');

    addr.sin_addr.s_addr = inet_addr(ip);

    do {
        printf("设置TCP抓包过滤端口：");
        scanf("%s", filter_port);
    }while(filter_port[0] == '\0');
    printf("TCP抓包过滤端口：%s\n", filter_port);

    //设置允许连接地址
    do {
        printf("设置监听网卡(如：eth0)：");
        scanf("%s", dev);
    }while(dev[0] == '\0');
    printf("监听网卡：%s\n", dev);

    //connect server
    int numx = connect(sockfd, (struct sockaddr *) &addr, sizeof(addr));
    if (numx == -1)
    {
        printf("connect server failed ! error message :%s\n", strerror(errno));
        goto END;
    }
    model.sockfd = sockfd;
    model.addr = &addr;
    printf("connect server ok ! \n");
    pthread_t thr1, thr2;
    if (pthread_create(&thr1, NULL, listen_thread, NULL) != 0)
    {
        printf("create thread failed ! \n");
        goto END;
    }
    printf("create listen_thread thread ok ! \n");
    if (pthread_create(&thr2, NULL, recv_thread, NULL) != 0)
    {
        printf("create thread failed ! \n");
        goto END;
    }
    printf("create recv_thread thread ok ! \n");
    pthread_join(thr1, NULL);
    pthread_join(thr2, NULL);
    END: close(sockfd);
    return 0;
}



编译及运行

采用gcc静态编译将依赖一起编译成一个文件ruphy.o

gcc ruphy.c -static -lpcap -lpthread -o ruphy.o

运行

chmod 777 ruphy.o
./ruphy.o

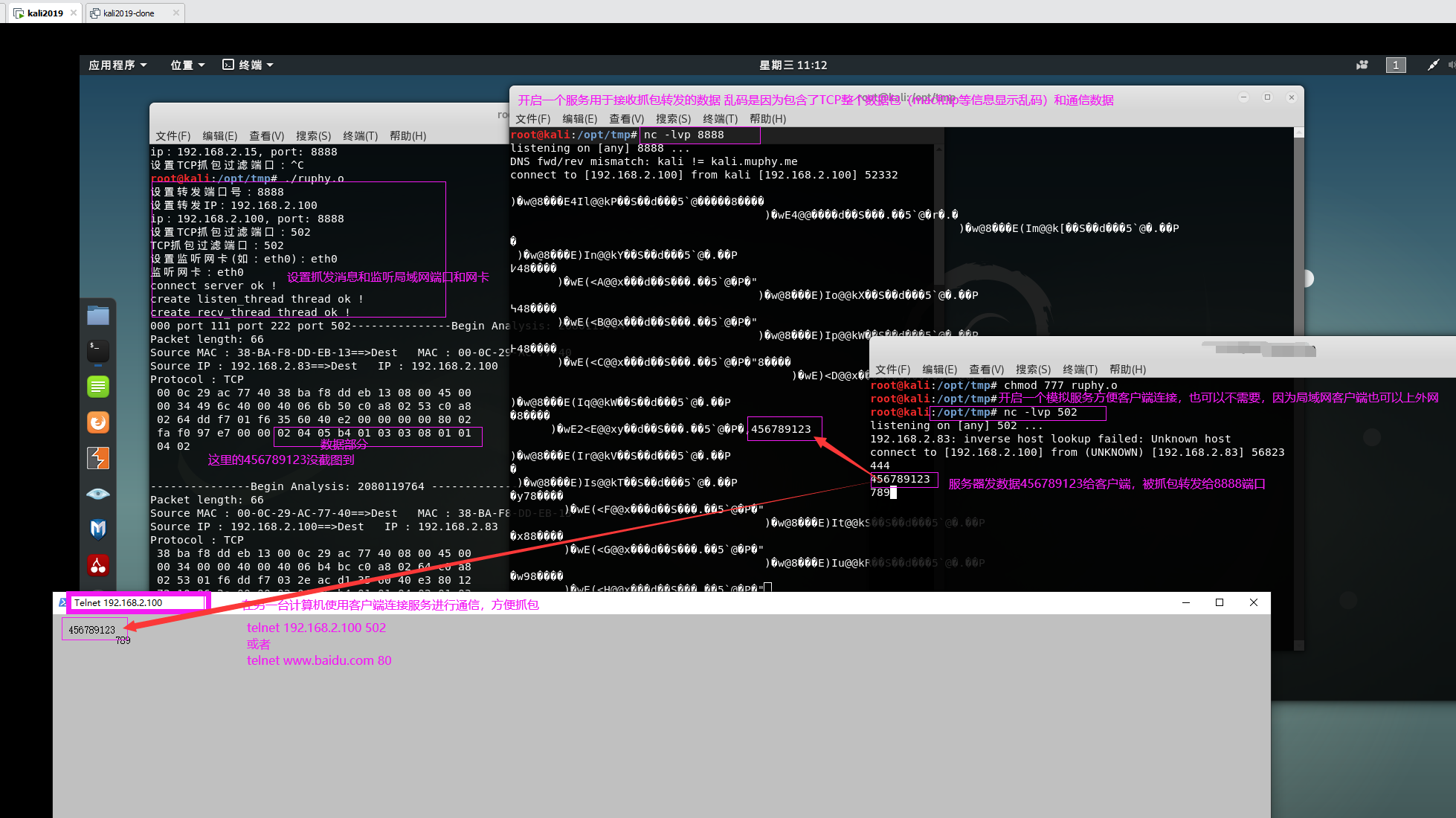

运行时需要设置抓发地址、监听端口和网卡，程序会将网卡设置位混杂模式以便抓取局域网内的所有数据包

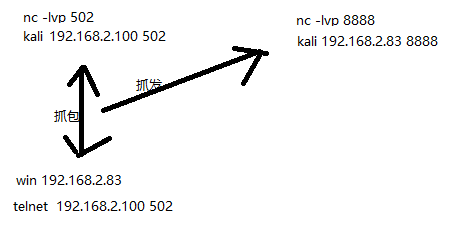

kali ip:192.168.2.100   8888端口用来接收抓发的数据  502端口用来开启TCP服务通信

win10 ip:192.168.2.83  连接kali 502端口建立通信
