利用业余时间。学习一些实用的东西，假设手又有点贱的话。最好还是自己也跟着敲起来
。
在android上能够通过自带的ftp组件来完毕各种功能。这次是由于项目中看到用了Commons-net-ftp的包完毕的，所以就以此试试手。
首先，代码中有所參考借鉴了：Android中使用Apache common ftp进行下载文件 博文
这次是分享关于在android上使用FTP协议(文件传输协议)进行文件的下载、上传的功能。我们能够先了解一下，FTP和HTTP一样都是Internet上广泛使用的协议。用来在两台计算机之间互相传送文件。
相比于HTTP。FTP协议要复杂得多。复杂的原因，是由于FTP协议要用到两个TCP连接，一个是命令链路，用来在FTPclient与server之间传递命令；还有一个是数据链路，用来上传或下载数据。

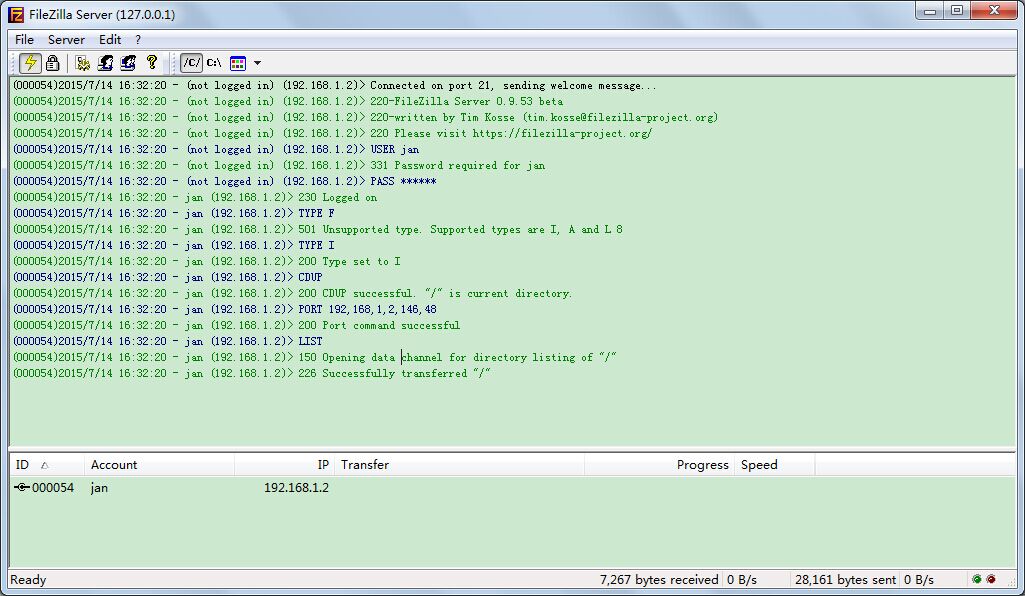

1.为了測试FTP服务。本文中使用的是filezilla server 程序 模拟的。
https://filezilla-project.org/ 这里就不说怎么安装的了，简单就是设置ip和用户权限什么的。

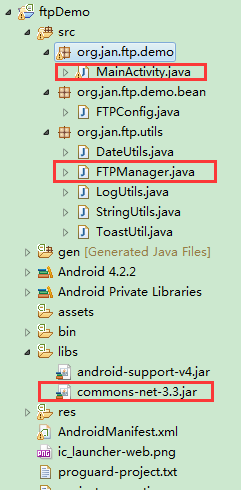

2.demo的结构，一如既往，红框内的是重点。jar包可在Apache上下载（http://commons.apache.org/proper/commons-net/download_net.cgi）

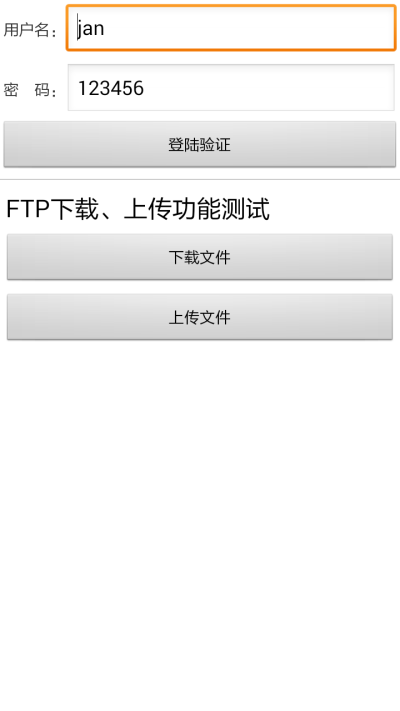

3.主界面和源码
MainActivity.java (代码非常粗糙，但将就着看吧)
/**
* ftp demo的主界面
* @author jan
*
*/
public class MainActivity extends Activity implements OnClickListener {
private static final String TAG = "MainActivity";
private static final int SHOW_DIALOG = 1000;
private static final int HIDE_DIALOG = 1001;
private Button mLoginButton;
private EditText mUserEt;
private EditText mPasswordEt;
private Button mDownloadBtn;
private Button mUploadBtn;
private FTPManager mFtpManager;
private InputMethodManager mImm;
private ProgressDialog mProgressDialog;
private Handler mHandler = new Handler() {
@Override
public void handleMessage(Message msg) {
if (msg.what == SHOW_DIALOG) {
showProgressDialog(msg.obj == null ? "请等待..." : msg.obj
.toString());
} else if (msg.what == HIDE_DIALOG) {
hideProgressDialog();
}
}
};
@Override
protected void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
requestWindowFeature(Window.FEATURE_NO_TITLE);
getWindow().setFlags(WindowManager.LayoutParams.FLAG_FULLSCREEN,
WindowManager.LayoutParams.FLAG_FULLSCREEN);
setContentView(R.layout.main);
mImm = (InputMethodManager) getSystemService(Context.INPUT_METHOD_SERVICE);
initView();
FTPConfig config = new FTPConfig("192.168.1.29", 21);
config.user = "jan";
config.pwd = "123456";
mUserEt.setText(config.user);
mPasswordEt.setText(config.pwd);
mFtpManager = FTPManager.getInstance(config);
}
private void initView() {
mLoginButton = (Button) findViewById(R.id.login_button);
mLoginButton.setOnClickListener(this);
mUserEt = (EditText) findViewById(R.id.username_et);
mPasswordEt = (EditText) findViewById(R.id.password_et);
mDownloadBtn = (Button) findViewById(R.id.button1);
mDownloadBtn.setOnClickListener(this);
mUploadBtn = (Button) findViewById(R.id.button2);
mUploadBtn.setOnClickListener(this);
}
private void showProgressDialog(String content) {
if (mProgressDialog == null) {
mProgressDialog = new ProgressDialog(this,
ProgressDialog.STYLE_HORIZONTAL);
}
mProgressDialog.setTitle("提示信息");
mProgressDialog.setMessage(content);
mProgressDialog.setCancelable(false);
mProgressDialog.show();
}
private void hideProgressDialog() {
if (mProgressDialog != null) {
mProgressDialog.dismiss();
}
}
@Override
protected void onDestroy() {
super.onDestroy();
new Thread() {
@Override
public void run() {
mFtpManager.close();
}
}.start();
ToastUtil.cancel();
}
@Override
public void onClick(View v) {
switch (v.getId()) {
// 连接和登陆測试
case R.id.login_button:
loginFtp();
break;
// 下载ftp上的指定文件
case R.id.button1:
downloadFile();
break;
// 上传android上的指定的文件到ftpserver
case R.id.button2:
uoloadFile();
break;
}
}
/**
* 登陆功能測试
*/
private void loginFtp() {
mImm.hideSoftInputFromWindow(mPasswordEt.getWindowToken(), 0);
if (StringUtils.isEmpty(mUserEt.getText().toString().trim())) {
ToastUtil.showShortToast(this, "账号不能为空");
return;
}
if (StringUtils.isEmpty(mPasswordEt.getText().toString().trim())) {
ToastUtil.showShortToast(this, "密码不能为空");
return;
}
new Thread() {
@Override
public void run() {
Log.d(TAG, "start login!");
if (mFtpManager.connectFTPServer()) {
Log.d(TAG, "connectFTPServer = true");
//查看远程FTP上的文件
FTPFile[] files = mFtpManager.getFTPFiles();
Log.i(TAG, "files.size="+files.length);
for(FTPFile f:files){
Log.i(TAG, "file:"+f.getName());
}
ToastUtil.showShortToast(MainActivity.this, "连接ftp成功", true);
}else{
Log.d(TAG, "connectFTPServer = false");
}
}
}.start();
}
/**
* 获取一个下载存放文件的文件夹
* @return
*/
public String getSDPath() {
File sdDir = null;
boolean sdCardExist = Environment.getExternalStorageState().equals(
android.os.Environment.MEDIA_MOUNTED); // 推断sd卡是否存在
if (sdCardExist) {
sdDir = Environment.getExternalStorageDirectory();// 获取跟文件夹
}
return sdDir.toString();
}
/**
* 下载功能的測试
*/
private void downloadFile() {
new Thread() {
@Override
public void run() {
String localPath = getSDPath();
if (!StringUtils.isEmpty(localPath)) {
localPath = localPath + "/ftp_demo.log";
} else {
localPath = getApplicationContext().getFilesDir()
.getAbsolutePath() + "/ftp_demo.log";
}
Log.d(TAG, "localPath=" + localPath);
mFtpManager.setRetrieveListener(new IRetrieveListener() {
@Override
public void onTrack(long curPos) {
Log.d(TAG, "--onTrack--" + curPos);
}
@Override
public void onStart() {
Log.d(TAG, "--onStart--");
mHandler.sendEmptyMessage(SHOW_DIALOG);
}
@Override
public void onError(int code, String msg) {
Log.e(TAG, "download error:" + msg);
mHandler.sendEmptyMessage(HIDE_DIALOG);
ToastUtil.showShortToast(getApplicationContext(), "下载失败",
true);
}
@Override
public void onDone() {
Log.i(TAG, "download success");
mHandler.sendEmptyMessage(HIDE_DIALOG);
ToastUtil.showShortToast(MainActivity.this, "下载成功",
true);
}
@Override
public void onCancel() {
Log.i(TAG, "download onCancel");
mHandler.sendEmptyMessage(HIDE_DIALOG);
}
});
mFtpManager.downLoadFile("/ftp_test.log", localPath);
}
}.start();
}
/**
* 上传操作
*/
private void uoloadFile() {
new Thread(new Runnable() {
@Override
public void run() {
String localPath = getSDPath();
if (!StringUtils.isEmpty(localPath)) {
localPath = localPath + "/ftp_demo.log";
} else {
localPath = getApplicationContext().getFilesDir()
.getAbsolutePath() + "/ftp_demo.log";
}
Log.d(TAG, "localPath=" + localPath);
File file = new File(localPath);
try {
if (!file.exists()) {
file.createNewFile();
}
FileOutputStream fos = new FileOutputStream(file, false);
BufferedWriter bw = new BufferedWriter(new OutputStreamWriter(fos, "utf-8"));
bw.write("FTP上传測试用例");
bw.flush();
bw.close();
} catch (IOException e) {
e.printStackTrace();
}
mFtpManager.setRetrieveListener(new IRetrieveListener() {
@Override
public void onTrack(long curPos) {
Log.d(TAG, "upload--onTrack--" + curPos);
}
@Override
public void onStart() {
Log.d(TAG, "upload--onStart--");
Message msg = mHandler.obtainMessage(SHOW_DIALOG);
msg.obj = "正在上传...";
mHandler.sendMessage(msg);
}
@Override
public void onError(int code, String msg) {
Log.e(TAG, "upload error:" + msg);
mHandler.sendEmptyMessage(HIDE_DIALOG);
ToastUtil.showShortToast(MainActivity.this, "上传失败",
true);
}
@Override
public void onDone() {
Log.i(TAG, "upload success");
mHandler.sendEmptyMessage(HIDE_DIALOG);
ToastUtil.showShortToast(MainActivity.this, "上传成功",true);
}
@Override
public void onCancel() {
Log.i(TAG, "upload onCancel");
mHandler.sendEmptyMessage(HIDE_DIALOG);
}
});
mFtpManager.uploadFile(localPath, "ftp_up.log");
}
}).start();
}
}
4.FtpManager.java
package org.jan.ftp.utils;
import java.io.File;
import java.io.FileInputStream;
import java.io.FileNotFoundException;
import java.io.FileOutputStream;
import java.io.IOException;
import java.io.InputStream;
import java.net.SocketException;
import org.apache.commons.net.ftp.FTP;
import org.apache.commons.net.ftp.FTPClient;
import org.apache.commons.net.ftp.FTPClientConfig;
import org.apache.commons.net.ftp.FTPFile;
import org.apache.commons.net.ftp.FTPReply;
import org.apache.commons.net.ftp.FTPSClient;
import org.apache.commons.net.util.TrustManagerUtils;
import org.jan.ftp.demo.bean.FTPConfig;
import android.util.Log;
/**
* FTP client管理类
*
* @author jan
*/
public class FTPManager {
private static final String TAG = "FTPManager";
private static FTPManager mFtpManager;
private FTPClient mFtpClient;
private FTPSClient mFtpsClient;
private static FTPConfig mConfig;
private IRetrieveListener retrieveListener;
private boolean isFTPS = false;
volatile boolean isLogin = false;
volatile boolean isStopDownload = false;
private FTPManager() {
mFtpClient = new FTPClient();
mFtpsClient = new FTPSClient(false);
mFtpsClient.setTrustManager(TrustManagerUtils
.getAcceptAllTrustManager());
}
public static FTPManager getInstance(FTPConfig cfg) {
if (mFtpManager == null) {
mFtpManager = new FTPManager();
}
mConfig = cfg;
return mFtpManager;
}
public static FTPManager getInstance(String host, int port) {
if (mFtpManager == null) {
mFtpManager = new FTPManager();
}
mConfig = new FTPConfig(host, port);
return mFtpManager;
}
public void setRetrieveListener(IRetrieveListener retrieveListener) {
this.retrieveListener = retrieveListener;
}
/**
* 连接并登陆ftp服务
*
* @return
*/
public boolean connectFTPServer() {
try {
FTPClientConfig ftpClientCfg = new FTPClientConfig(
FTPClientConfig.SYST_UNIX);
ftpClientCfg.setLenientFutureDates(true);
mFtpClient.configure(ftpClientCfg);
mFtpClient.setConnectTimeout(15000);
mFtpClient.connect(mConfig.ipAdress, mConfig.port);
login();
int replyCode = mFtpClient.getReplyCode();
if (!FTPReply.isPositiveCompletion(replyCode)) {
mFtpClient.disconnect();
return false;
}
} catch (SocketException e) {
e.printStackTrace();
return false;
} catch (IOException e) {
e.printStackTrace();
return false;
}
return true;
}
/**
* 登陆ftp服务端
* @return
*/
public boolean login() {
try {
if (mFtpClient.isConnected()) {
boolean isLogin = mFtpClient.login(mConfig.user, mConfig.pwd);
if (!isLogin) {
return false;
}
mFtpClient.setControlEncoding("GBK");
mFtpClient.setFileType(FTPClient.FILE_STRUCTURE);
mFtpClient.enterLocalActiveMode();
// mFtpClient.enterRemotePassiveMode();
// mFtpClient.enterRemoteActiveMode(
// InetAddress.getByName(mConfig.ipAdress), mConfig.port);
mFtpClient.setFileType(FTP.BINARY_FILE_TYPE);
return isLogin;
}
} catch (IOException e) {
e.printStackTrace();
}
return false;
}
/**
* 退出并关闭本次连接
*/
public void close() {
try {
if (mFtpClient.isConnected()) {
mFtpClient.logout();
}
mFtpClient.disconnect();
} catch (IOException e) {
e.printStackTrace();
}
}
/**
* 下载FTP上的文件
* @param remoteFileName
* @param localFileName
* @param currentSize
*/
public void downLoadFile(String remoteFileName, String localFileName,
long currentSize) {
Log.i(TAG, "downloadFile fileName=" + remoteFileName + " currentSize="
+ currentSize);
if (retrieveListener != null) {
retrieveListener.onStart();
}
byte[] buffer = new byte[mConfig.bufferSize];
int len = -1;
long now = -1;
boolean append = false;
if (mFtpClient != null) {
InputStream ins = null;
FileOutputStream fos = null;
try {
File localFile = new File(localFileName);
if (currentSize > 0) {
mFtpClient.setRestartOffset(currentSize);
now = currentSize;
append = true;
}
ins = getRemoteFileStream(remoteFileName);
fos = new FileOutputStream(localFile, append);
if (ins == null) {
throw new FileNotFoundException("remote file is not exist");
}
while ((len = ins.read(buffer)) != -1) {
if (isStopDownload) {
break;
}
fos.write(buffer, 0, len);
now += len;
retrieveListener.onTrack(now);
}
if (isStopDownload) {
retrieveListener.onCancel();
} else {
if (mFtpClient.completePendingCommand()) {
retrieveListener.onDone();
} else {
retrieveListener.onError(ERROR.DOWNLOAD_ERROR,
"download fail");
}
}
} catch (FileNotFoundException e) {
retrieveListener.onError(ERROR.FILE_NO_FOUNT, "download fail:"
+ e);
} catch (IOException e) {
retrieveListener.onError(ERROR.IO_ERROR, "download fail:" + e);
} finally {
try {
ins.close();
fos.close();
} catch (Exception e2) {
}
}
}
}
/**
* 下载FTPserver上的指定文件到本地
* @param remotePath
* @param localPath
*/
public void downLoadFile(String remotePath, String localPath) {
downLoadFile(remotePath, localPath, -1);
}
private InputStream getRemoteFileStream(String remoteFilePath) {
InputStream is = null;
try {
is = mFtpClient.retrieveFileStream(remoteFilePath);
} catch (IOException e) {
e.printStackTrace();
}
return is;
}
/**
* 上传文件
* @param localPath 本地须要上传的文件路径（包含后缀名）
* @param workDirectory 上传ftpserver上的指定文件文件夹
* @param desFileName 目标文件名称
* @return
*/
public boolean uploadFile(String localPath, String workDirectory,
String desFileName) {
Log.i(TAG, "uploadFile localPath=" + localPath + " desFileName="
+ desFileName);
if (retrieveListener != null) {
retrieveListener.onStart();
}
try {
if (mFtpClient != null && mFtpClient.isConnected()) {
// 设置存储路径
mFtpClient.makeDirectory(workDirectory);
mFtpClient.changeWorkingDirectory(workDirectory);
mFtpClient.setBufferSize(1024);
FileInputStream fis = new FileInputStream(localPath);
boolean isUploadSuccess = mFtpClient
.storeFile(desFileName, fis);
if (isUploadSuccess) {
if (retrieveListener != null) {
retrieveListener.onDone();
}
} else {
if (retrieveListener != null) {
retrieveListener.onError(ERROR.UPLOAD_ERROR,
"upload fail");
}
}
fis.close();
return isUploadSuccess;
}
} catch (IOException e) {
e.printStackTrace();
if (retrieveListener != null) {
retrieveListener.onError(ERROR.IO_ERROR, "upload error:" + e);
}
}
return false;
}
/**
* 上传文件到目的ftp服务端根文件夹下
*
* @param localFileName
* 待上传的源文件
* @param remoteFileName
* 服务端的文件名称称
* @return 上传成功的标识
*/
public boolean uploadFile(String localFileName, String remoteFileName) {
return uploadFile(localFileName, "/", remoteFileName);
}
public FTPFile[] getFTPFiles() {
try {
if(!mFtpClient.isConnected()){
return null;
}
mFtpClient.changeToParentDirectory();
return mFtpClient.listFiles();
} catch (IOException e) {
e.printStackTrace();
}
return null;
}
public boolean deleteFile(String pathname){
try {
return mFtpClient.deleteFile(pathname);
} catch (IOException e) {
e.printStackTrace();
}
return false;
}
public boolean createDirectory(String pathname){
try {
return mFtpClient.makeDirectory(pathname);
} catch (IOException e) {
e.printStackTrace();
}
return false;
}
public FTPFile[] getFTPFiles(String remoteDir) {
try {
if(!mFtpClient.isConnected()){
return null;
}
return mFtpClient.listFiles(remoteDir);
} catch (IOException e) {
e.printStackTrace();
}
return null;
}
public boolean isStopDownload() {
return isStopDownload;
}
public void setStopDownload(boolean isStopDownload) {
this.isStopDownload = isStopDownload;
}
public boolean isFTPS() {
return isFTPS;
}
public void setFTPS(boolean isFTPS) {
if (isFTPS) {
mFtpClient = mFtpsClient;
} else {
mFtpClient = new FTPClient();
}
this.isFTPS = isFTPS;
}
public interface IRetrieveListener {
public void onStart();
public void onTrack(long curPos);
public void onError(int errorCode, String errorMsg);
public void onCancel();
public void onDone();
}
public static class ERROR {
public static final int FILE_NO_FOUNT = 4000;
public static final int FILE_DOWNLOAD_ERROR = 4001;
public static final int LOGIN_ERROR = 4002;
public static final int CONNECT_ERROR = 4003;
public static final int IO_ERROR = 4004;
public static final int DOWNLOAD_ERROR = 4005;
public static final int UPLOAD_ERROR = 4006;
}
}
使用起来事实上非常easy吧！
假设须要demo的话，请自行下载哦。
