Docker部署zabbix6.0

Dokcer部署zabbix6.0

zabbix官网下载地址：https://www.zabbix.com/cn/download
zabbix官方文档：https://www.zabbix.com/documentation/6.0/zh/manual

服务器参数

CPU：2U
内存：8GB
Docker版本：Docker version 26.0.0, build 2ae903e
操作系统版本：openEuler-22.03-LTS-SP3

创建zabbix网络

[root@localhost ~]# docker network create --subnet 172.20.0.0/16 --ip-range 172.20.240.0/20 zabbix-net

拉取zabbix镜像

[root@localhost ~]# docker pull mariadb
[root@localhost ~]# docker pull zabbix/zabbix-java-gateway:alpine-6.2-latest
[root@localhost ~]# docker pull zabbix/zabbix-server-mysql:alpine-6.2-latest
[root@localhost ~]# docker pull zabbix/zabbix-web-nginx-mysql:alpine-6.2-latest

启动zabbix容器

按顺序启动，不然会报错.

# 创建数据库
#!如果用的是低版本的zabbix请用mariadb数据库
[root@localhost ~]# docker run --name mysql-server -t \
      -p 3306:3306 \
      -e MYSQL_DATABASE="zabbix" \
      -e MYSQL_USER="zabbix" \
      -e MYSQL_PASSWORD="zabbix_pwd" \
      -e MYSQL_ROOT_PASSWORD="root_pwd" \
      --network=zabbix-net \
      --restart unless-stopped \
      -d mariadb --default-authentication-plugin=mysql_native_password \
      --character-set-server=utf8 --collation-server=utf8_bin
# 创建zabbix网关
[root@localhost ~]# docker run --name zabbix-java-gateway -t \
      --network=zabbix-net \
      --restart unless-stopped \
      -d zabbix/zabbix-java-gateway:alpine-6.2-latest
# 创建zabbix应用端
[root@localhost ~]# docker run --name zabbix-server-mysql -t \
      -e DB_SERVER_HOST="mysql-server" \
      -e MYSQL_DATABASE="zabbix" \
      -e MYSQL_USER="zabbix" \
      -e MYSQL_PASSWORD="zabbix_pwd" \
      -e MYSQL_ROOT_PASSWORD="root_pwd" \
      -e ZBX_JAVAGATEWAY="zabbix-java-gateway" \
      --network=zabbix-net \
      -p 10051:10051 \
      --restart unless-stopped \
      -d zabbix/zabbix-server-mysql:alpine-6.2-latest
# 创建nginx代理
[root@localhost ~]# docker run --name zabbix-web-nginx-mysql -t \
      -e ZBX_SERVER_HOST="zabbix-server-mysql" \
      -e DB_SERVER_HOST="mysql-server" \
      -e MYSQL_DATABASE="zabbix" \
      -e MYSQL_USER="zabbix" \
      -e MYSQL_PASSWORD="zabbix_pwd" \
      -e MYSQL_ROOT_PASSWORD="root_pwd" \
      --network=zabbix-net \
      -p 80:8080 \
      --restart unless-stopped \
      -d zabbix/zabbix-web-nginx-mysql:alpine-6.2-latest

验证容器运行

[root@localhost ~]# docker ps
CONTAINER ID   IMAGE                                             COMMAND                  CREATED         STATUS                          PORTS                                                           NAMES
cb54c7846520   zabbix/zabbix-web-nginx-mysql:alpine-6.2-latest   "docker-entrypoint.sh"   2 minutes ago   Up 2 minutes                    8443/tcp, 0.0.0.0:80->8080/tcp, :::80->8080/tcp                 zabbix-web-nginx-mysql
eccfb74b00b2   zabbix/zabbix-server-mysql:alpine-6.2-latest      "/sbin/tini -- /usr/…"   3 minutes ago   Restarting (1) 48 seconds ago                                                                   zabbix-server-mysql
278d2b5450d5   zabbix/zabbix-java-gateway:alpine-6.2-latest      "docker-entrypoint.s…"   3 minutes ago   Up 3 minutes                    10052/tcp                                                       zabbix-java-gateway
cd0a1d118b92   mariadb                                           "docker-entrypoint.s…"   3 minutes ago   Up 3 minutes                    0.0.0.0:3306->3306/tcp, :::3306->3306/tcp                       mysql-server

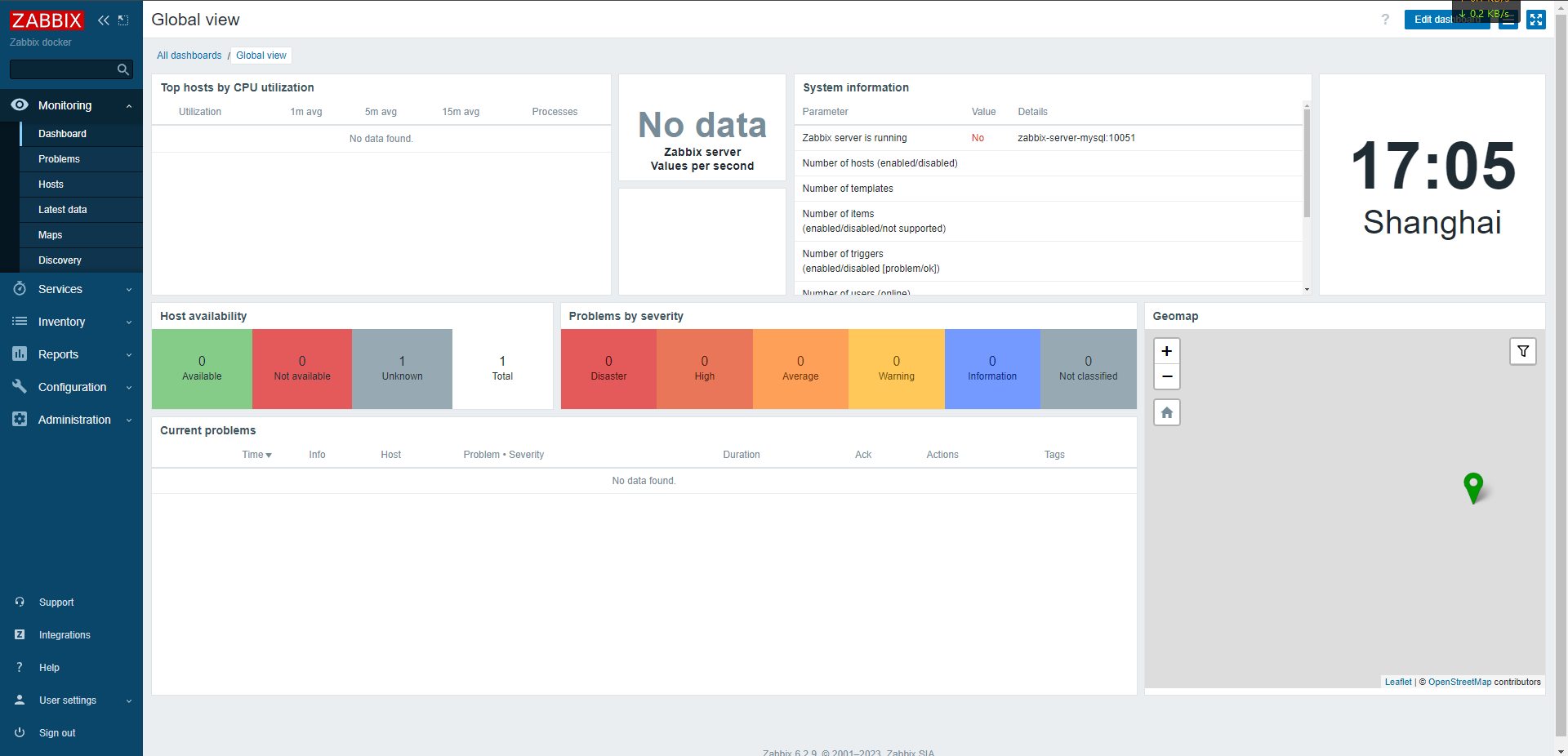

输入浏览器进行登录：http://127.0.0.1/ 默认账号：`Admin` 默认密码：`zabbix`
