Linux驱动编写之PWM驱动配置

简介

I.MX6ULL 有 8 路 PWM 输出，因此对应 8 个 PWM 控制器，所有在设备树下就有 8 个PWM 控制器节点。

而 GPIO1_IO08 就是 PWM1 的输出引脚，所以这里是基于IMX6ULL PWM1 的驱动。

设备树配置

pinctrl_pwm1: pwm1grp {
	fsl,pins = <
		MX6UL_PAD_GPIO1_IO08__PWM1_OUT   0x110b0
	>;
};
1
2
3
4
5

&pwm1 {
	pinctrl-names = "default";
	pinctrl-0 = <&pinctrl_pwm1>;
	status = "okay";
};
1
2
3
4
5

根据以下文档写出backlight
	backlight {
		compatible = "pwm-backlight";
		pwms = <&pwm1 0 5000000>;
		brightness-levels = <0 4 8 16 32 64 128 255>;
		default-brightness-level = <7>;
		status = "okay";
	};
1
2
3
4
5
6
7
8

Linux内核绑定文档路径为Documentation/devicetree/bindings/video/backlight/pwm-backlight.txt，查看该文档对pwm-backlight参数进行设置。

Required properties:
compatible: “pwm-backlight”
pwms: OF device-tree PWM specification (see PWM binding[0])
brightness-levels: Array of distinct brightness levels. Typically these
are in the range from 0 to 255, but any range starting at 0 will do.
The actual brightness level (PWM duty cycle) will be interpolated
from these values. 0 means a 0% duty cycle (darkest/off), while the
last value in the array represents a 100% duty cycle (brightest).
default-brightness-level: the default brightness level (index into the
array defined by the “brightness-levels” property)
power-supply: regulator for supply voltage

以上是设备树的配置

驱动使能

NXP 官方的 Linux 内核已经默认使能了 PWM 驱动，所以不需要我们修改，

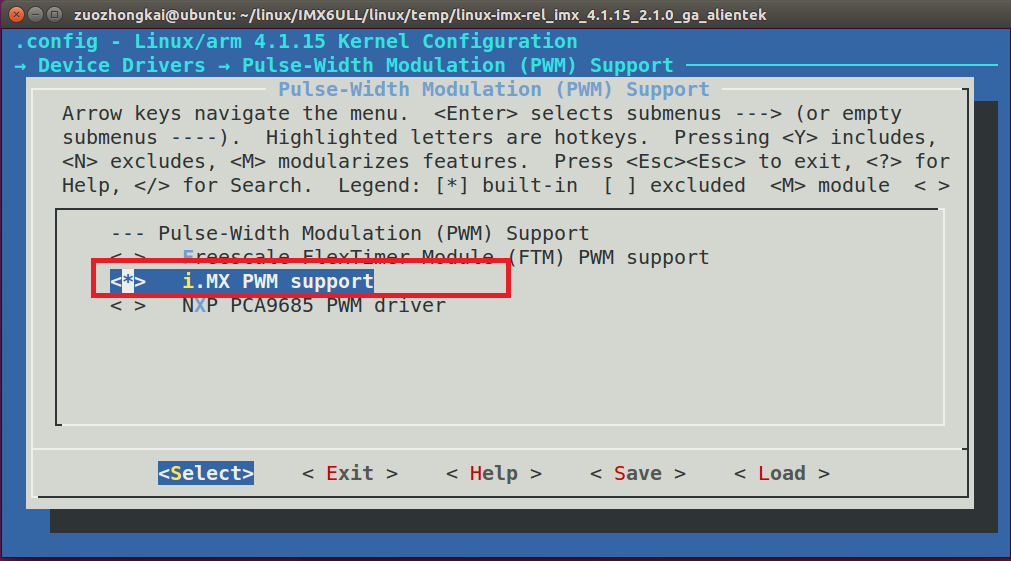

我们还是需要知道有没有使能。打开 Linux 内核配置界面，按照如下路径找到配置项：

-> Device Drivers
	-> Pulse-Width Modulation (PWM) Support
		-> <*> i.MX PWM support
1
2
3

通过PWM控制背光

补充其它IO口作为PWM的使用方法

以gpio_4为例

设备树配置

 pinctrl_pwm3: pwm3grp {
	 fsl,pins = <
	 	MX6UL_PAD_GPIO1_IO04__PWM3_OUT 0x110b0
	 >;
 };
1
2
3
4
5

 &pwm3 {
	 pinctrl-names = "default";
	 pinctrl-0 = <&pinctrl_pwm3>;
	 clocks = <&clks IMX6UL_CLK_PWM3>,
	 <&clks IMX6UL_CLK_PWM3>;
	 status = "okay";
 };
1
2
3
4
5
6
7

相关参数说明：
pinctrl-0 属性指定 PWM3 所使用的输出引脚对应的 pinctrl 节点
第 1个clock 设置 ipg 时钟 （注：IMX6UL_CLK_PWM3时钟和PWM序列一一对应，例：如果是PWM1则是IMX6UL_CLK_PWM1）
第 2个clock设置 per 时钟（注：IMX6UL_CLK_PWM3时钟和PWM序列一一对应，例：如果是PWM1则是IMX6UL_CLK_PWM1）
status 是否使能配置

使用方法

下面这8组pwmchip0-pwmchip6分别代表PWM1-PWM7

1、调出 pwmchip2 的 pwm0 子目录
首先需要调出 pwmchip2 下的 pwm0 目录，否则后续就没法操作了，输入如下命令：（以下都必须在设备树配置好的基础上操作）

echo 0 > /sys/class/pwm/pwmchip2/export
1

执行完成会在 pwmchip2 目录下生成一个名为“pwm0”的子目录，如下图所示：

2、使能 PWM3
输入如下命令使能 PWM3：

echo 1 > /sys/class/pwm/pwmchip2/pwm0/enable
1

3、设置 PWM3 的频率
注意，这里设置的是周期值，单位为 ns，比如 20KHz 频率的周期就是 50000ns，输入如下
命令：

echo 50000 > /sys/class/pwm/pwmchip2/pwm0/period
1

4、设置 PWM3 的占空比
这里不能直接设置占空比，而是设置的一个周期的 ON 时间，也就是高电平时间，比如 20KHz 频率下 20%占空比的 ON 时间就是 10000，输入如下命令：

echo 10000 > /sys/class/pwm/pwmchip2/pwm0/duty_cycle
1

Linux应用编程设置PWM参数

#include <stdio.h>
#include <fcntl.h>
#include <sys/types.h>
#include <sys/stat.h>
#include <sys/time.h>
#include <unistd.h>
#include <string.h>
#include <sys/ioctl.h>
#include <linux/ioctl.h>


#define dbmsg(fmt, args ...) printf("%s[%d]: "fmt"\n", FUNCTION, LINE,##args)




#define DUTY              "duty"

#define PERIOD            "1000000"

#define DUTYCYCLE         "500000"

#define LENGTH            100




int fd_period = 0,fd_duty = 0,fd_enable = 0,duty_m = 0;




int usage()

{

printf("usage:\n");

printf("./pwm-sysfs-test duty <0/1> : 0-->static; 1-->dynamic \n");

return 0;

}




int pwm_setup()

{

int fd,ret;




fd = open("/sys/class/pwm/pwmchip0/export", O_WRONLY);

if(fd < 0)

{

dbmsg("open export error\n");

return -1;

}

ret = write(fd, "0", strlen("0"));

if(ret < 0)

{

dbmsg("creat pwm0 error\n");

return -1;

}else

dbmsg("export pwm0 ok\n");




fd_period = open("/sys/class/pwm/pwmchip0/pwm0/period", O_RDWR);

fd_duty = open("/sys/class/pwm/pwmchip0/pwm0/duty_cycle", O_RDWR);

fd_enable = open("/sys/class/pwm/pwmchip0/pwm0/enable", O_RDWR);




if((fd_period < 0)||(fd_duty < 0)||(fd_enable < 0))

{

dbmsg("open error\n");

return -1;

}




ret = write(fd_period, PERIOD,strlen(PERIOD));

if(ret < 0)

{

dbmsg("change period error\n");

return -1;

}else

dbmsg("change period ok\n");




ret = write(fd_duty, DUTYCYCLE, strlen(DUTYCYCLE));

if(ret < 0)

{

dbmsg("change duty_cycle error\n");

return -1;

}else

dbmsg("change duty_cycle ok\n");




ret = write(fd_enable, "1", strlen("1"));

if(ret < 0)

{

dbmsg("enable pwm0 error\n");

return -1;

}else

dbmsg("enable pwm0 ok\n");




duty_m = atoi(DUTYCYCLE)/2;

printf("duty_m: %d \n",duty_m);




return 0;

}




int main ( int argc, char *argv[] )

{

int ret;

int num;

if(argc < 2)

{

usage();

return -1;

}




if(strncmp(argv[1],DUTY, sizeof(DUTY)) == 0)

{

dbmsg("%s", DUTY);

if(argc != 3)

{

usage();

return -1;

}

pwm_setup();

}




return 0;

}
