Windows10开启802.1x协议 MD5-Challenge

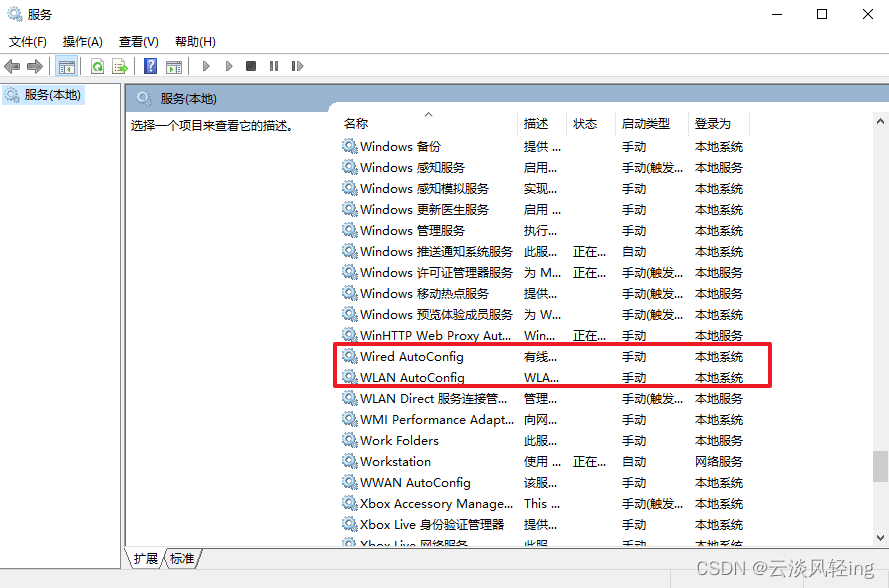

1、开启802.1x服务

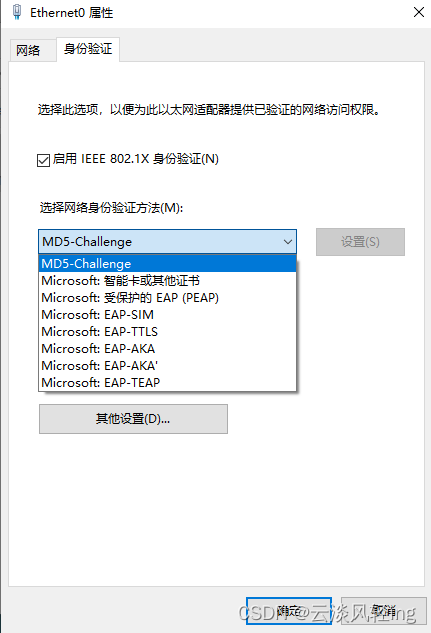

此时打开网络适配器设置可以看到多了身份验证

然后选择验证方法为MD5-Challenge

2、开启MD5-Challenge

默认情况下可能没有MD5-Challenge这个选项，所以需要给他开启，我这是已经开启过了

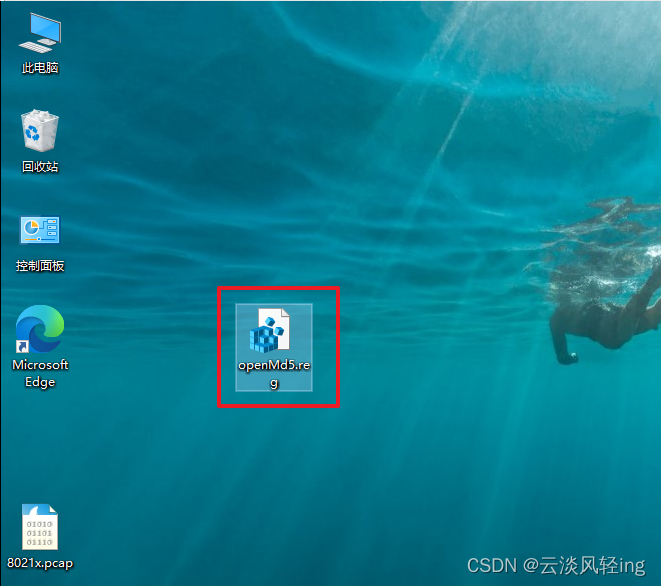

新建文本，修改后缀为.reg，例：openMd5-challenge.reg

内容如下：

 Windows Registry Editor Version 5.00

 [HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\services\RasMan\PPP\EAP\4]
 "FriendlyName"="MD5-Challenge"
 "RolesSupported"=dword:0000000a
 "Path"=hex(2):25,00,53,00,79,00,73,00,74,00,65,00,6d,00,52,00,6f,00,6f,00,74,\
   00,25,00,5c,00,53,00,79,00,73,00,74,00,65,00,6d,00,33,00,32,00,5c,00,52,00,\
   61,00,73,00,63,00,68,00,61,00,70,00,2e,00,64,00,6c,00,6c,00,00,00
 "InvokeUsernameDialog"=dword:00000001
 "InvokenPasswordDialog"=dword:00000001

双击执行即可
