2-4 构建聚合工程

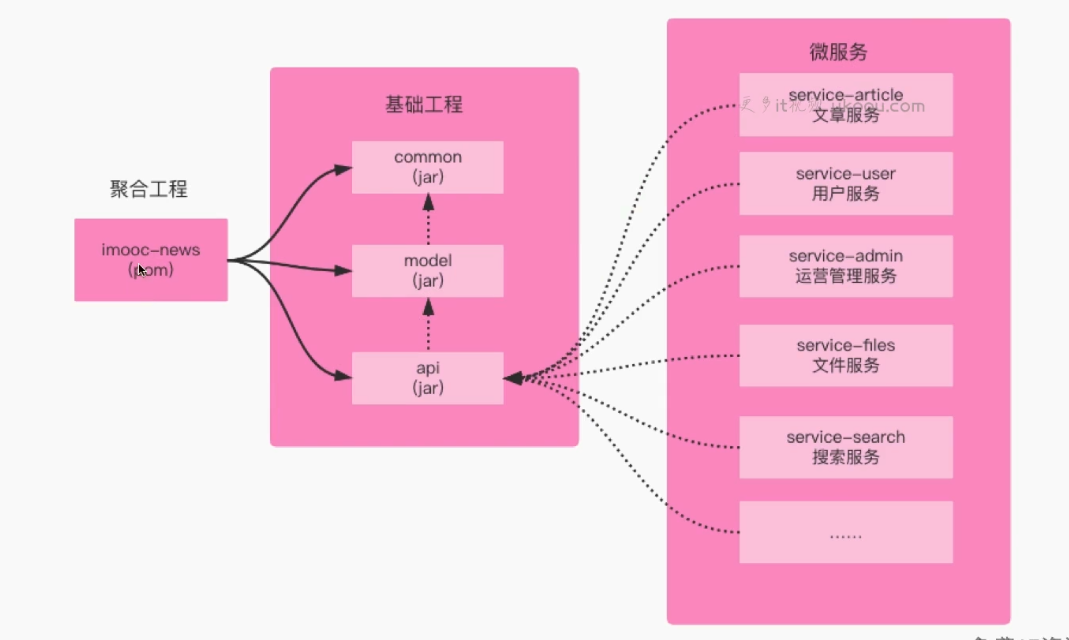

项目聚合图

项目分为三部分
common用于存放工具类 枚举类 等公共基础累
model用于存放bean entity dto等实体类
api用于存放controller接口

创建maven项目

聚合项目分为父工程和子工程 两者是子父继承关系
子模块可以使用父模块的所有资源 若子模块想使用子模块的资源的话 必须构建依赖
子模块与子模块是平级的关系 可以相互依赖
一个顶级工程由多个子工程组成

dependencyManagement的作用

dependencyManagement并不会导入将依赖直接导入到项目中
而是直接统一管理依赖版本 父工程只用于管理依赖关系和父子模块的关系

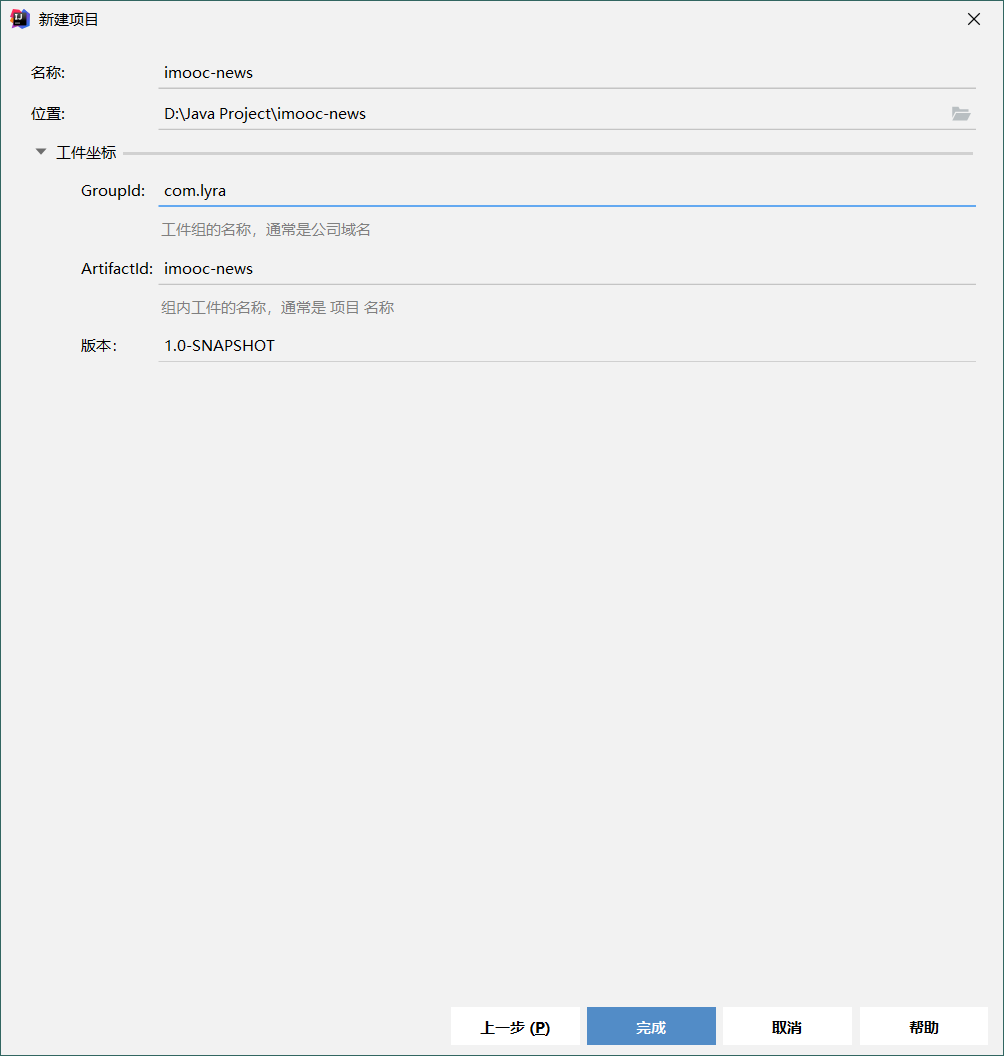

创建maven工程 作为父工程

导入依赖

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>

    <parent>
        <artifactId>spring-boot-starter-parent</artifactId>
        <groupId>org.springframework.boot</groupId>
        <version>2.4.5</version>
        <relativePath />
    </parent>

    <groupId>com.lyra</groupId>
    <artifactId>imooc-news-dev</artifactId>
    <version>1.0-SNAPSHOT</version>

    <properties>
        <maven.compiler.source>11</maven.compiler.source>
        <maven.compiler.target>11</maven.compiler.target>
        <spring.cloud-version>Hoxton.SR8</spring.cloud-version>

        <mysql-connector-java.version>5.1.41</mysql-connector-java.version>
        <mybatis-spring-boot-starter.version>2.1.0</mybatis-spring-boot-starter.version>
        <mapper-spring-boot-starter.version>2.1.5</mapper-spring-boot-starter.version>
        <pagehelper-spring-boot-starter.version>1.2.12</pagehelper-spring-boot-starter.version>

        <okhttp.version>4.2.2</okhttp.version>
        <jackson.version>2.10.2</jackson.version>

        <commons-codec.version>1.11</commons-codec.version>
        <commons-lang3.version>3.4</commons-lang3.version>
        <commons-fileupload.version>1.4</commons-fileupload.version>
        <google-guava.version>28.2-jre</google-guava.version>

        <springfox-swagger2.version>2.4.0</springfox-swagger2.version>
        <swagger-bootstrap-ui.version>1.6</swagger-bootstrap-ui.version>
        <fastdfs.version>1.27.2</fastdfs.version>

        <slf4j.version>1.7.21</slf4j.version>
        <joda-time.version>2.10.6</joda-time.version>
    </properties>

    <packaging>pom</packaging>


    <dependencyManagement>
        <dependencies>
            <dependency>
                <groupId>org.springframework.cloud</groupId>
                <artifactId>spring-cloud-dependencies</artifactId>
                <version>${spring.cloud-version}</version>
                <type>pom</type>
                <scope>import</scope>
            </dependency>

            <!-- 引入 mongodb 依赖 -->
            <dependency>
                <groupId>org.mongodb</groupId>
                <artifactId>mongodb-driver</artifactId>
                <!--mongodb-driver.version-->
                <version>3.11.1</version>
            </dependency>

            <!-- mysql 驱动 -->
            <dependency>
                <groupId>mysql</groupId>
                <artifactId>mysql-connector-java</artifactId>
                <version>${mysql-connector-java.version}</version>
            </dependency>
            <!-- mybatis -->
            <dependency>
                <groupId>org.mybatis.spring.boot</groupId>
                <artifactId>mybatis-spring-boot-starter</artifactId>
                <version>${mybatis-spring-boot-starter.version}</version>
            </dependency>
            <!-- 通用mapper逆向工具 -->
            <dependency>
                <groupId>tk.mybatis</groupId>
                <artifactId>mapper-spring-boot-starter</artifactId>
                <version>${mapper-spring-boot-starter.version}</version>
            </dependency>
            <!--pagehelper -->
            <dependency>
                <groupId>com.github.pagehelper</groupId>
                <artifactId>pagehelper-spring-boot-starter</artifactId>
                <version>${pagehelper-spring-boot-starter.version}</version>
            </dependency>

            <dependency>
                <groupId>com.squareup.okhttp3</groupId>
                <artifactId>okhttp</artifactId>
                <version>${okhttp.version}</version>
            </dependency>

            <!-- jackson -->
            <dependency>
                <groupId>com.fasterxml.jackson.core</groupId>
                <artifactId>jackson-core</artifactId>
                <version>${jackson.version}</version>
            </dependency>
            <dependency>
                <groupId>com.fasterxml.jackson.core</groupId>
                <artifactId>jackson-annotations</artifactId>
                <version>${jackson.version}</version>
            </dependency>
            <dependency>
                <groupId>com.fasterxml.jackson.core</groupId>
                <artifactId>jackson-databind</artifactId>
                <version>${jackson.version}</version>
            </dependency>

            <!-- apache 工具类 -->
            <dependency>
                <groupId>commons-codec</groupId>
                <artifactId>commons-codec</artifactId>
                <version>${commons-codec.version}</version>
            </dependency>
            <dependency>
                <groupId>org.apache.commons</groupId>
                <artifactId>commons-lang3</artifactId>
                <version>${commons-lang3.version}</version>
            </dependency>
            <dependency>
                <groupId>commons-fileupload</groupId>
                <artifactId>commons-fileupload</artifactId>
                <version>${commons-fileupload.version}</version>
            </dependency>

            <!-- google 工具类 -->
            <dependency>
                <groupId>com.google.guava</groupId>
                <artifactId>guava</artifactId>
                <version>${google-guava.version}</version>
            </dependency>

            <!-- swagger2 配置 -->
            <dependency>
                <groupId>io.springfox</groupId>
                <artifactId>springfox-swagger2</artifactId>
                <version>${springfox-swagger2.version}</version>
            </dependency>
            <dependency>
                <groupId>io.springfox</groupId>
                <artifactId>springfox-swagger-ui</artifactId>
                <version>${springfox-swagger2.version}</version>
            </dependency>
            <dependency>
                <groupId>com.github.xiaoymin</groupId>
                <artifactId>swagger-bootstrap-ui</artifactId>
                <version>${swagger-bootstrap-ui.version}</version>
            </dependency>

            <!-- 文件上传fdfs工具 -->
            <dependency>
                <groupId>com.github.tobato</groupId>
                <artifactId>fastdfs-client</artifactId>
                <version>${fastdfs.version}</version>
            </dependency>

            <!-- joda-time 时间工具 -->
            <dependency>
                <groupId>joda-time</groupId>
                <artifactId>joda-time</artifactId>
                <version>${joda-time.version}</version>
            </dependency>
        </dependencies>
    </dependencyManagement>


    <build>
        <finalName>${project.artifactId}</finalName>
        <plugins>
            <!-- Java 编译 -->
            <plugin>
                <groupId>org.apache.maven.plugins</groupId>
                <artifactId>maven-compiler-plugin</artifactId>
                <configuration>
                    <source>${maven.compiler.target}</source>
                    <target>${maven.compiler.target}</target>
                    <encoding>UTF-8</encoding>
                </configuration>
            </plugin>
        </plugins>
    </build>


</project>

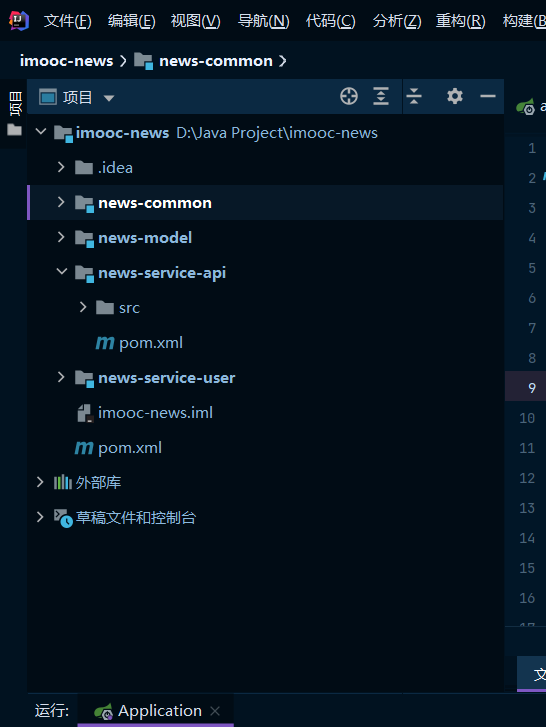

根据pom结构图创建子工程
直接maven下一步即可

最后创建个news-service-user用于测试web项目是否正常

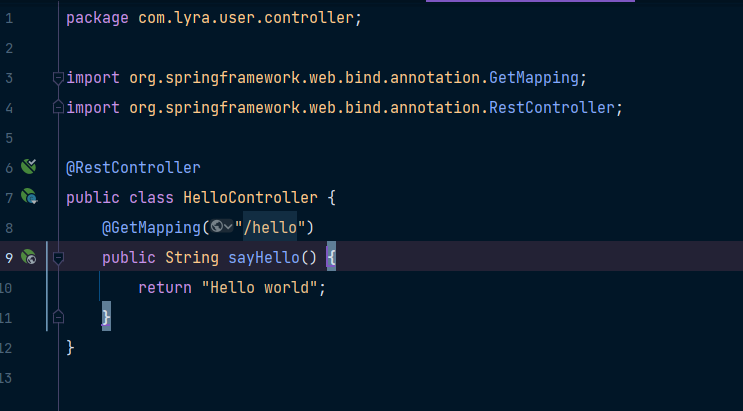

首先在里面写个controller 用于输出hello信息

新建application.yml 配置项目信息

server:
  port: 8003
  tomcat:
    accesslog:
      encoding: UTF-8
	# 默认上传最大为2MB 修改为-1 表示禁用最大上传 没有限制
    max-swallow-size: -1


spring:
  application:
    name: service-user
  jackson:
    date-format: yyyy-MM-dd HH:mm:ss
    time-zone: GMT+8

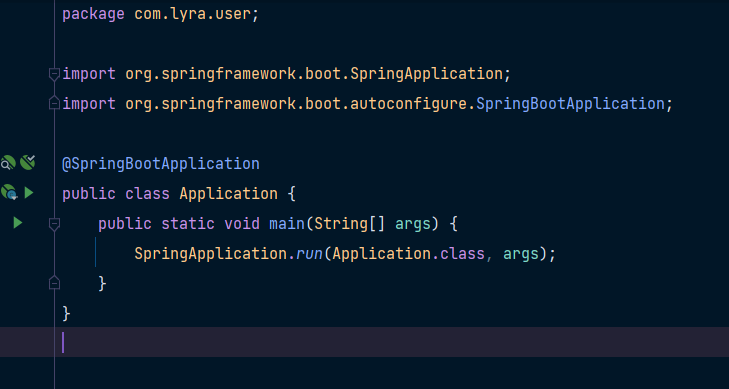

Main方法spring boot启动类 没有什么好说的
