jenkins第三方插件的安装，maven，tomcat

1.maven的安装和配置

(1)上传maven的安装包到root目录下

tar -xzf apache-maven-3.6.2-bin.tar.gz
mkdir /opt/maven
​

(2)配置JDK环境变量

vi /etc/profile
export JAVA_HOME=/usr/lib/jvm/java-1.8.0-openjdk
export MAVEN_HOME=/opt/maven
export PATH=$PATH:$JAVA_HOME/bin:$MAVEN_HOME/bin
source /etc/profile
mvn -v

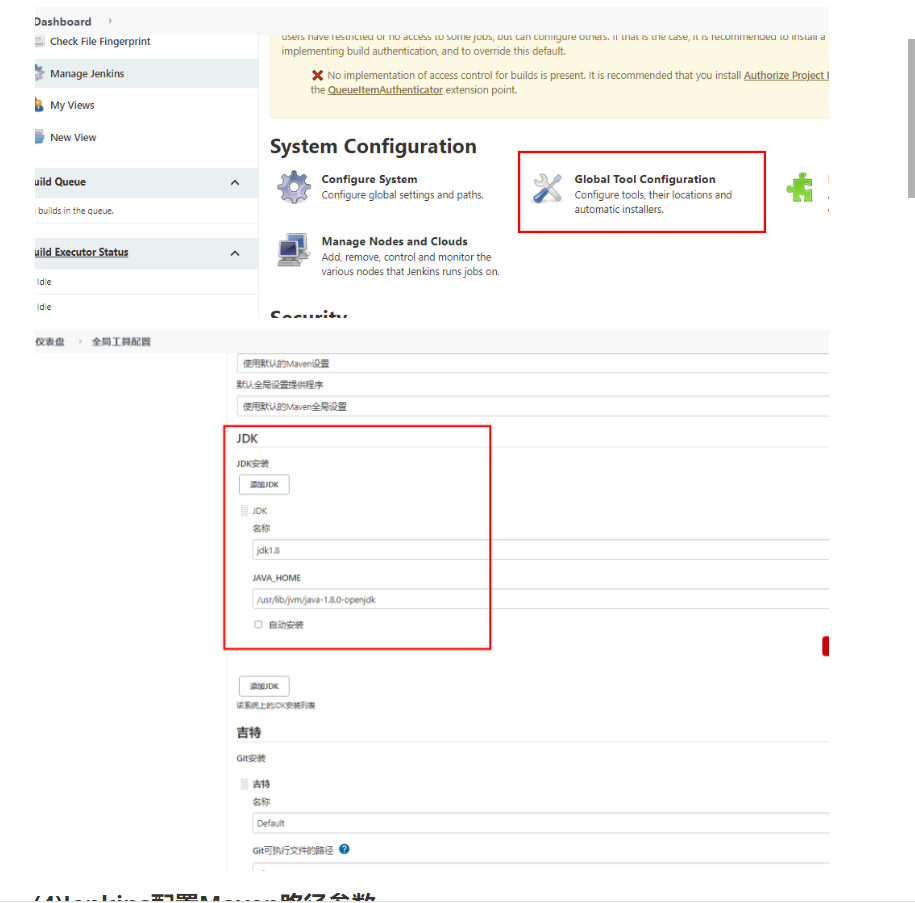

(3)Jenkins配置JDK环境变量

















(6)配置maven参数

mkdir /root/repo
cd /opt/maven
cd conf/
vi settings.xml
<localRepository>/root/repo></localRepository>
 <mirror>
      <id>alimaven</id>
      <name>aliyun maven</name>
      <url>http://maven.aliyun.com/nexus/content/groups/public/</url>
      <mirrorOf>central</mirrorOf>
    </mirror>

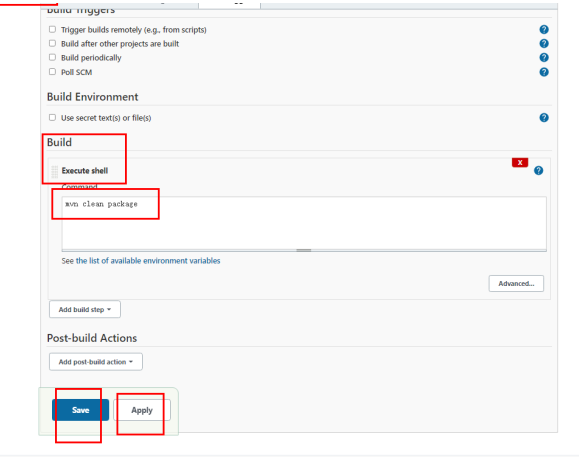

(7)maven编译





(8)测试-查看目录war包

2.Tomcat安装和配置

(1)把Tomcat压缩包上传到root目录

(2)安装JDK

yum install java-1.8.0-openjdk* -y

(3)解压Tomcat

tar -xzf apache-tomcat-8.5.47.tar.gz

(4)创建目录

mkdir -p /opt/tomcat

(5)移动目录

mv /root/apache-tomcat-8.5.47/* /opt/tomcat

(6)启动Tomcat

/opt/tomcat/bin/startup.sh

(7)测试并访问

http://192.168.233.141:8080

(8)修改tomcat-users.xml配置

vi /opt/tomcat/conf/tomcat-users.xml
加入
<tomcat-users>
<role rolename="tomcat"/>
<role rolename="role1"/>
<role rolename="manager-script"/>
<role rolename="manager-gui"/>
<role rolename="manager-status"/>
<role rolename="admin-gui"/>
<role rolename="admin-script"/>
<user username="tomcat" password="tomcat" roles="manager-gui,manager-
script,tomcat,admin-gui,admin-script"/>
</tomcat-users>
(注意去掉回车！)

(9)修改context.xml配置

vi /opt/tomcat/webapps/manager/META-INF/context.xml
将这段注释去掉
<!--
<Valve className="org.apache.catalina.valves.RemoteAddrValve"
allow="127\.\d+\.\d+\.\d+|::1|0:0:0:0:0:0:0:1" />
-->

(10)测试

/opt/tomcat/bin/shutdown.sh 停止
/opt/tomcat/bin/startup.sh 启动
访问： http://192.168.233.141:8080/manager/html ，输入tomcat和tomcat
