Deeplab系列

DeepLabV1

作者发现Deep Convolutional Neural Networks (DCNNs) 能够很好的处理的图像级别的分类问题，因为它具有很好的平移不变性（空间细节信息已高度抽象），但是DCNNs很难处理像素级别的分类问题，例如姿态估计和语义分割，它们需要准确的位置信息。

1创新点：

• 将深度神经网络DCNN与全连接CRF结合起来，提高图像分割的分割精度。
• 提出空洞卷积的思想。
• 应用尝试了多尺度、多层次的信息融合。

2. 动机：

DCNN应用在语义分割任务上存在两个缺陷：

• 重复堆叠的池化和下采样操作导致分辨率大幅下降，位置信息丢失难以恢复。
• 从分类器获得以对象为中心的决策需要空间转换的不变性，忽略对细节处的把控，这从本质上限制了DCNN模型的空间准确性。

分类任务具有空间不变性，图像的仿射变换不会影响最后的分类结果，而且恰恰通过仿射变换等操作（数据增广）可以增加数据量，提高模型的精度；但是像分割和检测这类问题，不具有空间不变性。

3. 应对策略：

• 空洞卷积
• Fully-connected Conditional Random Field (CRF)

2.DeepLabV2

1.创新点：

• 空洞卷积，作为密集预测任务的强大工具。空洞卷积能够明确地控制DCNN内计算特征响应的分辨率。它还允许我们有效地扩大滤波器的视野以并入较大的上下文，而不增加参数的数量或计算量。
• 提出了空洞空间卷积池化金字塔(atrous spatial pyramid pooling (ASPP))，以多尺度的信息得到更精确的分割结果。ASPP并行的采用多个采样率的空洞卷积层来探测，以多个比例捕捉对象以及图像上下文。
• 通过组合DCNN和概率图模型（CRF），改进分割边界结果。在DCNN中最大池化和下采样组合实现可平移不变性，但这对精度是有影响的。通过将最终的DCNN层响应与全连接的CRF结合来克服这个问题。

2.动机

DCNNs中语义分割存在三个挑战：

• 连续下采样和池化操作，导致最后特征图分辨率低。
• 图像中存在多尺度的物体（相比V1而言提出的新的挑战）
• 空间不变性导致细节信息丢失

3. 应对策略：

• 移除部分池化操作，使用空洞卷积。
• 利用不同膨胀因子的空洞卷积融合多尺度信息—atrous spatial pyramid pooling(ASPP)（新的创新点）
• 全连接CRF。

Deeplabv3

Chen, L., Papandreou, G., Schroff, F., & Adam, H. (2017). Rethinking Atrous Convolution for Semantic Image Segmentation. ArXiv, abs/1706.05587.

1.创新点：

• 增加了多尺度(multiple scales)分割物体的模块
• 设计了串行和并行的空洞卷积模块，采用多种不同的atrous rates（采样率）来获取多尺度的内容信息

2. 动机：

DCNN中语义分割存在三个挑战：

• 连续下采用和重复池化，导致最后特征图分辨率低
• 图像中存在多尺度的物体

3. 应对策略：

• 使用空洞卷积，防止分辨率过低情况
• 串联不同膨胀率的空洞卷积或者并行不同膨胀率的空洞卷积（v2的ASPP），来获取更多上下文信息

4. 主要贡献：

• 重新讨论了空洞卷积的使用，这让我们在级联模块和空间金字塔池化的框架下，能够获取更大的感受野从而获取多尺度信息
• 改进了ASPP模块：由不同采样率的空洞卷积和BN层组成，我们尝试以级联或并行的方式布局模块
• 讨论了一个重要问题：使用大采样率的3×3的空洞卷积，因为图像边界的原因无法捕捉远距离信息，会退化为1×1的卷积, 作者提出将图像级特征融合到ASPP模块中
• 阐述了训练细节并分享了训练经验，论文提出的”DeepLabv3”改进了以前的工作，获得了很好的结果

DeepLabV3详解

5.提出问题

首先，语义分割问题存在两大挑战：

• 第一个挑战：连续池化操作或卷积中的stride导致的特征分辨率降低。这使得DCNN能够学习更抽象的特征表示。然而，这种不变性可能会阻碍密集预测任务，因为不变性也导致了详细空间信息的不确定。为了克服这个问题，提倡使用空洞卷积。

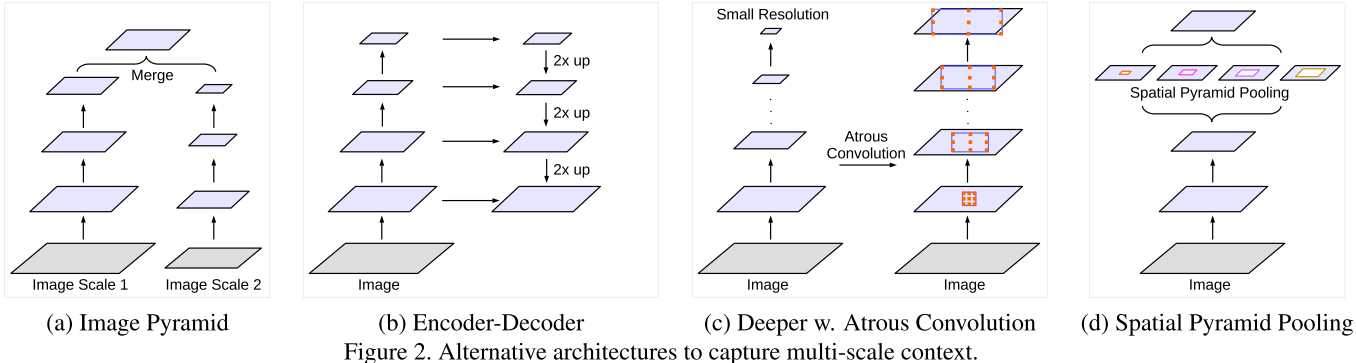

• 第二个挑战：多尺度物体的存在。几种方法已经被提出来处理这个问题，在本文中我们主要考虑了这些工作中的四种类型，如图1所示。

• 第一种：Image Pyramid，将输入图片放缩成不同比例，分别应用在DCNN上，将预测结果融合得到最终输出
• 第二种：Encoder-Decoder，将Encoder阶段的多尺度特征运用到Decoder阶段上来恢复空间分辨率
• 第三种：在原始模型的顶端叠加额外的模块，以捕捉像素间长距离信息。例如Dense CRF，或者叠加一些其他的卷积层
• 第四种：Spatial Pyramid Pooling空间金字塔池化，使用不同采样率和多种视野的卷积核，以捕捉多尺度对象

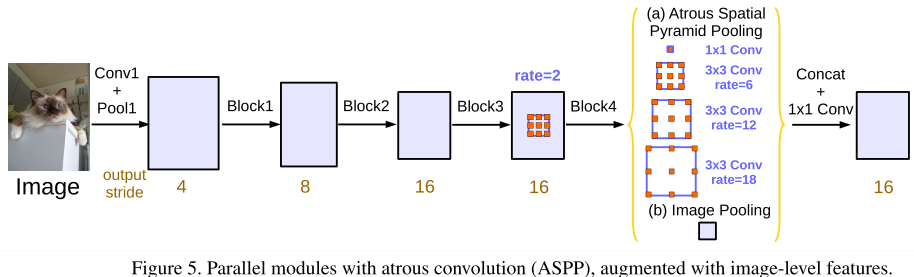

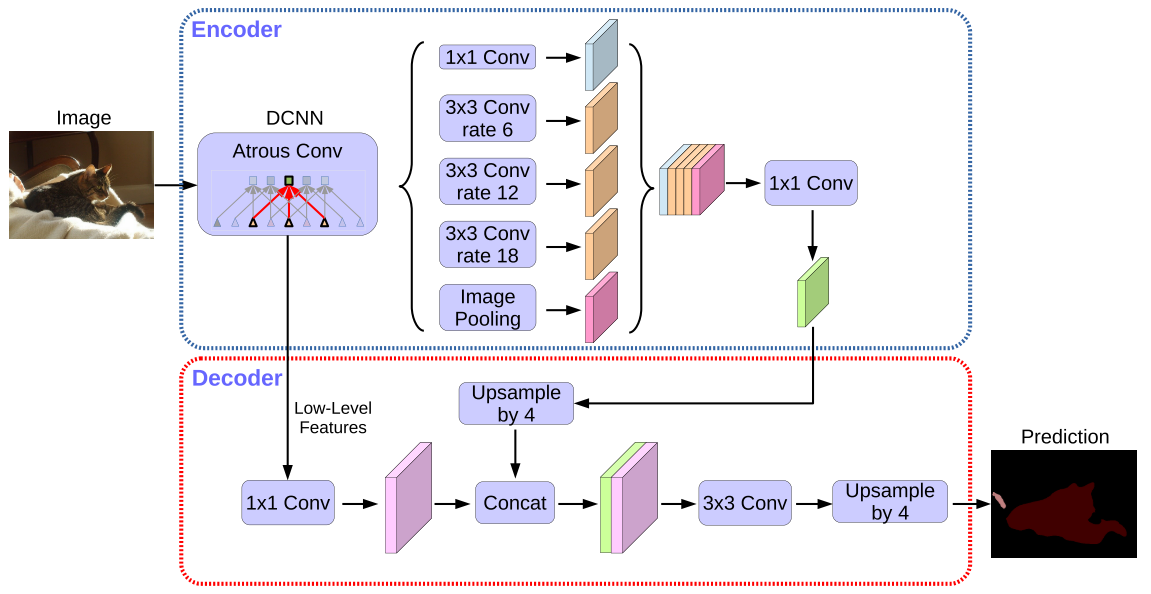

Deeplabv3+

Chen, L., Zhu, Y., Papandreou, G., Schroff, F., & Adam, H. (2018). Encoder-Decoder with Atrous Separable Convolution for Semantic Image Segmentation. ArXiv, abs/1802.02611.

1.创新点：

• 更深的Xception结构，不同的地方在于不修改entry flow network的结构，为了快速计算和有效的使用内存
• 所有的max pooling结构被stride=2的深度可分离卷积代替
• 每个3x3的depthwise convolution都跟BN和Relu
• 将改进后的Xception作为encodet主干网络，替换原本DeepLabv3的ResNet101

2. 动机：

语义分割主要面临两个问题：

• 物体的多尺度问题（DeepLabV3解决）
• DCNN的多次下采样会造成特征图分辨率变小，导致预测精度降低，边界信息丢失（DeepLabV3+解决目标）

3. 应对策略：

• 改进Xception，层数增加
• 将所有最大值池化层替换为带步长的深度可分离卷积层

Pytorch代码

copy

class DeepLabV3Decoder(nn.Sequential):
    def __init__(self, in_channels, out_channels=256, atrous_rates=(12, 24, 36)):
        super().__init__(
            ASPP(in_channels, out_channels, atrous_rates),
            nn.Conv2d(out_channels, out_channels, 3, padding=1, bias=False),
            nn.BatchNorm2d(out_channels),
            nn.ReLU(),
        )
        self.out_channels = out_channels

    def forward(self, *features):
        return super().forward(features[-1])


class DeepLabV3PlusDecoder(nn.Module):
    def __init__(
        self,
        encoder_channels,
        out_channels=256,
        atrous_rates=(12, 24, 36),
        output_stride=16,
    ):
        super().__init__()
        if output_stride not in {8, 16}:
            raise ValueError("Output stride should be 8 or 16, got {}.".format(output_stride))

        self.out_channels = out_channels
        self.output_stride = output_stride

        self.aspp = nn.Sequential(
            ASPP(encoder_channels[-1], out_channels, atrous_rates, separable=True),
            SeparableConv2d(out_channels, out_channels, kernel_size=3, padding=1, bias=False),
            nn.BatchNorm2d(out_channels),
            nn.ReLU(),
        )

        scale_factor = 2 if output_stride == 8 else 4
        self.up = nn.UpsamplingBilinear2d(scale_factor=scale_factor)

        highres_in_channels = encoder_channels[-4]
        highres_out_channels = 48   # proposed by authors of paper
        self.block1 = nn.Sequential(
            nn.Conv2d(highres_in_channels, highres_out_channels, kernel_size=1, bias=False),
            nn.BatchNorm2d(highres_out_channels),
            nn.ReLU(),
        )
        self.block2 = nn.Sequential(
            SeparableConv2d(
                highres_out_channels + out_channels,
                out_channels,
                kernel_size=3,
                padding=1,
                bias=False,
            ),
            nn.BatchNorm2d(out_channels),
            nn.ReLU(),
        )

    def forward(self, *features):
        aspp_features = self.aspp(features[-1])
        aspp_features = self.up(aspp_features)
        high_res_features = self.block1(features[-4])
        concat_features = torch.cat([aspp_features, high_res_features], dim=1)
        fused_features = self.block2(concat_features)
        return fused_features


class ASPPConv(nn.Sequential):
    def __init__(self, in_channels, out_channels, dilation):
        super().__init__(
            nn.Conv2d(
                in_channels,
                out_channels,
                kernel_size=3,
                padding=dilation,
                dilation=dilation,
                bias=False,
            ),
            nn.BatchNorm2d(out_channels),
            nn.ReLU(),
        )


class ASPPSeparableConv(nn.Sequential):
    def __init__(self, in_channels, out_channels, dilation):
        super().__init__(
            SeparableConv2d(
                in_channels,
                out_channels,
                kernel_size=3,
                padding=dilation,
                dilation=dilation,
                bias=False,
            ),
            nn.BatchNorm2d(out_channels),
            nn.ReLU(),
        )


class ASPPPooling(nn.Sequential):
    def __init__(self, in_channels, out_channels):
        super().__init__(
            nn.AdaptiveAvgPool2d(1),
            nn.Conv2d(in_channels, out_channels, kernel_size=1, bias=False),
            nn.BatchNorm2d(out_channels),
            nn.ReLU(),
        )

    def forward(self, x):
        size = x.shape[-2:]
        for mod in self:
            x = mod(x)
        return F.interpolate(x, size=size, mode='bilinear', align_corners=False)


class ASPP(nn.Module):
    def __init__(self, in_channels, out_channels, atrous_rates, separable=False):
        super(ASPP, self).__init__()
        modules = []
        modules.append(
            nn.Sequential(
                nn.Conv2d(in_channels, out_channels, 1, bias=False),
                nn.BatchNorm2d(out_channels),
                nn.ReLU(),
            )
        )

        rate1, rate2, rate3 = tuple(atrous_rates)
        ASPPConvModule = ASPPConv if not separable else ASPPSeparableConv

        modules.append(ASPPConvModule(in_channels, out_channels, rate1))
        modules.append(ASPPConvModule(in_channels, out_channels, rate2))
        modules.append(ASPPConvModule(in_channels, out_channels, rate3))
        modules.append(ASPPPooling(in_channels, out_channels))

        self.convs = nn.ModuleList(modules)

        self.project = nn.Sequential(
            nn.Conv2d(5 * out_channels, out_channels, kernel_size=1, bias=False),
            nn.BatchNorm2d(out_channels),
            nn.ReLU(),
            nn.Dropout(0.5),
        )

    def forward(self, x):
        res = []
        for conv in self.convs:
            res.append(conv(x))
        res = torch.cat(res, dim=1)
        return self.project(res)


class SeparableConv2d(nn.Sequential):

    def __init__(
            self,
            in_channels,
            out_channels,
            kernel_size,
            stride=1,
            padding=0,
            dilation=1,
            bias=True,
    ):
        dephtwise_conv = nn.Conv2d(
            in_channels,
            in_channels,
            kernel_size,
            stride=stride,
            padding=padding,
            dilation=dilation,
            groups=in_channels,
            bias=False,
        )
        pointwise_conv = nn.Conv2d(
            in_channels,
            out_channels,
            kernel_size=1,
            bias=bias,
        )
        super().__init__(dephtwise_conv, pointwise_conv)

Fpn

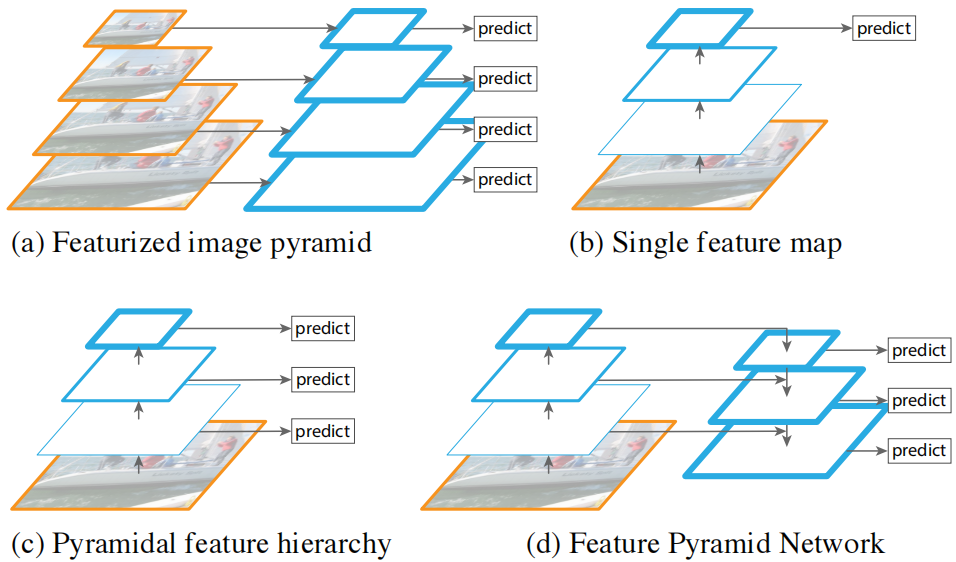

模型结构

Pytorch代码

copy
import torch
import torch.nn as nn
import torch.nn.functional as F


class Conv3x3GNReLU(nn.Module):
    def __init__(self, in_channels, out_channels, upsample=False):
        super().__init__()
        self.upsample = upsample
        self.block = nn.Sequential(
            nn.Conv2d(
                in_channels, out_channels, (3, 3), stride=1, padding=1, bias=False
            ),
            nn.GroupNorm(32, out_channels),
            nn.ReLU(inplace=True),
        )

    def forward(self, x):
        x = self.block(x)
        if self.upsample:
            x = F.interpolate(x, scale_factor=2, mode="bilinear", align_corners=True)
        return x


class FPNBlock(nn.Module):
    def __init__(self, pyramid_channels, skip_channels):
        super().__init__()
        self.skip_conv = nn.Conv2d(skip_channels, pyramid_channels, kernel_size=1)

    def forward(self, x, skip=None):
        x = F.interpolate(x, scale_factor=2, mode="nearest")
        skip = self.skip_conv(skip)
        x = x + skip
        return x


class SegmentationBlock(nn.Module):
    def __init__(self, in_channels, out_channels, n_upsamples=0):
        super().__init__()

        blocks = [Conv3x3GNReLU(in_channels, out_channels, upsample=bool(n_upsamples))]

        if n_upsamples > 1:
            for _ in range(1, n_upsamples):
                blocks.append(Conv3x3GNReLU(out_channels, out_channels, upsample=True))

        self.block = nn.Sequential(*blocks)

    def forward(self, x):
        return self.block(x)


class MergeBlock(nn.Module):
    def __init__(self, policy):
        super().__init__()
        if policy not in ["add", "cat"]:
            raise ValueError(
                "`merge_policy` must be one of: ['add', 'cat'], got {}".format(
                    policy
                )
            )
        self.policy = policy

    def forward(self, x):
        if self.policy == 'add':
            return sum(x)
        elif self.policy == 'cat':
            return torch.cat(x, dim=1)
        else:
            raise ValueError(
                "`merge_policy` must be one of: ['add', 'cat'], got {}".format(self.policy)
            )


class FPNDecoder(nn.Module):
    def __init__(
            self,
            encoder_channels,
            encoder_depth=5,
            pyramid_channels=256,
            segmentation_channels=128,
            dropout=0.2,
            merge_policy="add",
    ):
        super().__init__()

        self.out_channels = segmentation_channels if merge_policy == "add" else segmentation_channels * 4
        if encoder_depth < 3:
            raise ValueError("Encoder depth for FPN decoder cannot be less than 3, got {}.".format(encoder_depth))

        encoder_channels = encoder_channels[::-1]
        encoder_channels = encoder_channels[:encoder_depth + 1]

        self.p5 = nn.Conv2d(encoder_channels[0], pyramid_channels, kernel_size=1)
        self.p4 = FPNBlock(pyramid_channels, encoder_channels[1])
        self.p3 = FPNBlock(pyramid_channels, encoder_channels[2])
        self.p2 = FPNBlock(pyramid_channels, encoder_channels[3])

        self.seg_blocks = nn.ModuleList([
            SegmentationBlock(pyramid_channels, segmentation_channels, n_upsamples=n_upsamples)
            for n_upsamples in [3, 2, 1, 0]
        ])

        self.merge = MergeBlock(merge_policy)
        self.dropout = nn.Dropout2d(p=dropout, inplace=True)

    def forward(self, *features):
        c2, c3, c4, c5 = features[-4:]

        p5 = self.p5(c5)
        p4 = self.p4(p5, c4)
        p3 = self.p3(p4, c3)
        p2 = self.p2(p3, c2)

        feature_pyramid = [seg_block(p) for seg_block, p in zip(self.seg_blocks, [p5, p4, p3, p2])]
        x = self.merge(feature_pyramid)
        x = self.dropout(x)
        return x

Linknet

Chaurasia, A., & Culurciello, E. (2017). LinkNet: Exploiting encoder representations for efficient semantic segmentation. 2017 IEEE Visual Communications and Image Processing (VCIP), 1-4.

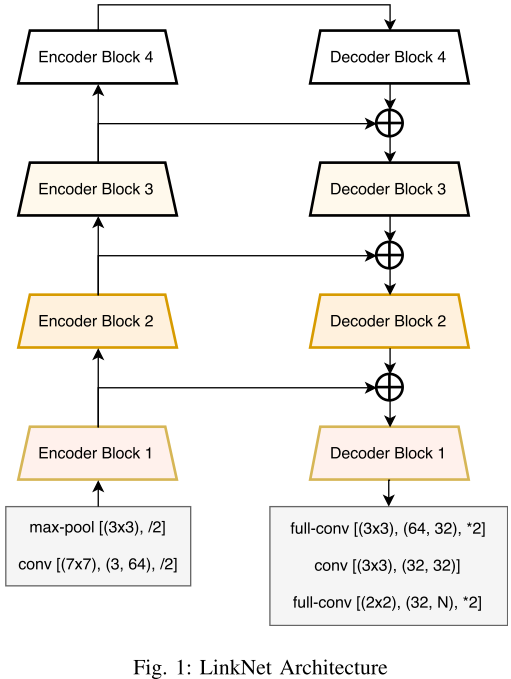

模型结构

Pytorch代码

copy
import torch.nn as nn

from ..base import modules


class TransposeX2(nn.Sequential):

    def __init__(self, in_channels, out_channels, use_batchnorm=True):
        super().__init__()
        layers = [
            nn.ConvTranspose2d(in_channels, out_channels, kernel_size=4, stride=2, padding=1),
            nn.ReLU(inplace=True)
        ]

        if use_batchnorm:
            layers.insert(1, nn.BatchNorm2d(out_channels))

        super().__init__(*layers)


class DecoderBlock(nn.Module):
    def __init__(self, in_channels, out_channels, use_batchnorm=True):
        super().__init__()

        self.block = nn.Sequential(
            modules.Conv2dReLU(in_channels, in_channels // 4, kernel_size=1, use_batchnorm=use_batchnorm),
            TransposeX2(in_channels // 4, in_channels // 4, use_batchnorm=use_batchnorm),
            modules.Conv2dReLU(in_channels // 4, out_channels, kernel_size=1, use_batchnorm=use_batchnorm),
        )

    def forward(self, x, skip=None):
        x = self.block(x)
        if skip is not None:
            x = x + skip
        return x


class LinknetDecoder(nn.Module):

    def __init__(
            self,
            encoder_channels,
            prefinal_channels=32,
            n_blocks=5,
            use_batchnorm=True,
    ):
        super().__init__()

        encoder_channels = encoder_channels[1:]  # remove first skip
        encoder_channels = encoder_channels[::-1]  # reverse channels to start from head of encoder

        channels = list(encoder_channels) + [prefinal_channels]

        self.blocks = nn.ModuleList([
            DecoderBlock(channels[i], channels[i + 1], use_batchnorm=use_batchnorm)
            for i in range(n_blocks)
        ])

    def forward(self, *features):
        features = features[1:]  # remove first skip
        features = features[::-1]  # reverse channels to start from head of encoder

        x = features[0]
        skips = features[1:]

        for i, decoder_block in enumerate(self.blocks):
            skip = skips[i] if i < len(skips) else None
            x = decoder_block(x, skip)

        return x

MAnet

Fan, T., Wang, G., Li, Y., & Wang, H. (2020). MA-Net: A Multi-Scale Attention Network for Liver and Tumor Segmentation. IEEE Access, 8, 179656-179665.

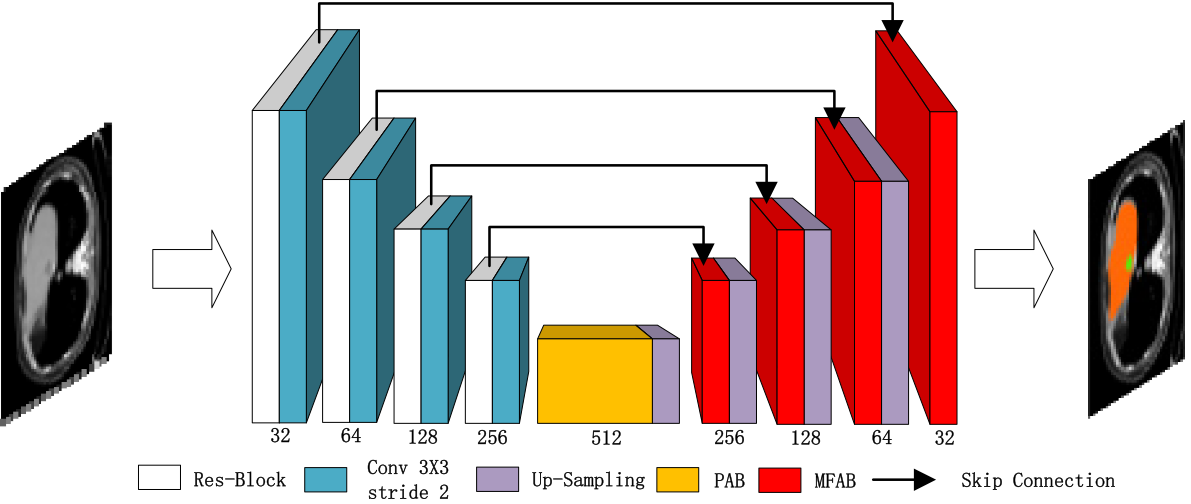

模型结构

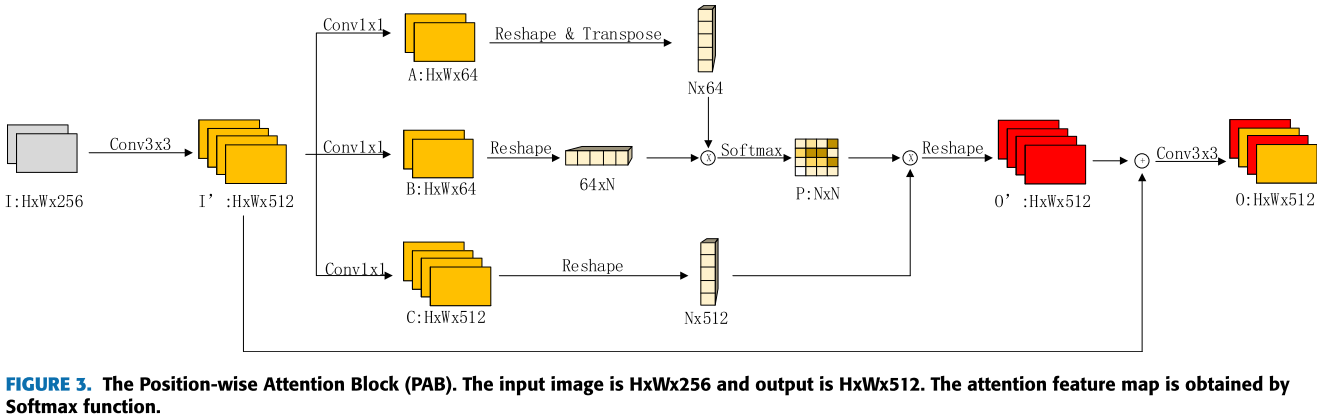

PAB Block

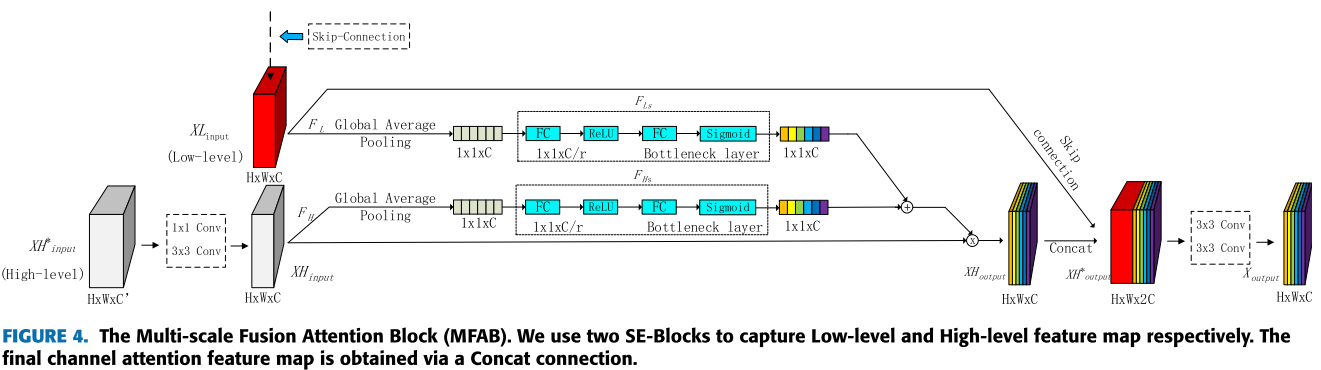

MFAB Block

Pytorch代码

copy
import torch
import torch.nn as nn
import torch.nn.functional as F
from ..base import modules as md


class PAB(nn.Module):
    def __init__(self, in_channels, out_channels, pab_channels=64):
        super(PAB, self).__init__()
        # Series of 1x1 conv to generate attention feature maps
        self.pab_channels = pab_channels
        self.in_channels = in_channels
        self.top_conv = nn.Conv2d(in_channels, pab_channels, kernel_size=1)
        self.center_conv = nn.Conv2d(in_channels, pab_channels, kernel_size=1)
        self.bottom_conv = nn.Conv2d(in_channels, in_channels, kernel_size=3, padding=1)
        self.map_softmax = nn.Softmax(dim=1)
        self.out_conv = nn.Conv2d(in_channels, in_channels, kernel_size=3, padding=1)

    def forward(self, x):
        bsize = x.size()[0]
        h = x.size()[2]
        w = x.size()[3]
        x_top = self.top_conv(x)
        x_center = self.center_conv(x)
        x_bottom = self.bottom_conv(x)

        x_top = x_top.flatten(2)
        x_center = x_center.flatten(2).transpose(1, 2)
        x_bottom = x_bottom.flatten(2).transpose(1, 2)

        sp_map = torch.matmul(x_center, x_top)
        sp_map = self.map_softmax(sp_map.view(bsize, -1)).view(bsize, h*w, h*w)
        sp_map = torch.matmul(sp_map, x_bottom)
        sp_map = sp_map.reshape(bsize, self.in_channels, h, w)
        x = x + sp_map
        x = self.out_conv(x)
        return x


class MFAB(nn.Module):
    def __init__(self, in_channels, skip_channels, out_channels, use_batchnorm=True, reduction=16):
        # MFAB is just a modified version of SE-blocks, one for skip, one for input
        super(MFAB, self).__init__()
        self.hl_conv = nn.Sequential(
            md.Conv2dReLU(
                in_channels,
                in_channels,
                kernel_size=3,
                padding=1,
                use_batchnorm=use_batchnorm,
            ),
            md.Conv2dReLU(
                in_channels,
                skip_channels,
                kernel_size=1,
                use_batchnorm=use_batchnorm,
            )
        )
        reduced_channels = max(1, skip_channels // reduction)
        self.SE_ll = nn.Sequential(
            nn.AdaptiveAvgPool2d(1),
            nn.Conv2d(skip_channels, reduced_channels, 1),
            nn.ReLU(inplace=True),
            nn.Conv2d(reduced_channels, skip_channels, 1),
            nn.Sigmoid(),
        )
        self.SE_hl = nn.Sequential(
            nn.AdaptiveAvgPool2d(1),
            nn.Conv2d(skip_channels, reduced_channels, 1),
            nn.ReLU(inplace=True),
            nn.Conv2d(reduced_channels, skip_channels, 1),
            nn.Sigmoid(),
        )
        self.conv1 = md.Conv2dReLU(
            skip_channels + skip_channels,  # we transform C-prime form high level to C from skip connection
            out_channels,
            kernel_size=3,
            padding=1,
            use_batchnorm=use_batchnorm,
        )
        self.conv2 = md.Conv2dReLU(
            out_channels,
            out_channels,
            kernel_size=3,
            padding=1,
            use_batchnorm=use_batchnorm,
        )

    def forward(self, x, skip=None):
        x = self.hl_conv(x)
        x = F.interpolate(x, scale_factor=2, mode="nearest")
        attention_hl = self.SE_hl(x)
        if skip is not None:
            attention_ll = self.SE_ll(skip)
            attention_hl = attention_hl + attention_ll
            x = x * attention_hl
            x = torch.cat([x, skip], dim=1)
        x = self.conv1(x)
        x = self.conv2(x)
        return x


class DecoderBlock(nn.Module):
    def __init__(
            self,
            in_channels,
            skip_channels,
            out_channels,
            use_batchnorm=True
    ):
        super().__init__()
        self.conv1 = md.Conv2dReLU(
            in_channels + skip_channels,
            out_channels,
            kernel_size=3,
            padding=1,
            use_batchnorm=use_batchnorm,
        )
        self.conv2 = md.Conv2dReLU(
            out_channels,
            out_channels,
            kernel_size=3,
            padding=1,
            use_batchnorm=use_batchnorm,
        )

    def forward(self, x, skip=None):
        x = F.interpolate(x, scale_factor=2, mode="nearest")
        if skip is not None:
            x = torch.cat([x, skip], dim=1)
        x = self.conv1(x)
        x = self.conv2(x)
        return x


class MAnetDecoder(nn.Module):
    def __init__(
            self,
            encoder_channels,
            decoder_channels,
            n_blocks=5,
            reduction=16,
            use_batchnorm=True,
            pab_channels=64
    ):
        super().__init__()

        if n_blocks != len(decoder_channels):
            raise ValueError(
                "Model depth is {}, but you provide `decoder_channels` for {} blocks.".format(
                    n_blocks, len(decoder_channels)
                )
            )

        encoder_channels = encoder_channels[1:]  # remove first skip with same spatial resolution
        encoder_channels = encoder_channels[::-1]  # reverse channels to start from head of encoder

        # computing blocks input and output channels
        head_channels = encoder_channels[0]
        in_channels = [head_channels] + list(decoder_channels[:-1])
        skip_channels = list(encoder_channels[1:]) + [0]
        out_channels = decoder_channels

        self.center = PAB(head_channels, head_channels, pab_channels=pab_channels)

        # combine decoder keyword arguments
        kwargs = dict(use_batchnorm=use_batchnorm)  # no attention type here
        blocks = [
            MFAB(in_ch, skip_ch, out_ch, reduction=reduction, **kwargs) if skip_ch > 0 else
            DecoderBlock(in_ch, skip_ch, out_ch, **kwargs)
            for in_ch, skip_ch, out_ch in zip(in_channels, skip_channels, out_channels)
        ]
        # for the last we dont have skip connection -> use simple decoder block
        self.blocks = nn.ModuleList(blocks)

    def forward(self, *features):
        # for fea in features:
        #     print(fea.shape)
        # exit()
        features = features[1:]    # remove first skip with same spatial resolution
        features = features[::-1]  # reverse channels to start from head of encoder

        head = features[0]
        skips = features[1:]

        x = self.center(head)
        print(x.shape)
        for i, decoder_block in enumerate(self.blocks):
            skip = skips[i] if i < len(skips) else None
            x = decoder_block(x, skip)
            print(x.shape)
        exit()
        return x

PAN

Li, H., Xiong, P., An, J., & Wang, L. (2018). Pyramid Attention Network for Semantic Segmentation. ArXiv, abs/1805.10180.

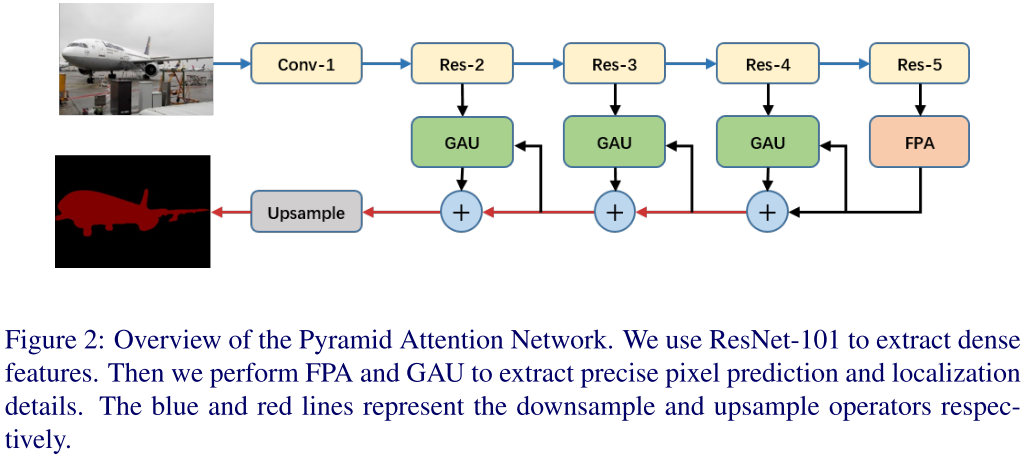

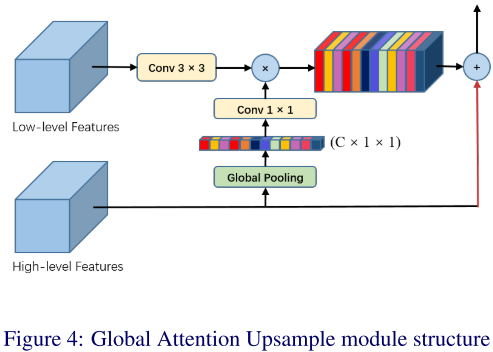

模型结构

Pytorch代码

copy
import torch
import torch.nn as nn
import torch.nn.functional as F


class ConvBnRelu(nn.Module):
    def __init__(
            self,
            in_channels: int,
            out_channels: int,
            kernel_size: int,
            stride: int = 1,
            padding: int = 0,
            dilation: int = 1,
            groups: int = 1,
            bias: bool = True,
            add_relu: bool = True,
            interpolate: bool = False
    ):
        super(ConvBnRelu, self).__init__()
        self.conv = nn.Conv2d(
            in_channels=in_channels, out_channels=out_channels, kernel_size=kernel_size,
            stride=stride, padding=padding, dilation=dilation, bias=bias, groups=groups
        )
        self.add_relu = add_relu
        self.interpolate = interpolate
        self.bn = nn.BatchNorm2d(out_channels)
        self.activation = nn.ReLU(inplace=True)

    def forward(self, x):
        x = self.conv(x)
        x = self.bn(x)
        if self.add_relu:
            x = self.activation(x)
        if self.interpolate:
            x = F.interpolate(x, scale_factor=2, mode='bilinear', align_corners=True)
        return x


class FPABlock(nn.Module):
    def __init__(
            self,
            in_channels,
            out_channels,
            upscale_mode='bilinear'
    ):
        super(FPABlock, self).__init__()

        self.upscale_mode = upscale_mode
        if self.upscale_mode == 'bilinear':
            self.align_corners = True
        else:
            self.align_corners = False

        # global pooling branch
        self.branch1 = nn.Sequential(
            nn.AdaptiveAvgPool2d(1),
            ConvBnRelu(in_channels=in_channels, out_channels=out_channels, kernel_size=1, stride=1, padding=0)
        )

        # midddle branch
        self.mid = nn.Sequential(
            ConvBnRelu(in_channels=in_channels, out_channels=out_channels, kernel_size=1, stride=1, padding=0)
        )
        self.down1 = nn.Sequential(
            nn.MaxPool2d(kernel_size=2, stride=2),
            ConvBnRelu(in_channels=in_channels, out_channels=1, kernel_size=7, stride=1, padding=3)
        )
        self.down2 = nn.Sequential(
            nn.MaxPool2d(kernel_size=2, stride=2),
            ConvBnRelu(in_channels=1, out_channels=1, kernel_size=5, stride=1, padding=2)
        )
        self.down3 = nn.Sequential(
            nn.MaxPool2d(kernel_size=2, stride=2),
            ConvBnRelu(in_channels=1, out_channels=1, kernel_size=3, stride=1, padding=1),
            ConvBnRelu(in_channels=1, out_channels=1, kernel_size=3, stride=1, padding=1),
        )
        self.conv2 = ConvBnRelu(in_channels=1, out_channels=1, kernel_size=5, stride=1, padding=2)
        self.conv1 = ConvBnRelu(in_channels=1, out_channels=1, kernel_size=7, stride=1, padding=3)

    def forward(self, x):
        h, w = x.size(2), x.size(3)
        b1 = self.branch1(x)
        upscale_parameters = dict(
            mode=self.upscale_mode,
            align_corners=self.align_corners
        )
        b1 = F.interpolate(b1, size=(h, w), **upscale_parameters)

        mid = self.mid(x)
        x1 = self.down1(x)
        x2 = self.down2(x1)
        x3 = self.down3(x2)
        x3 = F.interpolate(x3, size=(h // 4, w // 4), **upscale_parameters)

        x2 = self.conv2(x2)
        x = x2 + x3
        x = F.interpolate(x, size=(h // 2, w // 2), **upscale_parameters)

        x1 = self.conv1(x1)
        x = x + x1
        x = F.interpolate(x, size=(h, w), **upscale_parameters)

        x = torch.mul(x, mid)
        x = x + b1
        return x


class GAUBlock(nn.Module):
    def __init__(
            self,
            in_channels: int,
            out_channels: int,
            upscale_mode: str = 'bilinear'
    ):
        super(GAUBlock, self).__init__()

        self.upscale_mode = upscale_mode
        self.align_corners = True if upscale_mode == 'bilinear' else None

        self.conv1 = nn.Sequential(
            nn.AdaptiveAvgPool2d(1),
            ConvBnRelu(in_channels=out_channels, out_channels=out_channels, kernel_size=1, add_relu=False),
            nn.Sigmoid()
        )
        self.conv2 = ConvBnRelu(in_channels=in_channels, out_channels=out_channels, kernel_size=3, padding=1)

    def forward(self, x, y):
        """
        Args:
            x: low level feature
            y: high level feature
        """
        h, w = x.size(2), x.size(3)
        y_up = F.interpolate(
            y, size=(h, w), mode=self.upscale_mode, align_corners=self.align_corners
        )
        x = self.conv2(x)
        y = self.conv1(y)
        z = torch.mul(x, y)
        return y_up + z


class PANDecoder(nn.Module):

    def __init__(
            self,
            encoder_channels,
            decoder_channels,
            upscale_mode: str = 'bilinear'
    ):
        super().__init__()

        self.fpa = FPABlock(in_channels=encoder_channels[-1], out_channels=decoder_channels)
        self.gau3 = GAUBlock(in_channels=encoder_channels[-2], out_channels=decoder_channels, upscale_mode=upscale_mode)
        self.gau2 = GAUBlock(in_channels=encoder_channels[-3], out_channels=decoder_channels, upscale_mode=upscale_mode)
        self.gau1 = GAUBlock(in_channels=encoder_channels[-4], out_channels=decoder_channels, upscale_mode=upscale_mode)

    def forward(self, *features):
        bottleneck = features[-1]
        x5 = self.fpa(bottleneck)         # 1/32
        x4 = self.gau3(features[-2], x5)  # 1/16
        x3 = self.gau2(features[-3], x4)  # 1/8
        x2 = self.gau1(features[-4], x3)  # 1/4
        return x2

PSPnet

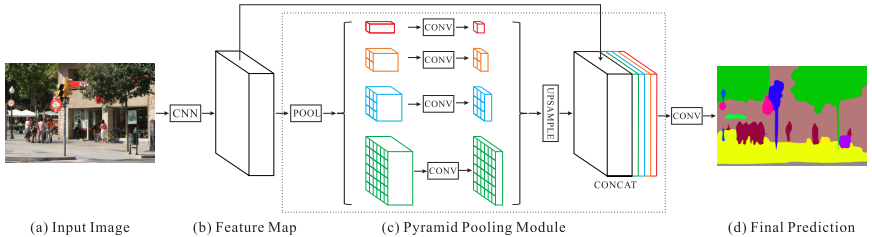

模型结构

Pytorch代码

copy
import torch
import torch.nn as nn
import torch.nn.functional as F

from ..base import modules


class PSPBlock(nn.Module):

    def __init__(self, in_channels, out_channels, pool_size, use_bathcnorm=True):
        super().__init__()
        if pool_size == 1:
            use_bathcnorm = False  # PyTorch does not support BatchNorm for 1x1 shape
        self.pool = nn.Sequential(
            nn.AdaptiveAvgPool2d(output_size=(pool_size, pool_size)),
            modules.Conv2dReLU(in_channels, out_channels, (1, 1), use_batchnorm=use_bathcnorm)
        )

    def forward(self, x):
        h, w = x.size(2), x.size(3)
        x = self.pool(x)
        x = F.interpolate(x, size=(h, w), mode='bilinear', align_corners=True)
        return x


class PSPModule(nn.Module):
    def __init__(self, in_channels, sizes=(1, 2, 3, 6), use_bathcnorm=True):
        super().__init__()

        self.blocks = nn.ModuleList([
            PSPBlock(in_channels, in_channels // len(sizes), size, use_bathcnorm=use_bathcnorm) for size in sizes
        ])

    def forward(self, x):
        xs = [block(x) for block in self.blocks] + [x]
        x = torch.cat(xs, dim=1)
        return x


class PSPDecoder(nn.Module):

    def __init__(
            self,
            encoder_channels,
            use_batchnorm=True,
            out_channels=512,
            dropout=0.2,
    ):
        super().__init__()

        self.psp = PSPModule(
            in_channels=encoder_channels[-1],
            sizes=(1, 2, 3, 6),
            use_bathcnorm=use_batchnorm,
        )

        self.conv = modules.Conv2dReLU(
            in_channels=encoder_channels[-1] * 2,
            out_channels=out_channels,
            kernel_size=1,
            use_batchnorm=use_batchnorm,
        )

        self.dropout = nn.Dropout2d(p=dropout)

    def forward(self, *features):
        x = features[-1]
        x = self.psp(x)
        x = self.conv(x)
        x = self.dropout(x)
        return x

U-net

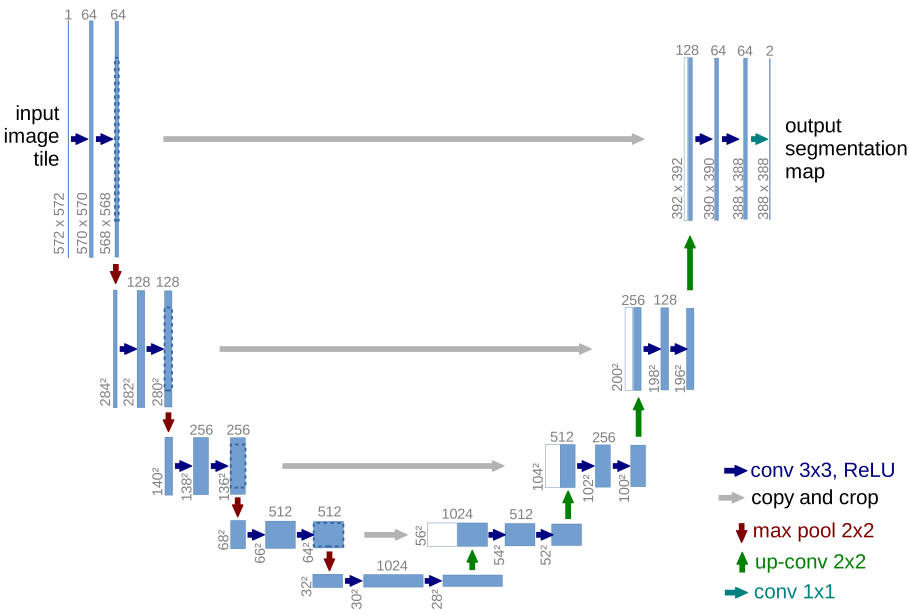

模型结构

Pytorch代码

copy
import torch
import torch.nn as nn
import torch.nn.functional as F

from ..base import modules as md


class DecoderBlock(nn.Module):
    def __init__(
            self,
            in_channels,
            skip_channels,
            out_channels,
            use_batchnorm=True,
            attention_type=None,
    ):
        super().__init__()
        self.conv1 = md.Conv2dReLU(
            in_channels + skip_channels,
            out_channels,
            kernel_size=3,
            padding=1,
            use_batchnorm=use_batchnorm,
        )
        self.attention1 = md.Attention(attention_type, in_channels=in_channels + skip_channels)
        self.conv2 = md.Conv2dReLU(
            out_channels,
            out_channels,
            kernel_size=3,
            padding=1,
            use_batchnorm=use_batchnorm,
        )
        self.attention2 = md.Attention(attention_type, in_channels=out_channels)

    def forward(self, x, skip=None):
        x = F.interpolate(x, scale_factor=2, mode="nearest")
        if skip is not None:
            x = torch.cat([x, skip], dim=1)
            x = self.attention1(x)
        x = self.conv1(x)
        x = self.conv2(x)
        x = self.attention2(x)
        return x


class CenterBlock(nn.Sequential):
    def __init__(self, in_channels, out_channels, use_batchnorm=True):
        conv1 = md.Conv2dReLU(
            in_channels,
            out_channels,
            kernel_size=3,
            padding=1,
            use_batchnorm=use_batchnorm,
        )
        conv2 = md.Conv2dReLU(
            out_channels,
            out_channels,
            kernel_size=3,
            padding=1,
            use_batchnorm=use_batchnorm,
        )
        super().__init__(conv1, conv2)


class UnetDecoder(nn.Module):
    def __init__(
            self,
            encoder_channels,
            decoder_channels,
            n_blocks=5,
            use_batchnorm=True,
            attention_type=None,
            center=False,
    ):
        super().__init__()

        if n_blocks != len(decoder_channels):
            raise ValueError(
                "Model depth is {}, but you provide `decoder_channels` for {} blocks.".format(
                    n_blocks, len(decoder_channels)
                )
            )

        encoder_channels = encoder_channels[1:]  # remove first skip with same spatial resolution
        encoder_channels = encoder_channels[::-1]  # reverse channels to start from head of encoder

        # computing blocks input and output channels
        head_channels = encoder_channels[0]
        in_channels = [head_channels] + list(decoder_channels[:-1])
        skip_channels = list(encoder_channels[1:]) + [0]
        out_channels = decoder_channels

        if center:
            self.center = CenterBlock(
                head_channels, head_channels, use_batchnorm=use_batchnorm
            )
        else:
            self.center = nn.Identity()

        # combine decoder keyword arguments
        kwargs = dict(use_batchnorm=use_batchnorm, attention_type=attention_type)
        blocks = [
            DecoderBlock(in_ch, skip_ch, out_ch, **kwargs)
            for in_ch, skip_ch, out_ch in zip(in_channels, skip_channels, out_channels)
        ]
        self.blocks = nn.ModuleList(blocks)

    def forward(self, *features):

        features = features[1:]    # remove first skip with same spatial resolution
        features = features[::-1]  # reverse channels to start from head of encoder

        head = features[0]
        skips = features[1:]

        x = self.center(head)
        for i, decoder_block in enumerate(self.blocks):
            skip = skips[i] if i < len(skips) else None
            x = decoder_block(x, skip)
        return x

Unet-plus-plus

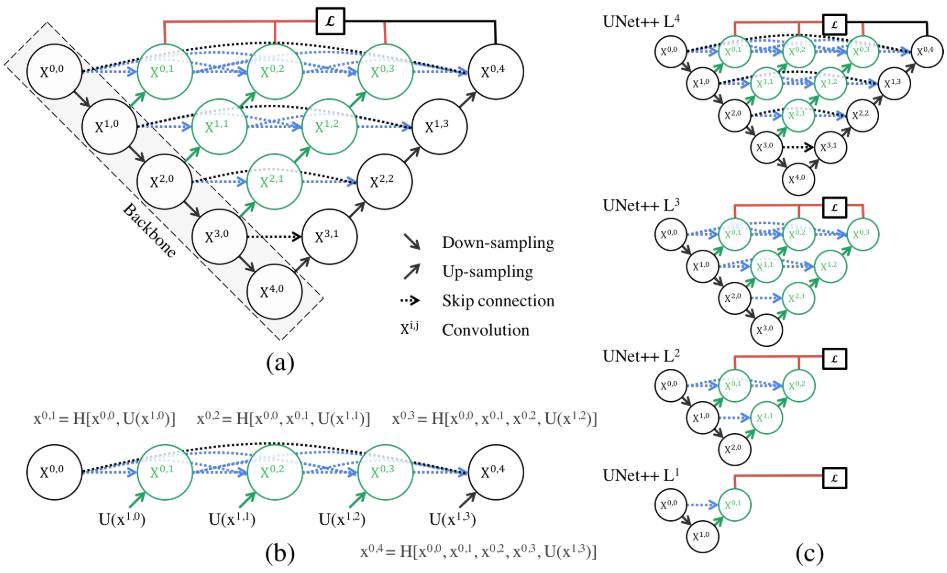

模型结构

Pytorch代码

copy
import torch
import torch.nn as nn
import torch.nn.functional as F

from ..base import modules as md


class DecoderBlock(nn.Module):
    def __init__(
            self,
            in_channels,
            skip_channels,
            out_channels,
            use_batchnorm=True,
            attention_type=None,
    ):
        super().__init__()
        self.conv1 = md.Conv2dReLU(
            in_channels + skip_channels,
            out_channels,
            kernel_size=3,
            padding=1,
            use_batchnorm=use_batchnorm,
        )
        self.attention1 = md.Attention(attention_type, in_channels=in_channels + skip_channels)
        self.conv2 = md.Conv2dReLU(
            out_channels,
            out_channels,
            kernel_size=3,
            padding=1,
            use_batchnorm=use_batchnorm,
        )
        self.attention2 = md.Attention(attention_type, in_channels=out_channels)

    def forward(self, x, skip=None):
        x = F.interpolate(x, scale_factor=2, mode="nearest")
        if skip is not None:
            x = torch.cat([x, skip], dim=1)
            x = self.attention1(x)
        x = self.conv1(x)
        x = self.conv2(x)
        x = self.attention2(x)
        return x


class CenterBlock(nn.Sequential):
    def __init__(self, in_channels, out_channels, use_batchnorm=True):
        conv1 = md.Conv2dReLU(
            in_channels,
            out_channels,
            kernel_size=3,
            padding=1,
            use_batchnorm=use_batchnorm,
        )
        conv2 = md.Conv2dReLU(
            out_channels,
            out_channels,
            kernel_size=3,
            padding=1,
            use_batchnorm=use_batchnorm,
        )
        super().__init__(conv1, conv2)


class UnetPlusPlusDecoder(nn.Module):
    def __init__(
            self,
            encoder_channels,
            decoder_channels,
            n_blocks=5,
            use_batchnorm=True,
            attention_type=None,
            center=False,
    ):
        super().__init__()

        if n_blocks != len(decoder_channels):
            raise ValueError(
                "Model depth is {}, but you provide `decoder_channels` for {} blocks.".format(
                    n_blocks, len(decoder_channels)
                )
            )

        encoder_channels = encoder_channels[1:]  # remove first skip with same spatial resolution
        encoder_channels = encoder_channels[::-1]  # reverse channels to start from head of encoder
        # computing blocks input and output channels
        head_channels = encoder_channels[0]
        self.in_channels = [head_channels] + list(decoder_channels[:-1])
        self.skip_channels = list(encoder_channels[1:]) + [0]
        self.out_channels = decoder_channels
        if center:
            self.center = CenterBlock(
                head_channels, head_channels, use_batchnorm=use_batchnorm
            )
        else:
            self.center = nn.Identity()

        # combine decoder keyword arguments
        kwargs = dict(use_batchnorm=use_batchnorm, attention_type=attention_type)

        blocks = {}
        for layer_idx in range(len(self.in_channels) - 1):
            for depth_idx in range(layer_idx+1):
                if depth_idx == 0:
                    in_ch = self.in_channels[layer_idx]
                    skip_ch = self.skip_channels[layer_idx] * (layer_idx+1)
                    out_ch = self.out_channels[layer_idx]
                else:
                    out_ch = self.skip_channels[layer_idx]
                    skip_ch = self.skip_channels[layer_idx] * (layer_idx+1-depth_idx)
                    in_ch = self.skip_channels[layer_idx - 1]
                blocks[f'x_{depth_idx}_{layer_idx}'] = DecoderBlock(in_ch, skip_ch, out_ch, **kwargs)
        blocks[f'x_{0}_{len(self.in_channels)-1}'] =\
            DecoderBlock(self.in_channels[-1], 0, self.out_channels[-1], **kwargs)
        self.blocks = nn.ModuleDict(blocks)
        self.depth = len(self.in_channels) - 1

    def forward(self, *features):

        features = features[1:]    # remove first skip with same spatial resolution
        features = features[::-1]  # reverse channels to start from head of encoder
        # start building dense connections
        dense_x = {}
        for layer_idx in range(len(self.in_channels)-1):
            for depth_idx in range(self.depth-layer_idx):
                if layer_idx == 0:
                    output = self.blocks[f'x_{depth_idx}_{depth_idx}'](features[depth_idx], features[depth_idx+1])
                    dense_x[f'x_{depth_idx}_{depth_idx}'] = output
                else:
                    dense_l_i = depth_idx + layer_idx
                    cat_features = [dense_x[f'x_{idx}_{dense_l_i}'] for idx in range(depth_idx+1, dense_l_i+1)]
                    cat_features = torch.cat(cat_features + [features[dense_l_i+1]], dim=1)
                    dense_x[f'x_{depth_idx}_{dense_l_i}'] =\
                        self.blocks[f'x_{depth_idx}_{dense_l_i}'](dense_x[f'x_{depth_idx}_{dense_l_i-1}'], cat_features)
        dense_x[f'x_{0}_{self.depth}'] = self.blocks[f'x_{0}_{self.depth}'](dense_x[f'x_{0}_{self.depth-1}'])
        return dense_x[f'x_{0}_{self.depth}']
