快速入门使用tikz绘制深度学习网络图
快速入门使用tikz绘制深度学习网络图🔪
本文主要介绍最最最基础的tikz命令和一些绘制CNN时需要的基础的LaTeX知识，希望能在尽可能短的时间内学会并实现使用tikz这个LaTeX工具包来绘制卷积神经网络示意图。
1. overleaf平台

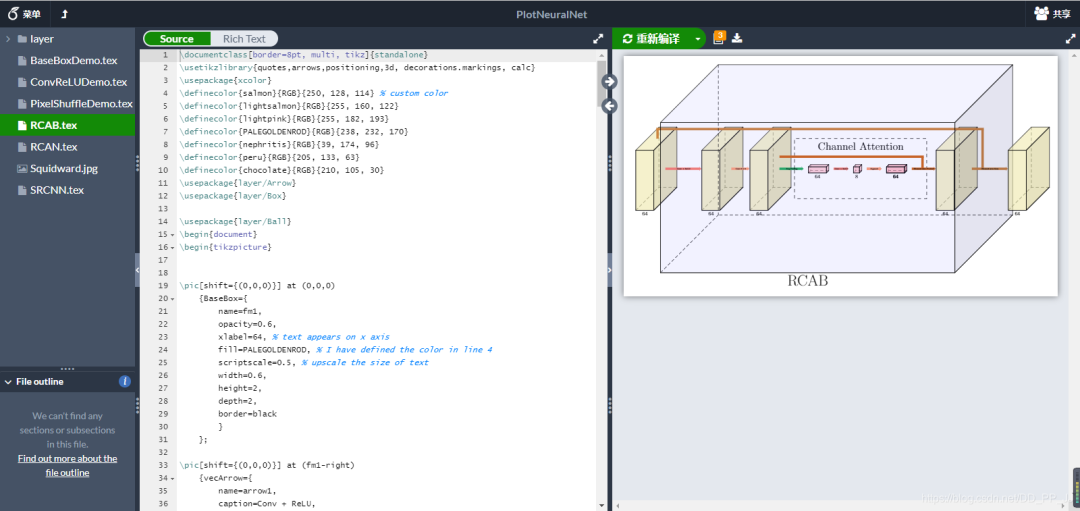

在电脑上安装过LaTeX都知道，LaTeX安装包巨大，并且安装速度缓慢，下载和安装的时间需要几乎一下午才能完成。庆幸的是有一个平台可以在线编译文档，那就是overleaf，如今overleaf也推出了中文版本网站：https://cn.overleaf.com/ 以下代码全部是在overleaf平台上编写运行得到的。
最左侧是项目文件列表，中间是代码编辑区，右侧是可视化区，十分方便，只要网络通常，就可以方便地得到结果。并且这个平台提供了好多模板，可以直接使用，太太太太太棒啦。
2. 快速入门tikz
快速熟悉还是要推荐《minimaltikz》这本电子书，可以直接访问http://cremeronline.com/LaTeX/minimaltikz.pdf获取或者在后台回复latex获取。
这本书一共24页，算是尽量压缩了内容了，在这一节中将分析一下其中给的几个例子，用于快速入门：
所有tikz绘制图像的代码都应该在tikzpicture这个环境中使用:
copy\begin{tikzpicture}
...
\end{tikzpicture}
\coordinate可以对某个点进行重命名如：
copy\coordinate (s) at (0,1);
2.1 直线
那最基础的画几条线的实现是通过\draw完成：
copy\begin{tikzpicture}
\draw[help lines] (0,0) grid(3,3);
\coordinate (a) at (0,1);
\coordinate (b) at (3,3);
\coordinate (c) at (2,0);
\draw (a) -- (b) -- (c) --cycle;
\end{tikzpicture}
--符号代表两点之间的连线，可以连续链接多段。cycle代表让路径回到起点，生成闭合路径。
\draw还可以添加选项，比如让线变粗、变红、箭头等需求，都很简单。

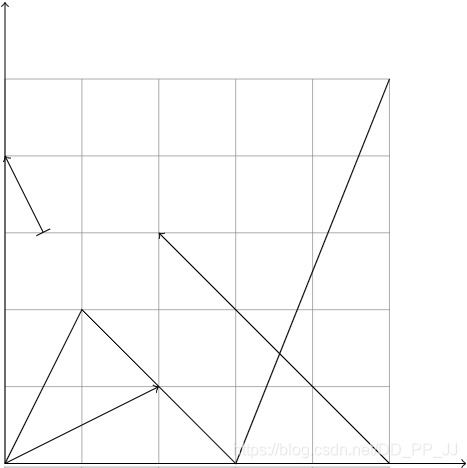

copy\begin{tikzpicture}[scale=1]
\draw[help lines] (0,0) grid(5,5);
\draw (0,0) -- (1,2)--(3,0) --(5,5);
\draw [->] (0,0) -- (2,1);
\draw [<-] (2,3) -- (5,0);
\draw [|->] (0.5,3) -- (0,4);
\draw [<->] (0,6) -- (0,0) -- (6,0);
\end{tikzpicture}

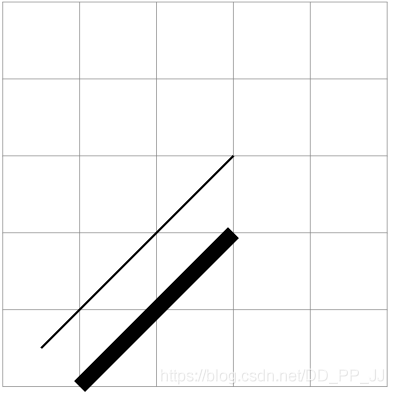

copy\begin{tikzpicture}
\draw[help lines] (0,0) grid(5,5);
\draw[thick] (0.5, 0.5) -- (3,3);
% [ultra thick, thick, thin, very thick]
\draw[line width=0.2cm] (1,0) -- (3,2);
\end{tikzpicture}
copy\begin{tikzpicture}
\draw[help lines] (0,0) grid(5,5);

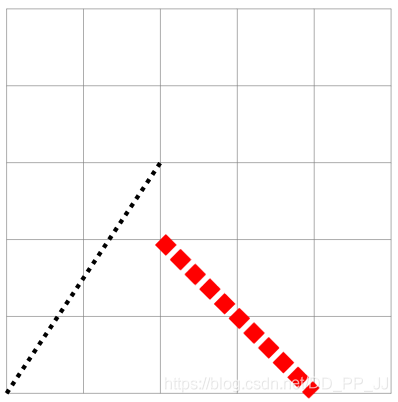

\draw[ultra thick, dotted] (0,0) -- (2,3);
\draw[line width=0.2cm, dotted,red] (2,2) -- (4,0);
%[red, blue, green, cyan, magenta, yellow, black, gray, darkgray, lightgray, browbn, lime, olive, orange, pink, purple, teal, violet, white]
\end{tikzpicture}
2.2 曲线
画一些曲线就需要使用circle、rectangle、arc等进行约束。

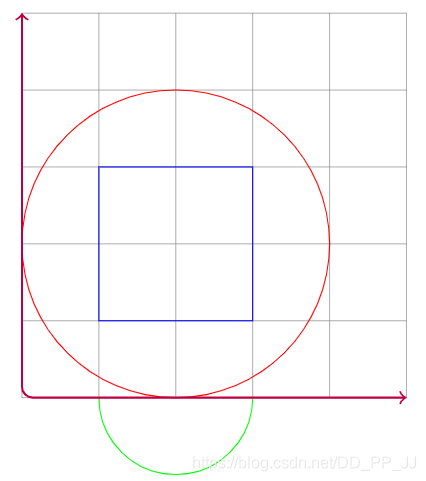

copy\begin{tikzpicture}
\draw[help lines] (0,0) grid(5,5);
\draw[blue] (1,1) rectangle(3,3); % 正方形 需要左下角坐标和右上角坐标
\draw[red] (2,2) circle[radius=2]; %圆形 需要圆心坐标和半径
\draw[green] (1,0) arc [radius=1,start angle=180,end angle=360];
\draw[<->, rounded corners, thick, purple] (0,5) -- (0,0) -- (5,0);
\end{tikzpicture}
2.3 填充

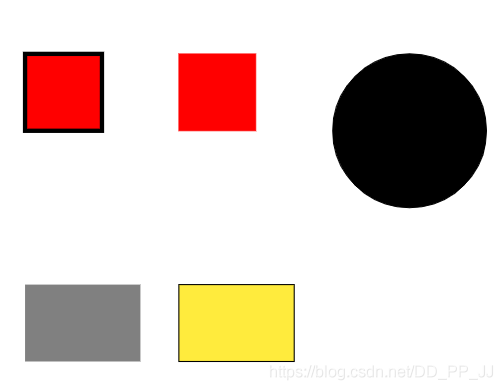

copy\begin{tikzpicture}
\draw[fill=red,ultra thick] (0,0) rectangle(1,1);
\draw[fill=red,ultra thin, red] (2,0) rectangle(3,1);
\draw[fill] (5,0) circle[radius=1];
\draw [fill=orange] (9,0) rectangle (11,1);
\draw [fill=white] (9.25,0.25) rectangle (10,1.5);
\path [fill=gray] (0,-2) rectangle (1.5,-3);
\draw [fill=yellow] (2,-2) rectangle (3.5,-3);
\end{tikzpicture}
2.4 添加文字
使用\node
copy\node [<options>] (<name>) at (<coordinate>) {<text>};
copy\begin{tikzpicture}[scale=2] \draw [thick, <->] (0,1) -- (0,0) -- (1,0); \draw[fill] (1,1) circle [radius=0.025]; \node [below right, red] at (.5,.75) {below right}; \node [above left, green] at (.5,.75) {above left}; \node [below left, purple] at (.5,.75) {below left}; \node [above right, magenta] at (.5,.75) {above right}; \end{tikzpicture}
3. 绘制一个CNN模块
对于一个初学者来说，https://github.com/HarisIqbal88/PlotNeuralNet 这个库虽然画的很好，但是难度曲线太高了，退而求其次，使用https://github.com/pprp/SimpleCVReproduction/tree/master/tikz_cnn 进行解析。首先介绍一个LaTeX中用于封装的命令，\newcommand，当我们不希望写很长的命令，那就需要类似函数的一个方式，封装好固定的操作，根据传入参数完成执行。
copy\newcommand<命令>[<参数个数>][<首参数默认值>]{<具体的定义>}
举一个例子：
copy\newcommand\loves[2]{#1 喜欢 #2}
\loves{我}{你}

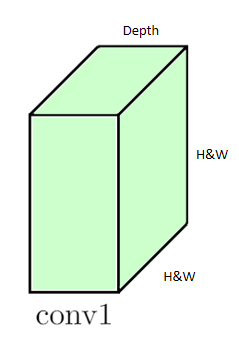

卷积神经网络的示意图实际上是一个个立方体构成的，立方体之间可能会有额外连线，代表特征融合；还可能需要题注，为这个特征图立方体进行命名；必须要有立方体的位置信息，长宽高；还需要颜色填充的功能；综合以上需求，这个函数提供了9个参数分别是：
- H&W 控制立方体右侧这一面的高度，默认为正方形。
- Depth 控制深度
- X 方向上的偏置
- Y方向上的偏置
- Z方向上的偏置
- 填充的颜色
- Text展示的文本，放在最下侧
- 坐标名称，通过命名便于#9访问
- 通过名称指定连接位置，用于连接前方层的时候使用
定义一个\newcommand
copy\newcommand{\networkLayer}[9]{
% Define the macro.
% 1st argument: Height and width of the layer rectangle slice.
% 2nd argument: Depth of the layer slice
% 3rd argument: X Offset --> use it to offset layers from previously drawn layers.
% 4th argument: Y Offset --> Use it when an output needs to be fed to multiple layers that are on the same X offset.
% 5th argument: Z Offset --> Use to offset layers from previous
% 6th argument: Options for filldraw.
% 7th argument: Text to be placed below this layer.
% 8th argument: Name of coordinates. When name = "start" this resets the offset counter
% 9th argument: list of nodes to connect to (previous layers)
% 全局变量
\xdef\totalOffset{\totalOffset}
\ifthenelse{\equal{#8} {start}}
{\FPset{totalOffset}{0}}
{}
\FPeval\currentOffset{0+(totalOffset)+(#3)}
\def\hw{#1} % Used to distinguish input resolution for current layer.
\def\b{0.02}
\def\c{#2} % Width of the cube to distinguish number of input channels for current layer.
\def\x{\currentOffset} % X offset for current layer.
\def\y{#4} % Y offset for current layer.
\def\z{#5} % Z offset for current layer.
\def\inText{#7}
% Define references to points on the cube surfaces
\coordinate (#8_front) at (\x+\c , \z , \y);
\coordinate (#8_back) at (\x , \z , \y);
\coordinate (#8_top) at (\x+\c/2, \z+\hw/2, \y);
\coordinate (#8_bottom) at (\x+\c/2, \z-\hw/2, \y);
% Define cube coords
\coordinate (blr) at (\c+\x, -\hw/2+\z, -\hw/2+\y); %back lower right
\coordinate (bur) at (\c+\x, \hw/2+\z, -\hw/2+\y); %back upper right
\coordinate (bul) at (0 +\x, \hw/2+\z, -\hw/2+\y); %back upper left
\coordinate (fll) at (0 +\x, -\hw/2+\z, \hw/2+\y); %front lower left
\coordinate (flr) at (\c+\x, -\hw/2+\z, \hw/2+\y); %front lower right
\coordinate (fur) at (\c+\x, \hw/2+\z, \hw/2+\y); %front upper right
\coordinate (ful) at (0 +\x, \hw/2+\z, \hw/2+\y); %front upper left
% Draw connections from other points to the back of this node
\ifthenelse{\equal{#9} {}}
{} % 为空什么都不做
{ % 非空 开始画层与层之间的连线
\foreach \val in #9
% \val = start_front
\draw[line width=0.3mm] (\val)--(#8_back);
}
% Draw the layer body.
% back plane
\draw[line width=0.3mm](blr) -- (bur) -- (bul);
% front plane
\draw[line width=0.3mm](fll) -- (flr) node[midway,below] {\inText} -- (fur) -- (ful) -- (fll);
\draw[line width=0.3mm](blr) -- (flr);
\draw[line width=0.3mm](bur) -- (fur);
\draw[line width=0.3mm](bul) -- (ful);
% Recolor visible surfaces
% front plane
\filldraw[#6] ($(fll)+(\b,\b,0)$) -- ($(flr)+(-\b,\b,0)$) -- ($(fur)+(-\b,-\b,0)$) -- ($(ful)+(\b,-\b,0)$) -- ($(fll)+(\b,\b,0)$);
\filldraw[#6] ($(ful)+(\b,0,-\b)$) -- ($(fur)+(-\b,0,-\b)$) -- ($(bur)+(-\b,0,\b)$) -- ($(bul)+(\b,0,\b)$);
% Colored slice.
\ifthenelse {\equal{#6} {}}
{} % Do not draw colored slice if #6 is blank.
% Else, draw a colored slice.
{\filldraw[#6] ($(flr)+(0,\b,-\b)$) -- ($(blr)+(0,\b,\b)$) -- ($(bur)+(0,-\b,\b)$) -- ($(fur)+(0,-\b,-\b)$);}
\FPeval\totalOffset{0+(currentOffset)+\c}
\draw[ultra thick, red] (#8_back) circle[radius=0.02];
\node[left] at (#8_back) {back};
\draw[ultra thick, red] (#8_top) circle[radius=0.02];
\node[above] at (#8_top) {top};
\draw[ultra thick, red] (#8_bottom) circle[radius=0.02];
\node[below] at (#8_bottom) {bottom};
\draw[ultra thick, red] (#8_front) circle[radius=0.02];
\node[left] at (#8_front) {front};
}

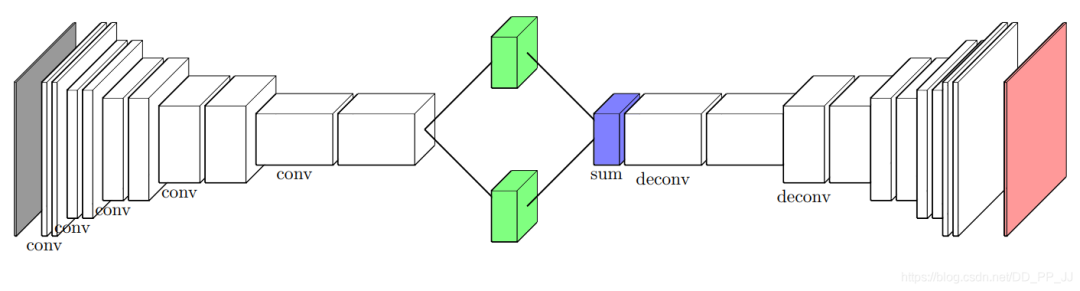

上边的图是通过以下代码生成的：
copy\begin{tikzpicture}
% INPUT
\networkLayer{3.0}{0.03}{0.0}{0.0}{0.0}{color=gray!80}{}{start}{}
% ENCODER
\networkLayer{3.0}{0.1}{0.5}{0.0}{0.0}{color=white}{conv}{}{} % S1
\networkLayer{3.0}{0.1}{0.1}{0.0}{0.0}{color=white}{}{}{} % S2
\networkLayer{2.5}{0.2}{0.1}{0.0}{0.0}{color=white}{conv}{}{} % S1
\networkLayer{2.5}{0.2}{0.1}{0.0}{0.0}{color=white}{}{}{} % S2
\networkLayer{2.0}{0.4}{0.1}{0.0}{0.0}{color=white}{conv}{}{} % S1
\networkLayer{2.0}{0.4}{0.1}{0.0}{0.0}{color=white}{}{}{} % S2
\networkLayer{1.5}{0.8}{0.1}{0.0}{0.0}{color=white}{conv}{}{} % S1
\networkLayer{1.5}{0.8}{0.1}{0.0}{0.0}{color=white}{}{}{} % S2
\networkLayer{1.0}{1.5}{0.1}{0.0}{0.0}{color=white}{conv}{}{} % S1
\networkLayer{1.0}{1.5}{0.1}{0.0}{0.0}{color=white}{}{mid}{} % S2
\networkLayer{1.0}{0.5}{1.5}{0.0}{-1.5}{color=green!50}{}{bot}{{mid_front}}
\networkLayer{1.0}{0.5}{-0.5}{0.0}{1.5}{color=green!50}{}{top}{{mid_front}}
\networkLayer{1.0}{0.5}{1.5}{0.0}{0.0}{color=blue!50}{sum}{}{{bot_front,top_front}}
% DECODER
\networkLayer{1.0}{1.5}{0.1}{0.0}{0.0}{color=white}{deconv}{}{} % S1
\networkLayer{1.0}{1.5}{0.1}{0.0}{0.0}{color=white}{}{}{} % S2
\networkLayer{1.5}{0.8}{0.1}{0.0}{0.0}{color=white}{deconv}{}{} % S1
\networkLayer{1.5}{0.8}{0.1}{0.0}{0.0}{color=white}{}{}{} % S2
\networkLayer{2.0}{0.4}{0.1}{0.0}{0.0}{color=white}{}{}{} % S1
\networkLayer{2.0}{0.4}{0.1}{0.0}{0.0}{color=white}{}{}{} % S2
\networkLayer{2.5}{0.2}{0.1}{0.0}{0.0}{color=white}{}{}{} % S1
\networkLayer{2.5}{0.2}{0.1}{0.0}{0.0}{color=white}{}{}{} % S2
\networkLayer{3.0}{0.1}{0.1}{0.0}{0.0}{color=white}{}{}{} % S1
\networkLayer{3.0}{0.1}{0.1}{0.0}{0.0}{color=white}{}{}{} % S2
% OUTPUT
\networkLayer{3.0}{0.05}{0.9}{0.0}{0.0}{color=red!40}{}{}{} % Pixelwise segmentation with classes.
\end{tikzpicture}
