本文是跑yolov8前的数据集配置记录

注意：

1. 图片命名不要包含中文,不带空格
2. 后缀统一为.jpg/.png
3. 标注文件（Annotations）有对应的原图

1.将xml格式数据转换为txt格式

提前在VCOdevkit文件夹下建立一个名为txt的文件夹

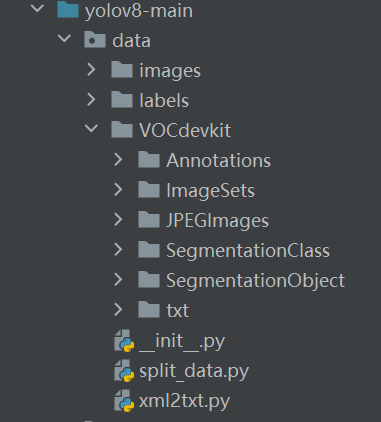

先放一个完整目录结构：

• xml2txt脚本

import xml.etree.ElementTree as ET
import os, cv2
import numpy as np
from os import listdir
from os.path import join

classes = []

def convert(size, box):
    dw = 1. / (size[0])
    dh = 1. / (size[1])
    x = (box[0] + box[1]) / 2.0 - 1
    y = (box[2] + box[3]) / 2.0 - 1
    w = box[1] - box[0]
    h = box[3] - box[2]
    x = x * dw
    w = w * dw
    y = y * dh
    h = h * dh
    return (x, y, w, h)


def convert_annotation(xmlpath, xmlname):
    with open(xmlpath, "r", encoding='utf-8') as in_file:
        txtname = xmlname[:-4] + '.txt'
        txtfile = os.path.join(txtpath, txtname)
        tree = ET.parse(in_file)
        root = tree.getroot()
        filename = root.find('filename')
        img = cv2.imdecode(np.fromfile('{}/{}.{}'.format(imgpath, xmlname[:-4], postfix), np.uint8), cv2.IMREAD_COLOR)
        h, w = img.shape[:2]
        res = []
        for obj in root.iter('object'):
            cls = obj.find('name').text
            if cls not in classes:
                classes.append(cls)
            cls_id = classes.index(cls)
            xmlbox = obj.find('bndbox')
            b = (float(xmlbox.find('xmin').text), float(xmlbox.find('xmax').text), float(xmlbox.find('ymin').text),
                 float(xmlbox.find('ymax').text))
            bb = convert((w, h), b)
            res.append(str(cls_id) + " " + " ".join([str(a) for a in bb]))
        if len(res) != 0:
            with open(txtfile, 'w+') as f:
                f.write('\n'.join(res))


if __name__ == "__main__":
    postfix = 'jpg'
    imgpath = 'VOCdevkit/JPEGImages'
    xmlpath = 'VOCdevkit/Annotations'
    txtpath = 'VOCdevkit/txt'

    if not os.path.exists(txtpath):
        os.makedirs(txtpath, exist_ok=True)

    list = os.listdir(xmlpath)
    error_file_list = []
    for i in range(0, len(list)):
        try:
            path = os.path.join(xmlpath, list[i])
            if ('.xml' in path) or ('.XML' in path):
                convert_annotation(path, list[i])
                print(f'file {list[i]} convert success.')
            else:
                print(f'file {list[i]} is not xml format.')
        except Exception as e:
            print(f'file {list[i]} convert error.')
            print(f'error message:\n{e}')
            error_file_list.append(list[i])
    print(f'this file convert failure\n{error_file_list}')
    print(f'Dataset Classes:{classes}')

2.划分数据集

执行split_data.py文件

import os, shutil, random
random.seed(0)
import numpy as np
from sklearn.model_selection import train_test_split

val_size = 0.1
test_size = 0.2
postfix = 'jpg'
imgpath = 'VOCdevkit/JPEGImages'
txtpath = 'VOCdevkit/txt'

os.makedirs('images/train', exist_ok=True)
os.makedirs('images/val', exist_ok=True)
os.makedirs('images/test', exist_ok=True)
os.makedirs('labels/train', exist_ok=True)
os.makedirs('labels/val', exist_ok=True)
os.makedirs('labels/test', exist_ok=True)

listdir = np.array([i for i in os.listdir(txtpath) if 'txt' in i])
random.shuffle(listdir)
train, val, test = listdir[:int(len(listdir) * (1 - val_size - test_size))], listdir[int(len(listdir) * (1 - val_size - test_size)):int(len(listdir) * (1 - test_size))], listdir[int(len(listdir) * (1 - test_size)):]
print(f'train set size:{len(train)} val set size:{len(val)} test set size:{len(test)}')

for i in train:
    shutil.copy('{}/{}.{}'.format(imgpath, i[:-4], postfix), 'images/train/{}.{}'.format(i[:-4], postfix))
    shutil.copy('{}/{}'.format(txtpath, i), 'labels/train/{}'.format(i))

for i in val:
    shutil.copy('{}/{}.{}'.format(imgpath, i[:-4], postfix), 'images/val/{}.{}'.format(i[:-4], postfix))
    shutil.copy('{}/{}'.format(txtpath, i), 'labels/val/{}'.format(i))

for i in test:
    shutil.copy('{}/{}.{}'.format(imgpath, i[:-4], postfix), 'images/test/{}.{}'.format(i[:-4], postfix))
    shutil.copy('{}/{}'.format(txtpath, i), 'labels/test/{}'.format(i))

3.配置路径

在dataset文件夹下的data.yaml中完成下面几项内容

train: C:\Users\***\yolov8-main\data\images\train
val: C:\Users\***\yolov8-main\data\images\val
test: C:\Users\***\yolov8-main\data\images\test

# number of classes
nc: 20

# class names

names :['aeroplane','bicycle','bird','boat','bottle','bus','car','cat','chair','cow','diningtable','dog','horse','motorbike','person','pottedplant','sheep','sofa','train','tvmonitor']

4.使用

在指定参数时，只需要指定data.yaml文件即可

parser.add_argument('--data', type=str, default='yolov8-main/data/data.yaml', help='data yaml path')
