OpenCV-Python Feature2D 特征点检测(含ORB/KAZE/FAST/BRISK/AKAZE)

代码在git
link

Open3.x-Python 特征点检测方法

• 对于OpenCV3.x-Python，特征点检测及显示方法如下：

• 下面就重点介绍OpenCV3.x-Python中的各种特征点检测方法的使用示例。

• 测试图像为标准的lena.png

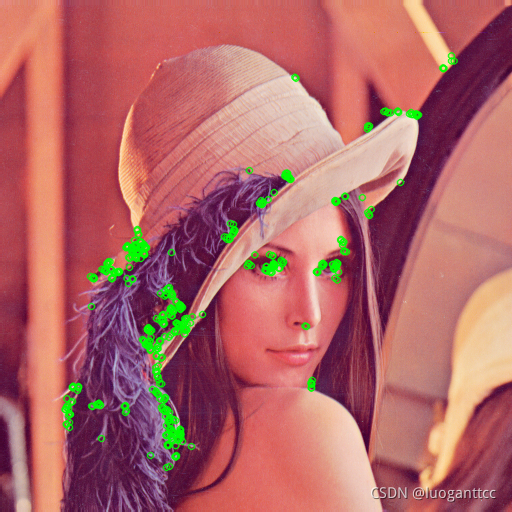

  AKAZE Feature Detection

#!/usr/bin/env python
# -*- coding=utf-8 -*-
# Summary: 使用OpenCV3.x-Python检测AKAZE特征点
# Author:  Amusi
# Date:    2018-03-17
# Reference: https://docs.opencv.org/master/d8/d30/classcv_1_1AKAZE.html

import cv2
import numpy

def main():

	img = cv2.imread("lena.png")
	cv2.imshow('Input Image', img)
	cv2.waitKey(0)

	# 检测
	akaze = cv2.AKAZE_create()
	keypoints = akaze.detect(img, None)

	# 显示
	# 必须要先初始化img2
	img2 = img.copy()
	img2 = cv2.drawKeypoints(img, keypoints, img2, color=(0,255,0))
	cv2.imshow('Detected AKAZE keypoints', img2)
	cv2.waitKey(0)

if __name__ == '__main__':
	main()

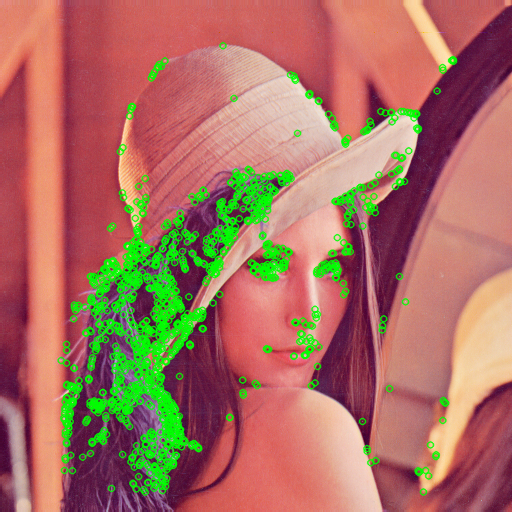

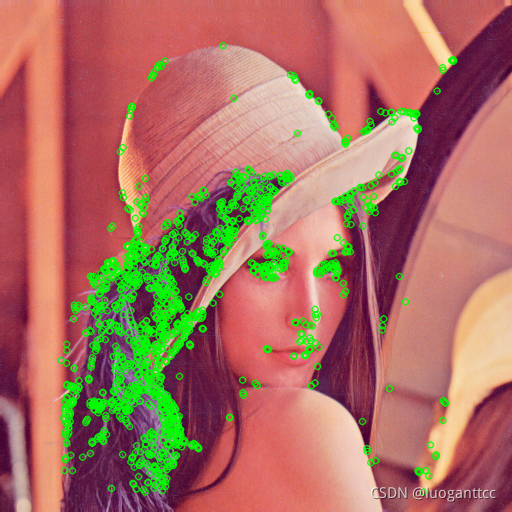

BRISK Feature Detection

import cv2
import numpy

def main():
	img = cv2.imread("lena.png")
	cv2.imshow('Input Image', img)
	cv2.waitKey(0)


	brisk = cv2.BRISK_create()
	keypoints = brisk.detect(img, None)

	# 必须要先初始化img2
	img2 = img.copy()
	img2 = cv2.drawKeypoints(img, keypoints, img2, color=(0,255,0))
	cv2.imwrite('bk.png', img2)
	cv2.imshow('Detected BRISK keypoints', img2)
	cv2.waitKey(0)

if __name__ == '__main__':
	main()

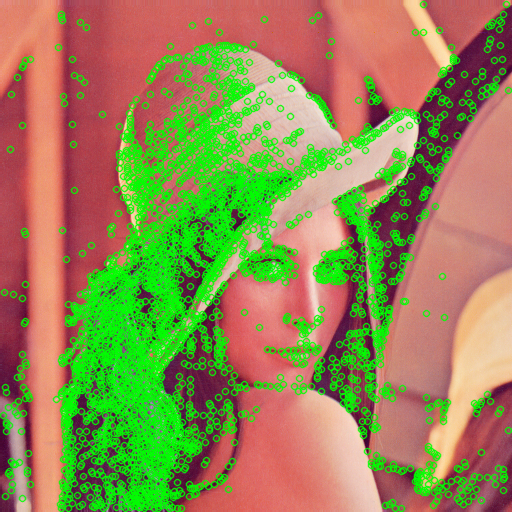

Fast Feature Detection

#!/usr/bin/env python3
# -*- coding: utf-8 -*-
"""
Created on Wed Nov 24 14:08:30 2021

@author: ledi
"""

#!/usr/bin/env python
# -*- coding=utf-8 -*-
# Summary: 使用OpenCV3.x-Python检测FAST特征点
# Author:  Amusi
# Date:    2018-03-17
# Reference: https://docs.opencv.org/master/df/d74/classcv_1_1FastFeatureDetector.html

import cv2
import numpy

def main():

	img = cv2.imread("lena.png")
	cv2.imshow('Input Image', img)
	cv2.waitKey(0)

	# 2018-03-17 Amusi: OpenCV3.x FeatureDetector写法有变化
	# OpenCV2.x
	# fast = cv2.FastFeatureDetector()
	# keypoints = fast.detect(img, None)

	# OpenCV3.x
	# 注意有_create()后缀
	fast = cv2.FastFeatureDetector_create()
	keypoints = fast.detect(img, None)

	# 必须要先初始化img2
	img2 = img.copy()
	img2 = cv2.drawKeypoints(img, keypoints, img2, color=(0,255,0))
	cv2.imwrite('bk.png', img2)
	cv2.imshow('Detected FAST keypoints', img2)
	cv2.waitKey(0)

if __name__ == '__main__':
	main()

KAZE Feature Detection

#!/usr/bin/env python3
# -*- coding: utf-8 -*-
"""
Created on Wed Nov 24 14:15:45 2021

@author: ledi
"""

#!/usr/bin/env python
# -*- coding=utf-8 -*-
# Summary: 使用OpenCV3.x-Python检测KAZE特征点
# Author:  Amusi
# Date:    2018-03-17
# Reference: https://docs.opencv.org/master/d3/d61/classcv_1_1KAZE.html

import cv2
import numpy

def main():

	img = cv2.imread("lena.png")
	cv2.imshow('Input Image', img)
	cv2.waitKey(0)

	# 检测
	kaze = cv2.KAZE_create()
	keypoints = kaze.detect(img, None)

	# 显示
	# 必须要先初始化img2
	img2 = img.copy()
	img2 = cv2.drawKeypoints(img, keypoints, img2, color=(0,255,0))
	cv2.imwrite('kaze.png', img2)
	cv2.imshow('Detected KAZE keypoints', img2)
	cv2.waitKey(0)

if __name__ == '__main__':
	main()

ORB Feature Detection

#!/usr/bin/env python
# -*- coding=utf-8 -*-
# Summary: 使用OpenCV3.x-Python检测ORB特征点
# Author:  Amusi
# Date:    2018-03-17
# Reference: https://docs.opencv.org/master/db/d95/classcv_1_1ORB.html


import cv2
import numpy


def main():


	img = cv2.imread("lena.png")
	cv2.imshow('Input Image', img)
	cv2.waitKey(0)

	# 检测
	orb = cv2.ORB_create()
	keypoints = orb.detect(img, None)

	# 显示
	# 必须要先初始化img2
	img2 = img.copy()
	img2 = cv2.drawKeypoints(img, keypoints, img2, color=(0,255,0))
	cv2.imwrite('orb.png', img2)
	cv2.imshow('Detected ORB keypoints', img2)
	cv2.waitKey(0)

if __name__ == '__main__':
	main()
