jvisualSM配置jmx服务

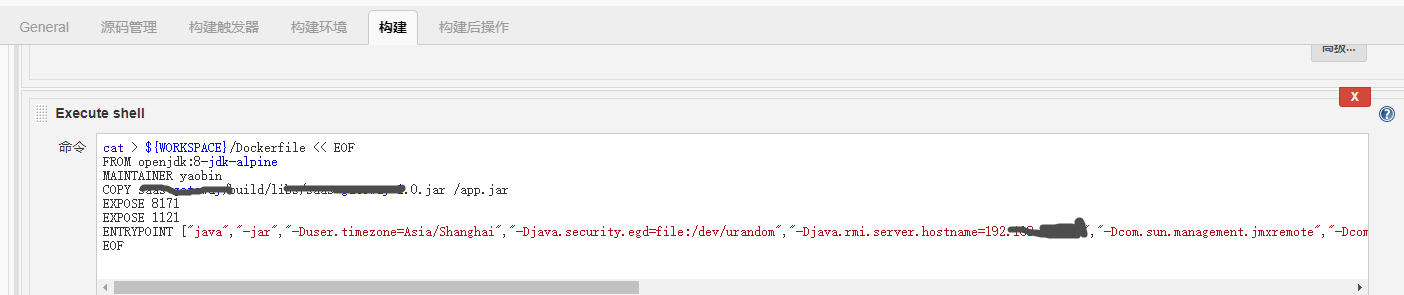

1.修改Jenkins中对应服务的配置：







将对应的参数按以下内容修改，主要目的是开放一个端口1121

FROM openjdk:8-jdk-alpine
MAINTAINER yaobin
COPY build/libs/content-production-1.0.0-SNAPSHOT.jar /app.jar
EXPOSE 8089
EXPOSE 1199
#ENTRYPOINT ["java","-jar","-Duser.timezone=Asia/Shanghai","-Djava.security.egd=file:/dev/urandom","-Dcontent-production-1.0.0-SNAPSHOT","-Dspring.profiles.active=test","/app.jar","-c"]
ENTRYPOINT ["java","-jar","-Duser.timezone=Asia/Shanghai","-Djava.security.egd=file:/dev/urandom","-Djava.rmi.server.hostname=192.168.32.177","-Dcom.sun.management.jmxremote","-Dcom.sun.management.jmxremote.rmi.port=1199","-Dcom.sun.management.jmxremote.port=1199","-Dcom.sun.management.jmxremote.authenticate=false","-Dcom.sun.management.jmxremote.ssl=false","-Dcontent-production-1.0.0-SNAPSHOT","-Dspring.profiles.active=test","/app.jar","-c"]

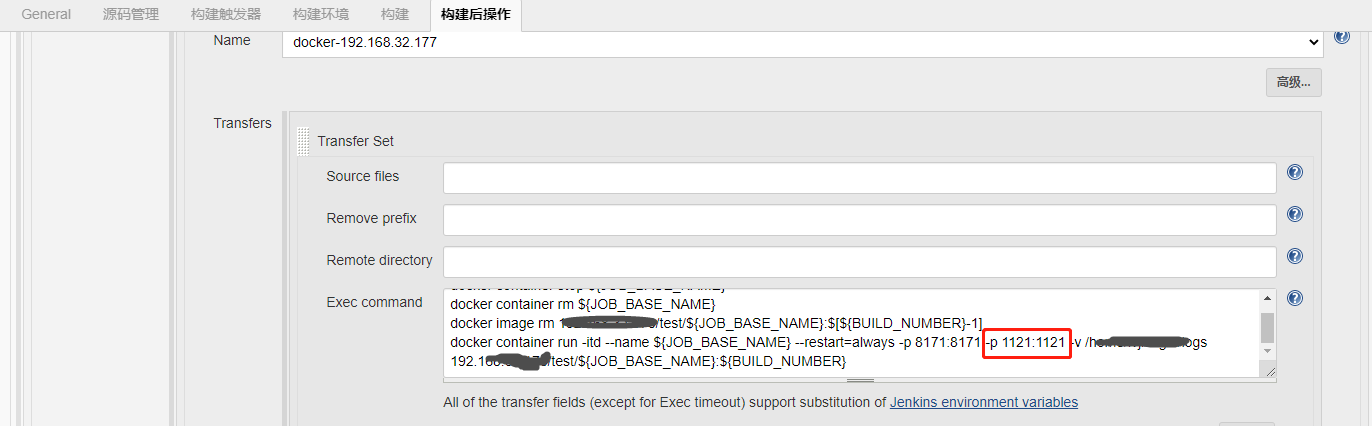

还要修改此处：





2.然后重新构建，成功后添加jmx连接:
